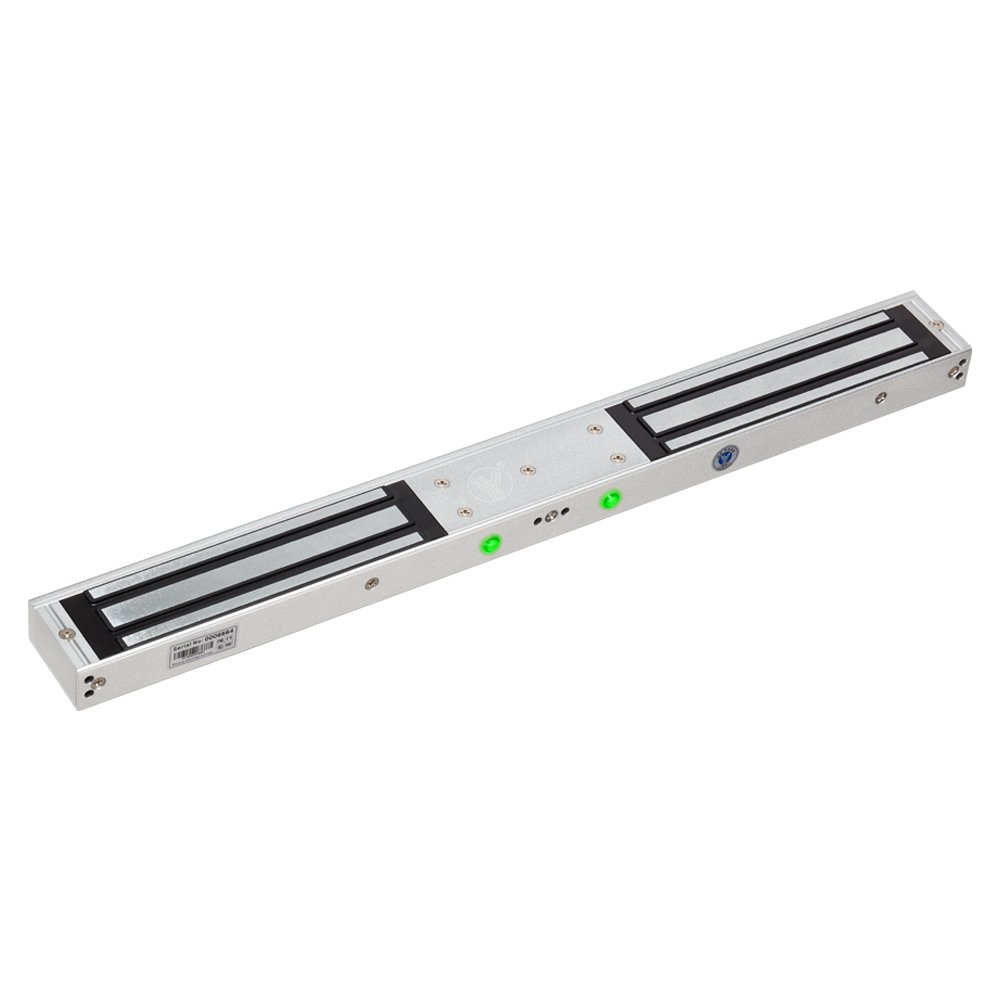

Technical Parameter
Size | 520Lx54.7Wx29.6H(mm) |
Armature Plate Dimension | 190Lx45Wx13.2H(mm) |
Holding Force | 350kg(800Lbs) *2 |
Input Voltage | DC12V (Adjustable DC24V) |
Current | 12V/500mA(±10%)*2 ; 24V/250mA(±10%)*2 |
LED | Red shows locked ;Green shows unlocked |
Lock Signal Output | NO while locking and NC for unlocking(Voltage<30VDC;Current<0.5A) |
Door Signal Output | NO/NC/COM Door Status Signal Output Contact |
Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp | ≤+20℃ |
Operating Temp | -20℃~+55℃(-4—131°F) |
Cover Finish | Anodized aluminum |
Humidity | 0~95%(non-condensing) |
Weight | 5.4KG |
Certificate | MA CE-EMC CE-LVD FCC RoHS |
