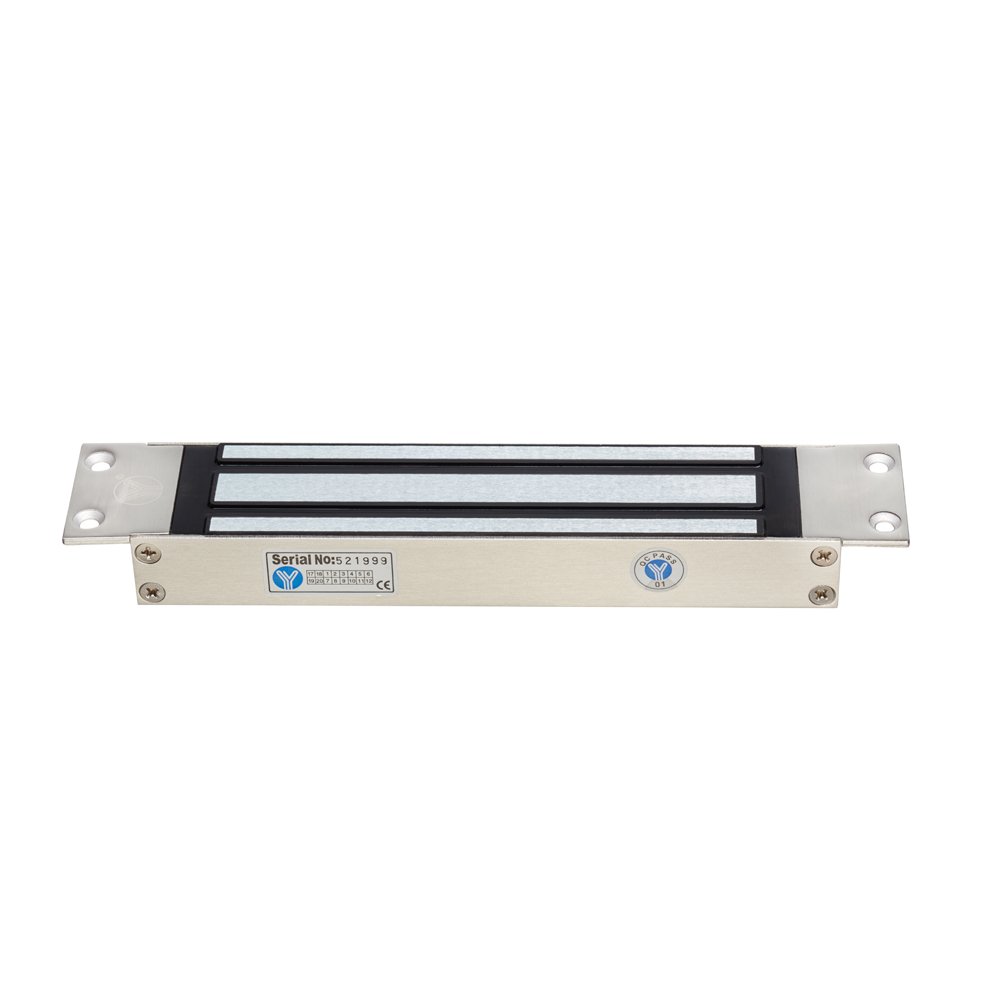

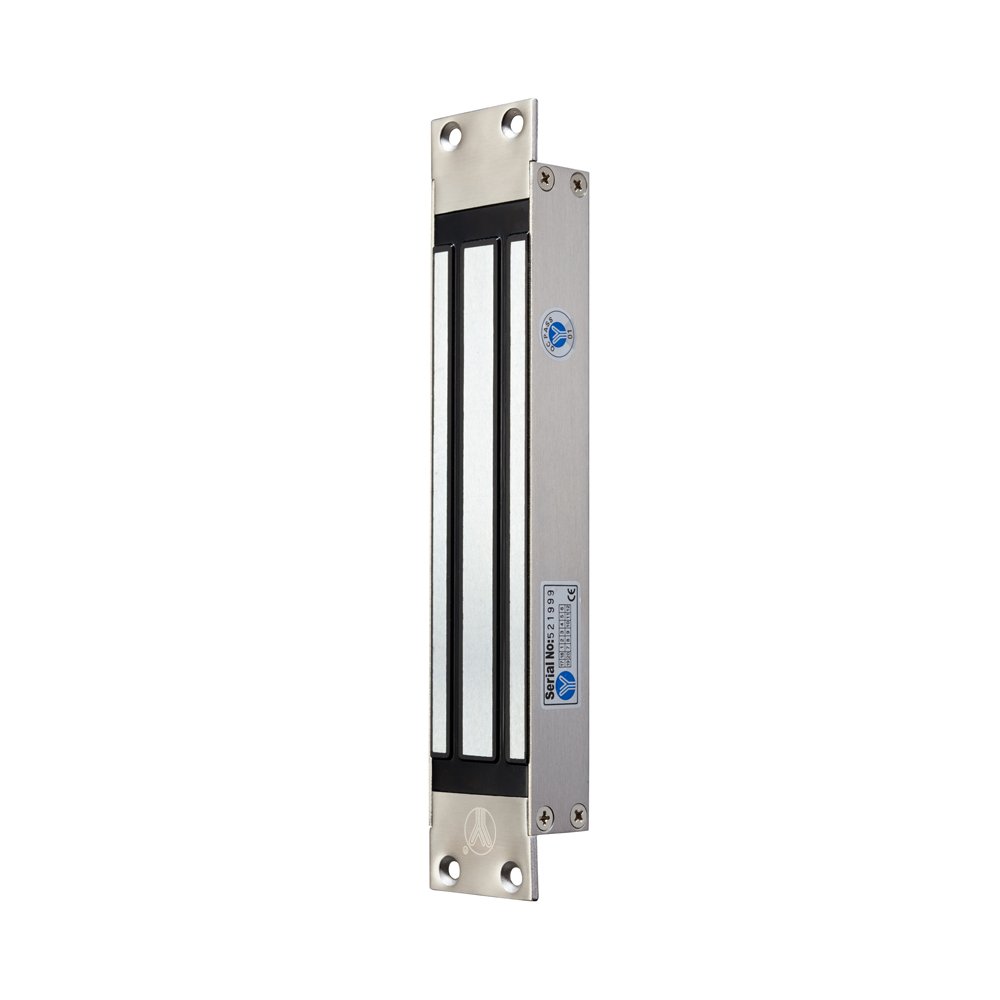

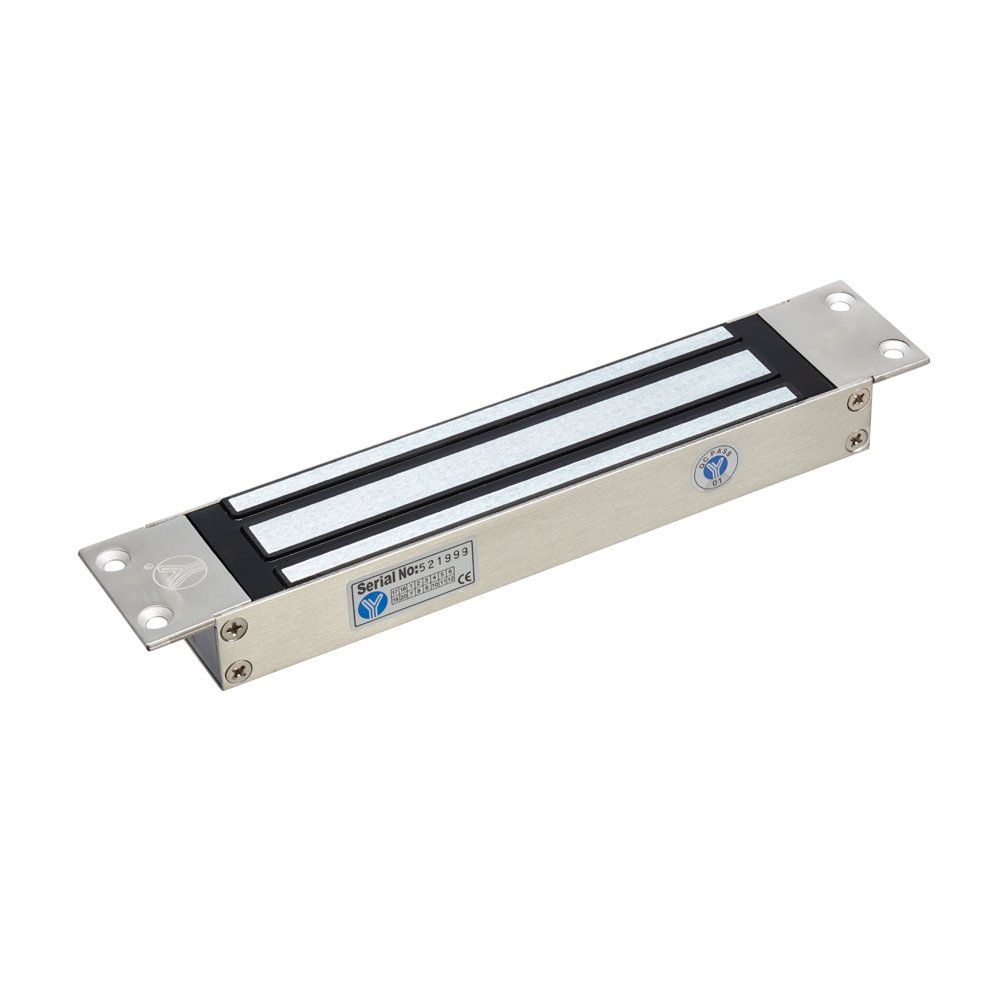

Single Door Magnetic Lock with Signal

signal output magnetic lock for single glass door, wooden door, fireproof door, metal door. Mortise mount and easy installation are reserved . Accessories are available for all kinds of doors.

SKU: YM-350M(SS304)/YM-350M-S(SS304） Categories: ,

Technical Parameter

Signal output Lock signal(NO/NC/COM)(YM-350M-S(SS304）)
Lock Size 250Lx47Wx27H(mm)
Armature plate 190Lx45Wx13.2H(mm)
Holding Force 350kg(800Lbs)
Voltage DC12V (Adjustable DC24V)
Current Draw 12V/500mA(±10%);24V/250mA(±10%)
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Cover finish Stainless Steel
IP rate IP-65
Operating Temp -20℃~+55℃(-4—131°F)
Weight 2.7kg
Certificate CE-EMC CE-LVD ROHS FCC REACH WEEE

Advantage

Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.

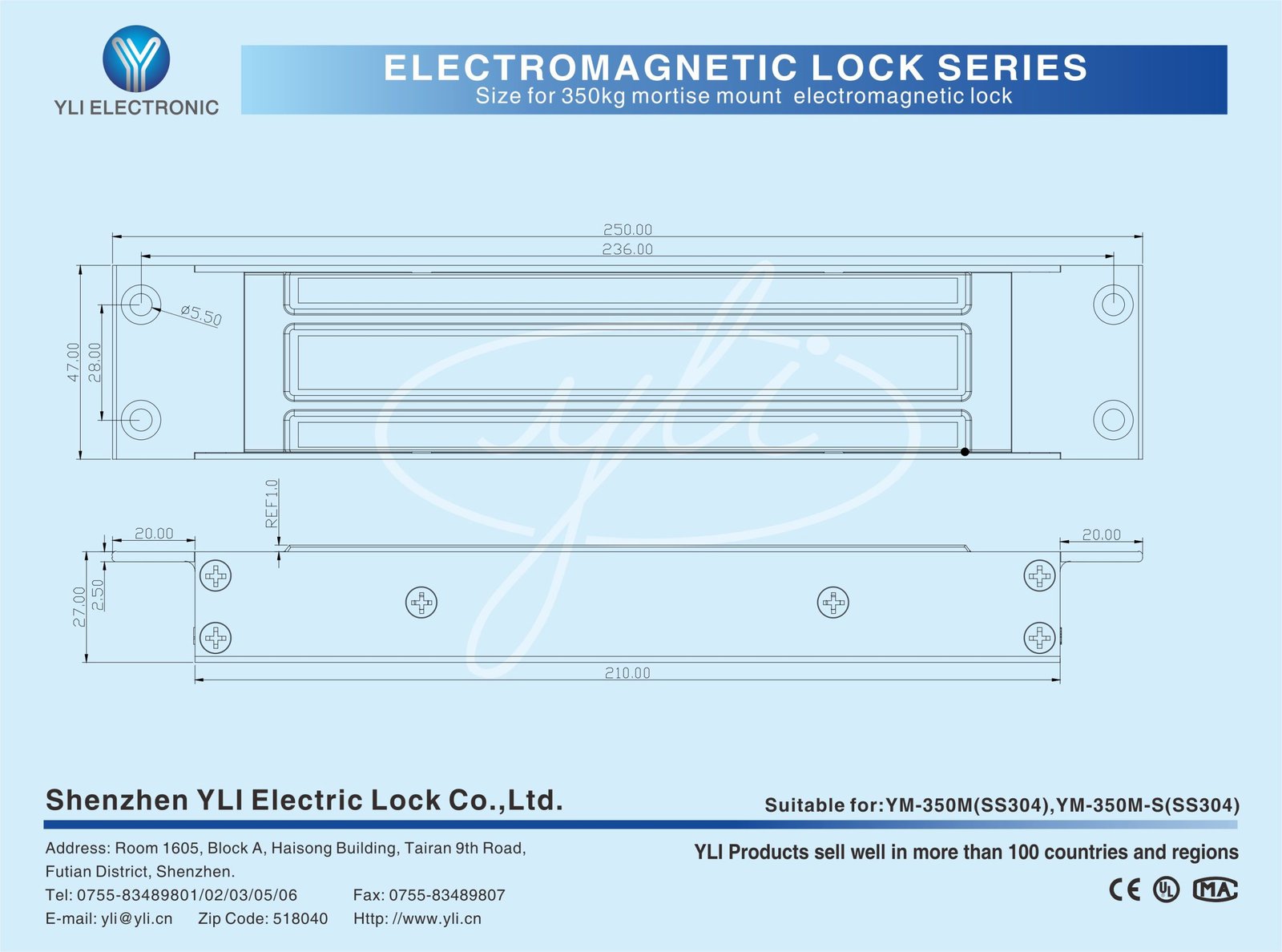

Dimension Diagram

Installation Diagram
