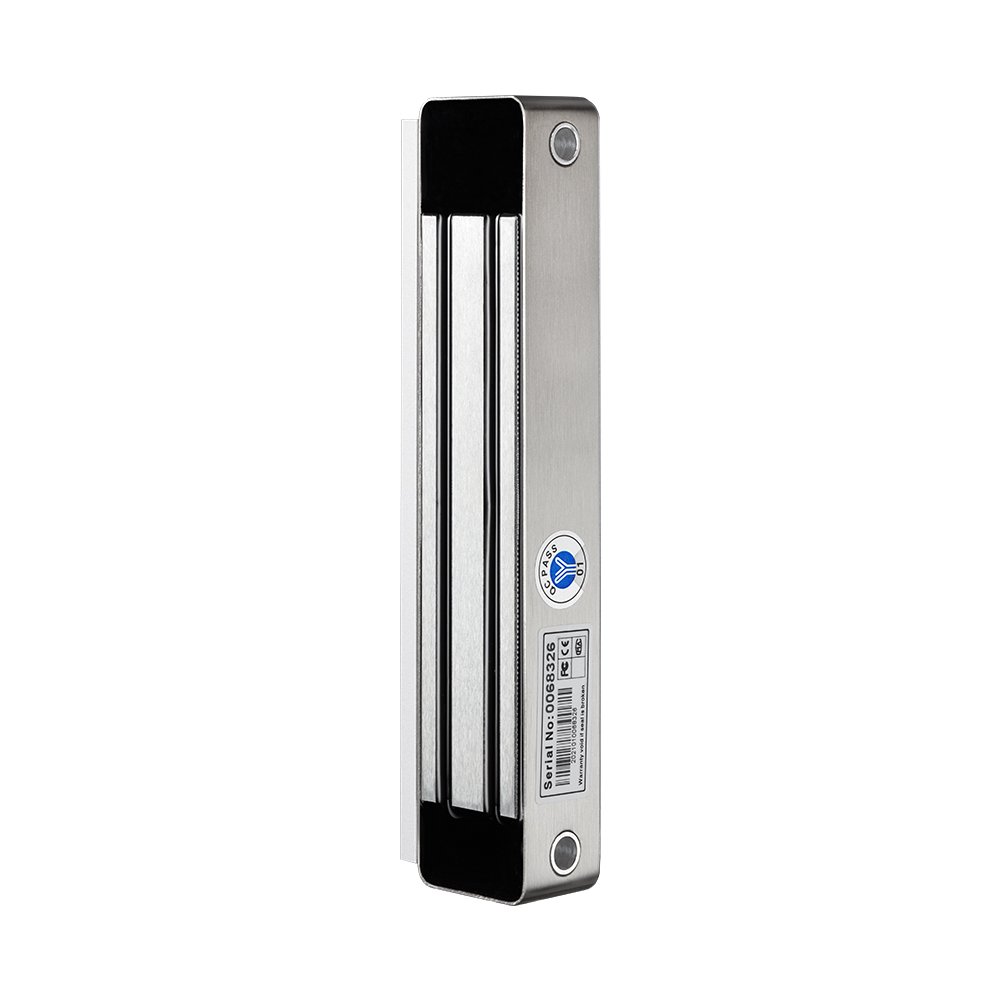

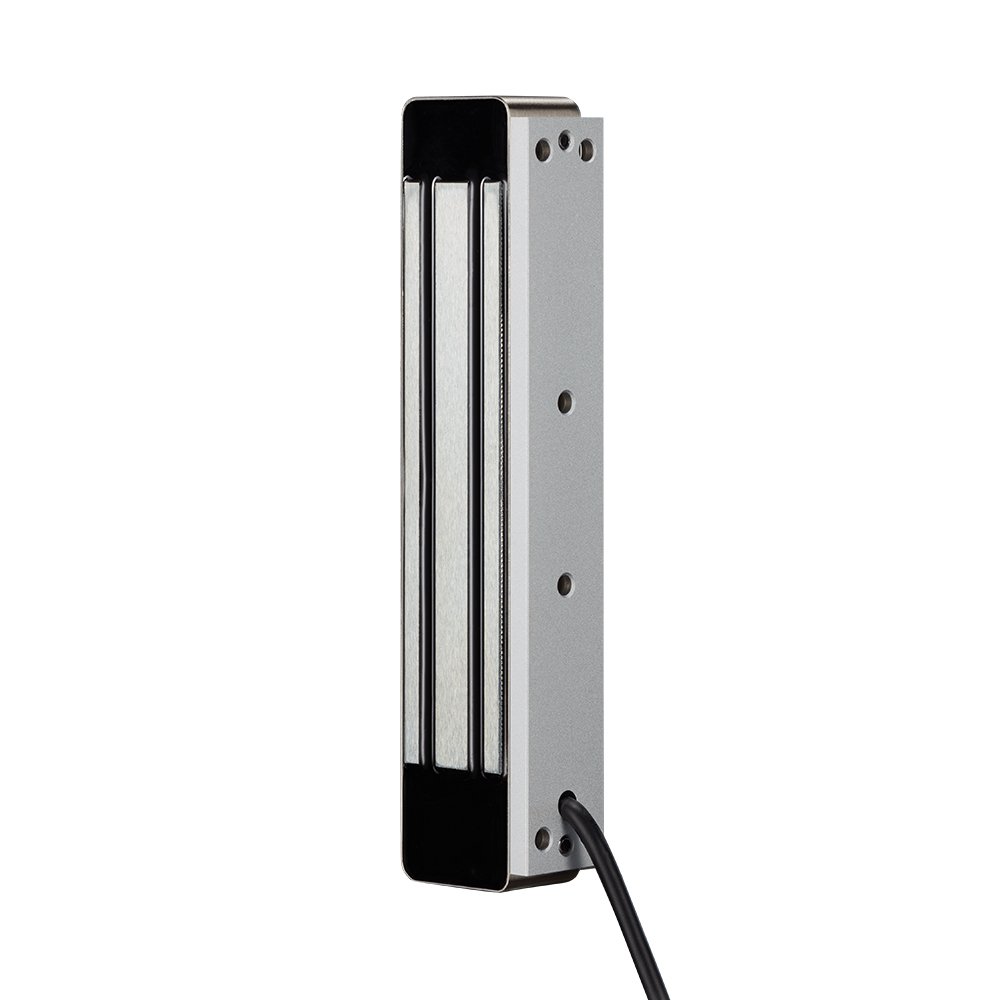

Single Door Magnetic Lock(Waterproof)

YM-180W-S single door electric lock with mortise mount is for glass door, wooden door, small size door, easy to install. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.

SKU: YM-180W-S Categories: ,

Technical Parameter

Size 175Lx39.5Wx26.5H(mm)
Armature Plate Dimension 130Lx32x10H(mm)
Holding Force 180kg(350Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/400mA(±10%)；24V/200mA(±10%)
Signal Output Lock Signal NO/COM
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Waterproof Level IP-68
Weight 1.2kg
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

Collinear Load Test 180kg,350pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

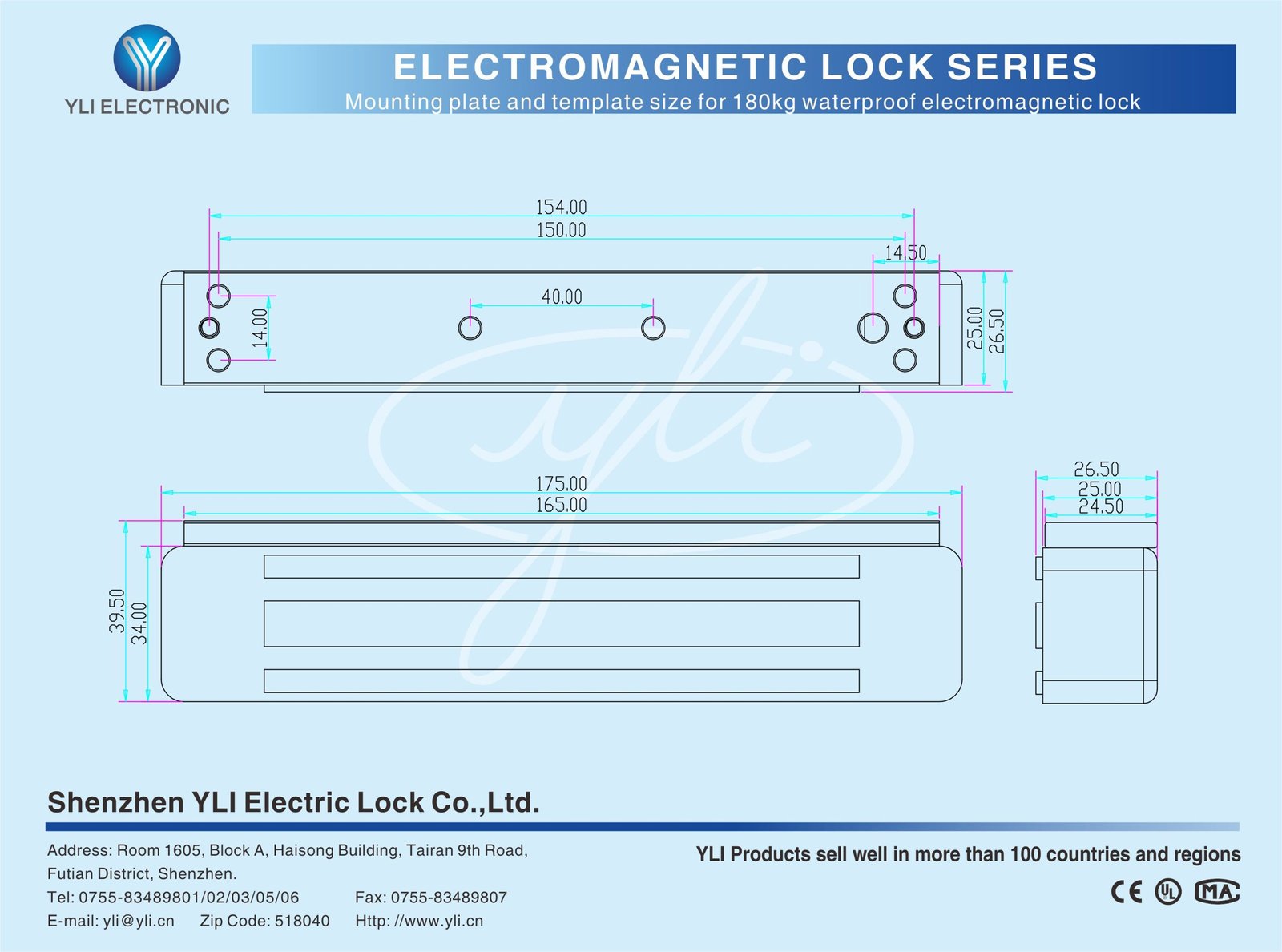

Dimension Diagram

Installation Diagram
