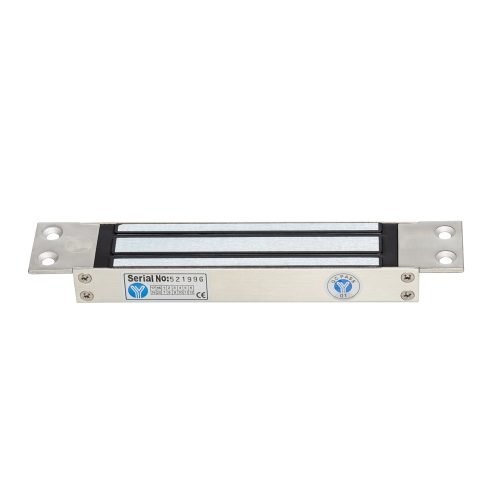

Single Door Magnetic Lock with Signal

Single door electric lock with mortise mount is for glass door, wooden door, small size door with a holding force of 350lbs. The material is aluminum. Anti-residual magnetism is its selling point and makes electric lock more durable.

SKU: YM-180M(SS304)/YM-180M-S(SS304) Categories: ,

Technical Parameter

Signal output Lock signal(NO/NC/COM)(YM-180M-S(SS304))
Size 196Lx35Wx20.5H(mm)
Armature Plate Dimension 130Lx32x10H(mm)
Holding Force 180kg(350Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/400mA(±10%) ； 24V/200mA(±10%)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Cover finish Stainless Steel
IP rate IP-65
Operating Temp -20℃~+55℃(-4—131°F)
Weight 1.2kg

Advantage

Collinear Load Test 180kg,350pounds.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office.

Dimension Diagram

Installation Diagram
