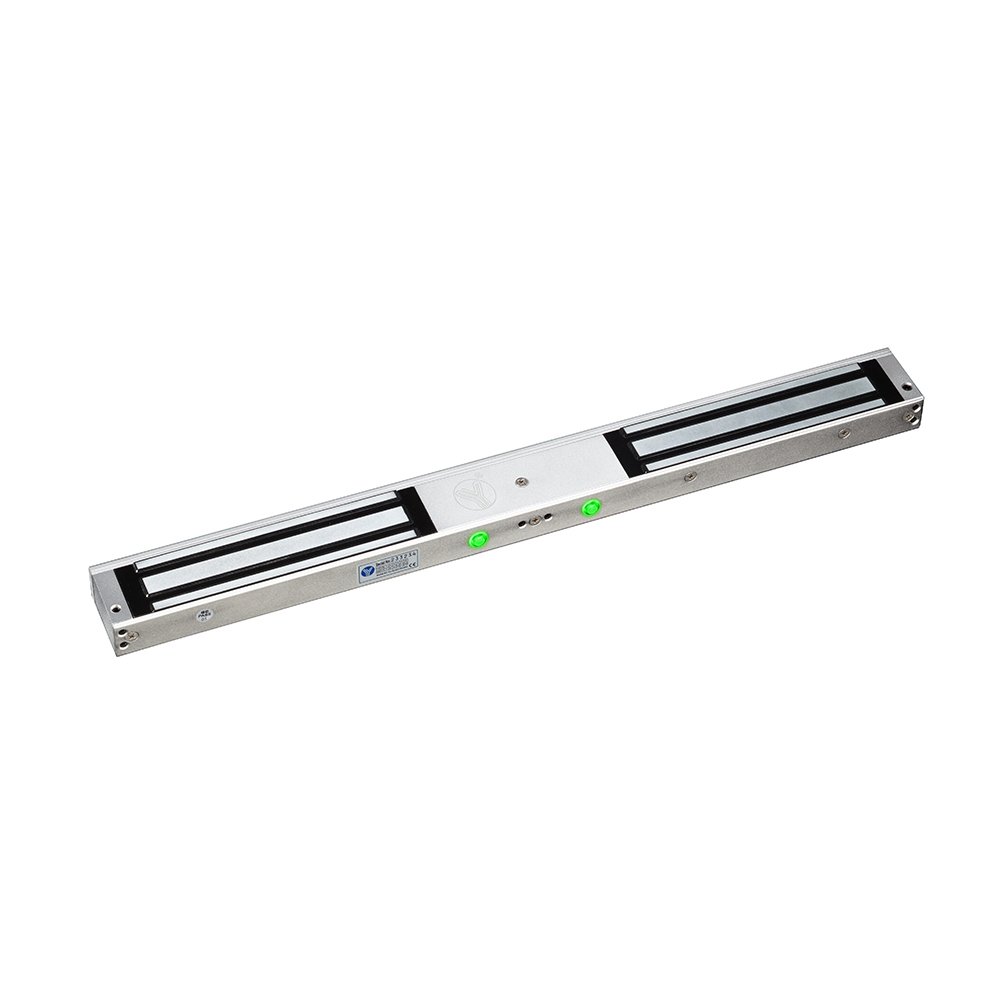

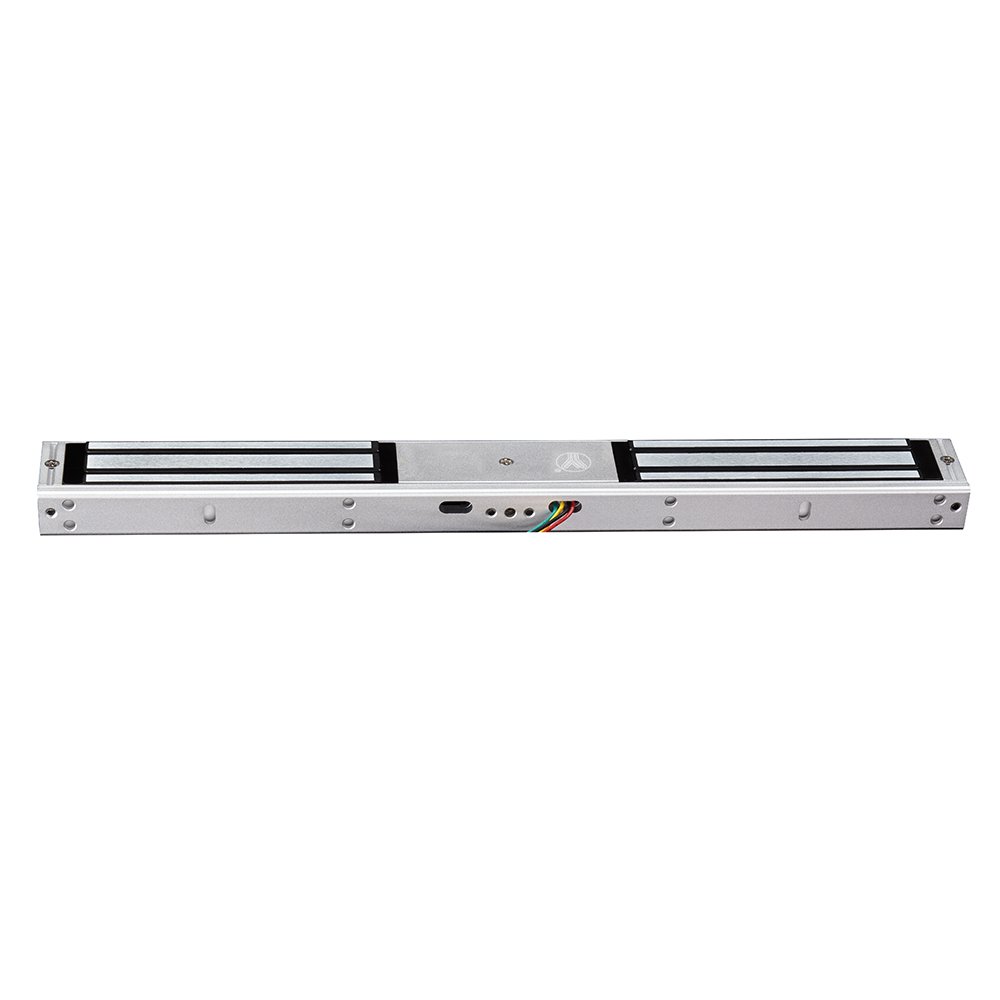

Double Door Magnetic Lock(LED & Time)

Double door electric lock is for wooden door, fireproof door, sliding door and metal door. Inbuilt time delay mode and can set up 0,3,6,9sec . LED light ,Red indicates the door is unlock,Green indicates the door is lock

SKU: YM-280NTD(LED) Categories: ,

Technical Parameter

Size 500Lx49Wx28H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs) *2
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%)x2 ; 24V/250mA(±10%)x2
LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Time 0/3/6/9sec.
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Cover Finish Anodized aluminum
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Weight 4.2KG
Certificate CE-EMC CE-LVD ROHS FCC REACH WEEE ANSI

Advantage

Collinear Load Test 280kg,600pounds * 2
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

Dimension Diagram

Installation Diagram

Reviews

There are no reviews yet.

Be the first to review “Double Door Magnetic Lock(LED & Time)”

Related products

Single Door Magnetic Lock(LED)

Model: YM-350N(LED)

Infrared Sensor Single Door Magnetic Lock with Voice Prompt Function

Model: YM-280IS(LED)-VP

Single Door Magnetic Lock with Signal

Model: YM-180M(SS304)/YM-180M-S(SS304)

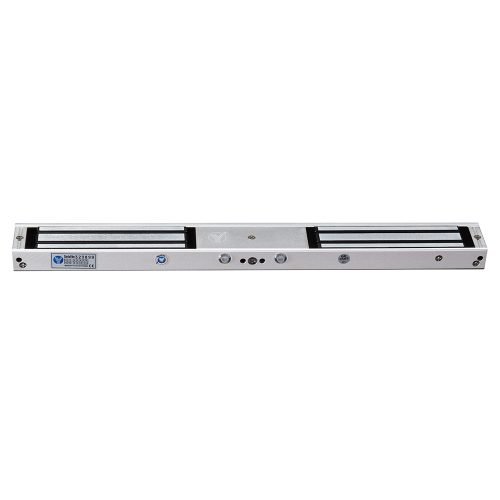

Double Door Magnetic Lock(LED)

Model: YM-280ND(LED)

Double Door Magnetic Lock(LED)

Model: YM-350ND(LED)-DS

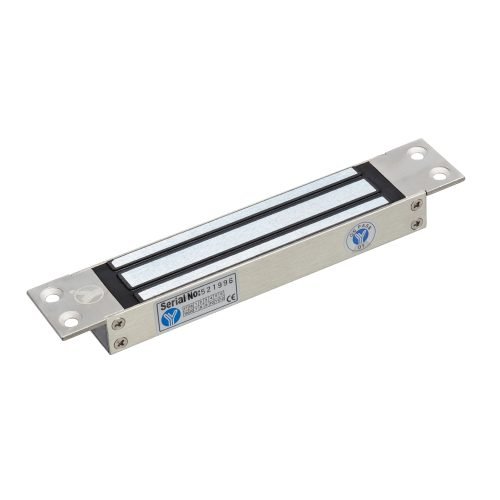

Mini single door concealed magnetic lock
