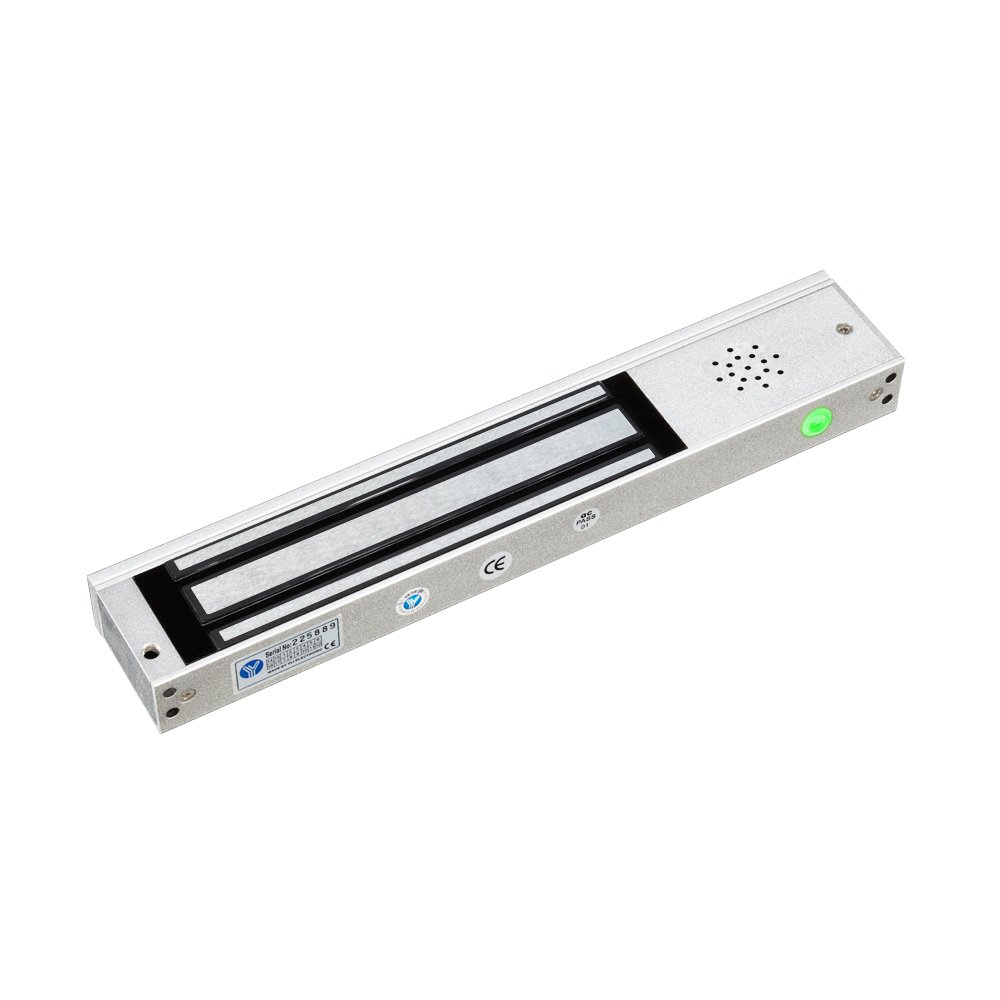

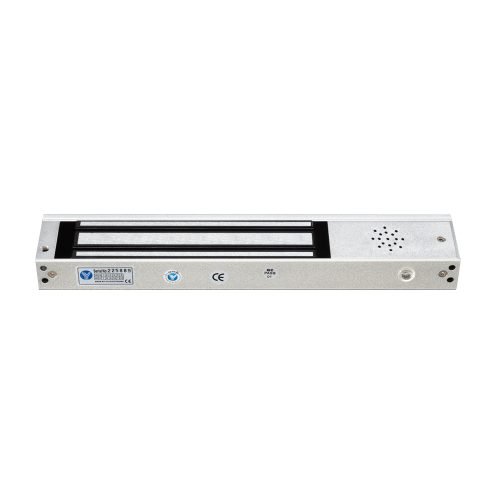

Single Door Magnetic Lock(Buzzer)

When set up 0-20 as door close time, if the door doesn’t close after 20secs,.it will alarm till the door close.Single door electric lock with buzzer and suitable for wooden door and metal door and .LED Indicates the Door Status.

SKU: YM-280BZ(LED) Categories: ,

Technical Parameter

Size 270Lx48.8Wx26.4H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Signal Output Lock signal NO/NC/COM
Buzzer 0-20sec.adjustable
LED Green shows locked ;Red shows unlocked
Cover Finish Anodized aluminum
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Weight 2.1kg
Certificate CE-EMC CE-LVD ROHS

Advantage

Collinear Load Test 280kg,600pounds
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

Dimension Diagram

Installation Diagram
