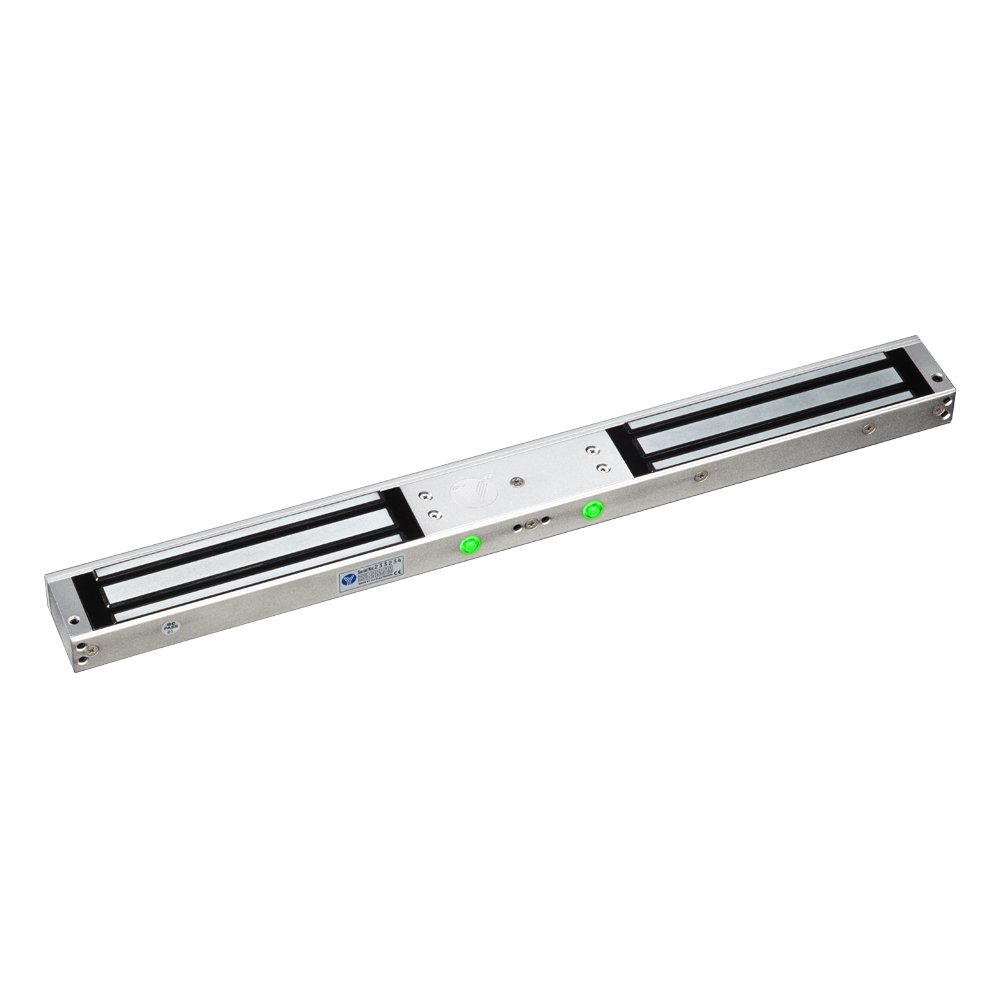

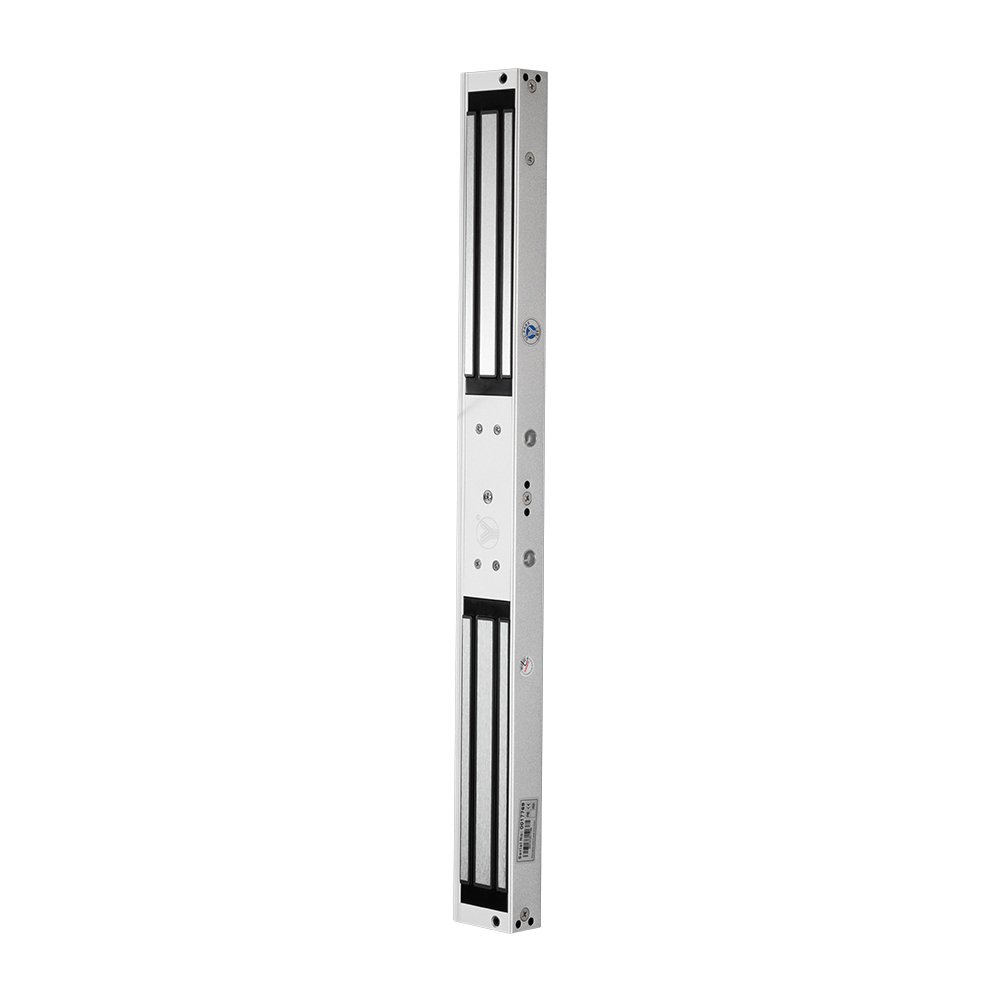

Double Door Magnetic Lock(LED)

Double door magnetic lock is for glass door, wooden door, fireproof door, sliding door and metal door. Inbuilt dry contacts lock status signal output ( NO,NC,COM),door status signal output ( NO,NC,COM). Led indicator attached.

SKU: YM-280ND(LED)-DS Categories: ,

Technical Parameter

Size 500Lx49Wx28H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs) *2
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%)x2 ; 24V/250mA(±10%)x2
LED Red shows locked ;Green shows unlocked
Lock Signal Output NO while locking and NC for unlocking(Voltage<30VDC;Current<0.5A)
Door Signal Output NO/NC/COM Door Status Signal Output Contact
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Cover Finish Anodized aluminum
Humidity 0~95%(non-condensing)
Weight 4.2KG
Certificate CE-EMC CE-LVD ROHS ANSI

Advantage

Collinear Load Test 280kg,600pounds x 2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Door Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

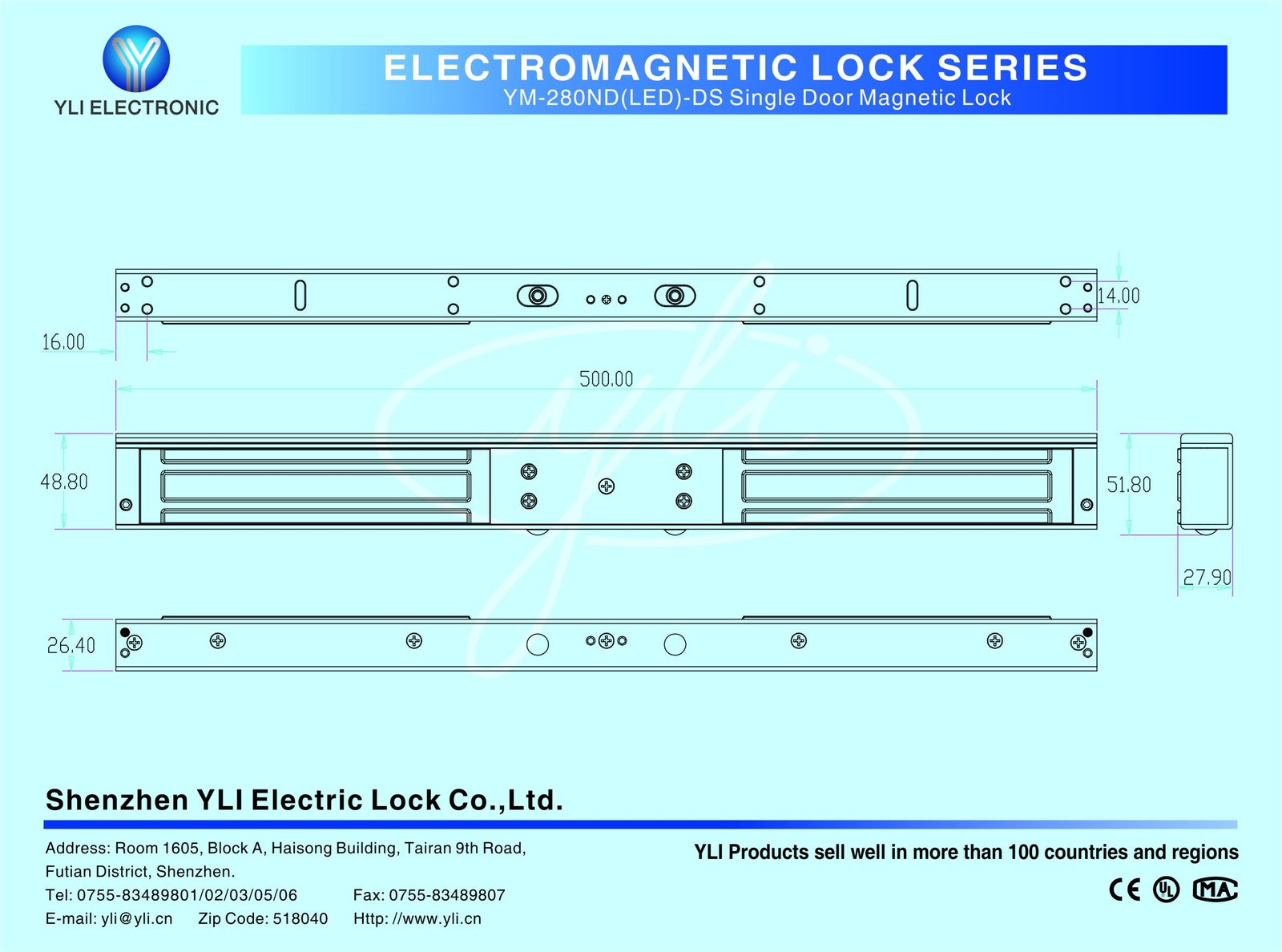

Dimension Diagram

Installation Diagram
