Technical Parameter

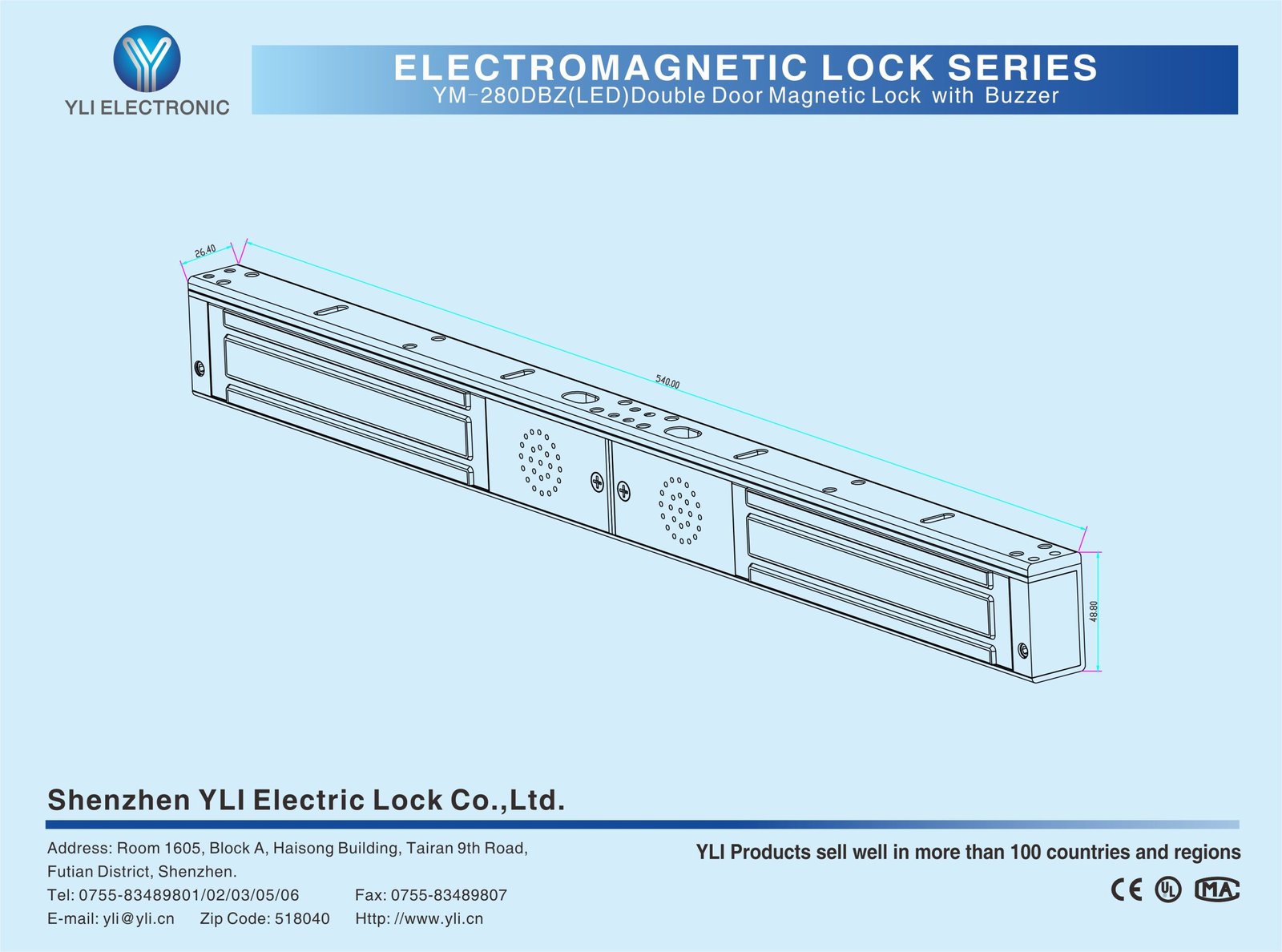

Size | 540Lx48.8Wx26.4H(mm) |
Armature Plate Dimension | 180Lx38.8Wx13.2H(mm) |
Holding Force | 280kg x2(600Lbsx2) |
Input Voltage | DC12V (Adjustable DC24V) |
Current | 12V/500mA(±10%)x2 ; 24V/250mA(±10%)x2 |
Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
Signal Output | Lock signal NO/NC/COM |
Buzzer | 0-20sec.adjustable |
LED | Green shows locked ;Red shows unlocked |
Surface Temp | ≤+20℃ |
Operating Temp | -20℃~+55℃(-4—131°F) |
Humidity | 0~95%(non-condensing) |
Cover Finish | Anodized aluminum |
Weight | 4.2kg |
Certificate | MA CE-EMC CE-LVD FCC RoHS REACH WEEE |
