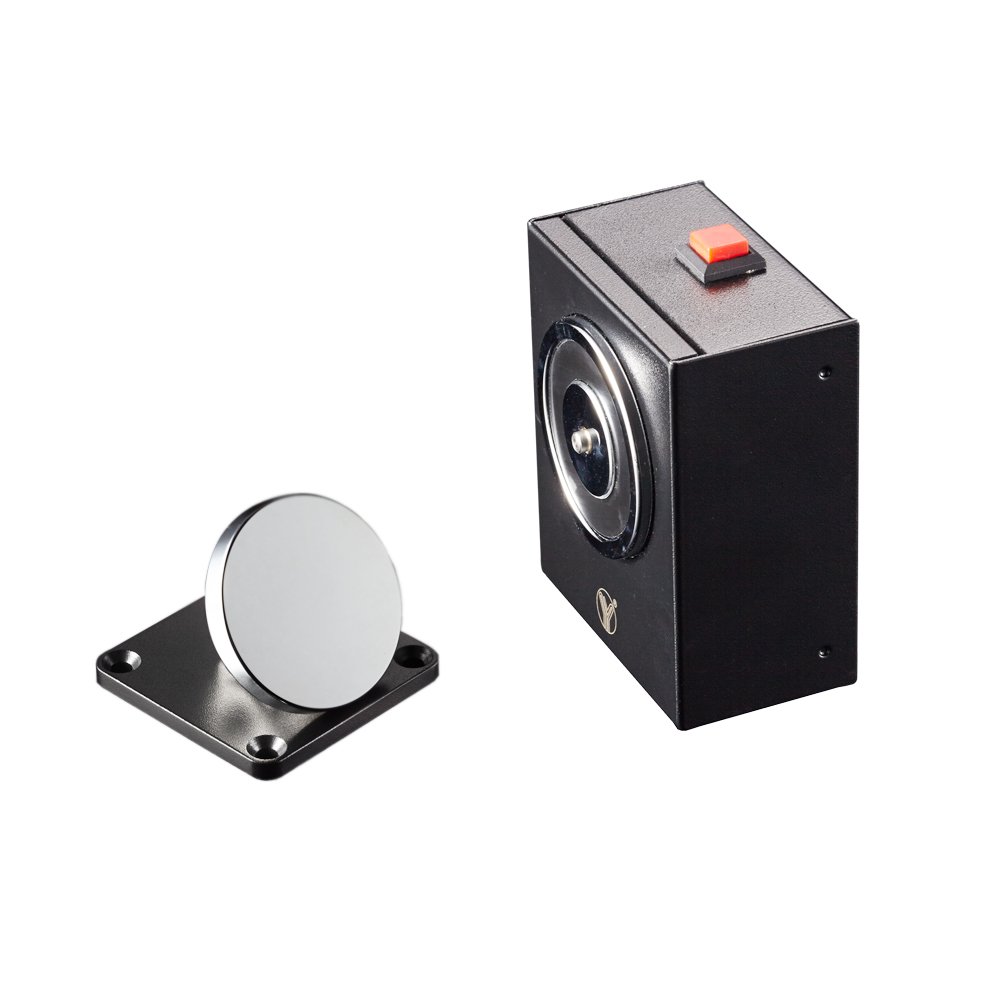

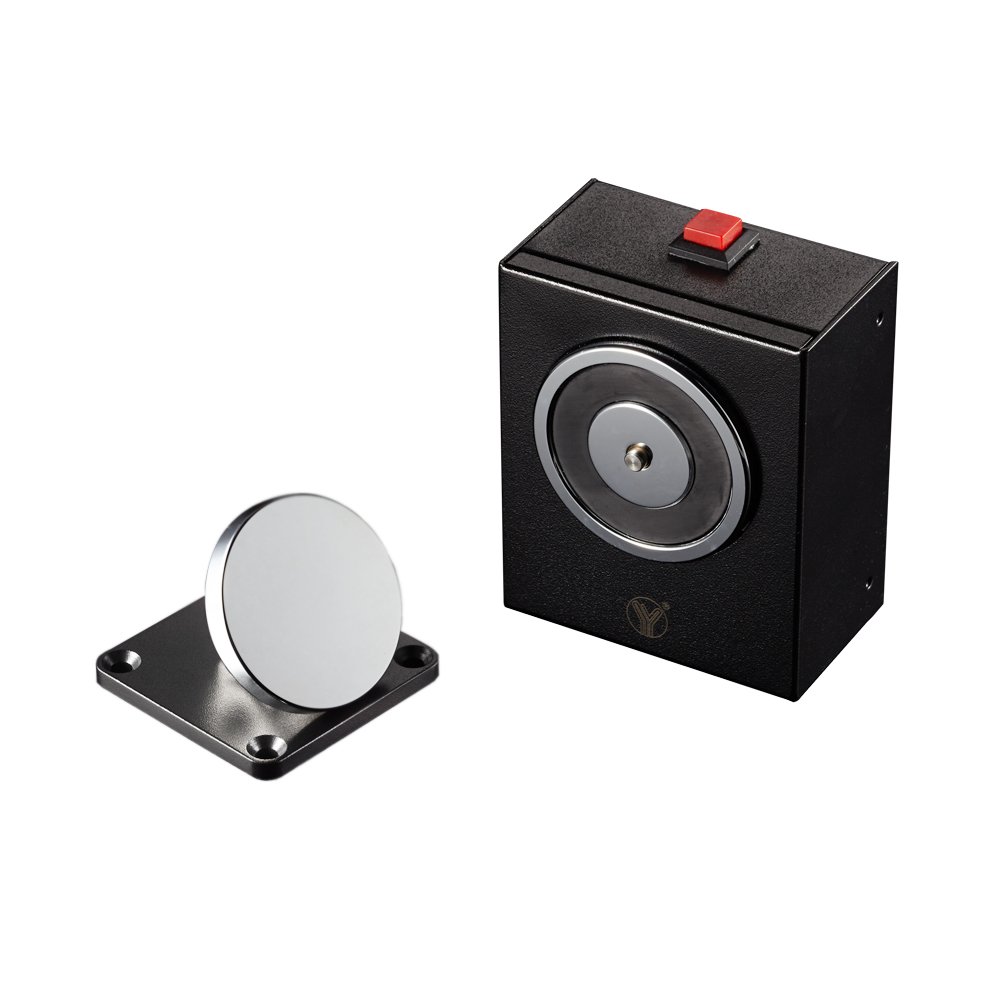

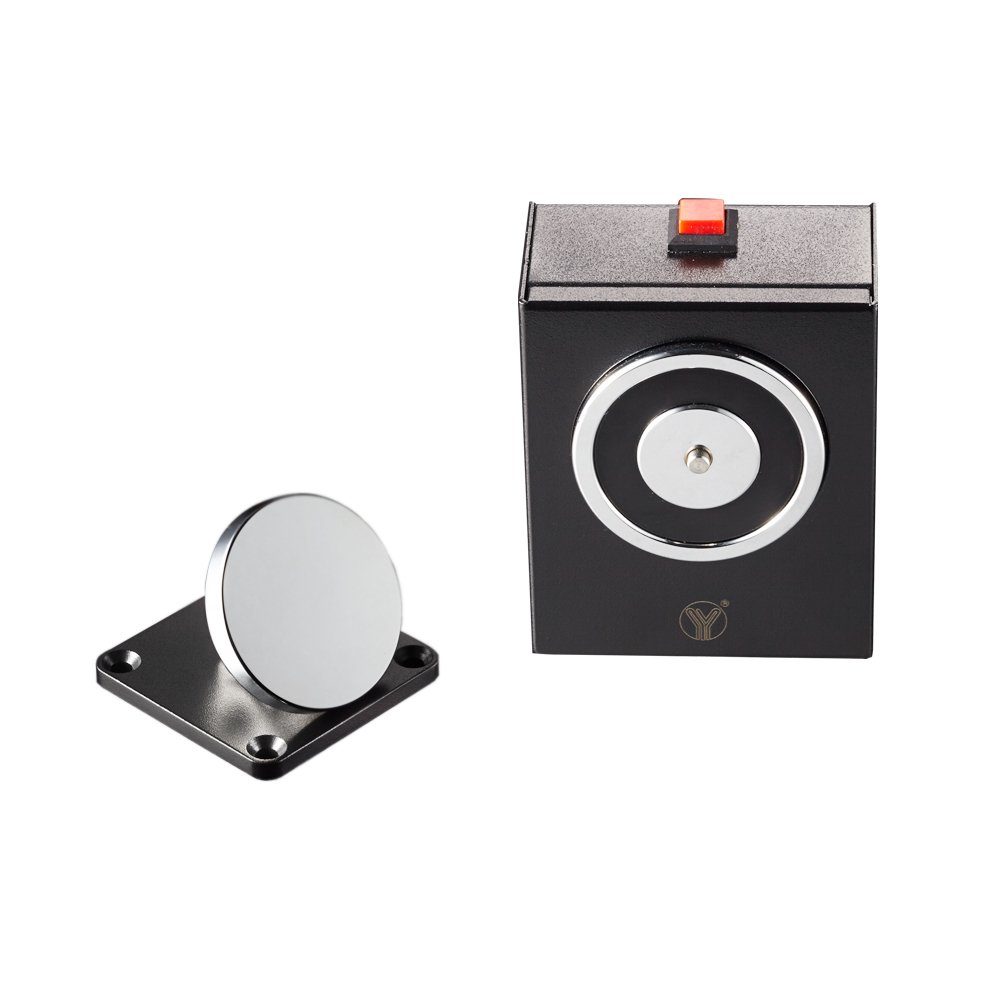

Wall Mount Door Holder

YD-604 is a wall mount door holder .the Maximum tension achieves 50kg(110Lbs),with the feature of environmental friendly low power consumption.It will release automatically the fire door in case of fire.It also contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YD-604-S Categories: ,

Technical Parameter

Dimensions 70Lx40Wx85H(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Signal Output NO（Green）/NC（Yellow）/COM(White) YD-604-S
Optional Manual door release button
Suitable for All Kind of Single & Double Smokeproof Doors
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 0.9kg
Certificate MA CE-EMC REACH WEEE

Advantage

Col linear Load: 50kg, 110pounds.
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.

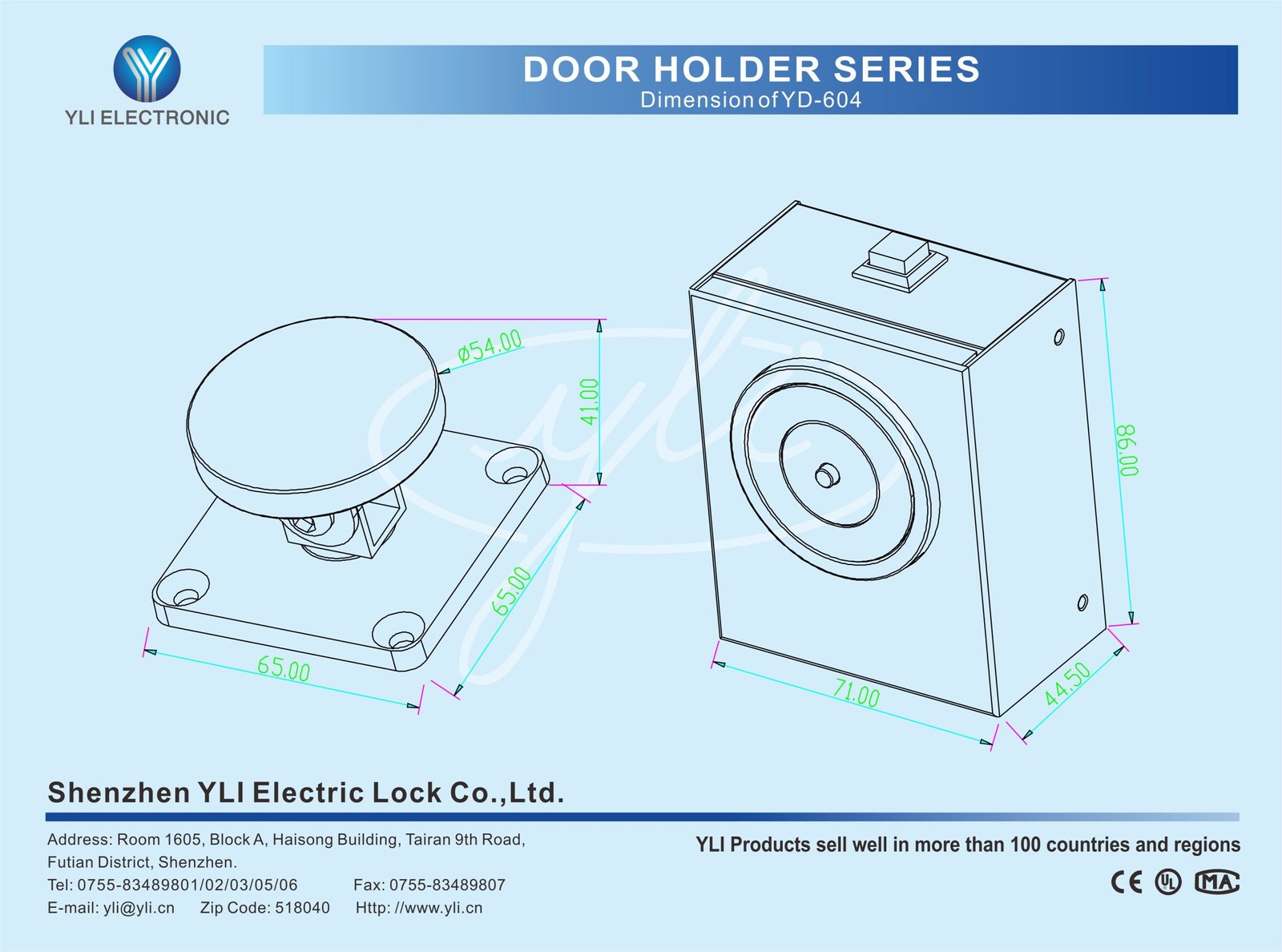

Dimension Diagram

Installation Diagram
