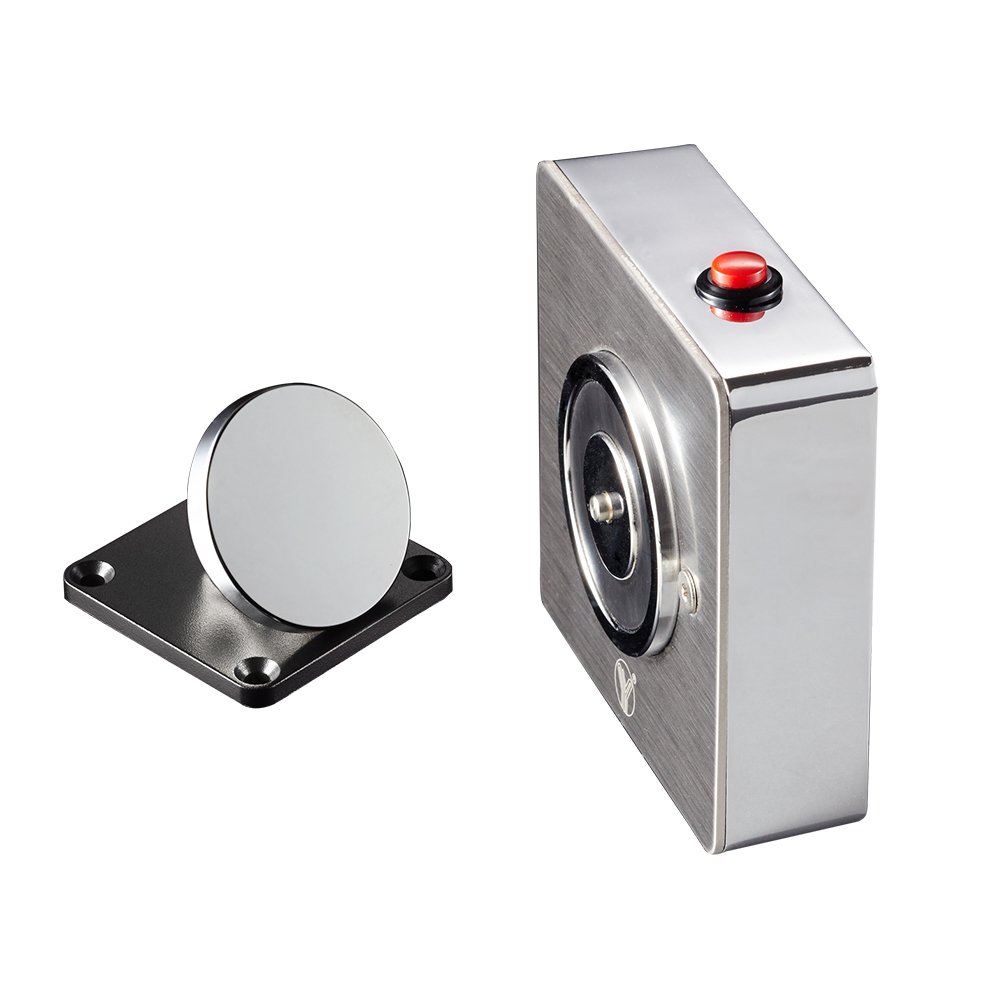

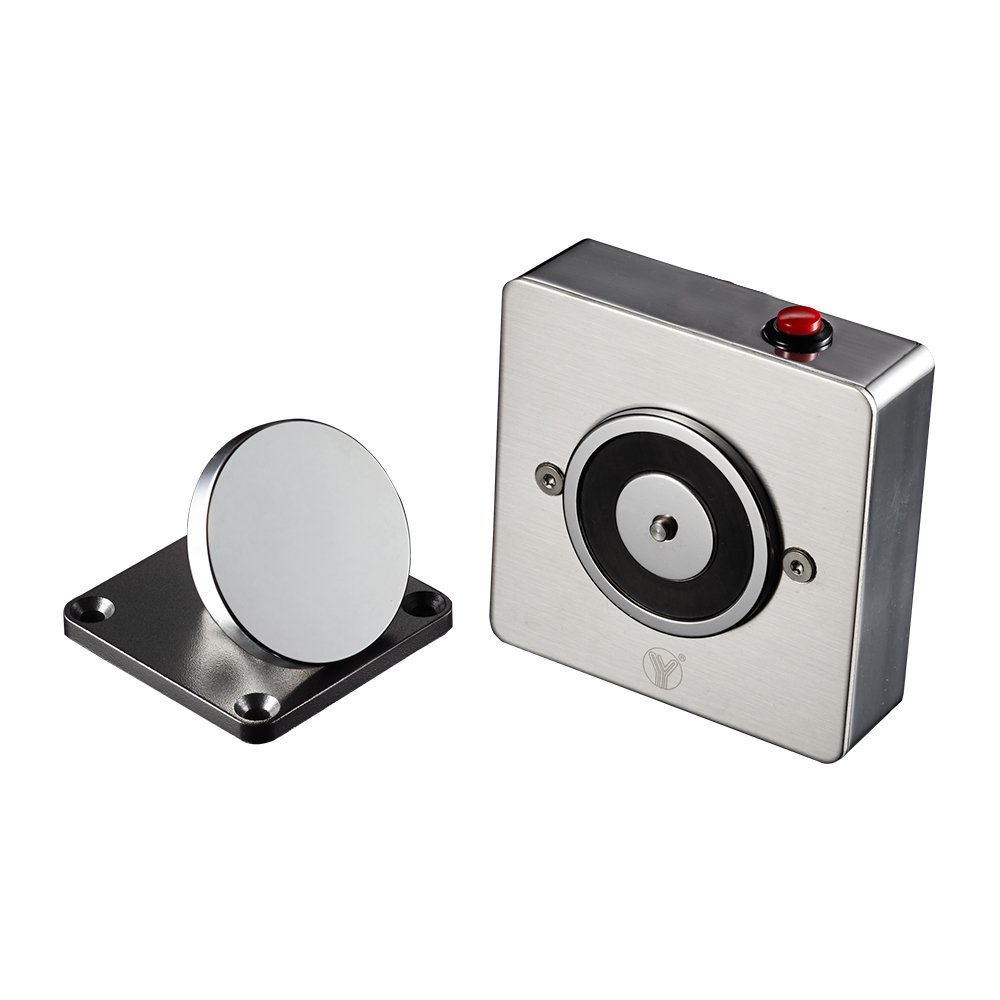

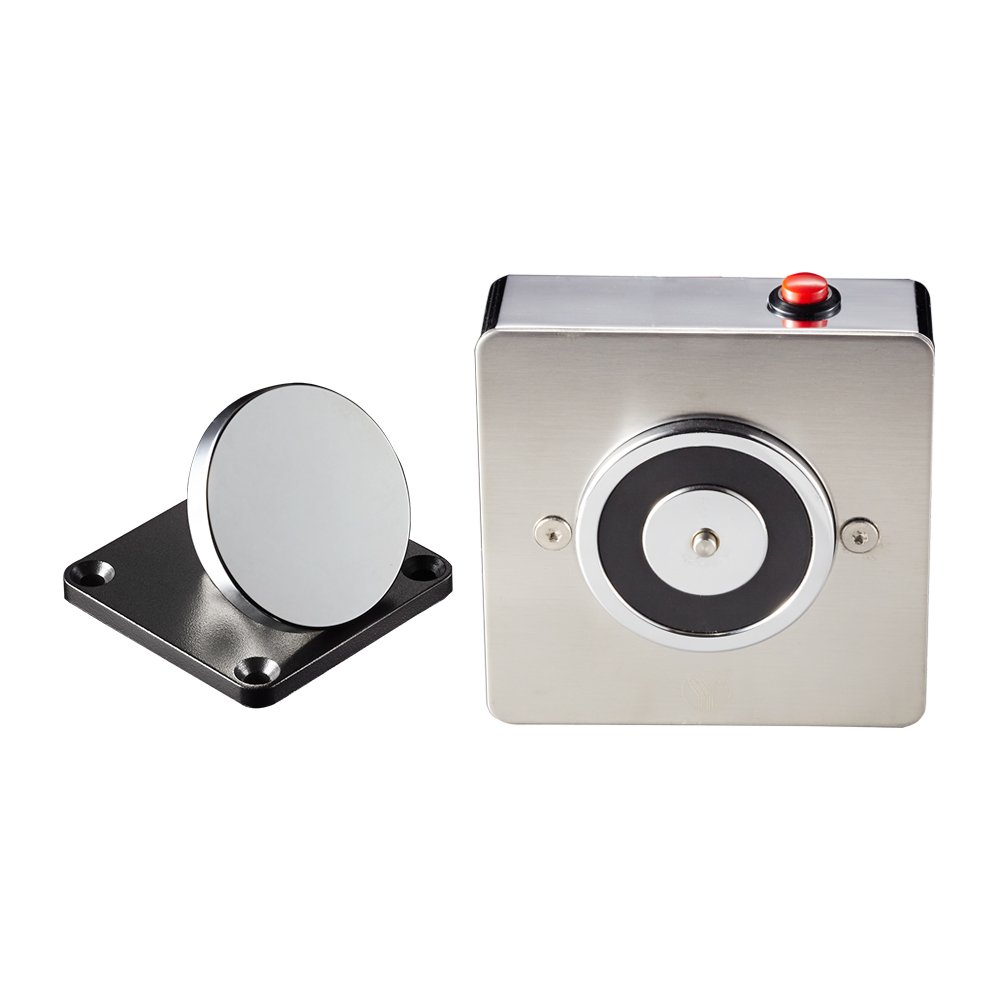

Mortice Mounted Door Holder

YD-603 is a mortise mount door holder.Feature of low power consumption makes it more environmental friendly and more durable. Build-out release button for testing and build-in MOV reverse current protection

SKU: YD-603-S Categories: ,

Technical Parameter

Dimensions L88xW88xH27(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Optional Manual door release button
Signal Output NO（Green）/NC（Yellow）/COM(White) (YD-603S)
Suitable for All kinds of Single & Double Smokeproof Doors
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection Zinc
Finishes for Armature Zinc
Weight 1.0kg
Certificate MA CE-EMC REACH WEEE

Advantage

Col linear Load Test 50kg–110pounds.
The Standard Voltage is 24 VDC when finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design,  Dual Insulate Housing.
Shunt and Defend the Cigarette Door Automatically During the Fire Alarm.
CE Certificate.

Dimension Diagram

Installation Diagram
