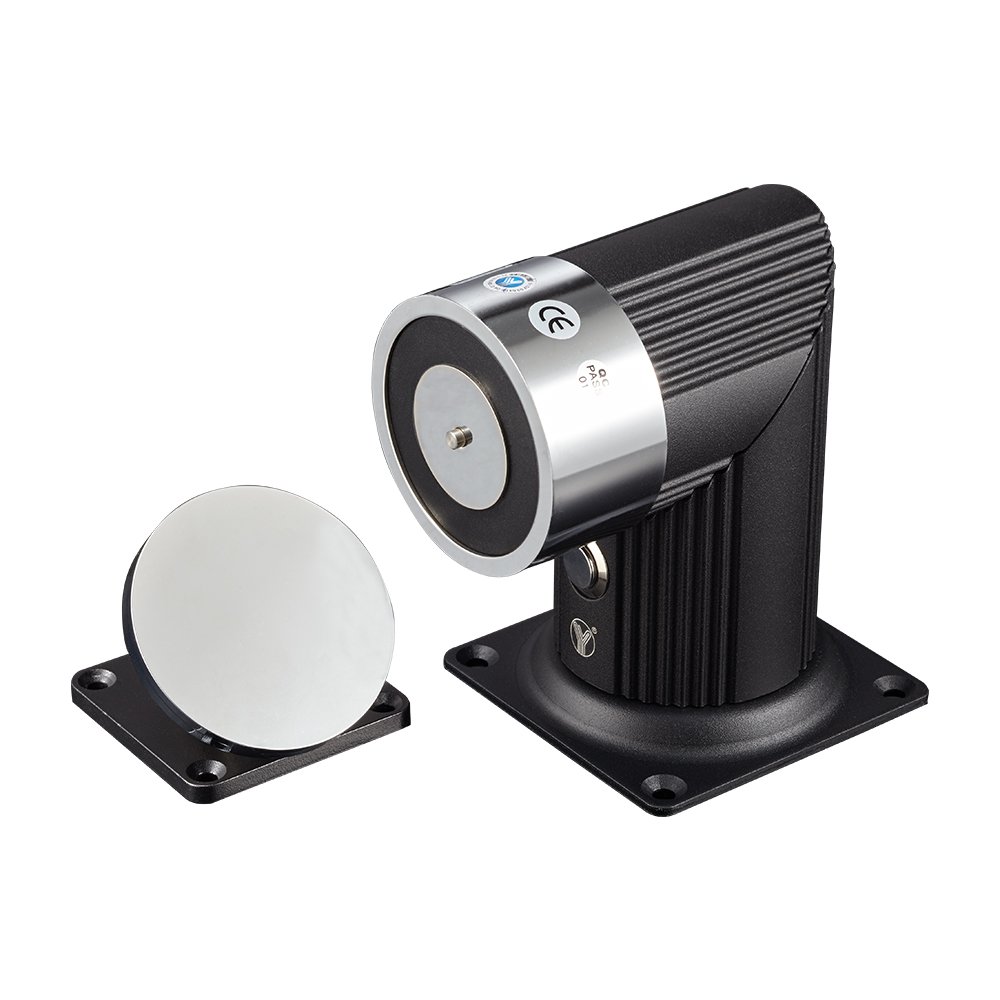

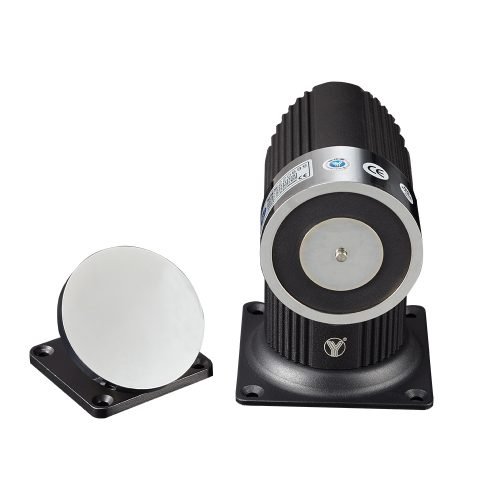

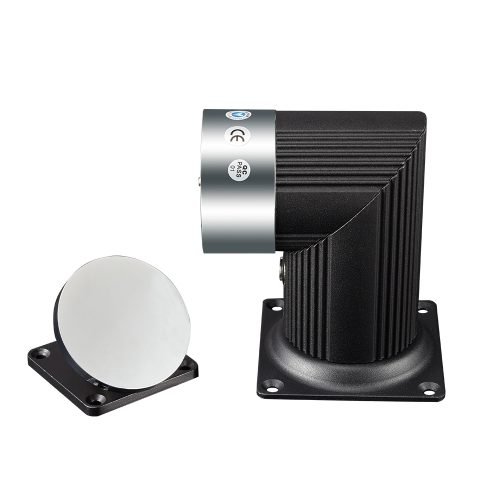

Floor Mount Door Holder

YD-606L is a floor mount door holder. Its holding force is 180KG. which adopts low power consumption, that makes it more environment friendly and more durable. With Manual door release button.It’ll automatically close the smoke proof door when fire happens.It contains build-out release button for testing and build-in MOV which reverse current protection.

SKU: YD-606L Categories: ,

Technical Parameter

Dimensions L90xW90xH128(mm)
Holding Force 180kg(350Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/240mA 24V/120mA
Signal Output NO（Green）/NC（Yellow）/COM(White) YD-606L-S
Optional The Hand Moves and Closes the Door to Release the Button
Suitable for All Kind of the Single & Double Smokeproof Door
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(non-comdensing)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 1.8kg
Certificate MA CE-EMC

Advantage

Col linear Load: 50kg, 110pounds.
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.

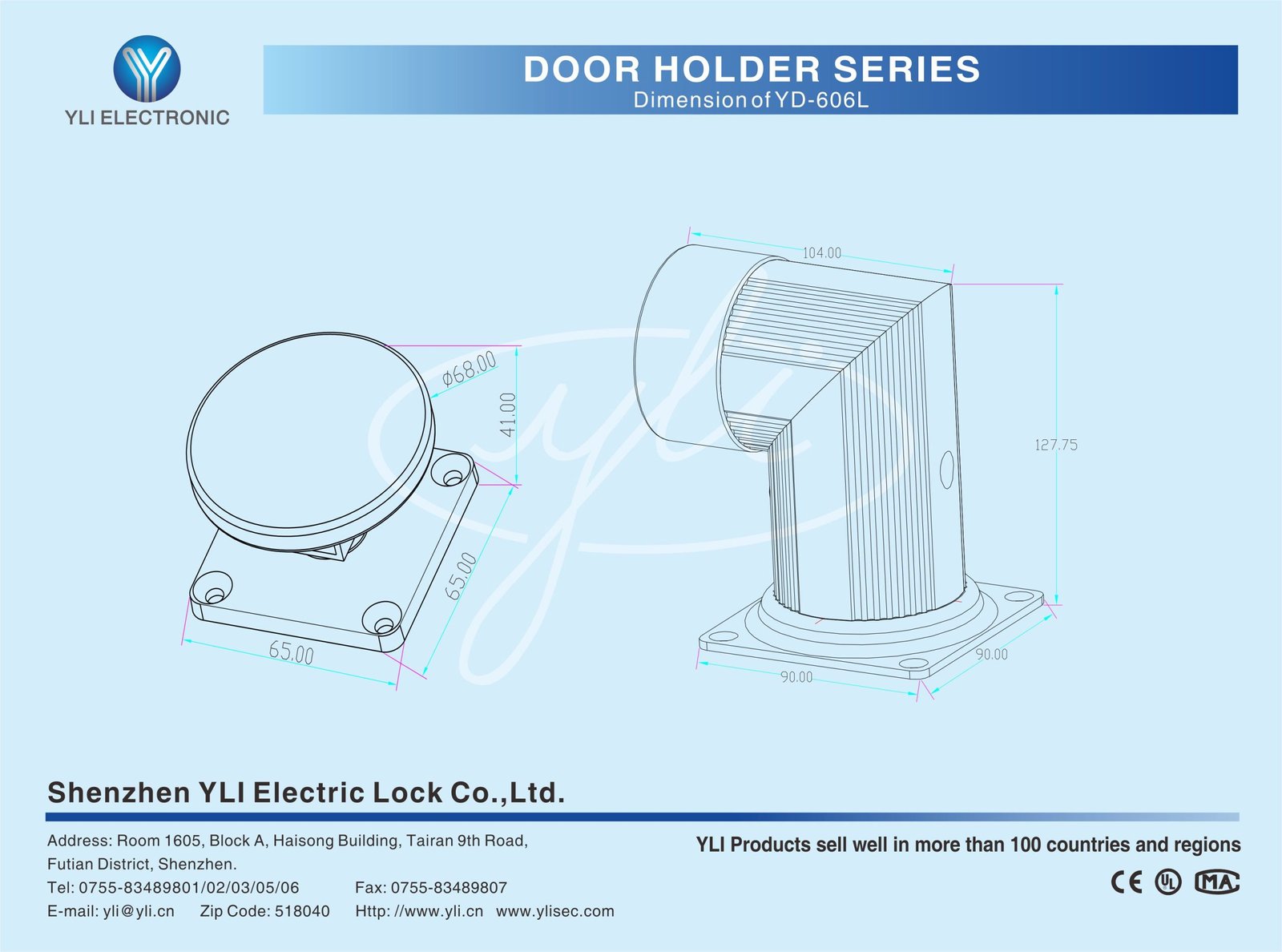

Dimension Diagram

Installation Diagram
