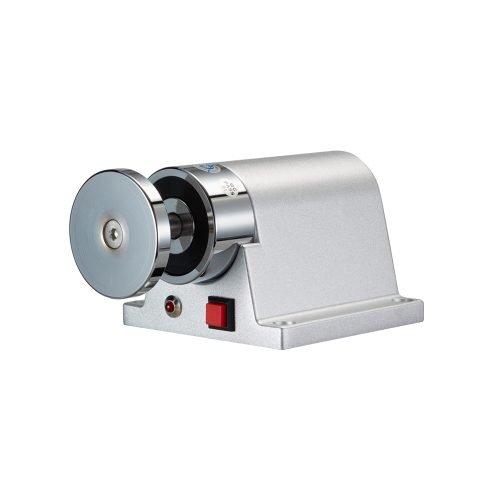

Floor Mount Door Holder

YD-609B is a Floor Mount Door Holder. Its outlook is professional. with fireproof plastic cover, low power consumption type. It is more environment friendly and more durable. It can release the fire door automatically in case of fire. It contains build-out release button for testing, build-in MOV reverse for current protection.

SKU: YD-609B Categories: ,

Technical Parameter

Dimensions L110xW80xH93(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Suitable for All kinds of Single & Double Smokeproof Door
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell The Hand Moves and Closes the Door to Release the Button
Shell zinc alloy, high-temperature stoving varnish finish
Suction plate pure iron,chrome finish
Weight 1.1kg
Patent No. ZL2014303561422

Advantage

Dual Voltage Selectable(12VDC or 24VDC)
Emergency Release Button/Test Button
Floor Mounting Direction
Low Current Consumption
Reliable Fail-Safe Mechanism
Durable and Silence Operation

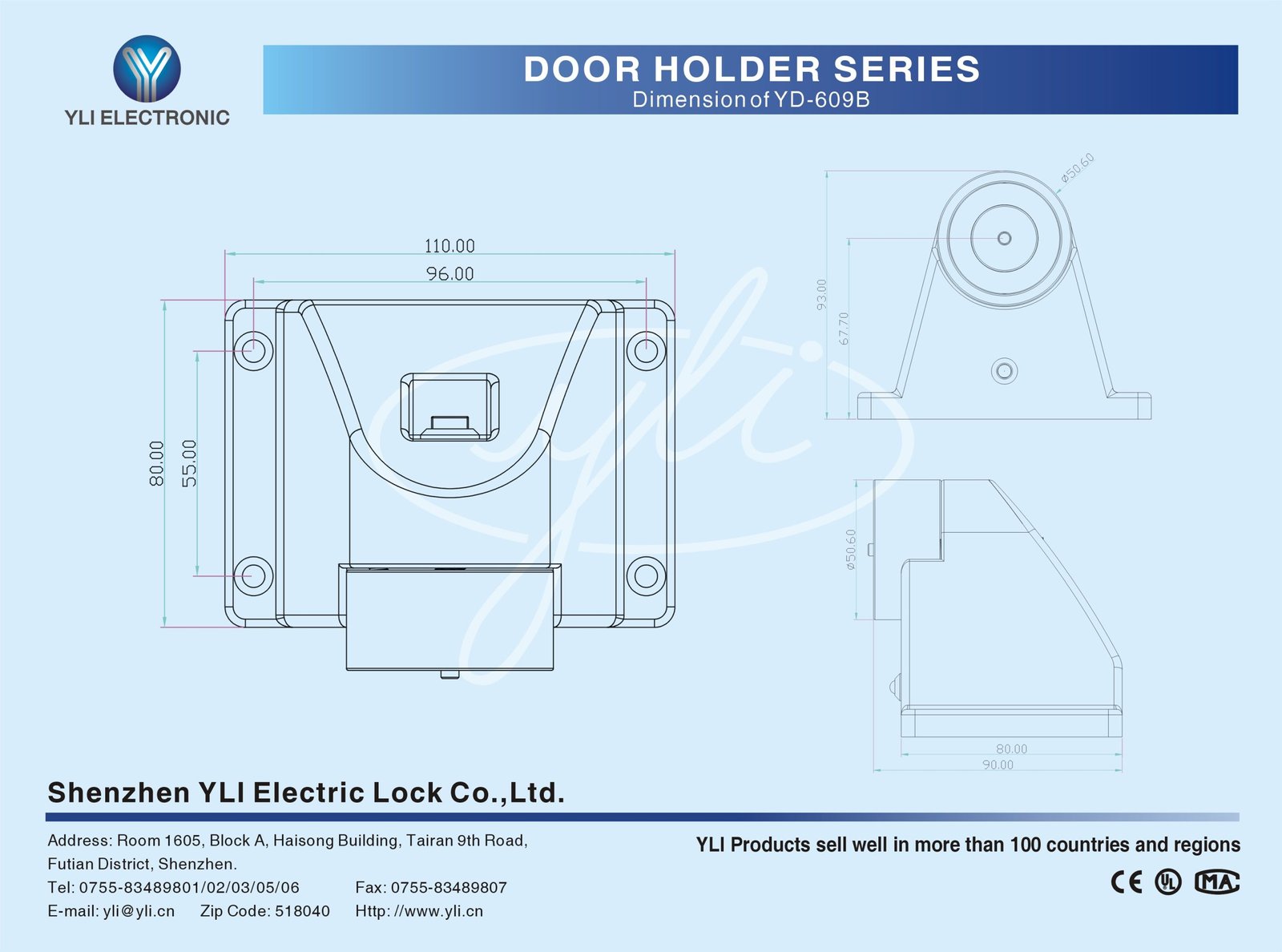

Dimension Diagram

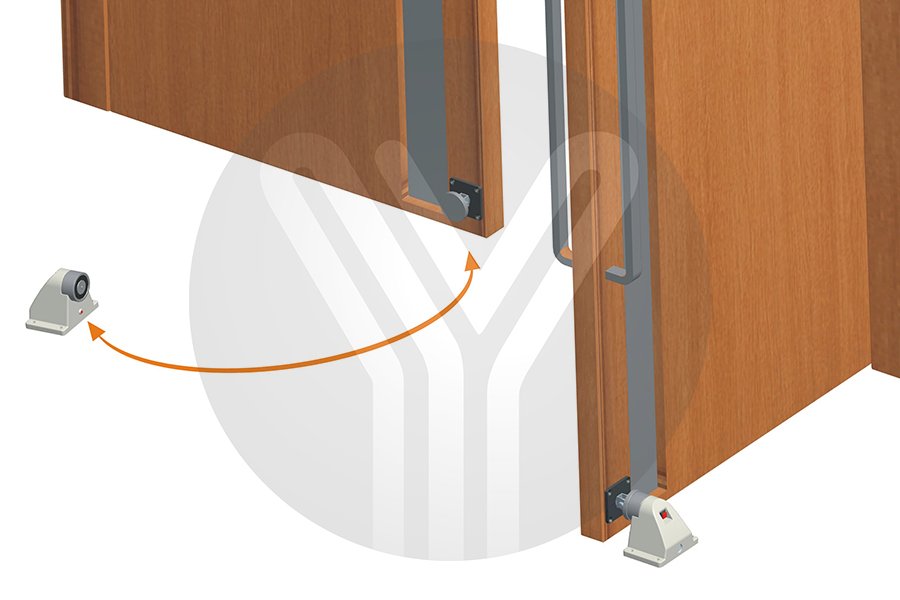

Installation Diagram
