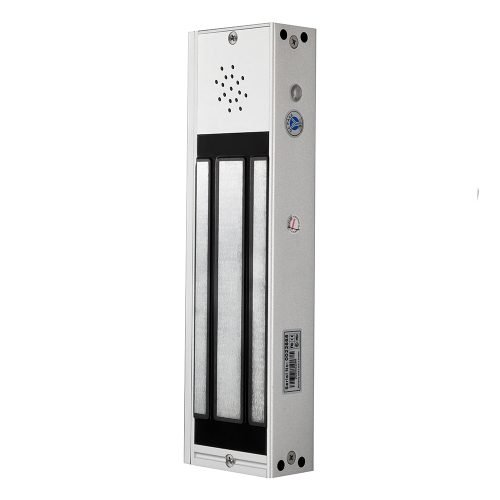

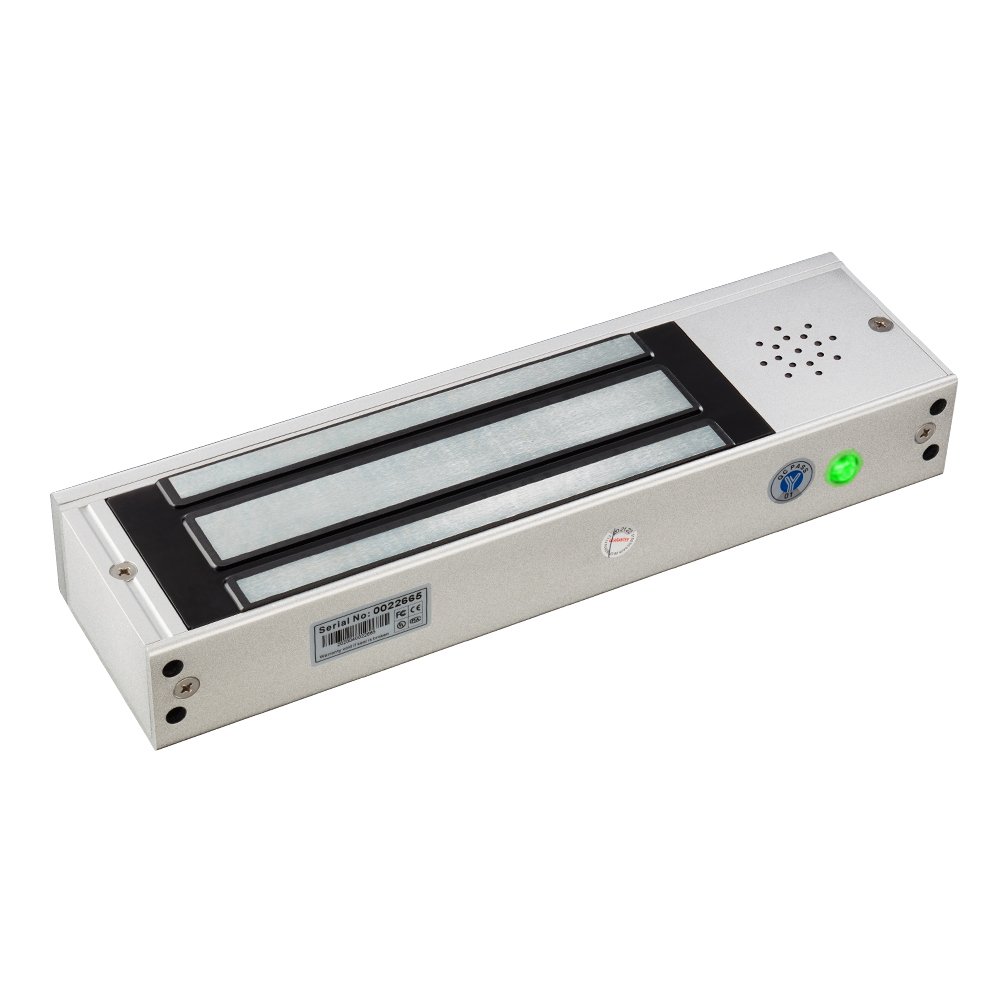

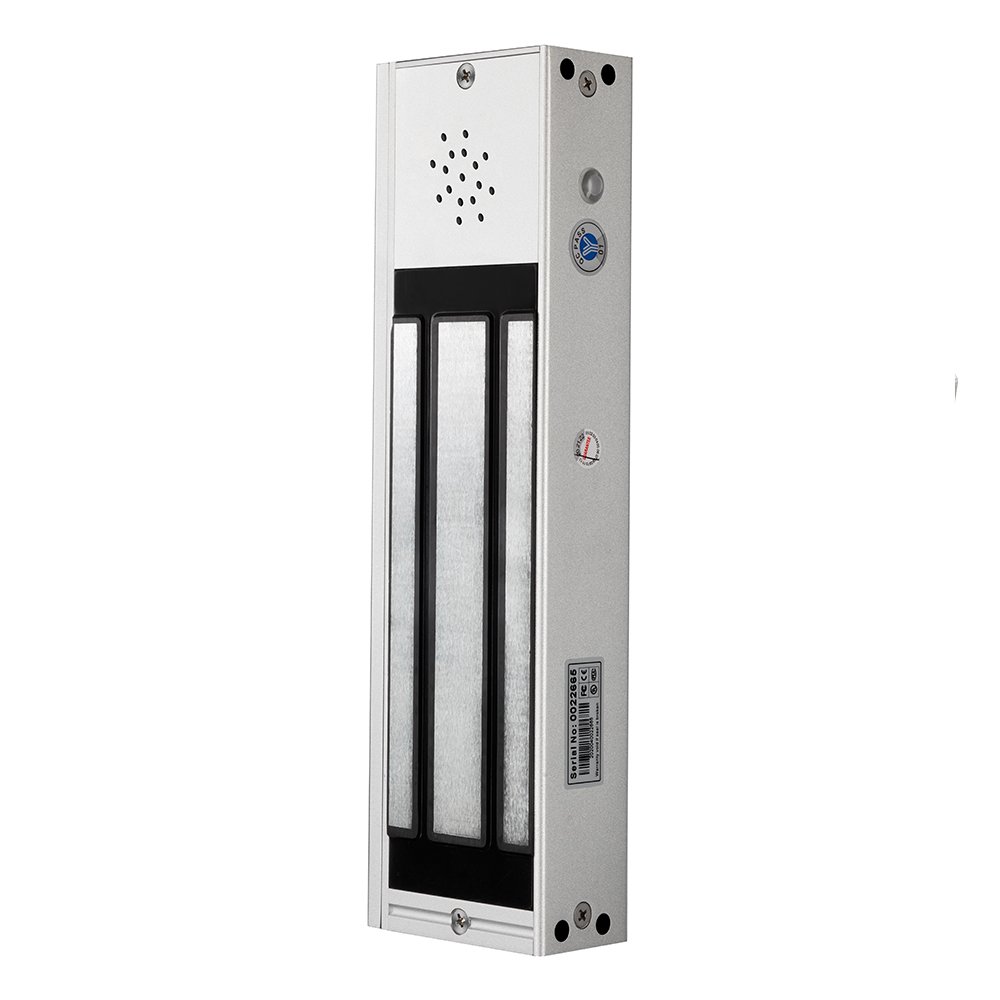

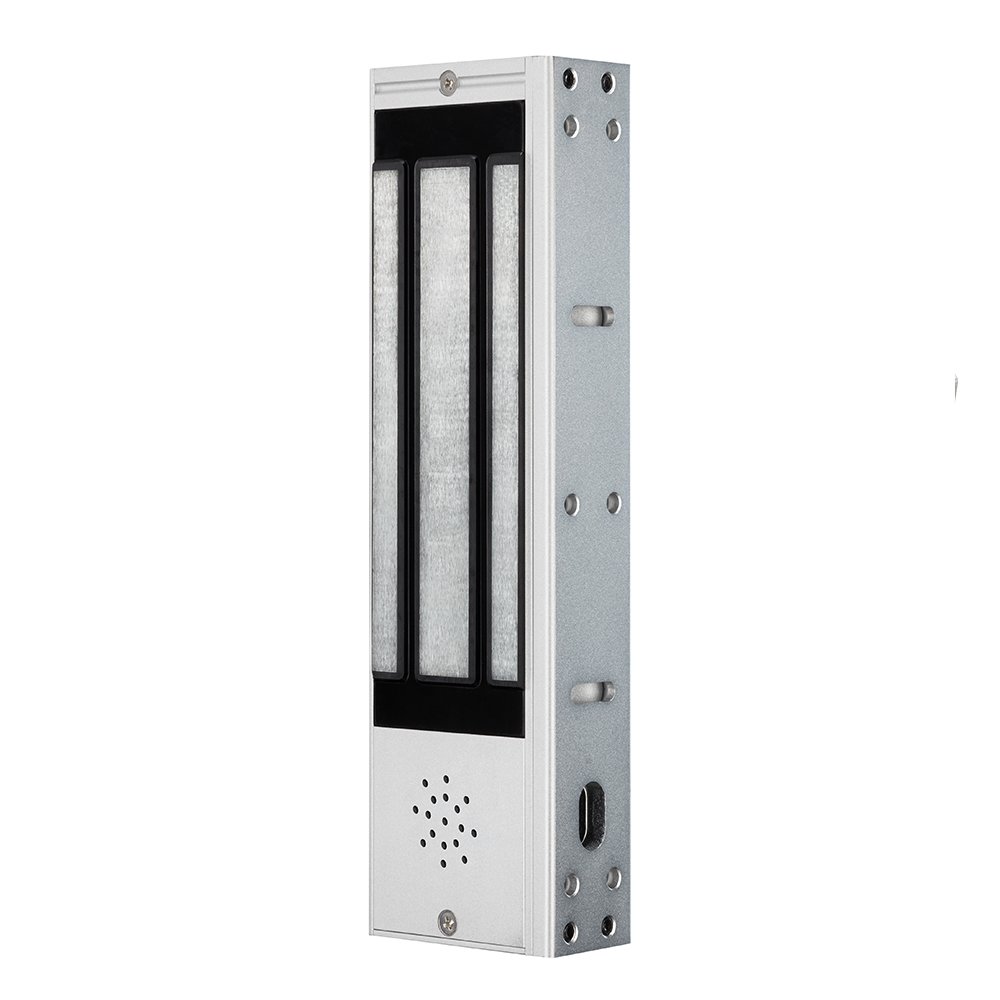

Single Door Magnetic Lock(Buzzer)

YM-500NBZ(LED) single door electric lock with buzzer .Different types of door can match it .When set up 1-30 as door close time, if the door doesn’t close after 30secs, it will alarm till the door close.

SKU: YM-500NBZ(LED) Categories: ,

Technical Parameter

Size 280Lx73Wx39.5H(mm)
Armature plate 185Lx60Wx13H(mm)
Holding Force 500kg(1200Lbs)
Voltage DC12V (Adjustable DC24V)
Current Draw 12V/500mA±10%;24V/250mA±10%
Signal Output NO/NC/COM Lock Status Signal Output Contact
LED Green indicates the door is unlocked; Red indicates the door is locked
Buzzer 0~20sec. adjustable
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Feature Fail Safe(Locked when energized)
Finishes for Armature Zinc
Weight 4.5kg
Certificate MA CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 500kg,1200pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

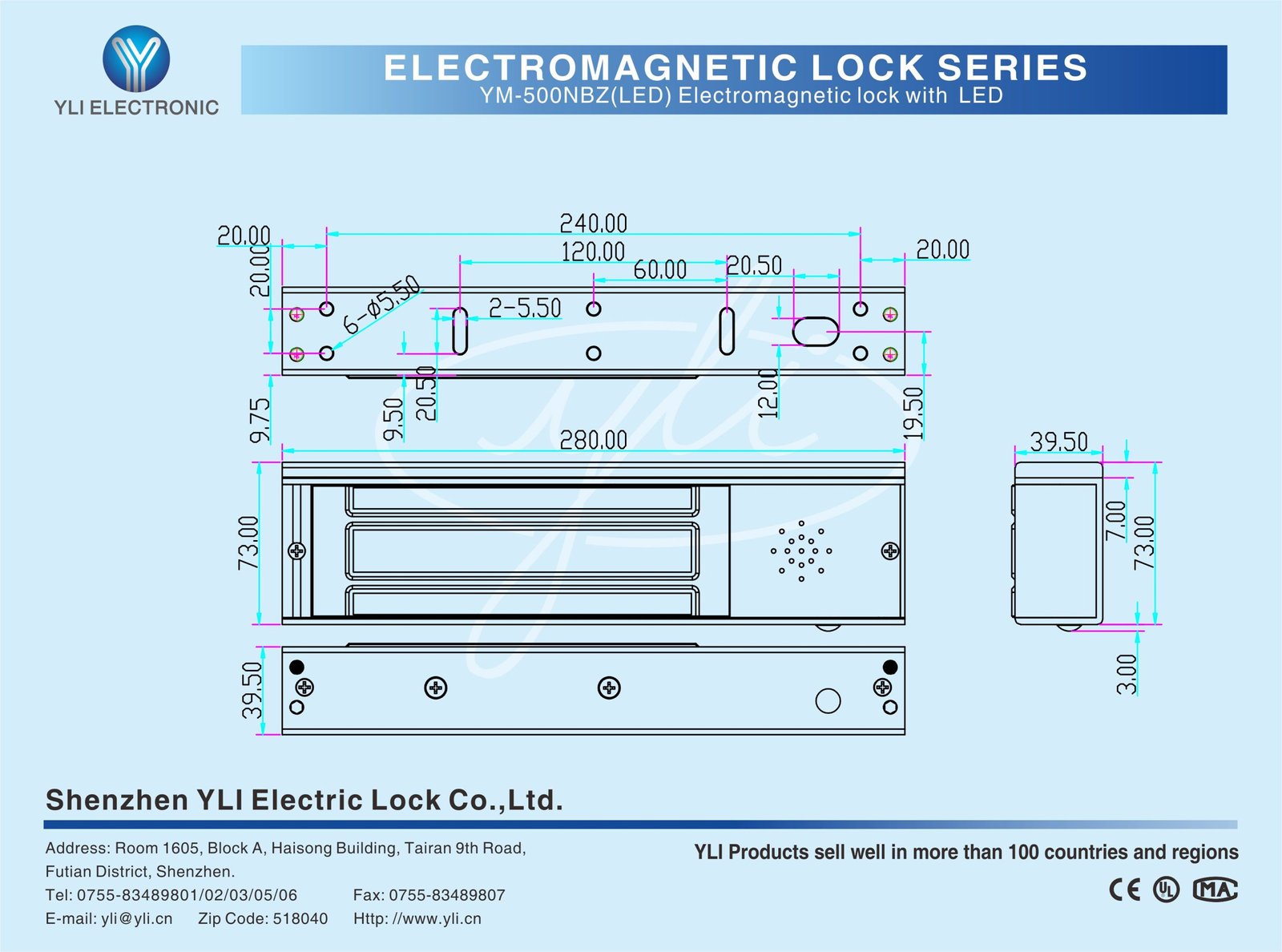

Dimension Diagram

Installation Diagram
