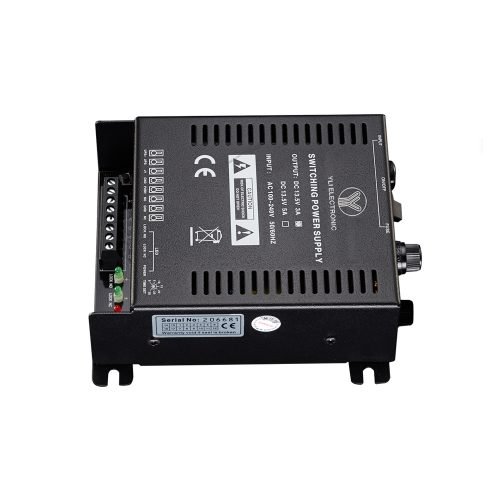

Switch Power Supply

It Is an efficient power supply which is specially designed for access control system . It can start smoothly with automatic protection when the voltage is high. We put a indicator light on it to show the status of itself as well as the lock.

SKU: YP-904-12-3-B Categories: ,

Technical Parameter

Dimension 141L x 122W x45H(mm)
Input 100-240VAC（50/60Hz）
Output DC13.5V/3A
Time Delay 0～30sec(adjustment)
Contact Access Control, Electric Lock, Release Button Contacts
Security Protection automatically when the voltage is high
LED Working Status, NO Contact Status, NC Contact Status
Suitable For Access control, Electric lock
Weight 0.68kg

Advantage

Special Design, Suitable for Access Control.
Produced with High Quality Element.
Multifunctional Output Contact,Suitable for Multifunctional Request.
The Best Choice of Access Control.

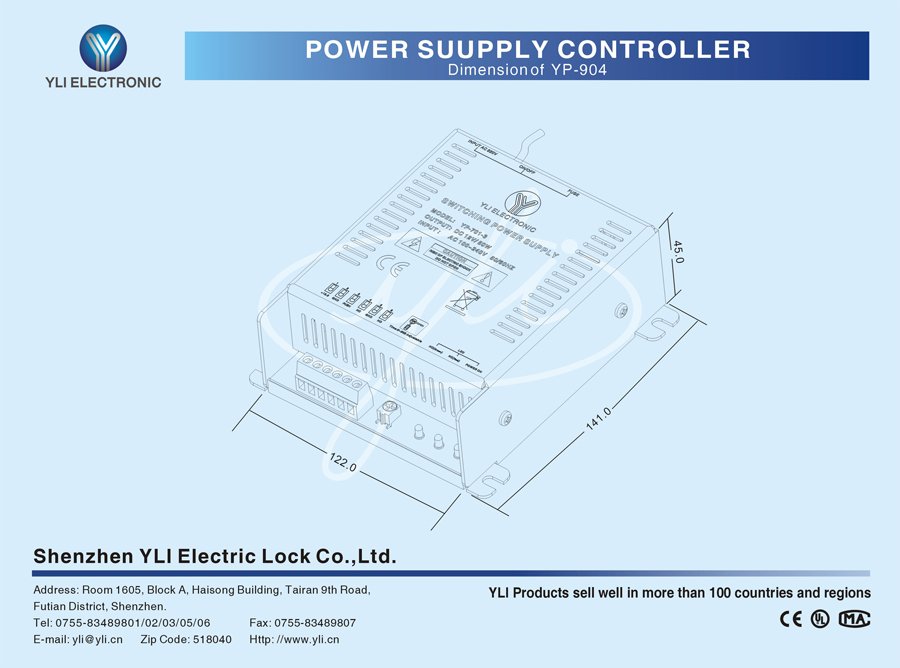

Dimension Diagram

Installation Diagram
