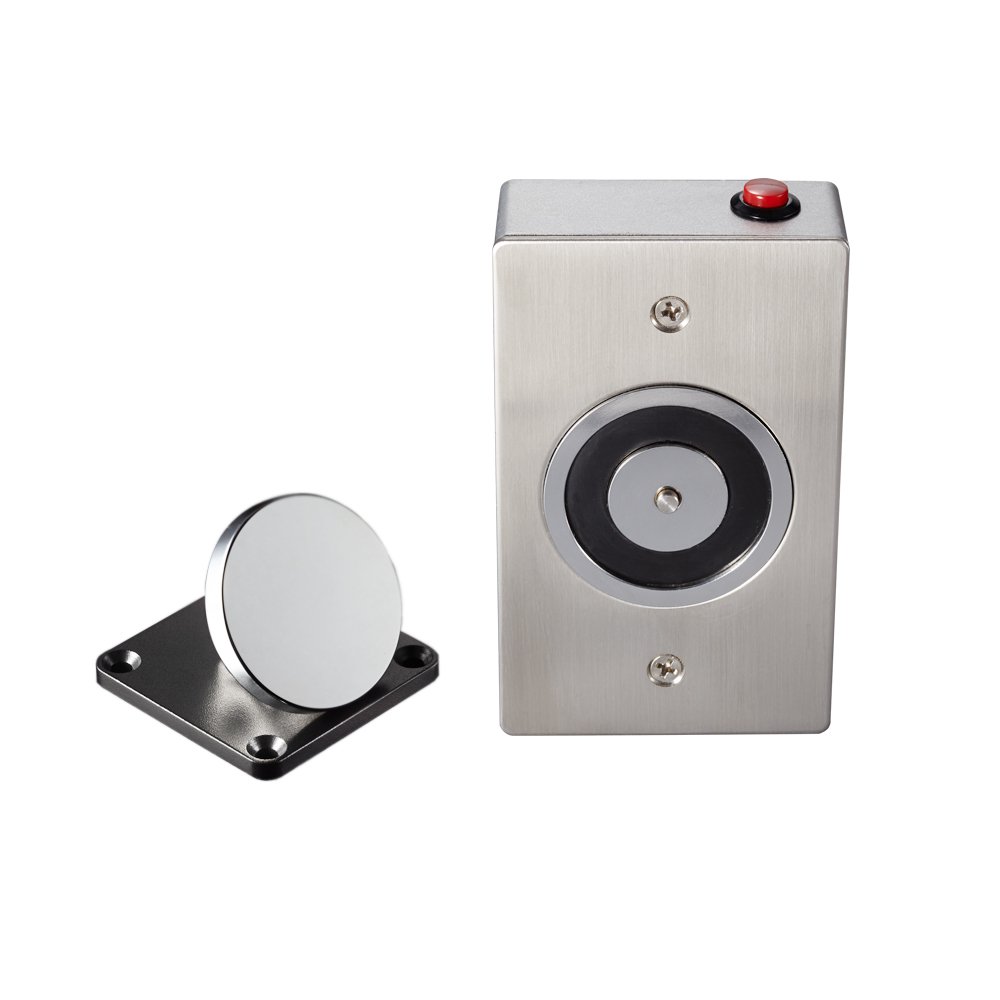

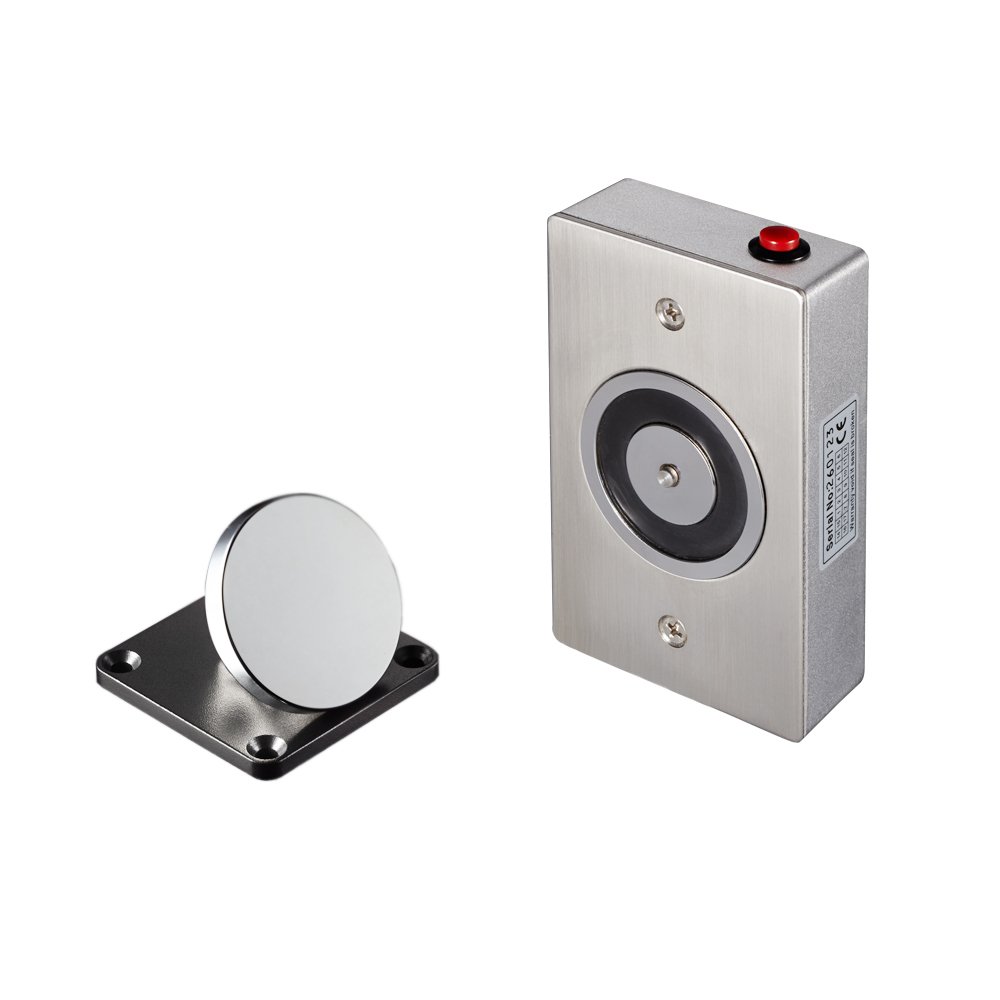

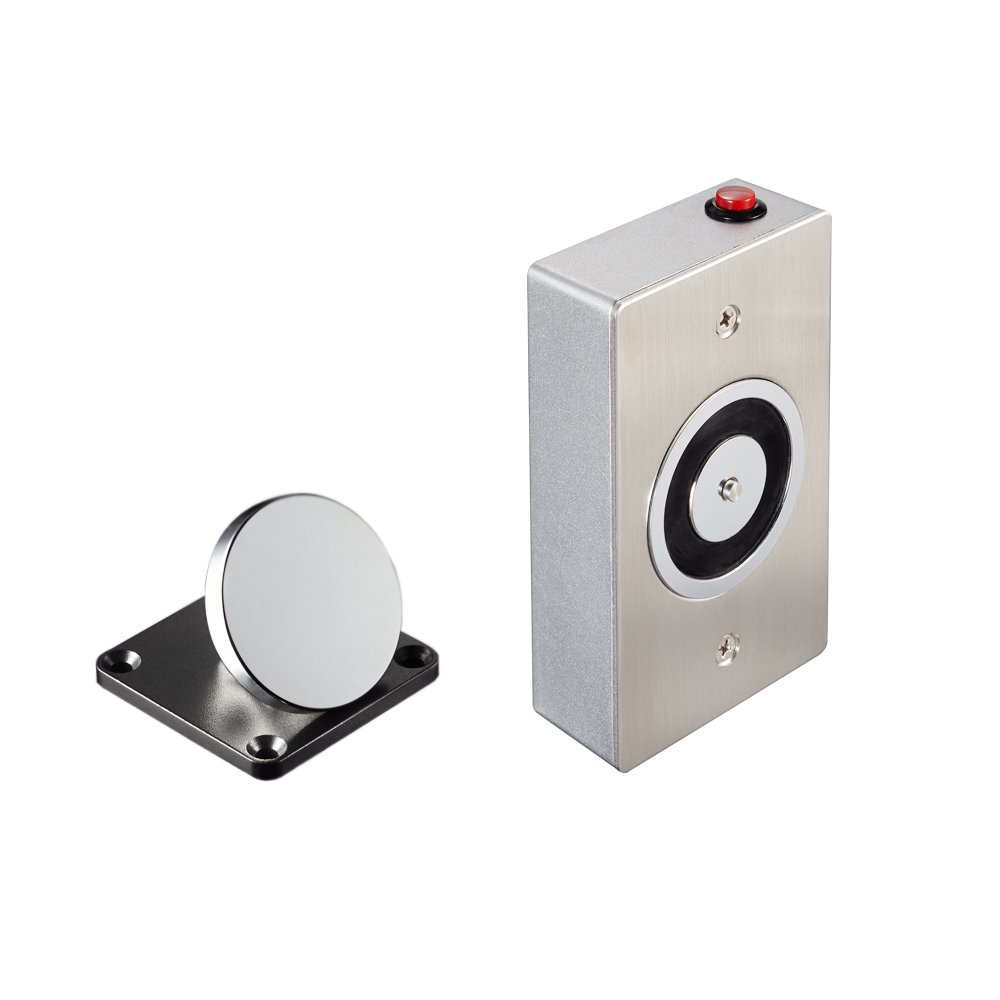

American Type Wall Mount Door Holder

YD-603US is a American Type mortise mount door holder. Feature of low power consumption makes it more environmental friendly and more durable. With Manual door release button.Build-out release button for testing and build-in MOV reverse current protection

SKU: YD-603US Categories: ,

Technical Parameter

Dimensions L114xW70xH29(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Optional Manual door release button
Material 304 stainless steel,wire draw finishing
Weight 1.0kg
Certificate MA CE-EMC REACH WEEE

Advantage

Col linear Load Test 50kg–110pounds.
The Standard Voltage is 24 VDC when finished.
MOV Provides Reverse Current Protection.
Low Power,Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design,  Dual Insulate Housing.
Shunt and Defend the Cigarette Door Automatically During the Fire Alarm.
CE Certificate.

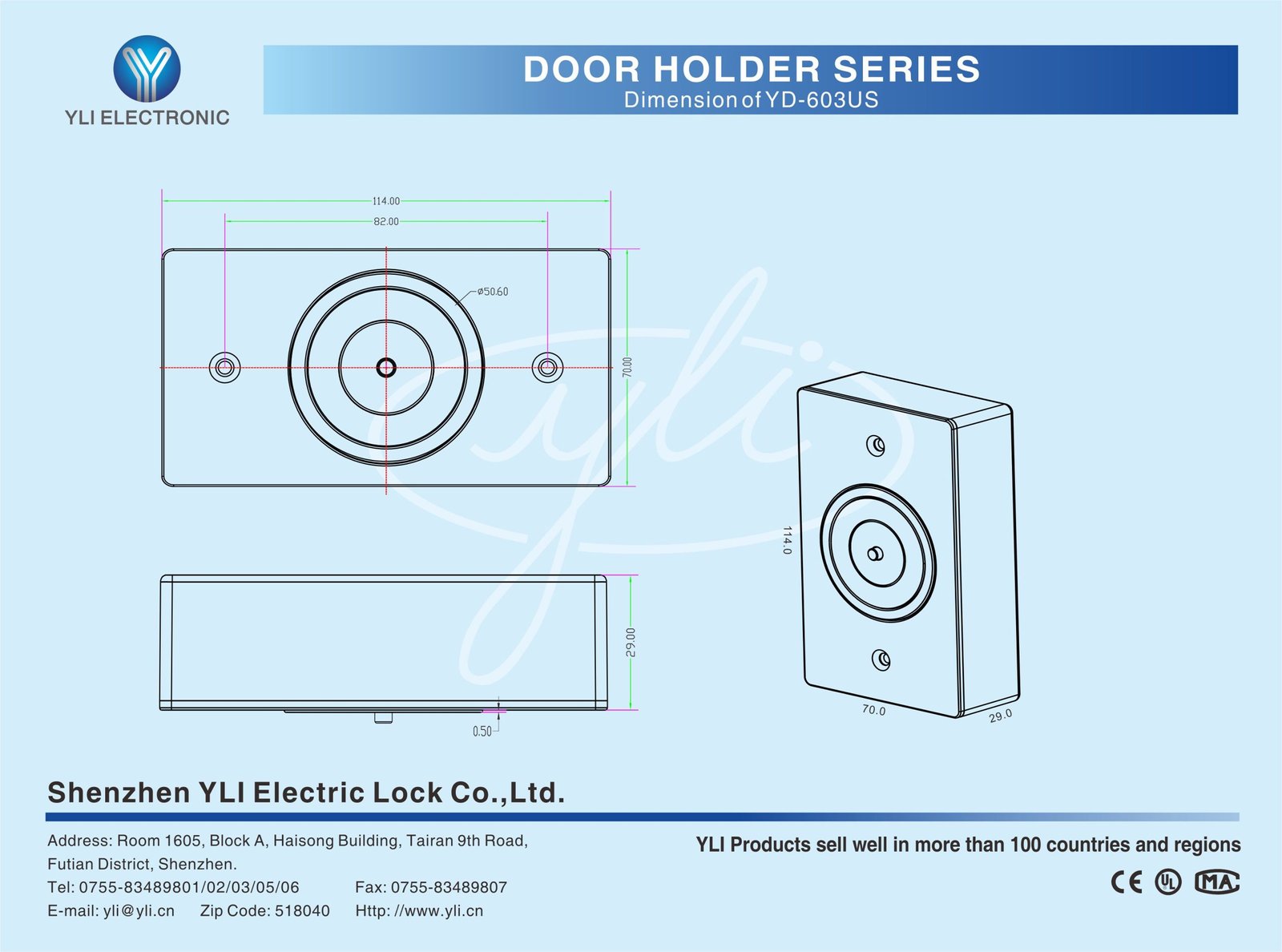

Dimension Diagram

Installation Diagram
