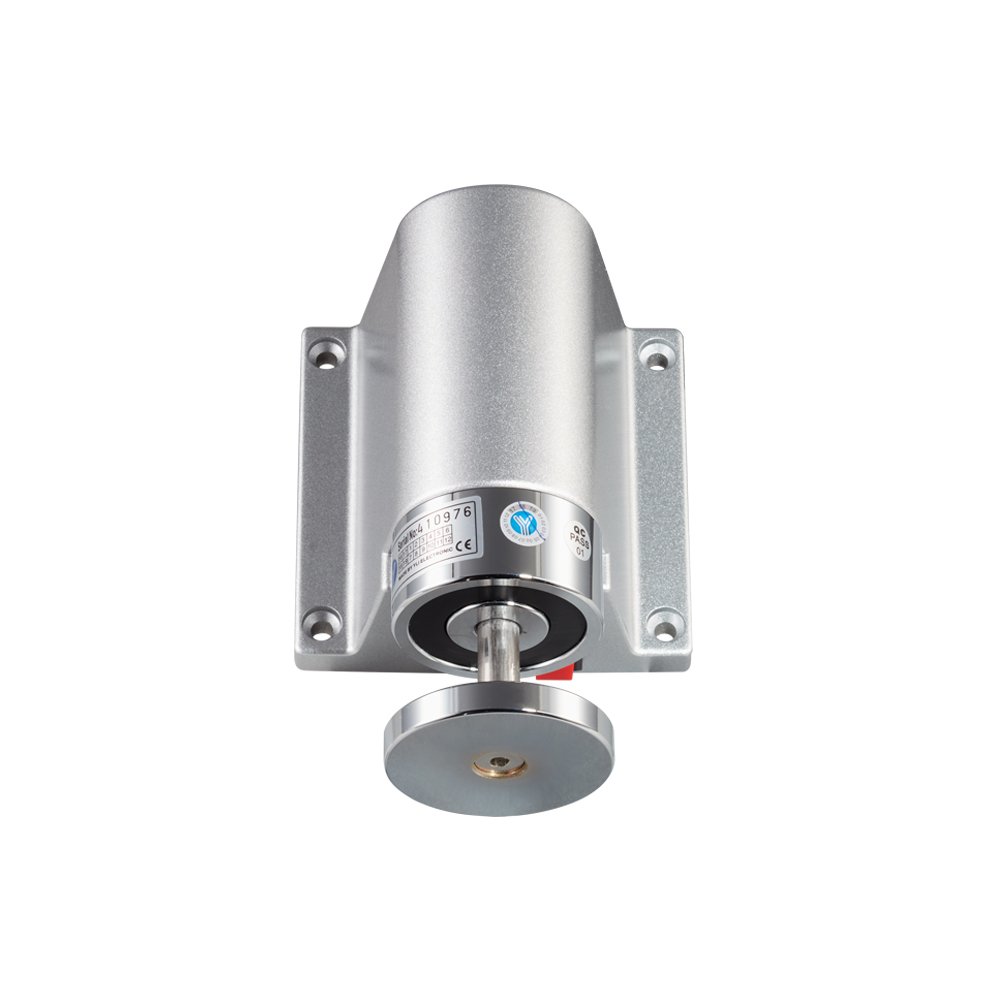

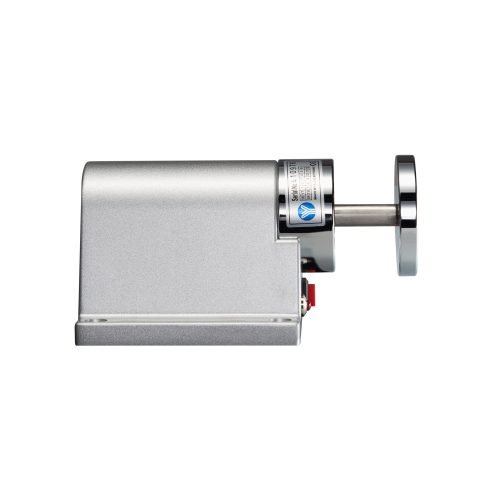

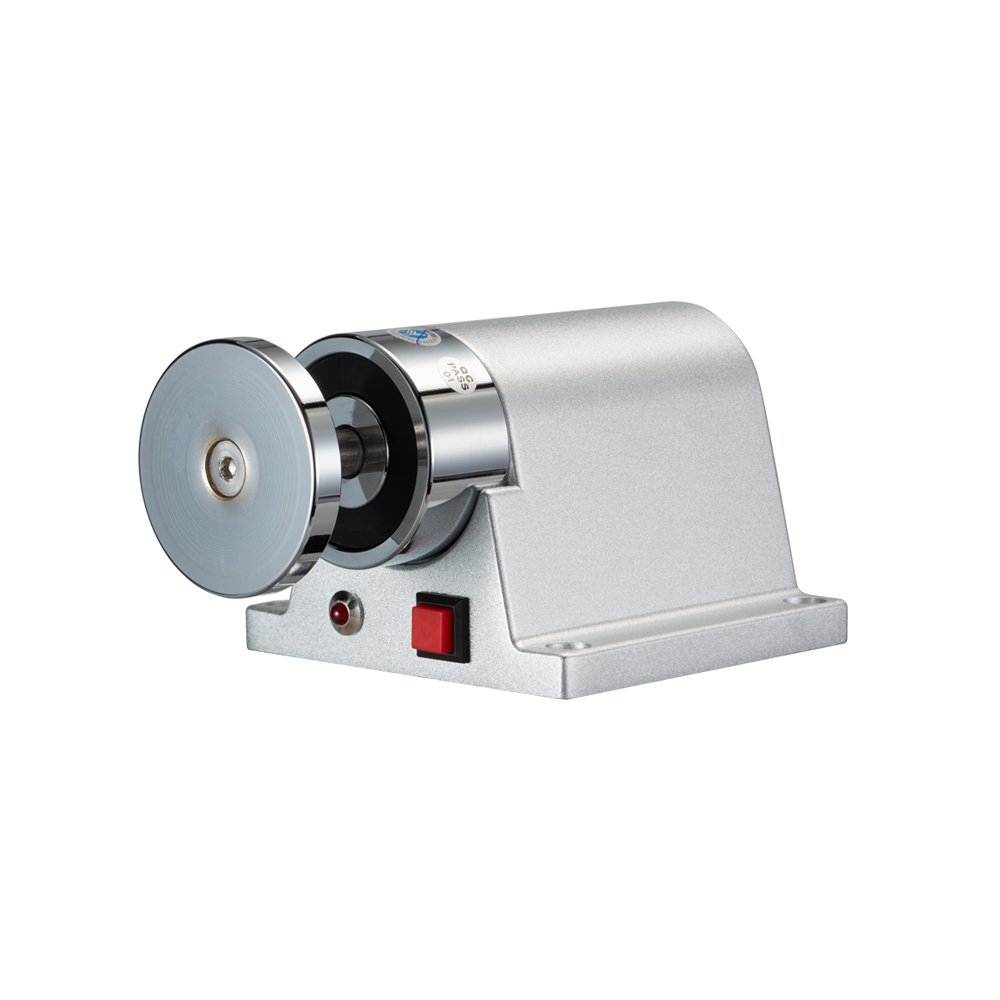

Electromagnetic door holder with bolt

New type of electromagnetic device,electromagnetic part combines with armature plate.Integration of structure and function.Fail Safe.Build-in bolt&LED&release button.Bi-directional voltage feature.Technical feature description,all-in structure,its characteristic:die casting,all-in structure;Technical feature description,build-in bolt,its characteristic:applying principle of spring,bolt works as linkagewith armature plate;Technical feature description,bi-directional voltage feature,characteristic:12VDC/24VDC optional

SKU: YD-610 Categories: ,

Technical Parameter

Dimensions 148Lx100Wx76.65H(mm)
Suction plate size Φ54x8.0(mm)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Suitable for All kind of the single & double smoke proof door
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Optional The hand moves and closes the door to release the button
Weight 1.5kg
Certificate CE-EMC

Advantage

New type of electromagnetic device,electromagnetic part combines with armature plate.

Integration of structure and function.Fail Safe.Build-in bolt&LED&release button.

Bi-directional voltage feature.

all-in structure,its characteristic:die casting,all-in structure;

build-in bolt,its characteristic:applying principle of spring,bolt works as linkagewith armature plate;

12VDC/24VDC optional

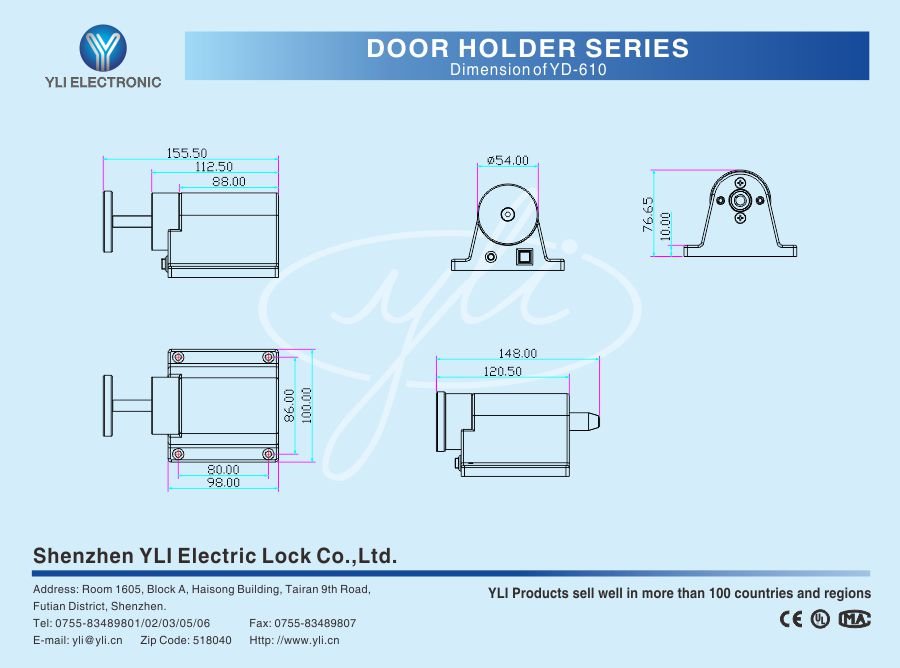

Dimension Diagram

Installation Diagram
