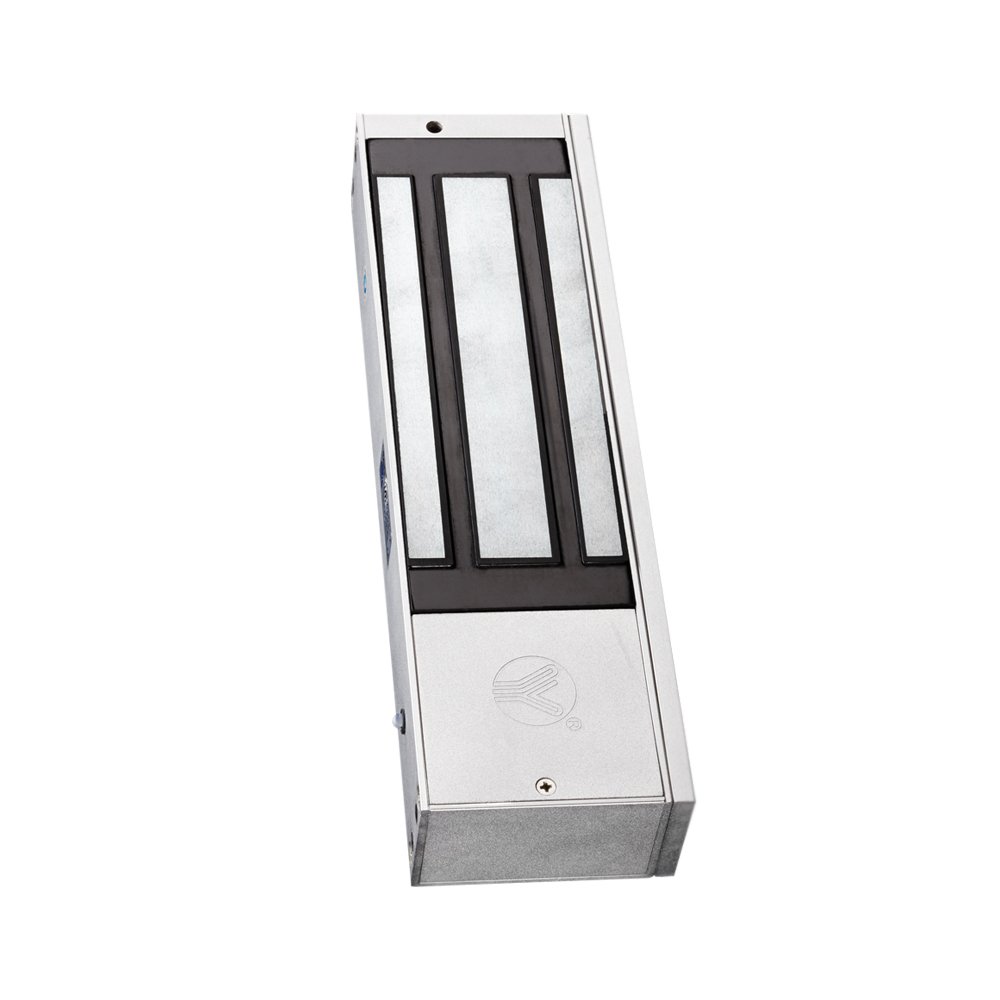

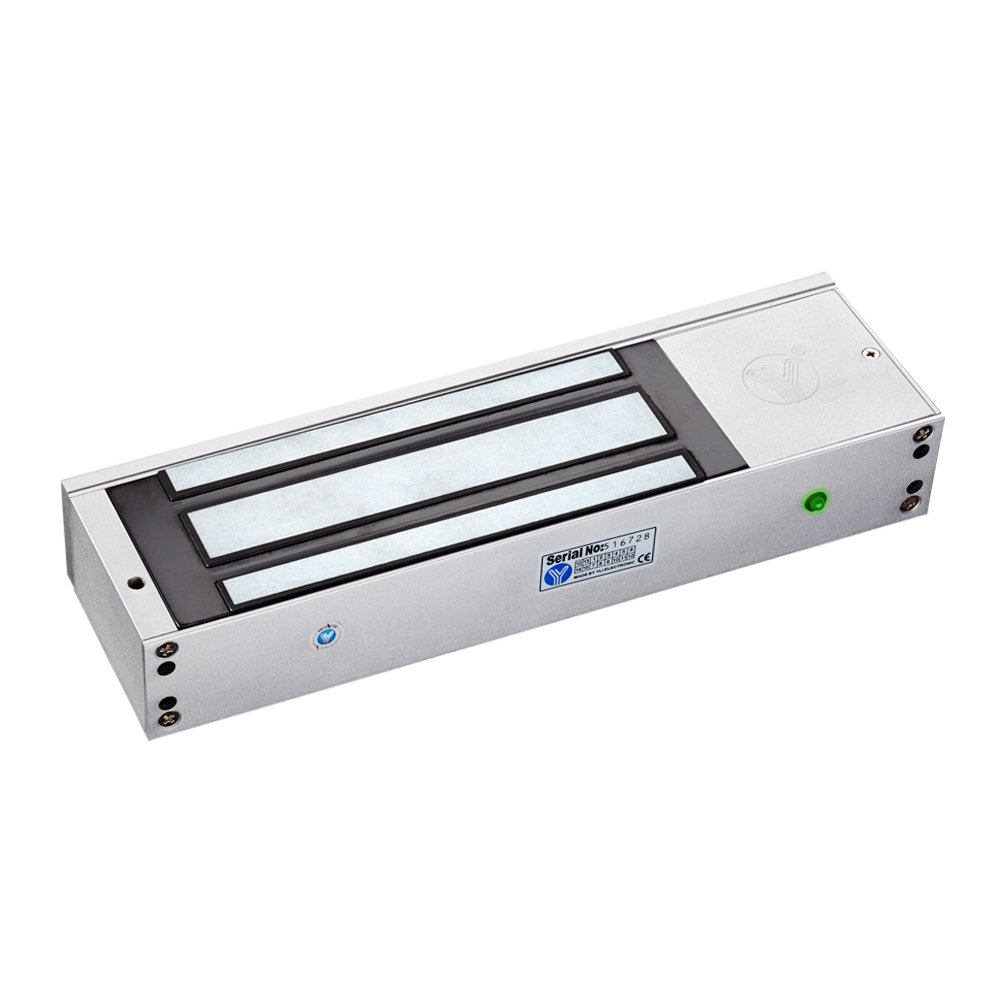

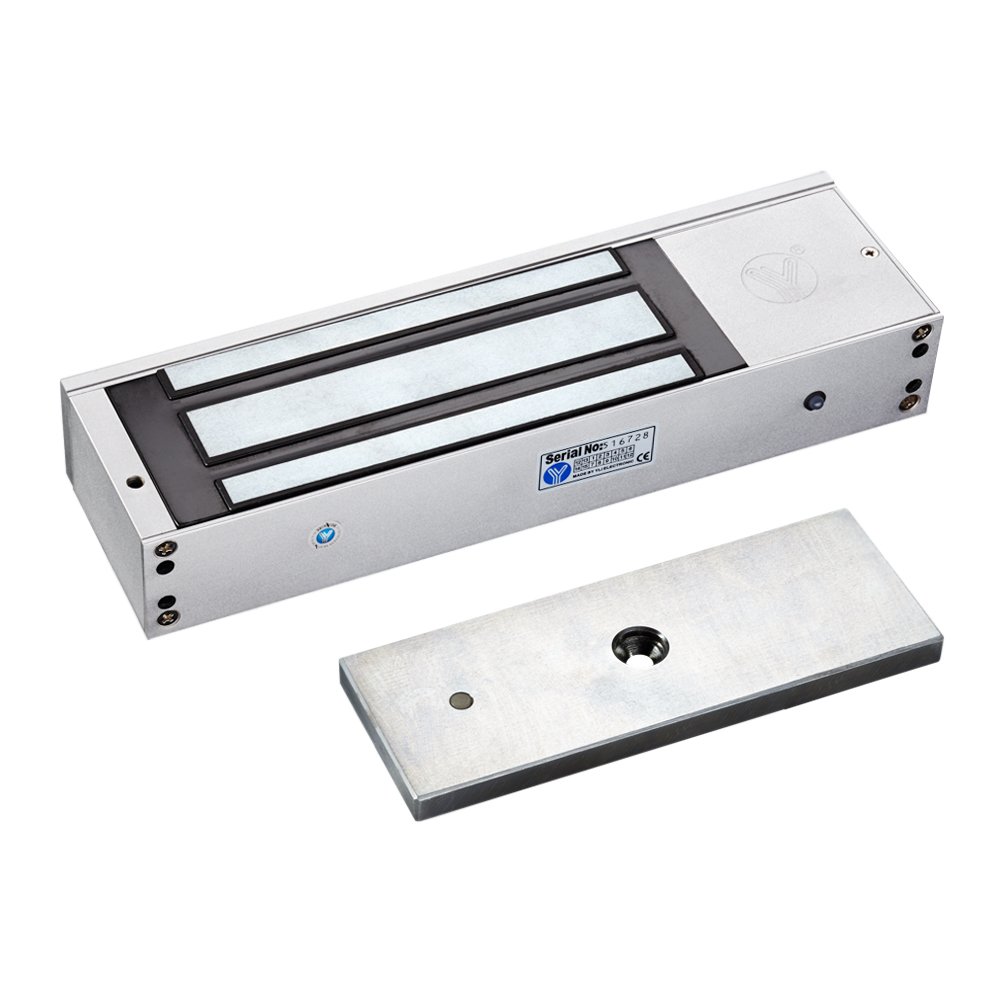

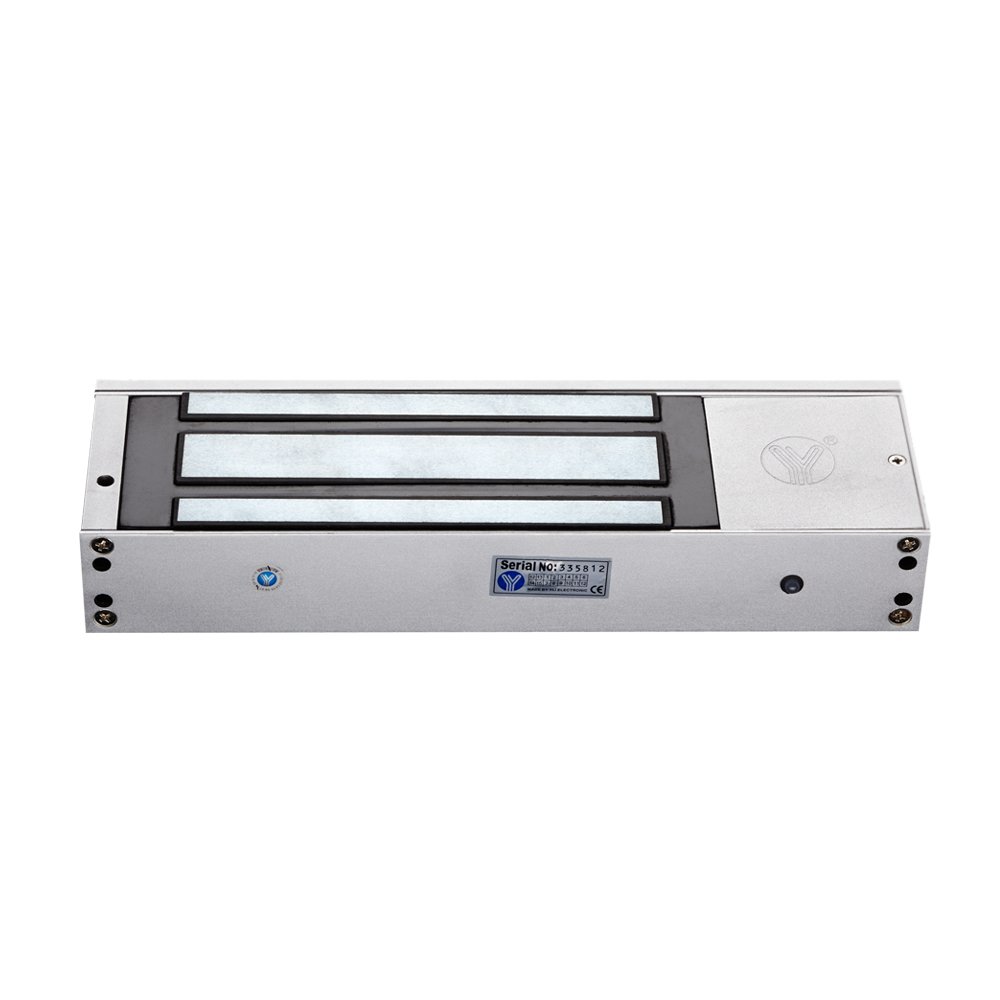

Single Door Magnetic Lock(LED & Time)

YM-750T(LED) single door electric lock.Inbuilt time delay mode and can set up 0,3,6,9sec.It is suitable for the card reader which is with time delay function.With LED(Red indicates the door is unlock,Green indicates the door is lock)

SKU: YM-750T(LED) Categories: ,

Technical Parameter

Size 280Lx81.6Wx46H(mm)
Armature plate 190Lx70Wx13H(mm)
Holding Force 750kg(1500Lbs)
Voltage DC12V (Adjustable DC24V)
Current Draw 12V/420mA(±10%); 24V/210mA(±10%)
Signal Output NO while locking and NC for unlocking
Time 0/3/6/9sec.
LED Red indicates the door is unlocked,Green indicates the door is locked
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 5.9kg
Certificate MA CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 750kg,1500pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standad Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

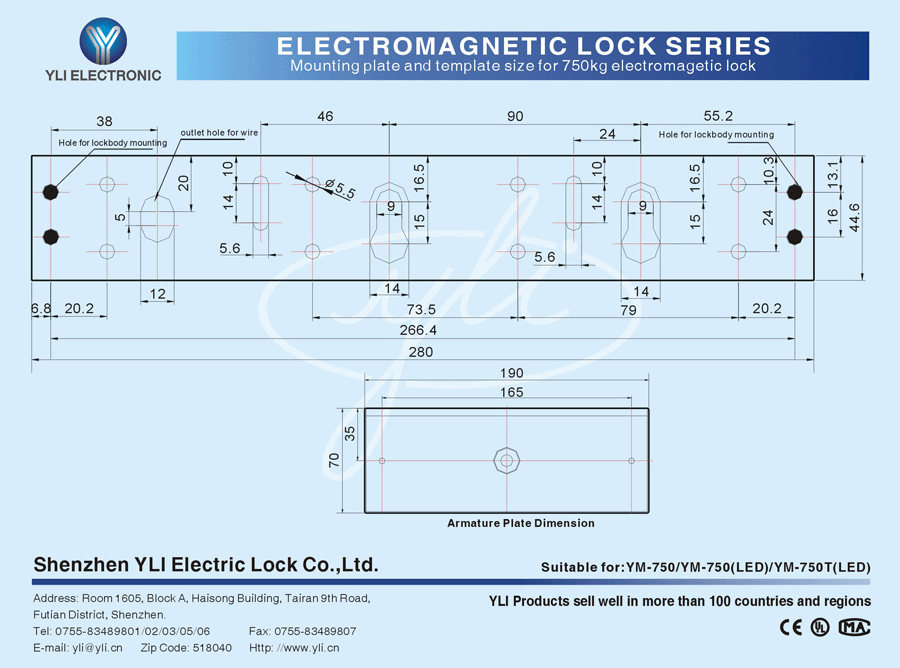

Dimension Diagram

Installation Diagram
