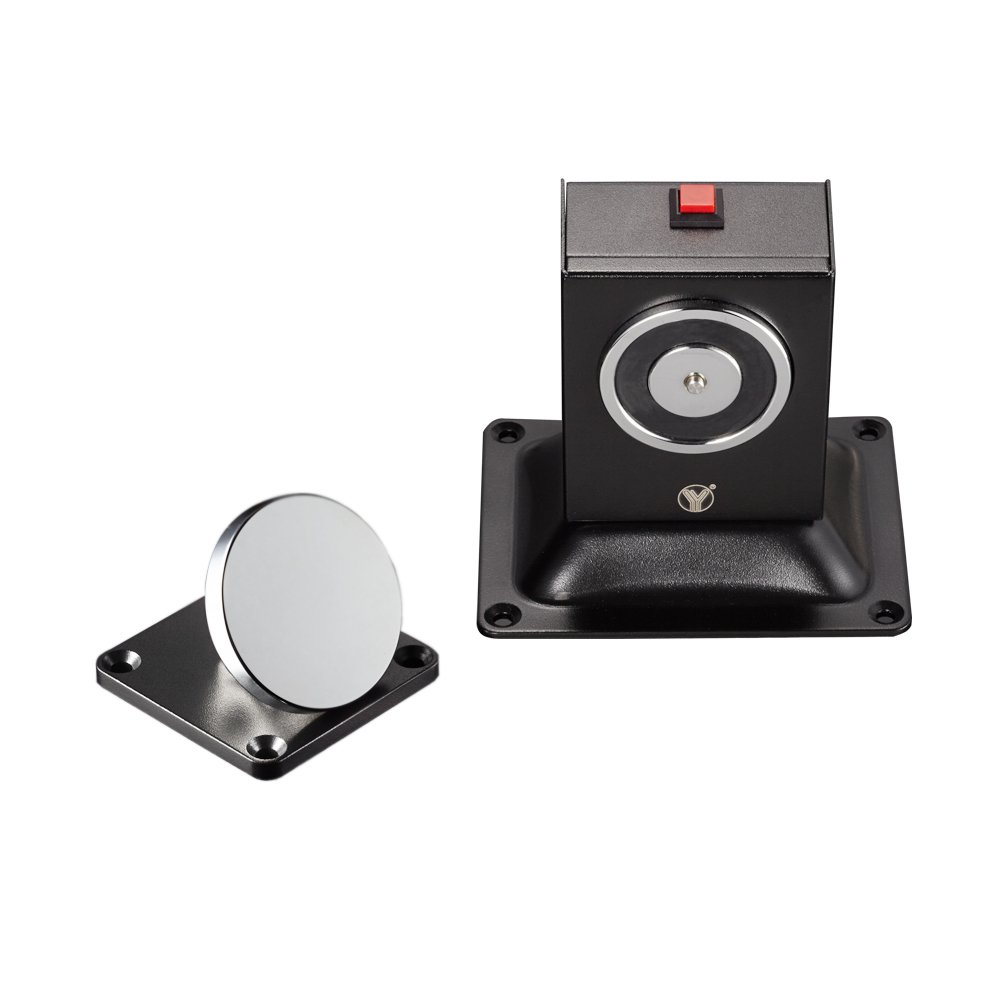

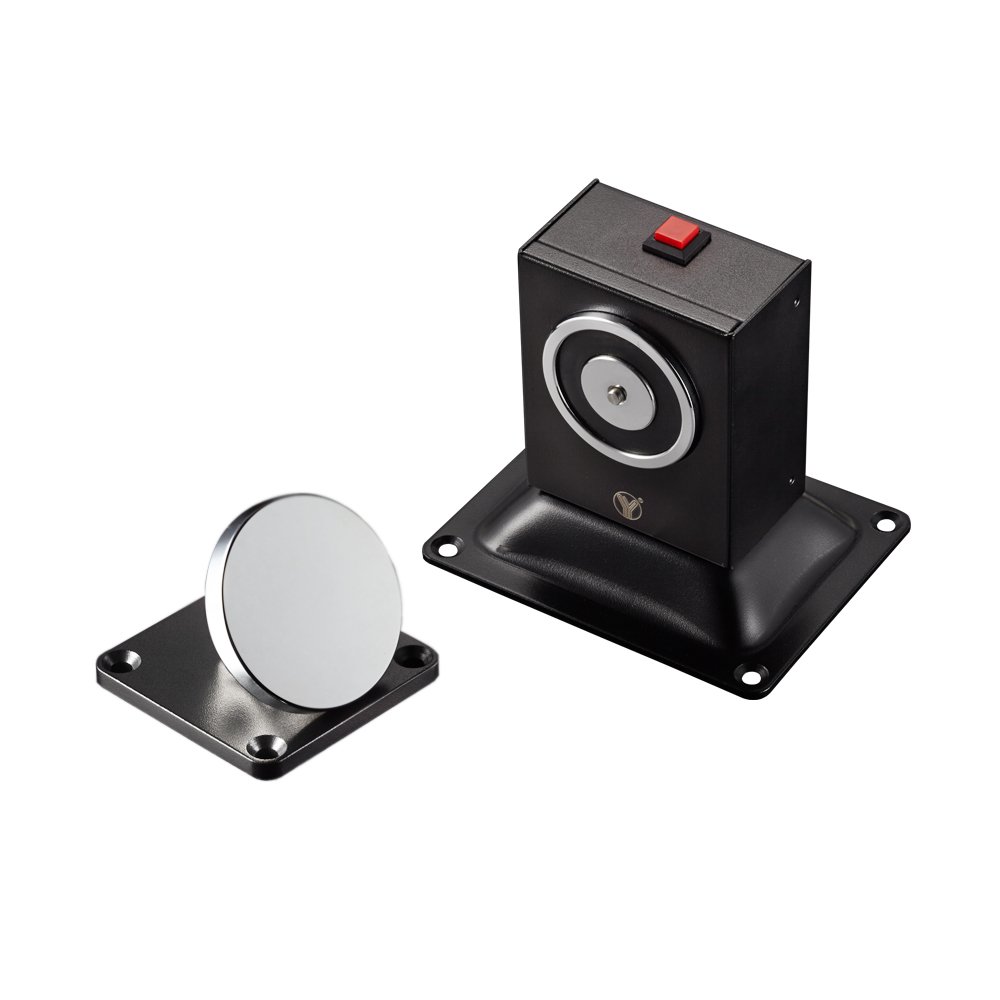

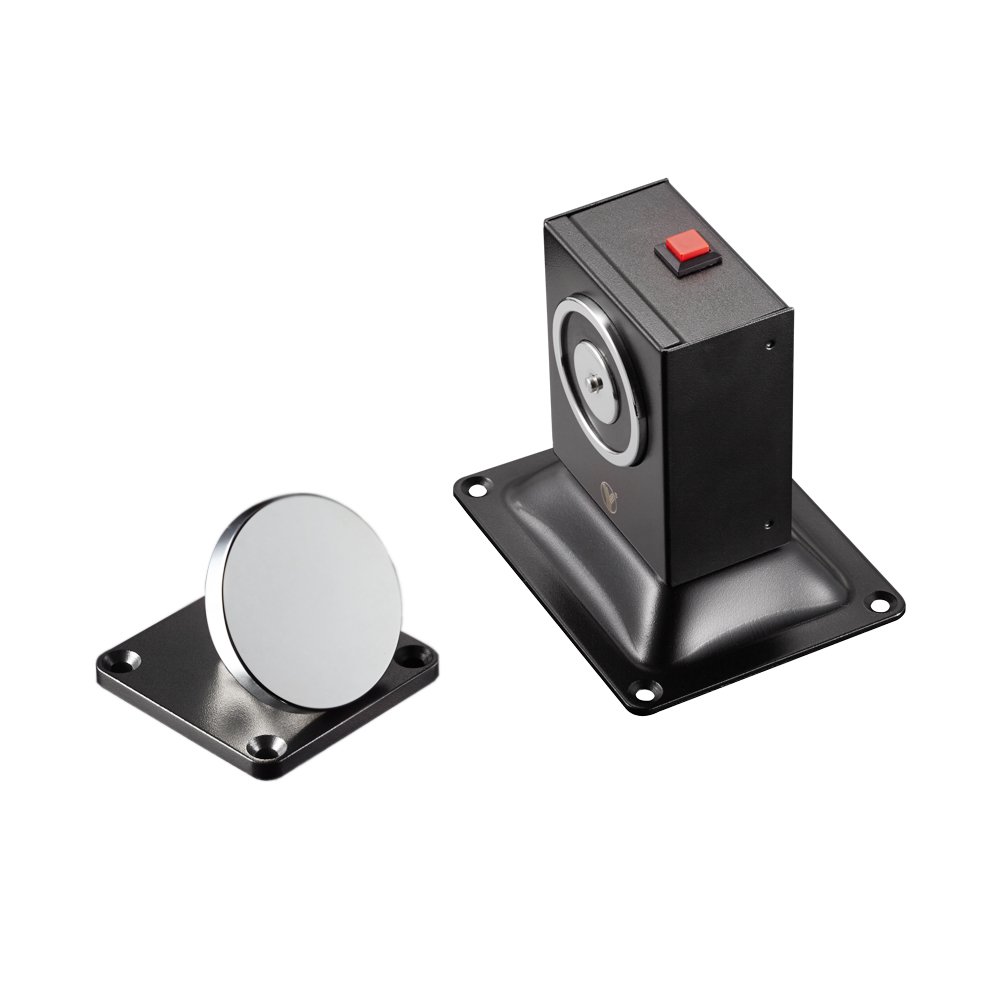

Floor and Wall Mount Door Holder

YD-605 is a wall mount and floor mount door holder.which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.

SKU: YD-605-S Categories: ,

Technical Parameter

Dimensions L116xW93xH118(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Current Draw 12V/140mA 24V/70mA
Signal Output NO（Green）/NC（Yellow）/COM(White) YD-605-S
Optional Manual door release button
Suitable for All Kinds of Single & Double Smokeproof Door
Surface Temp ≤+20
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(relative humidity)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 1.4kg
Certificate CE-EMC REACH WEEE

Advantage

Col linear Load: 50kg, 110pounds.
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.

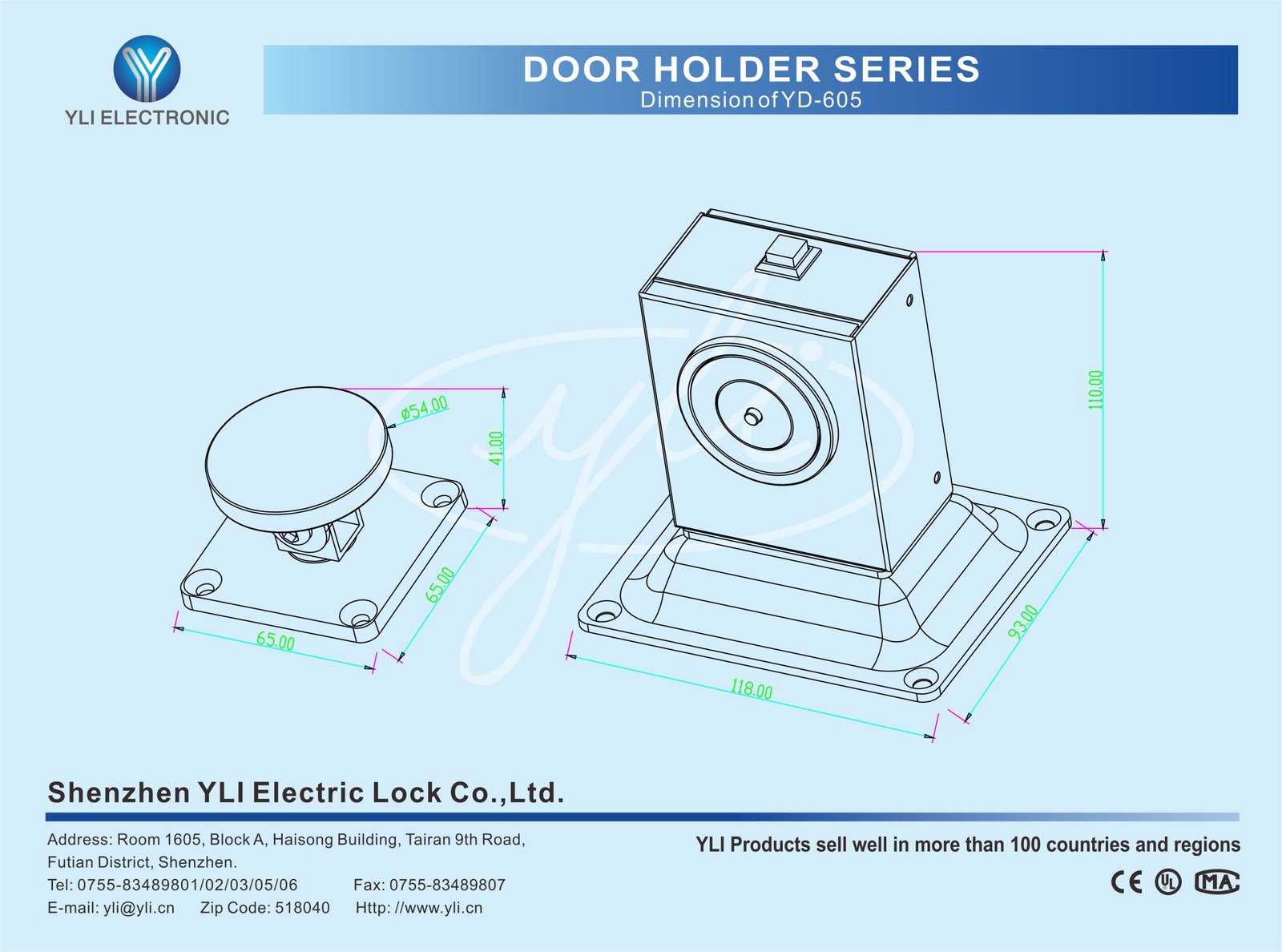

Dimension Diagram

Installation Diagram
