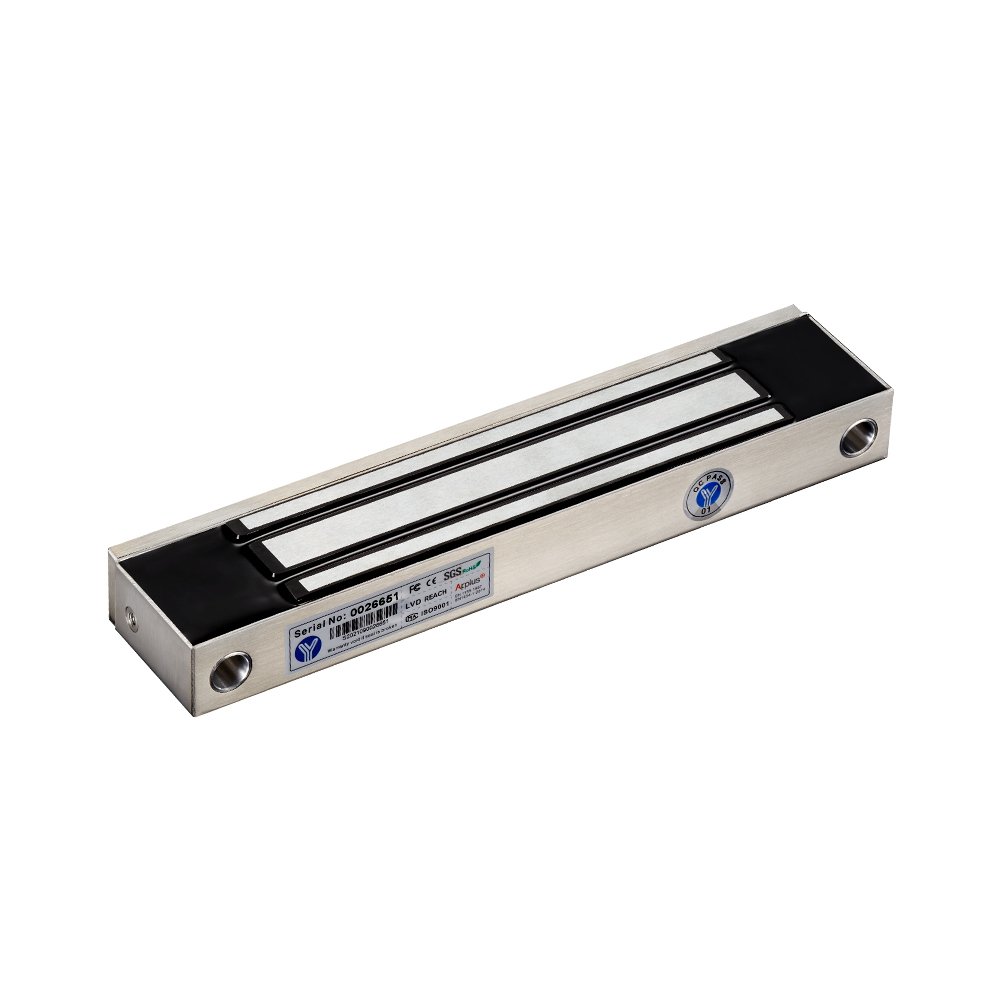

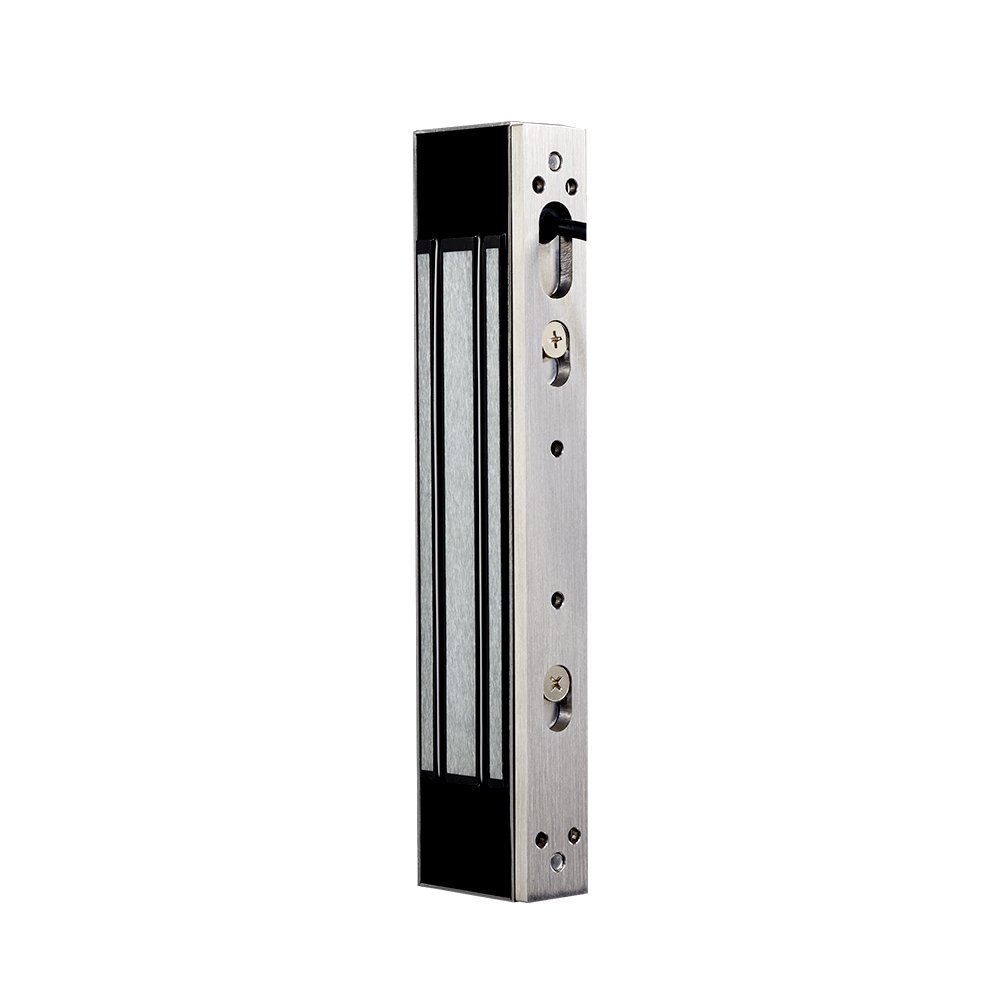

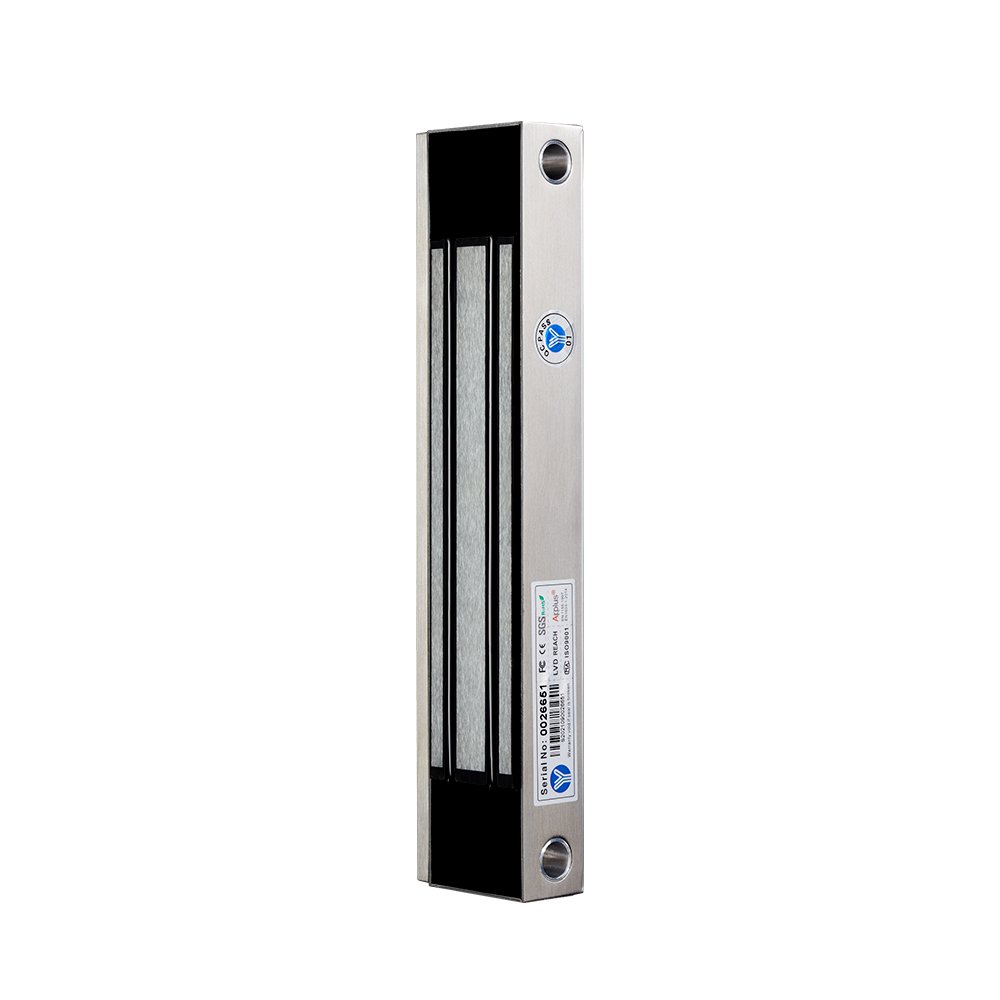

Single Door Magnetic Lock(Waterproof)

YM-280W-S(SS304) single door electric lock with waterproof function, the case is 304 stainless steel materials and it is 100% waterproof treatment.All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.

SKU: YM-280W-S(SS304) Categories: ,

Technical Parameter

Size 225Lx48Wx35H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Signal Output Lock Signal NO/COM
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Waterproof Level IP-68
Weight 2.1kg
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

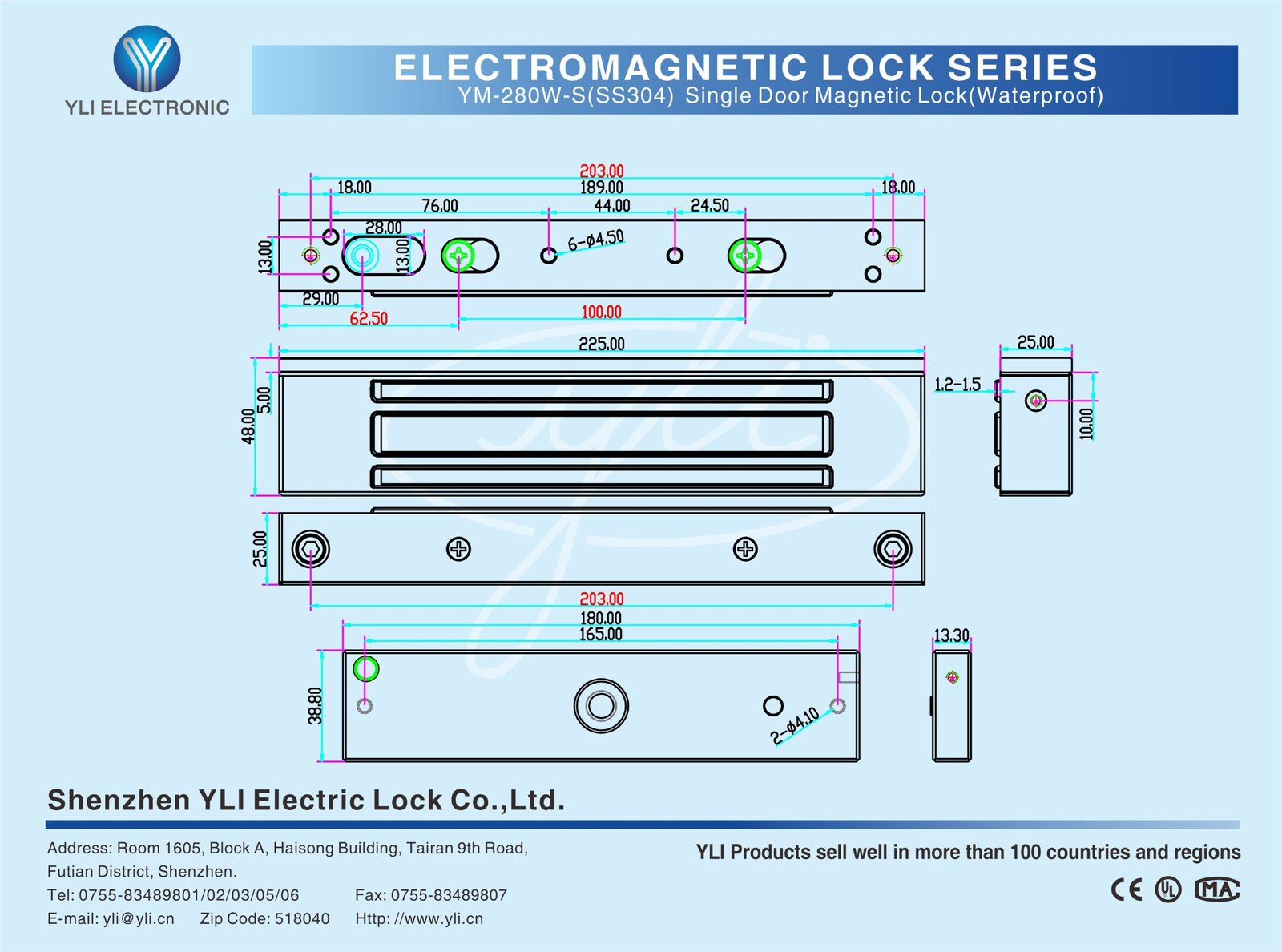

Dimension Diagram

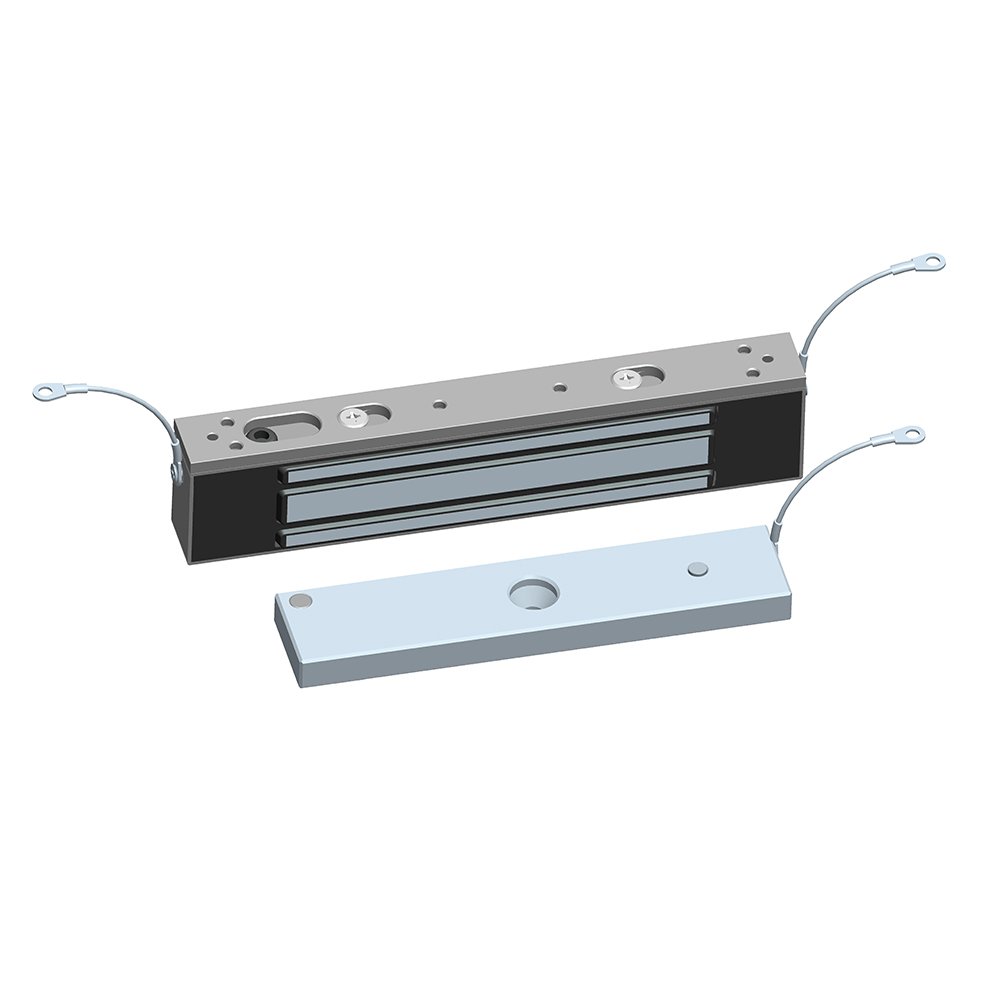

Installation Diagram
