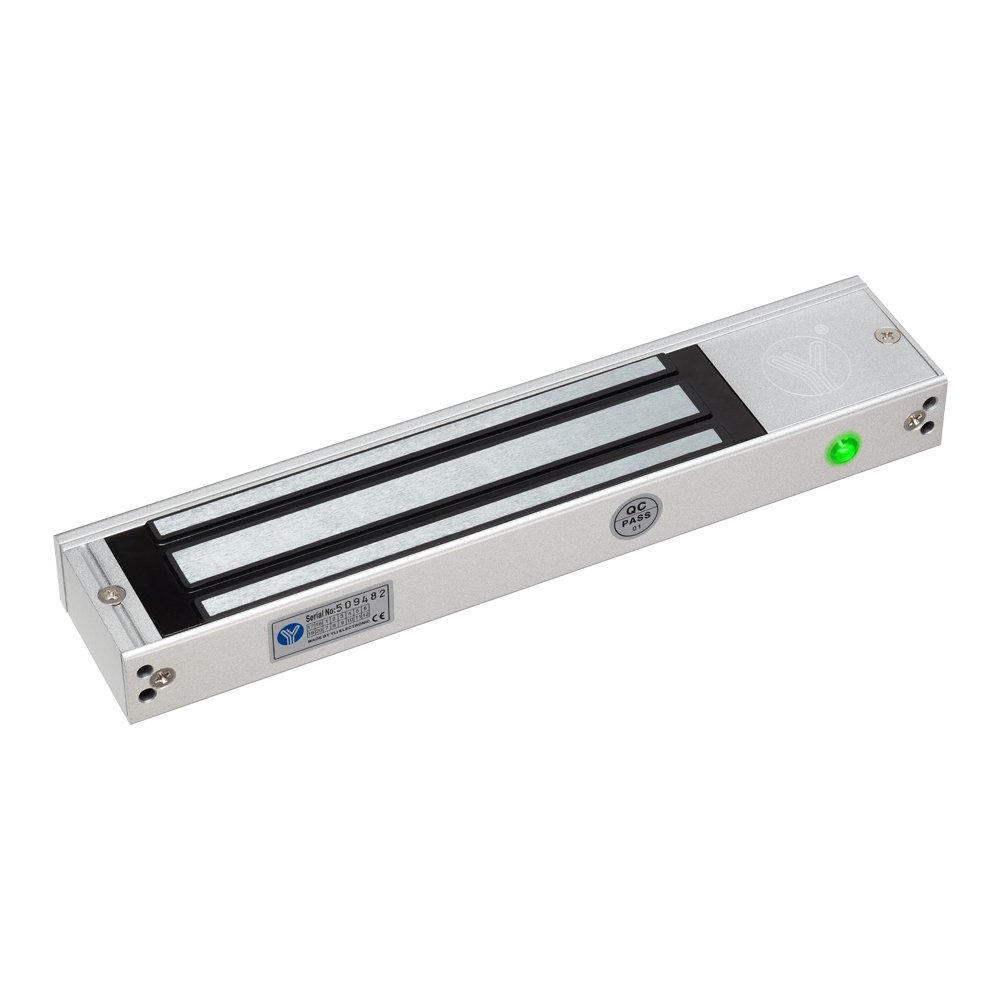

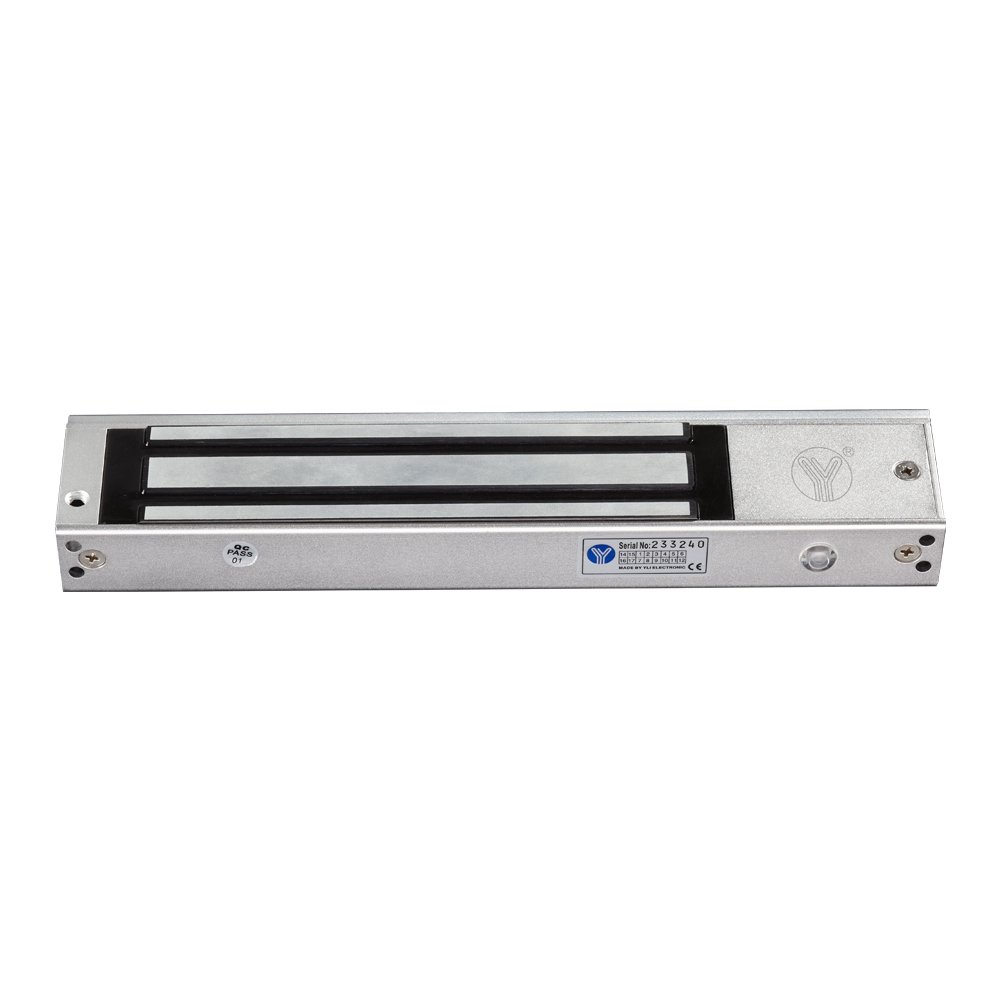

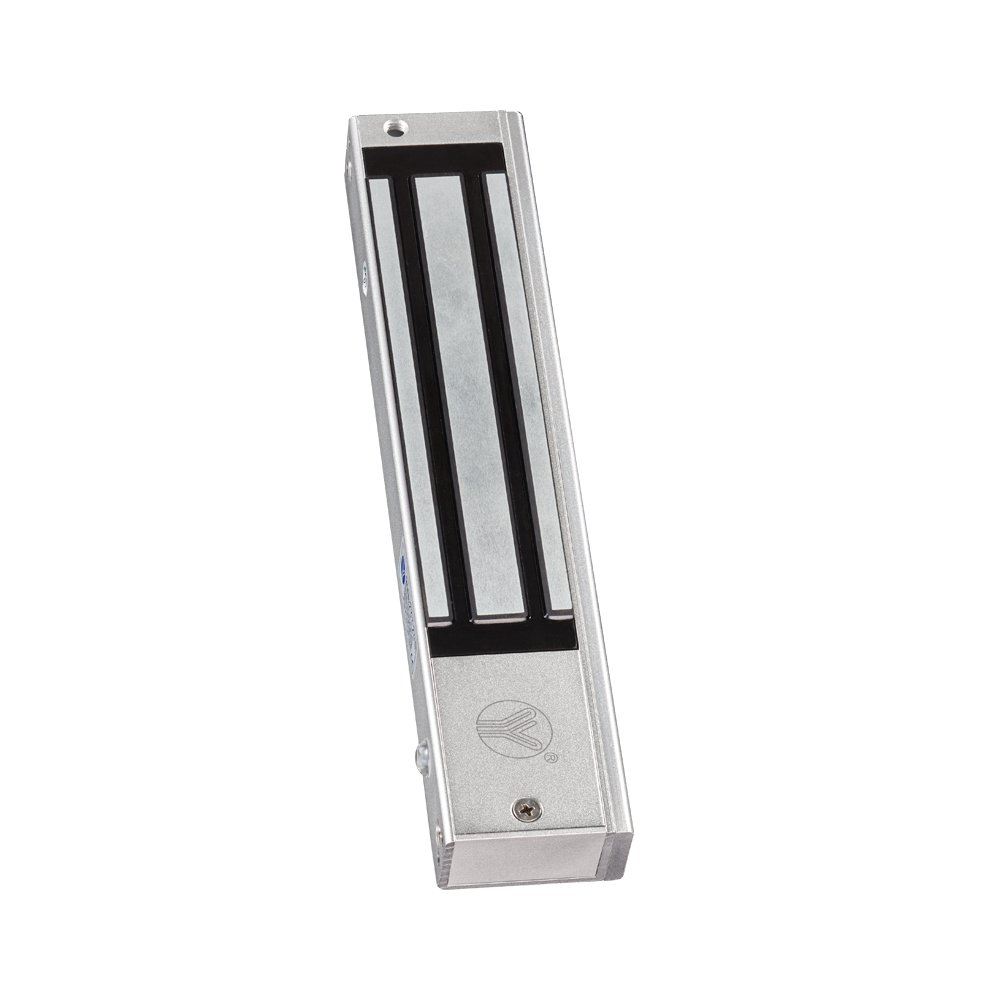

Single Door Magnetic Lock(LED & Time)

Inbuilt time delay mode and can set up 0,3,6,9sec .800lbs single door electric lock mainly for wooden door and metal door.It is suitable for the card reader with LED indicator. Aluminum is the main material.

SKU: YM-350NT(LED) Categories: ,

Technical Parameter

Size 260Lx54.7Wx29.6H(mm)
Armature Plate Dimension 190Lx45Wx13.2H(mm)
Holding Force 350kg(800Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%);24V/250mA(±10%)
LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Time 0/3/6/9sec.
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Weight 2.7KG
Certificate MA CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 350kg,800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

Dimension Diagram

Installation Diagram
