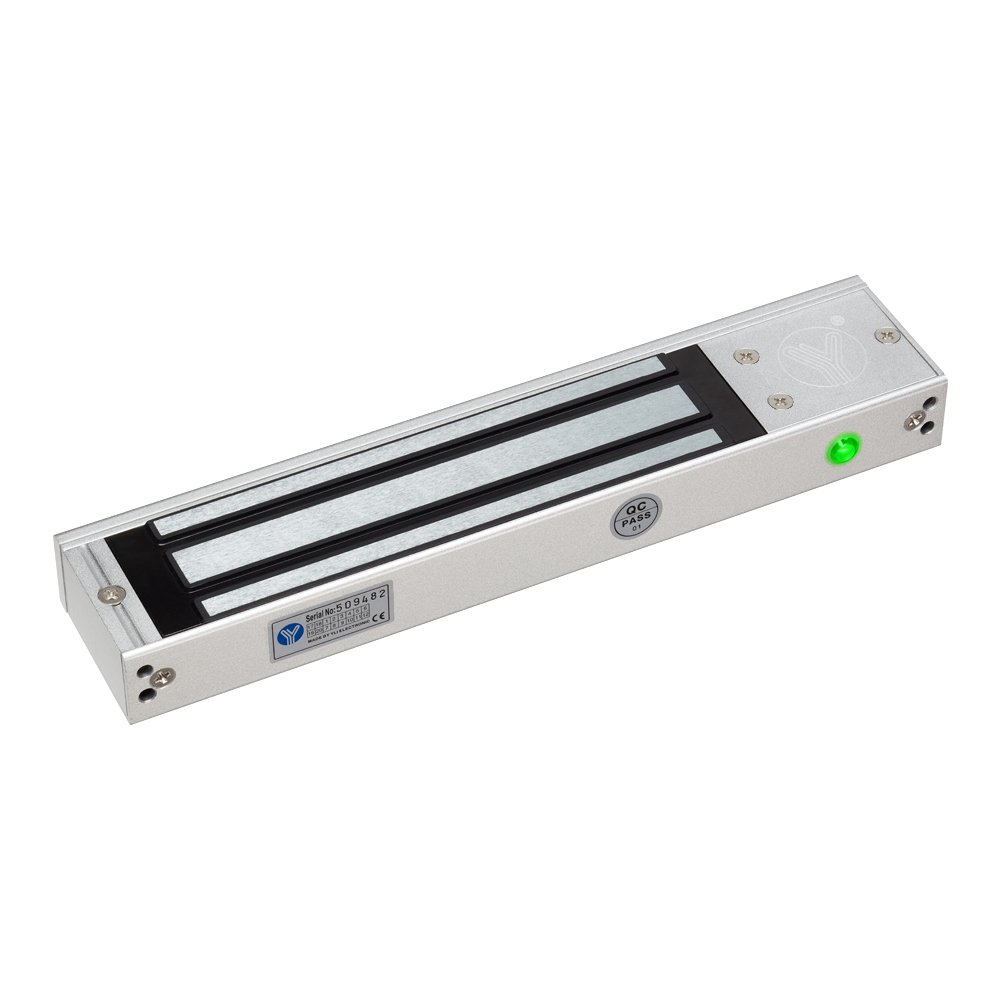

Single Door Magnetic Lock(LED)

Comparing to YM-350N(LED)-DS,Inbuilt dry contacts lock status signal output ( NO,NC,COM), door status signal output ( NO,NC,COM) is the main difference. LED indicator is reserved . And the holding force is 800lbs.

SKU: YM-350N(LED)-DS Categories: ,

Technical Parameter

Size 260Lx54.7Wx29.6H(mm)
Armature Plate Dimension 190Lx45Wx13.2H(mm)
Holding Force 350kg(800Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%);24V/250mA(±10%)
LED Red shows locked ;Green shows unlocked
Lock Signal Output NO while locking and NC for unlocking(Voltage<30VDC;Current<0.5A)
Door Signal Output NO/NC/COM Door Status Signal Output Contact
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Cover Finish Anodized aluminum
Humidity 0~95%(non-condensing)
Weight 2.7kg
Certificate MA CE-EMC CE-LVD ROHS FCC REACH WEEE TUV EN1634-1

Advantage

Collinear Load Test 350kg,800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Door Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

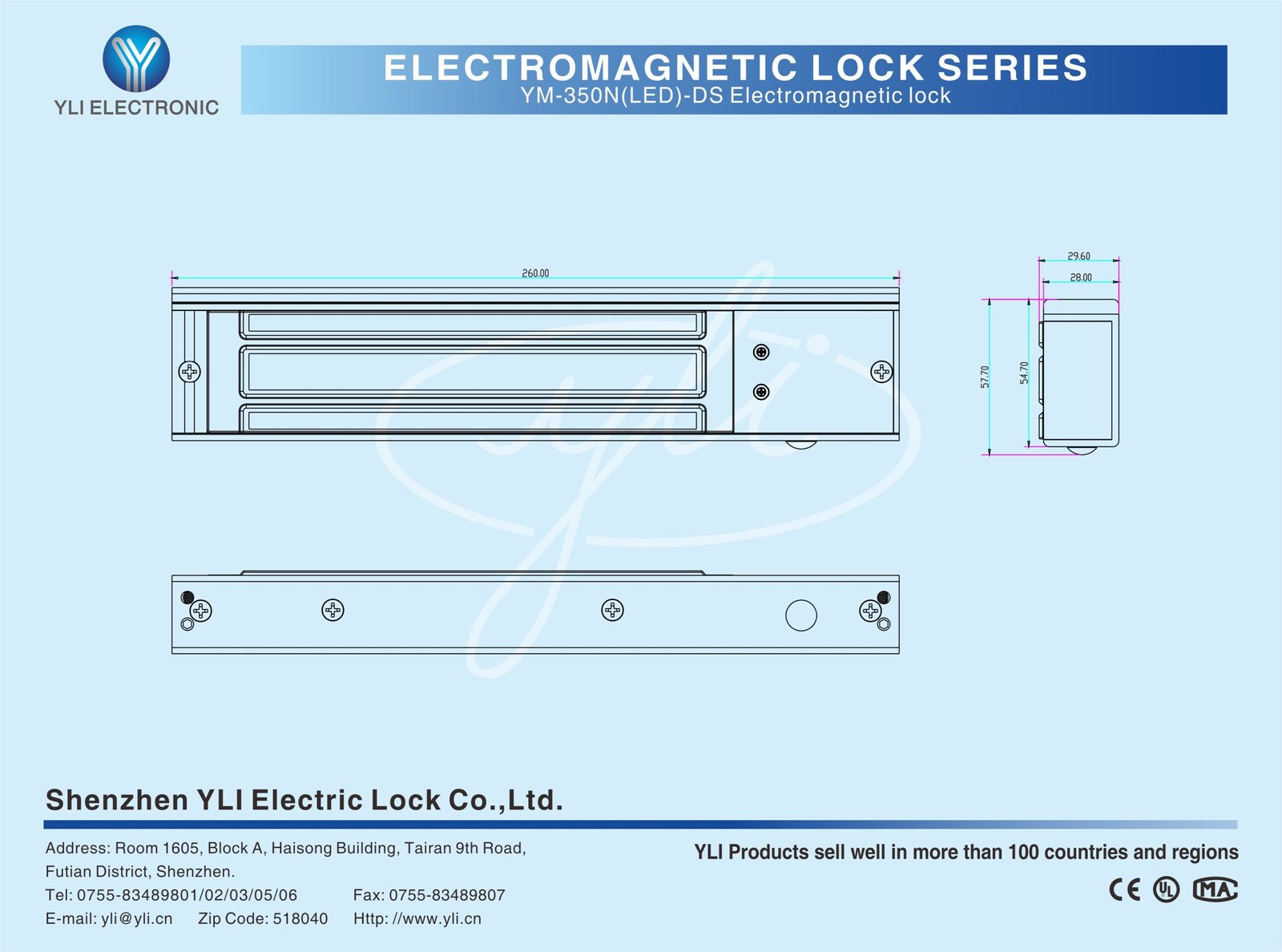

Dimension Diagram

Installation Diagram
