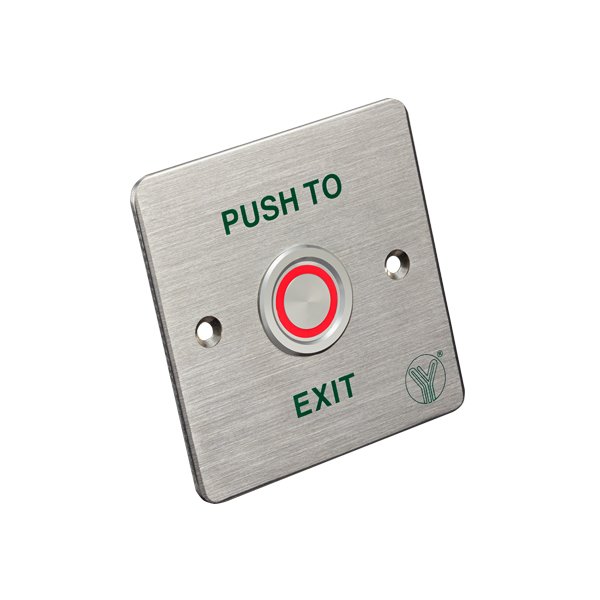

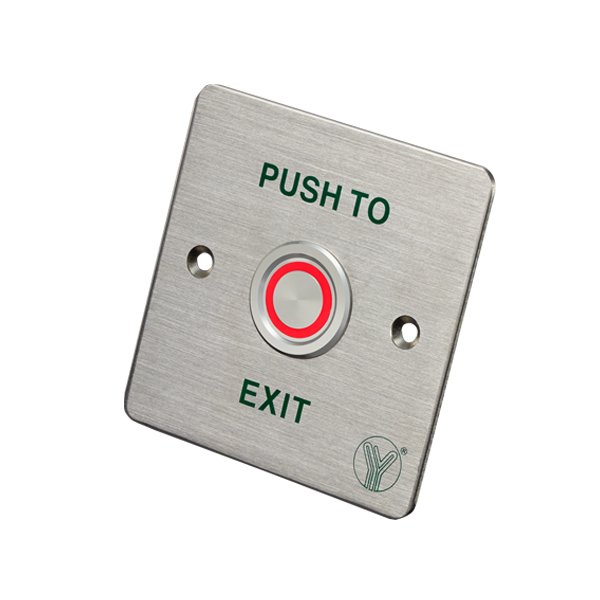

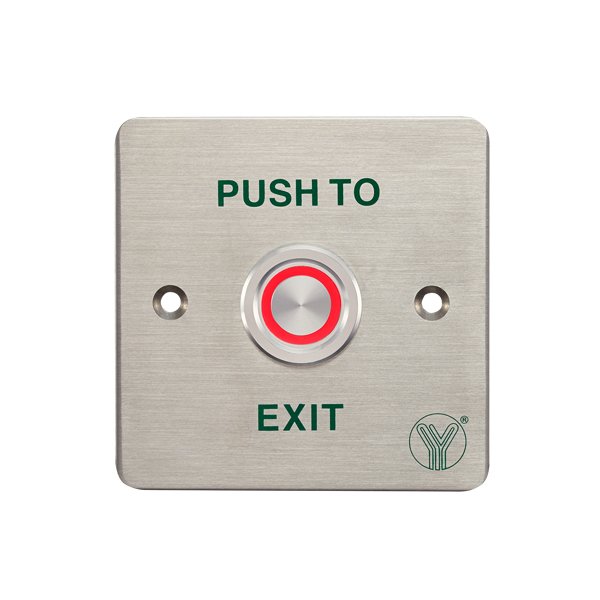

Piezoelectric Exit Button(Stainless steel)

PBS-820C(LED) is a Piezoelectric Exit Button(Stainless steel) with LED in size of 86Lx86Wx20H(mm) suitable for all kinds of locks with feature of waterproof.

SKU: PBS-820C(LED) Categories: ,

Technical Parameter

Dimensions 86Lx86Wx20H(mm)
Voltage 12V
Current Standby 20mA
Output Contact NO/COM
Current Rating 1A@30VDC 0.5A@125VDC
Operating Temperature -20℃~50℃
Operating Humidity 0%~99%
Waterproof Level IP-68
Wire color Red: Positive Black: Negative
LED Status RED:Standby GREEN:Operation
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

Dimension Diagram

Installation Diagram
