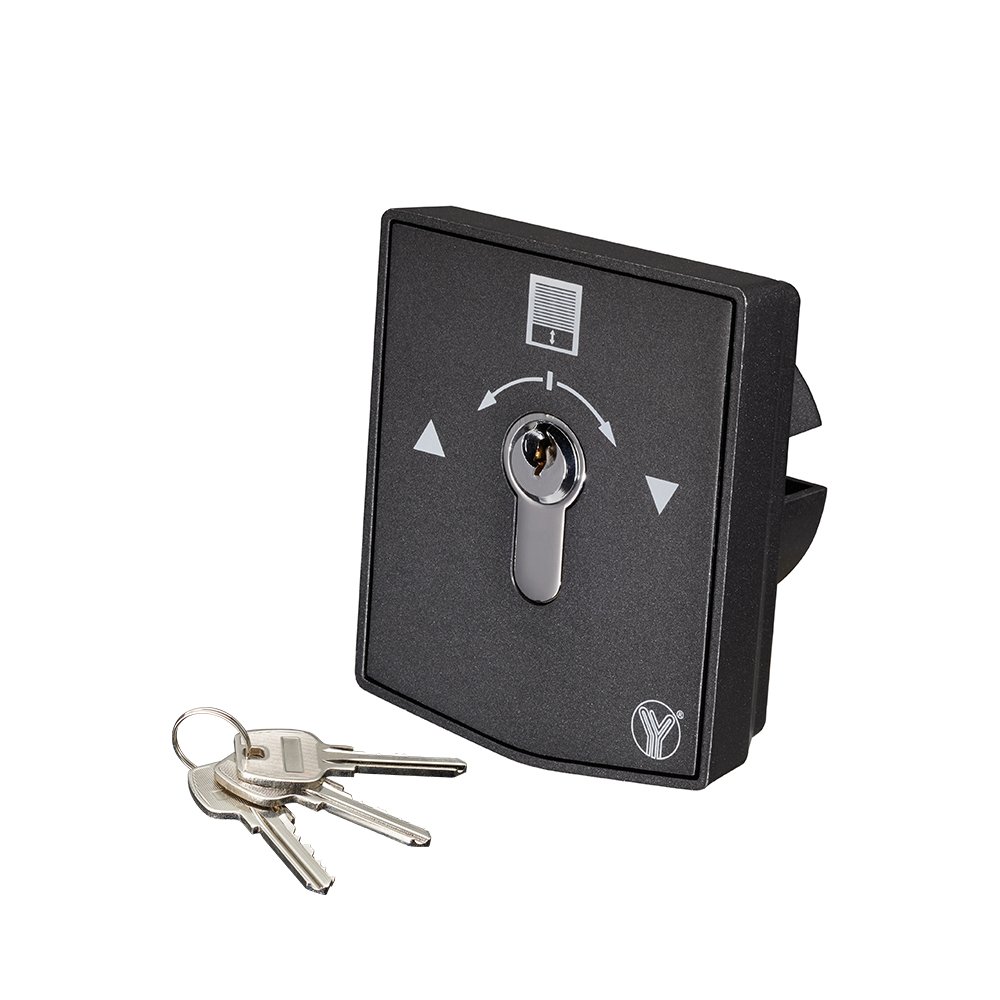

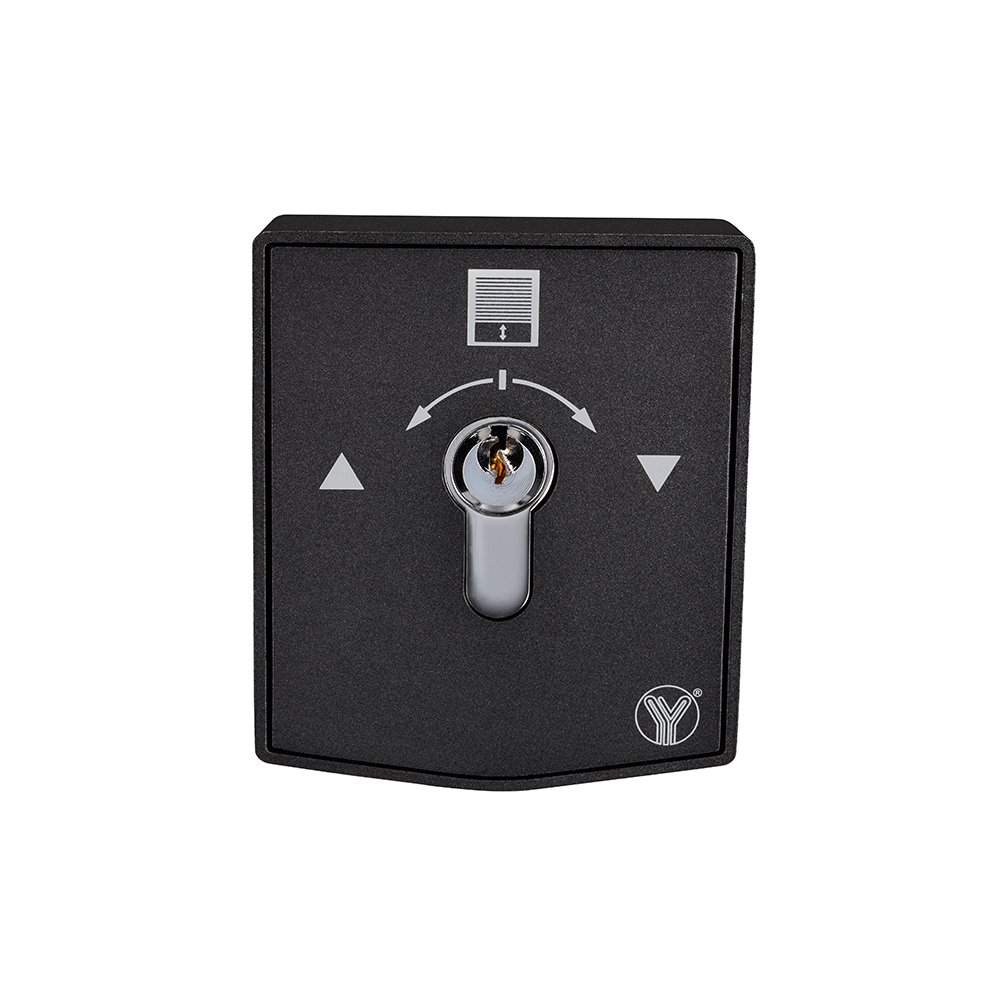

European Standard Waterproof Key Switch for Rolling Door

YKS-853A(EN) is anEuropean Standard Waterproof Key Switch for Rolling Door in size of 76Lx91Wx46H(mm). They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.

SKU: YKS-853A(EN) Categories: ,

Technical Parameter

Feature Mortise mount
Dimensions 76Lx91Wx46H(mm)
Struture All alloy construction, brass key
Contact Rating 5A/125VAC (max)
Output contact Double pole: NO/NC/COM
Type Self-reset
Mechanical life 100,000 tests
Feature Mortise mount
Faceplate Treament Zinc alloy with black paint treatment
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (non- condensing)
Waterproof Level IP-65
Weight 0.4kg
Certificate CE-EMC ROHS

Advantage

All metal structure, safety.
Anti-break design, durable.
100000 tested mechanical life.
Suitable for access controls,fireproof door, alarm.
Official authorized product of access control project.

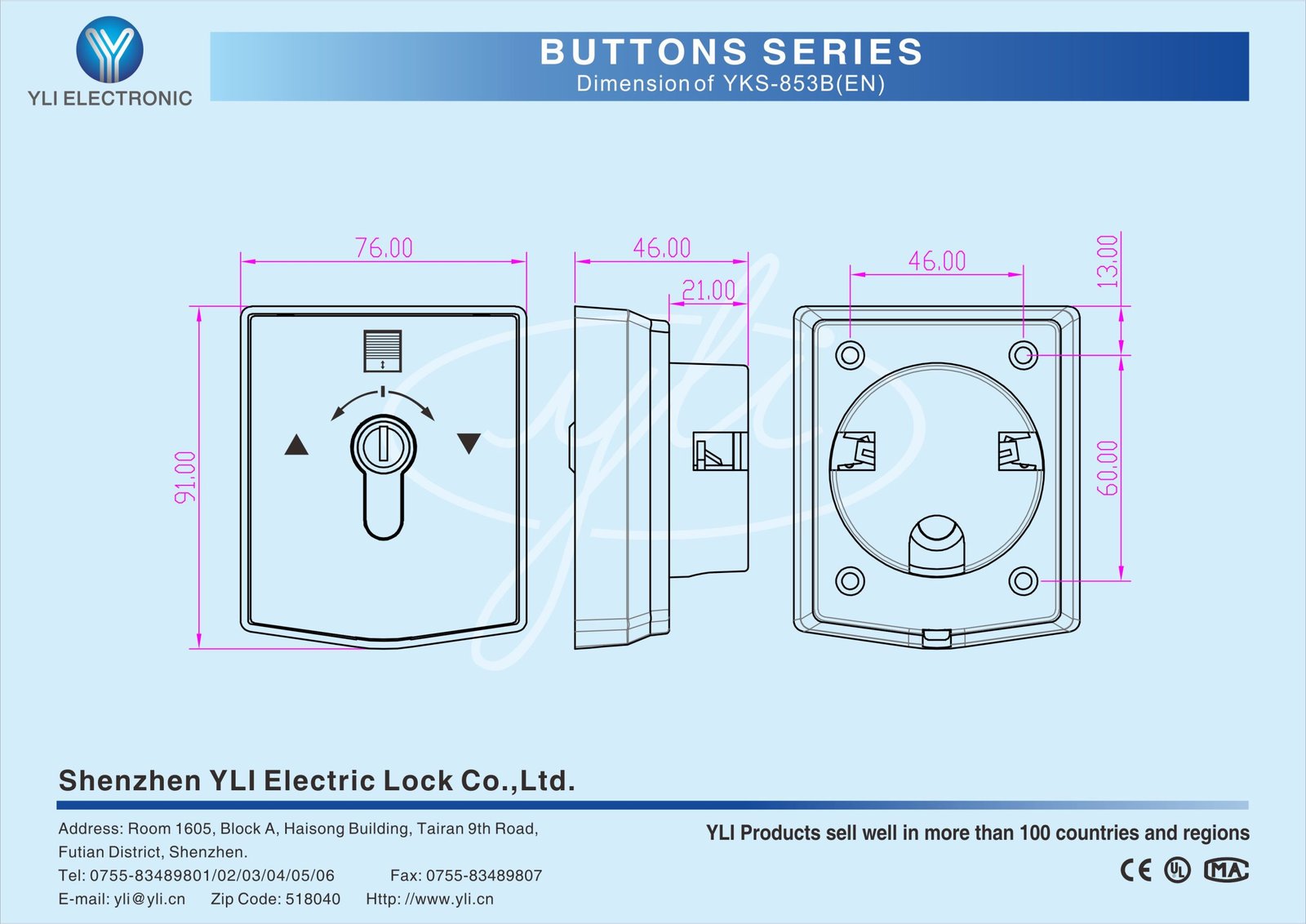

Dimension Diagram

Installation Diagram
