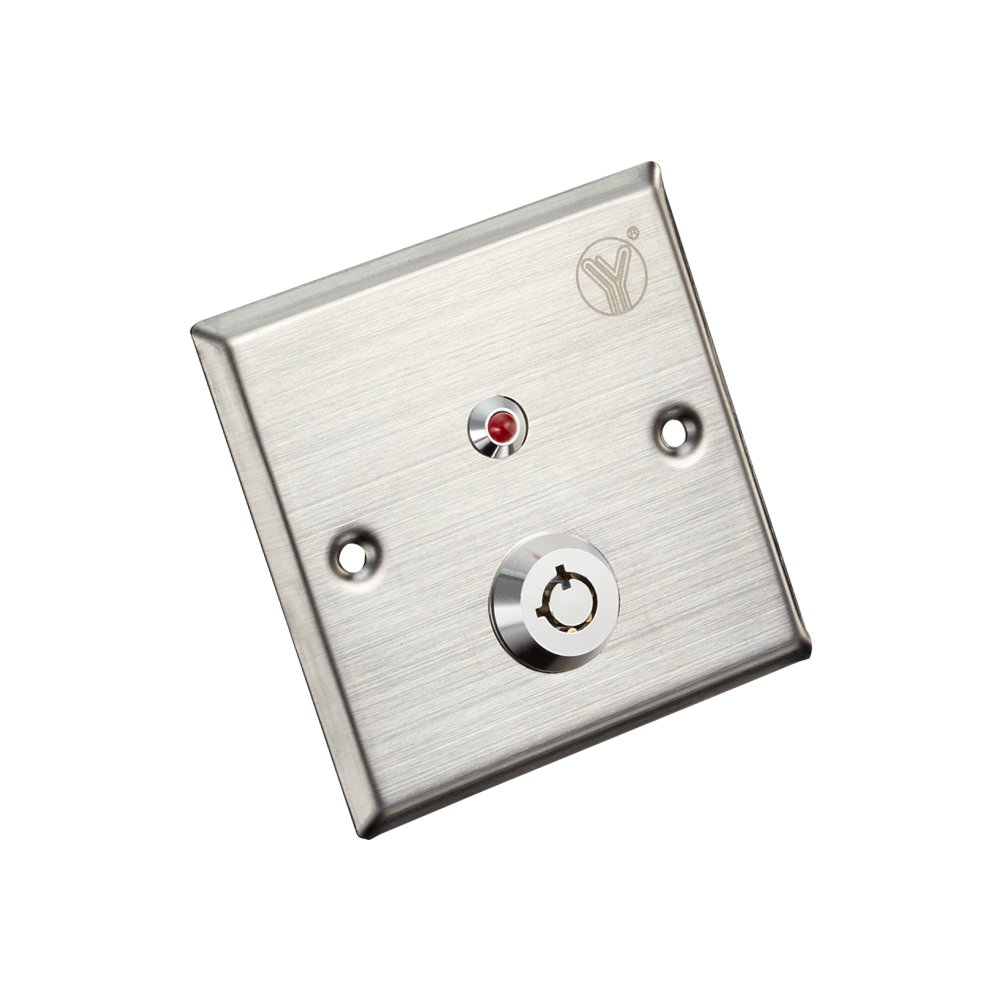

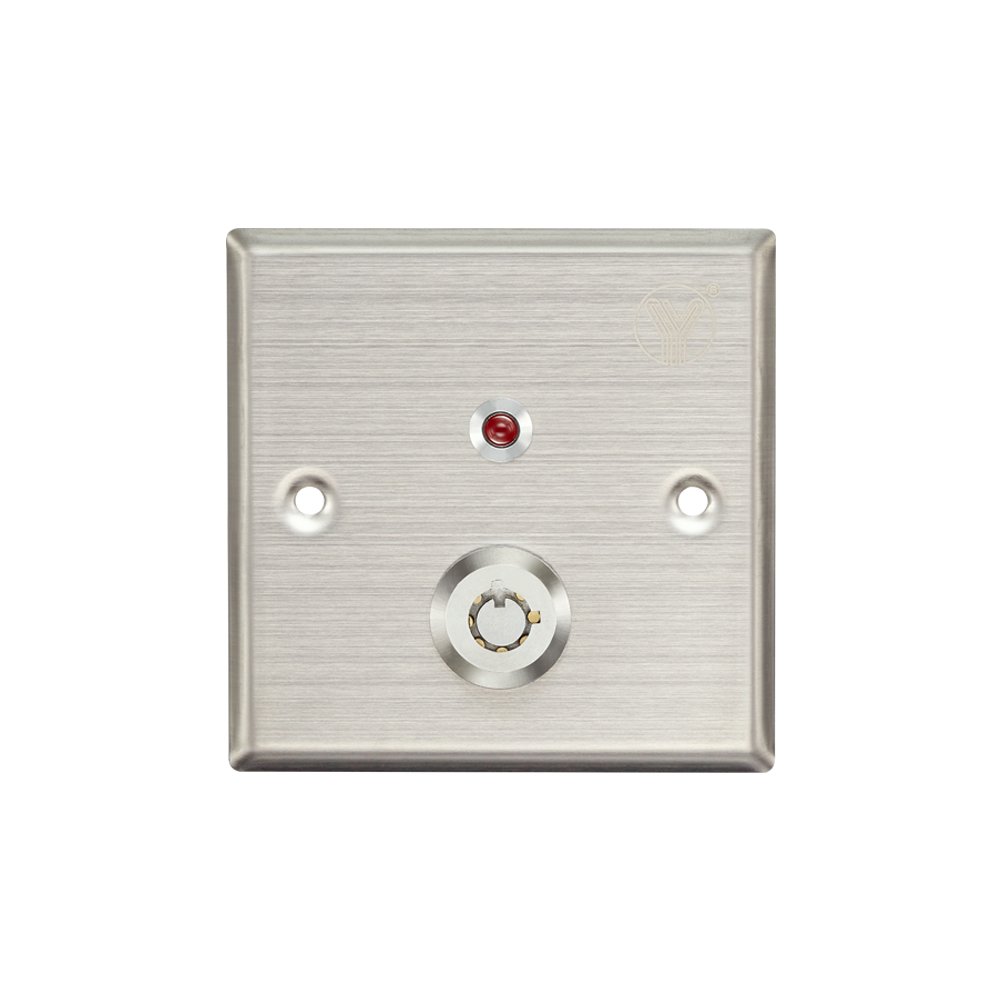

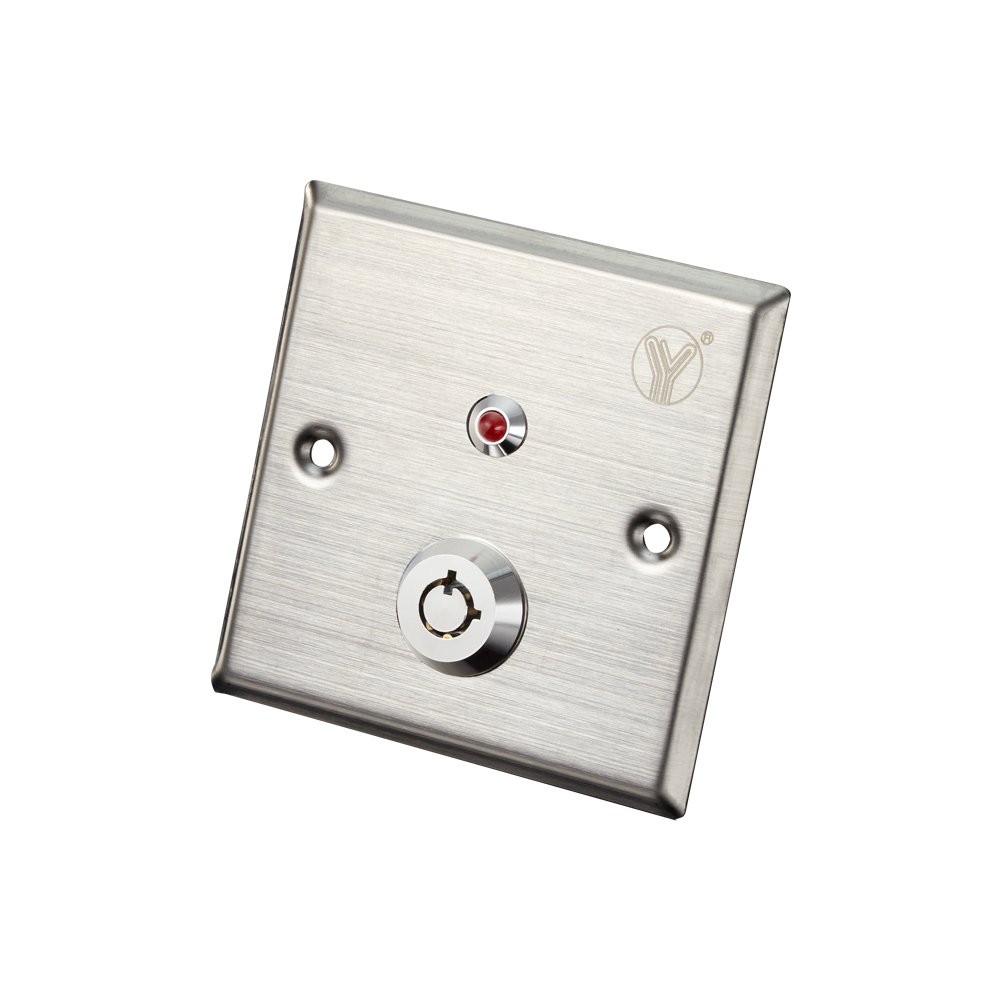

Door Release Button With LED (stainless steel)

YKS-850LS is a stainless steel key switches with LED in size of 86Lx86Wx20H(mm), which is usually use with emergency keys(same key).

SKU: YKS-850LS Categories: ,

Technical Parameter

Dimensions 86Lx86Wx20H(mm)
Standard structure Stainless steel panel, metal Button
Current rating 3A@36VDC Max LED/12VDC
Output contact TAMP / NO / COM / NC / -LED+
Mechanical life 100,000 tested
Suitable for door Hollow Door
Safe Type weatherproof, Defend and Duplicate the Key
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (non- condensing)
Panel Material Stainless steel panel,wire drawing finished
Weight 0.18kg
Certificate CE-EMC CE-LVD FCC-VOC

Advantage

Design with no Mechanical Bolt
Defend and Duplicate the Key, Safer to Use
Tested to 500,000 Cycles
Three Contact Output,Suitable for all kinds of the Locks and
The Best Choice of Access Control

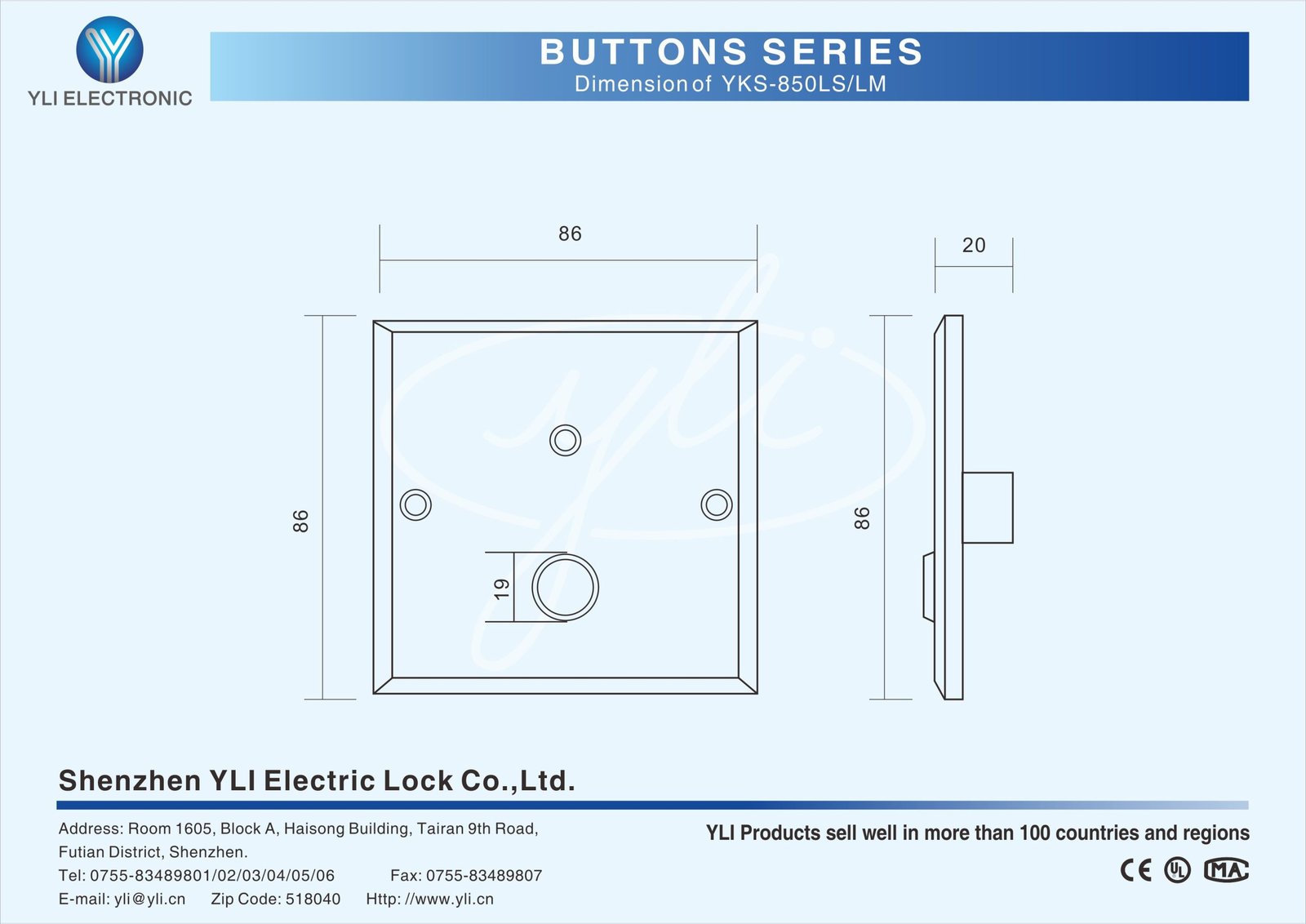

Dimension Diagram

Installation Diagram
