Door Release Button(Resetting Function)

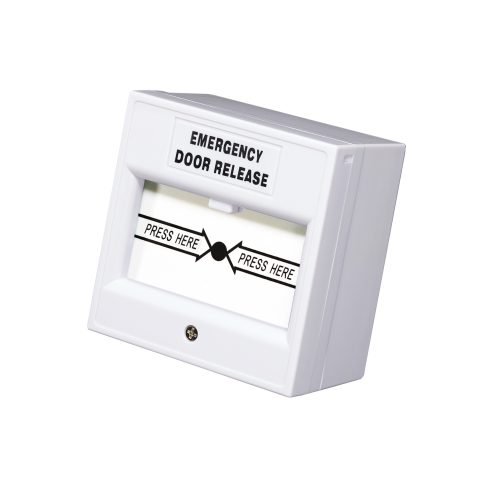

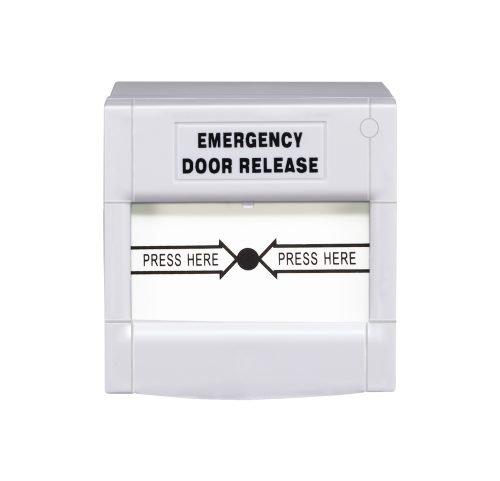

CPK-861D is a Green color Resetable Break Glass Fire Emergency Exit Release Button (Single pole) suitable for Exit Door, Emergence Door.

Technical Parameter

Dimensions	86Lx86Wx50H(mm)
Current Rating	3A@36VDC Max
Output contact	NO/NC/COM
Mechanical Lifespan	100000 tested
Feature	Reset automatically,open & close (need order)
Suitable for door	Exit Door, Emergence Door
Aptional Accessories	Cover
Operating temp	10～+55(14-131F)
Operating humidity	0-95%(relative humidity)
Material Selection	ABS, Sandblast Finished
Color	Red,Green,Orange,White
Weight	0.2kg
Certificate	CE-EMC CE-LVD FCC-VOC RoHS

Use the Fireproof Material, Accord with the Safe Request
Sandblast Panel with Elegant Style
Different colours options for different occasions
