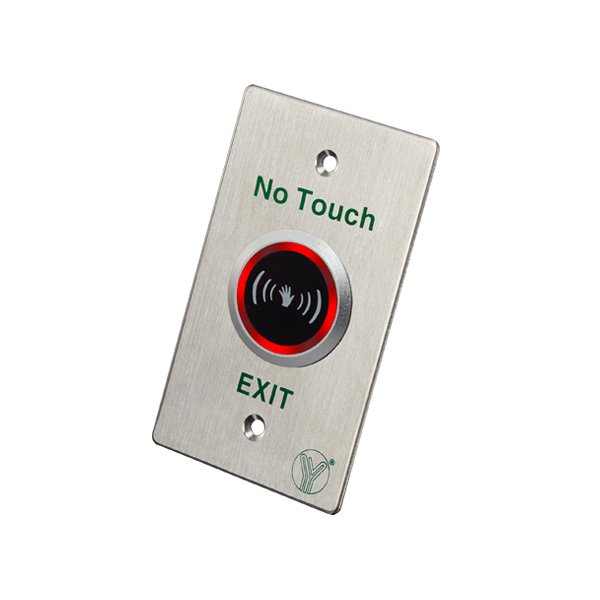

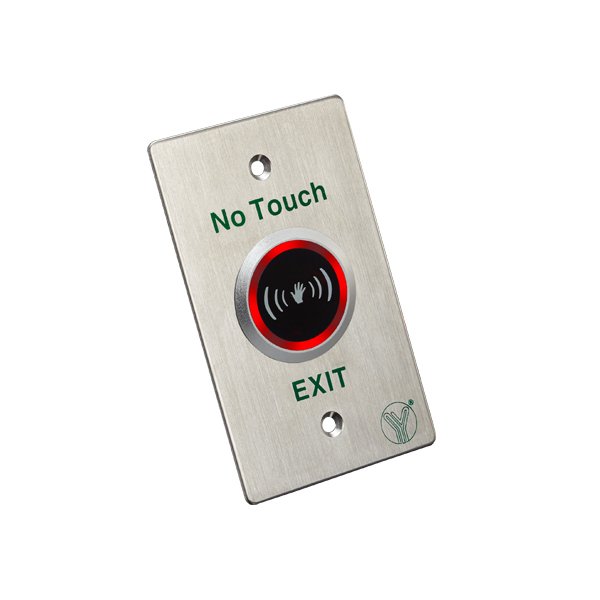

Infrared Sensor Exit Button

ISK-841D is an Infrared Sensor Exit Button with stainless steel in size of 114Lx70Wx25.7H(mm) , American Standard,suitable for all kinds of locks. 4-12cm induction distance is adjustable, 1~25S Time delay is adjustable. Red  LED indicator: Power ON(standby);Green LED indicator: Power ON(sensation).

SKU: ISK-841D(LED) Categories: ,

Technical Parameter

Dimensions 114Lx70Wx25.7H(mm)
Input DC12V
Contact Rating 1A@30VDC
Output Contact NO/NC/COM
Mechanical Life 100,000 tested
Material Stainless
Suitable for Door Hollow Door
Operating temp -20℃～+50℃(14-131F)
Suitable Humidity 0-95% (relative humidity)
Detection range 4-12cm(Adjustable)
Time delay 1~25s(Adjustable)
LED Indicator Red LED indicator: Power ON(standby)/Green LED indicator: Power ON(sensation)
Patent No. ZL2014205318942
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC

Advantage

Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 100,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control

Dimension Diagram

Installation Diagram
