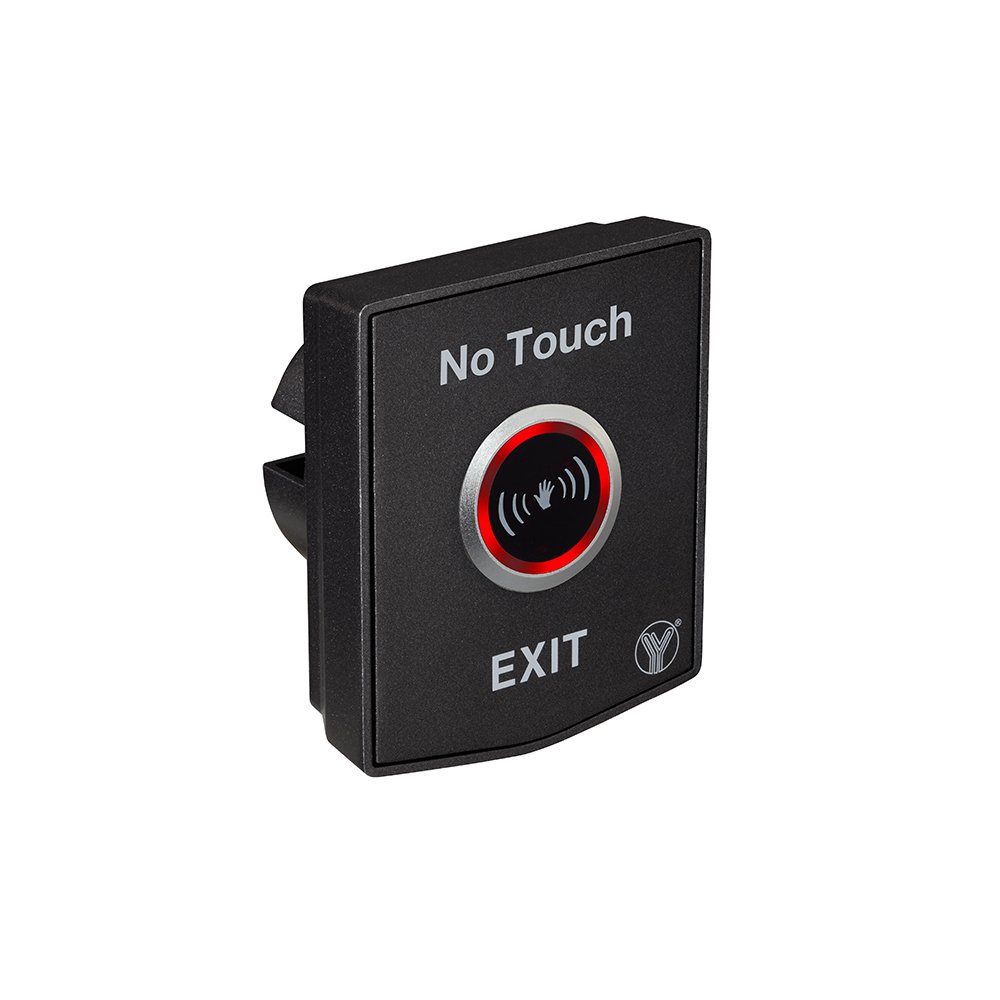

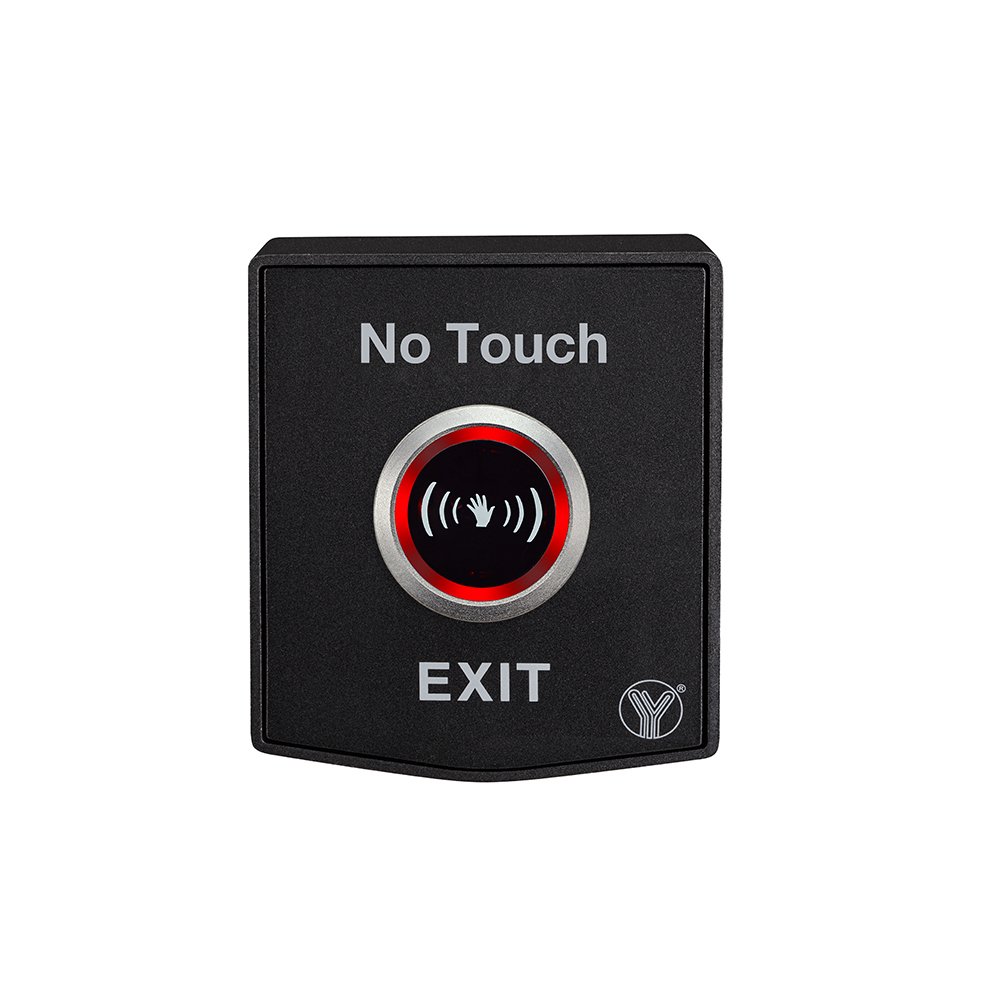

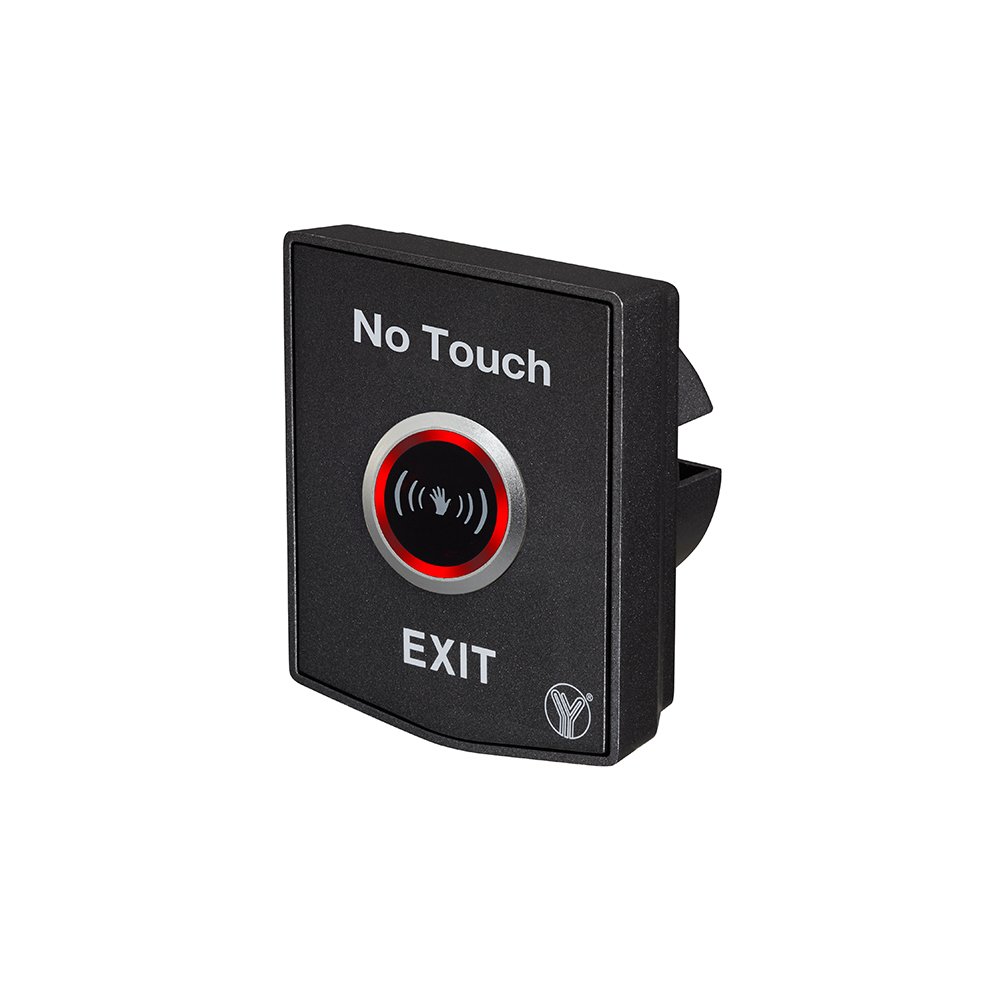

Infrared Sensor Exit Button (Waterproof)

ISK-842A(LED)-WP is an Infrared Sensor Exit Button with stainless steel in size of 76Lx91Wx46H(mm) , American Standard,suitable for all kinds of locks. 10cm induction distance is adjustable, 3S Time delay is adjustable. Red LED indicator: Power ON(standby);Green LED indicator: Power ON(sensation).

SKU: ISK-842A(LED)-WP Categories: ,

Technical Parameter

Feature Mortise mount
Dimensions 76Lx91Wx46H(mm)
Input DC12~24V
Current ≤70mA
Contact Rating 1A@30VDC
Output Contact NO/NC/COM
Mechanical Life 100,000 tested
Suitable for Door Hollow Door
Structure Zinc alloy material
Surface Treament Zinc alloy with black paint treatment
Operating temp -20℃～+50℃(14-131F)
Suitable Humidity 0-95% (relative humidity)
Detection range 10cm(±20%)
Time delay 3S
LED Indicator Red LED indicator: Power ON(standby)/Green LED indicator: Power ON(sensation)
Waterproof Level IP67
Weight 0.5kg
Certificate CE-EMC ROHS

Advantage

Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 100,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control

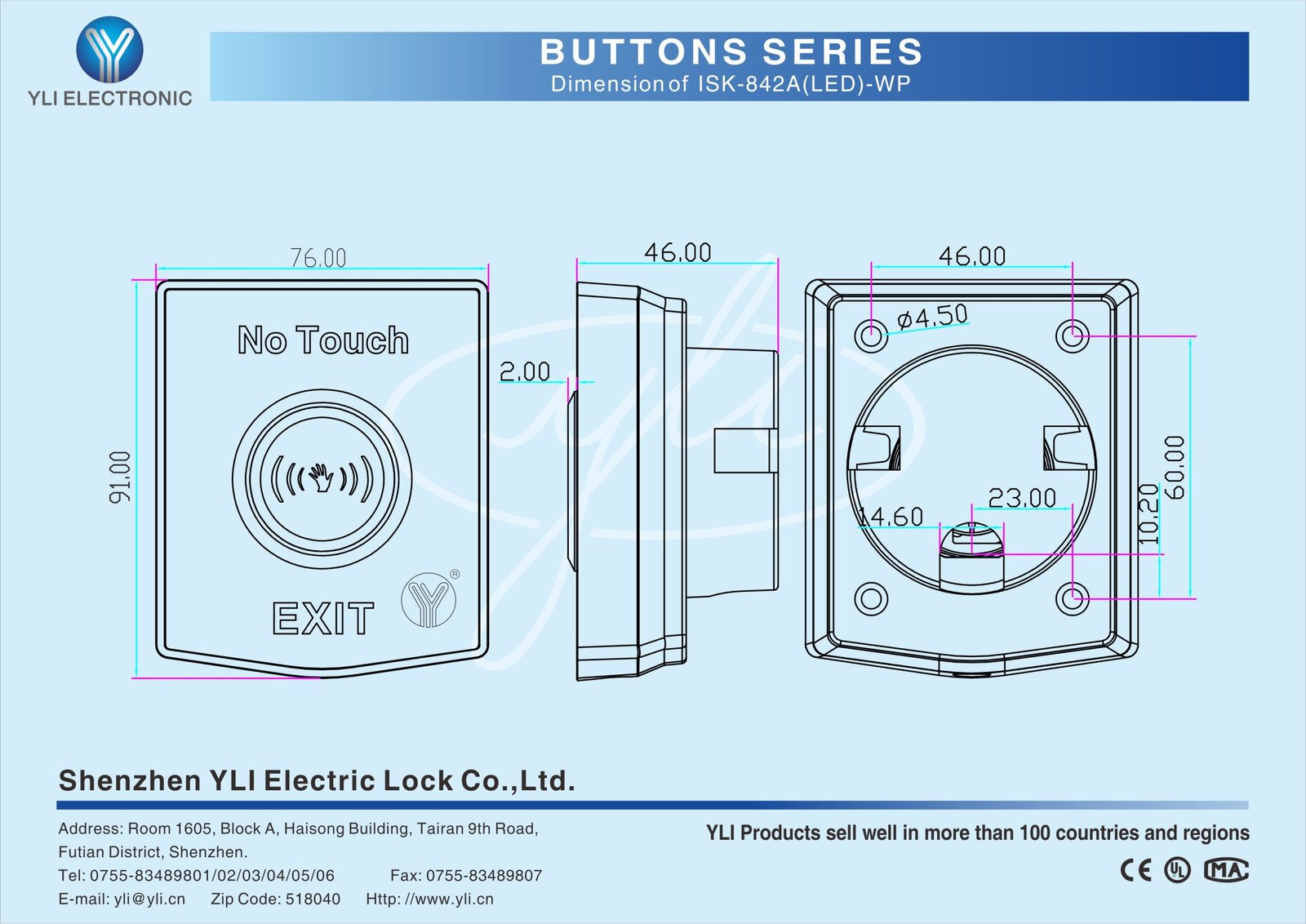

Dimension Diagram

Installation Diagram
