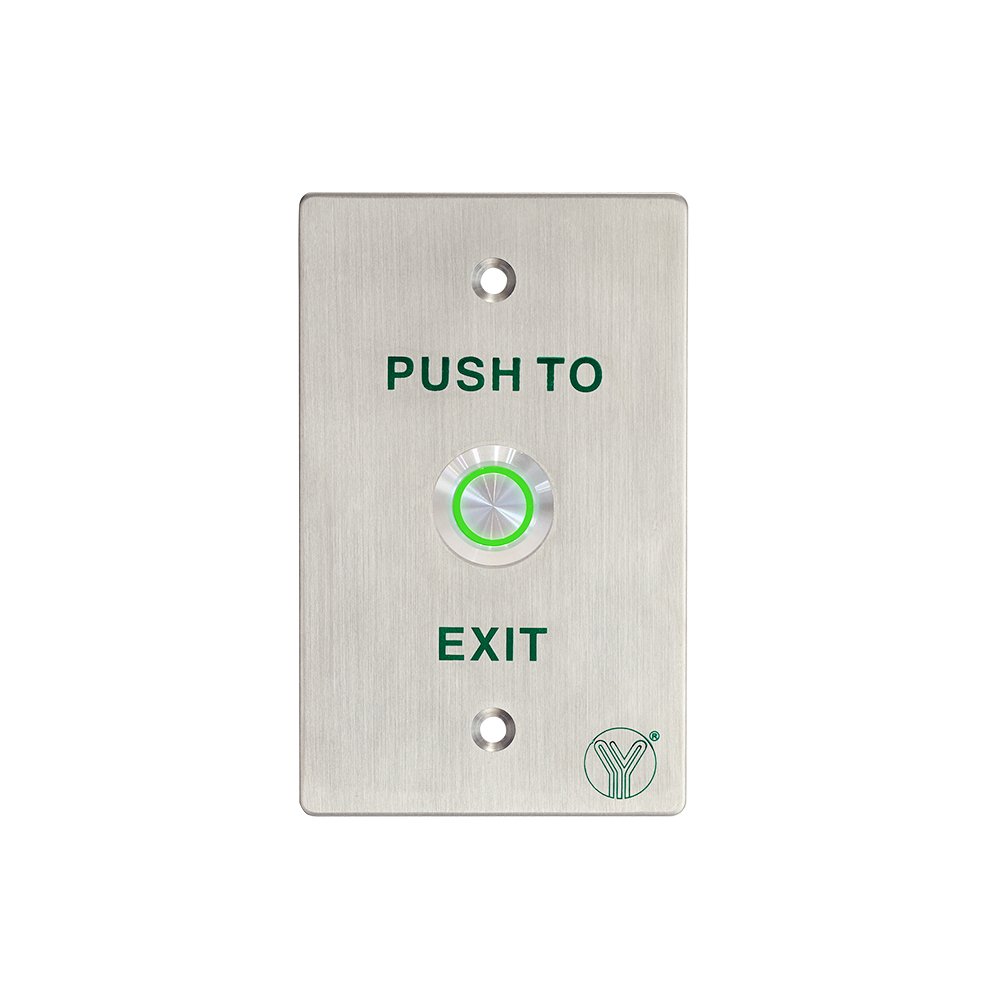

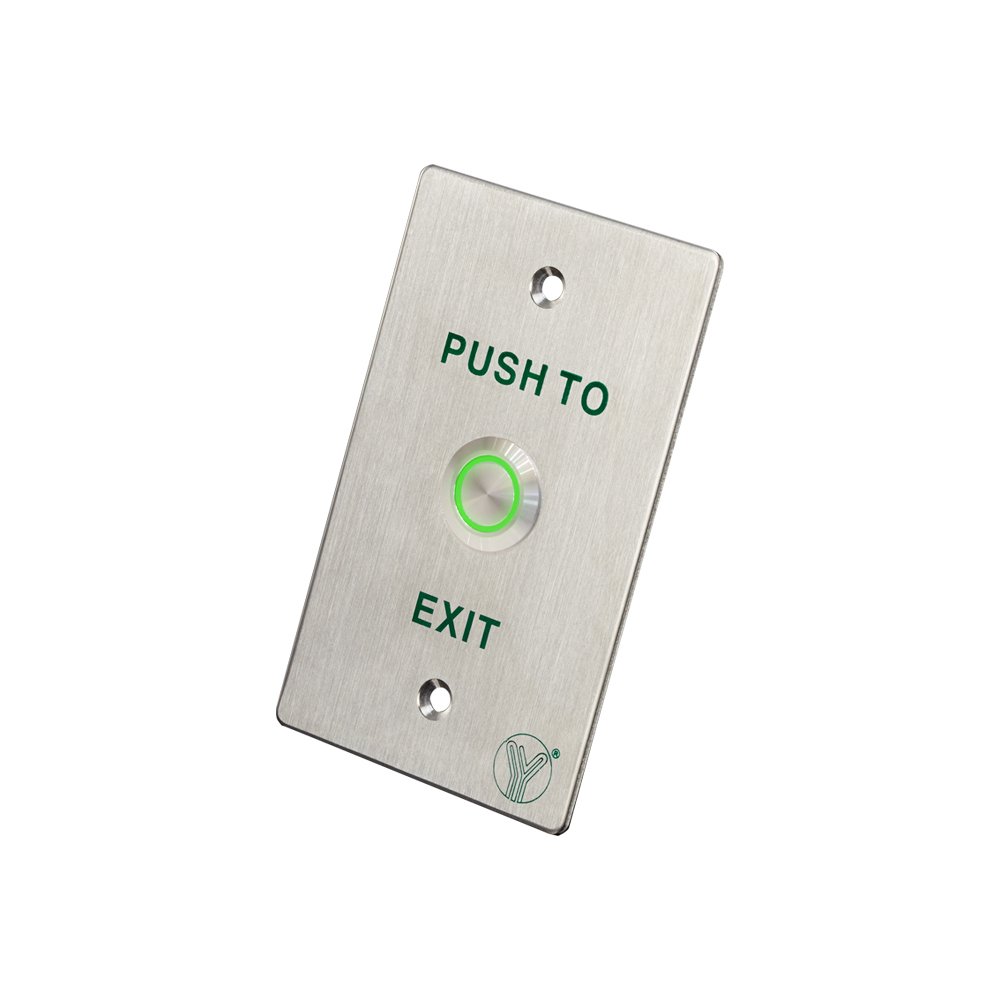

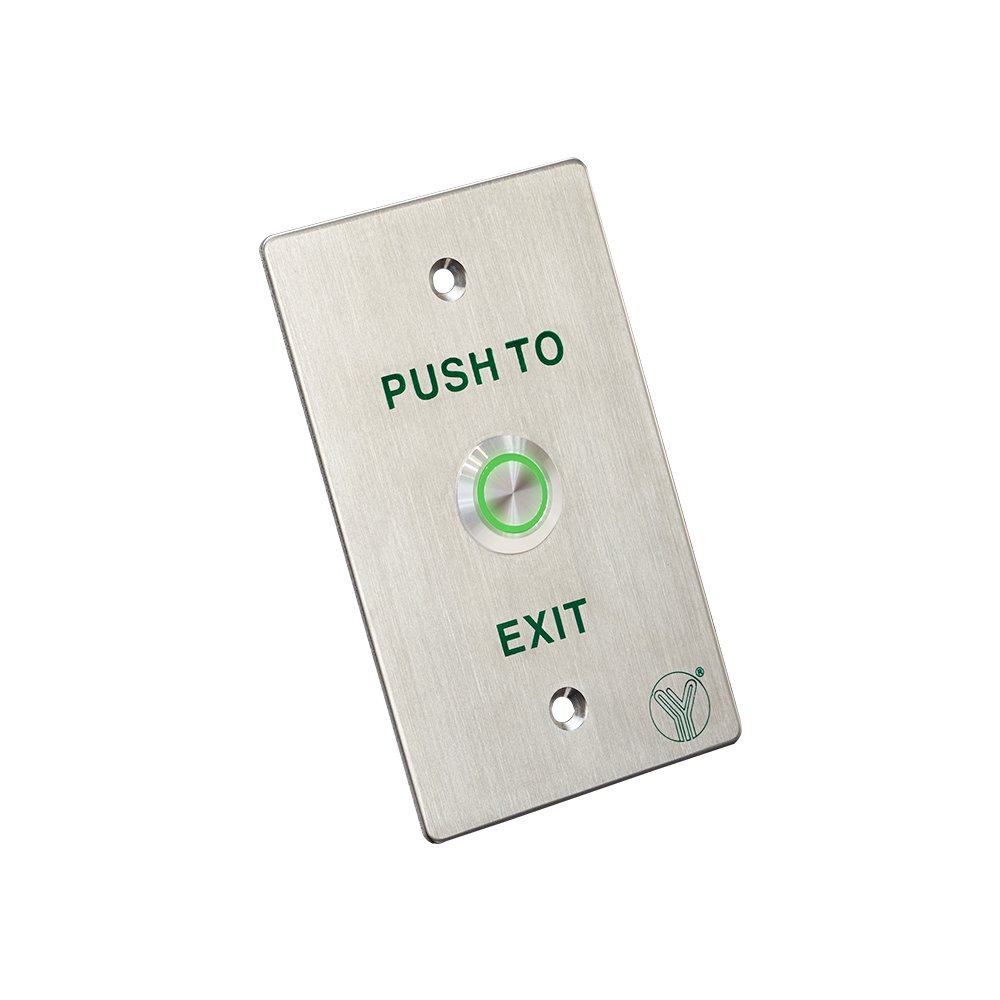

Door Release Button (Waterproof)

YWP-880D(LED) is a stainless steel door release button with LED in size of 114Lx70Wx12H(mm),IP-68 waterproof design, dustproof, American standard,which is the most common and the most frequently used in the access control systems.

SKU: YWP-880D(LED) Categories: ,

Technical Parameter

Dimensions 114Lx70Wx12H(mm)
Max Load 200mA
Voltage 5-24VDC
Open Wire White
Contact NO
LED Green when energized
Suitable for Door Hollow Door
Structure Stainless steel Panel, Steel Button
Finishing Brushed stainless steel
Characteristics IP-67
Weight 0.2kg
Certificate CE-EMC RoHS

Advantage

Stainless steel Panel with Elegant Style.

100000 Cycles tests.

IP68 waterproof design,dustproof

Many Kinds of Colour, Applicable to and the Place.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

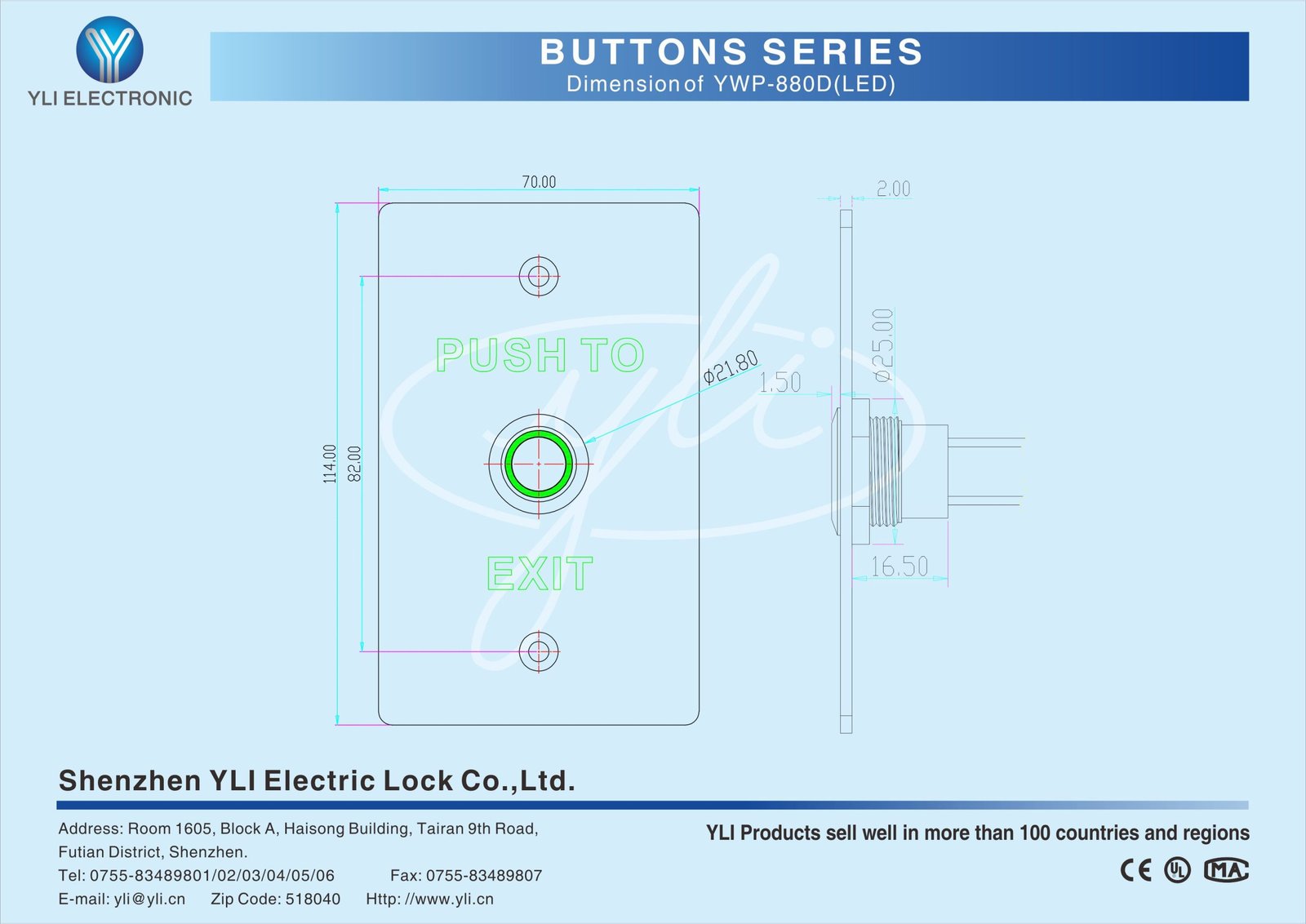

Dimension Diagram

Installation Diagram
