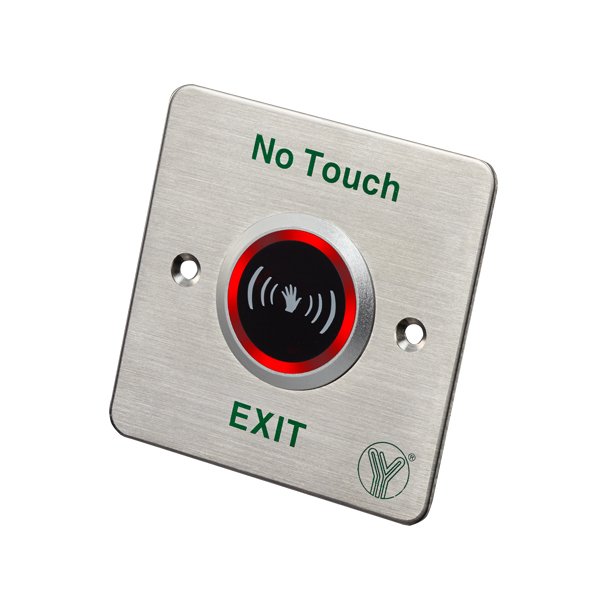

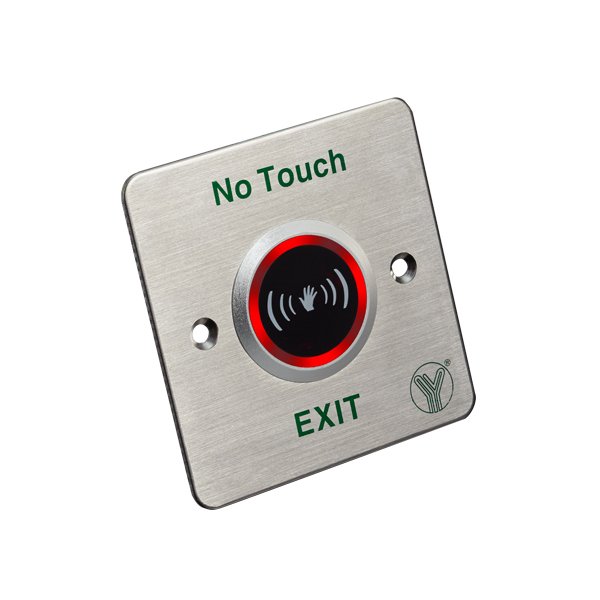

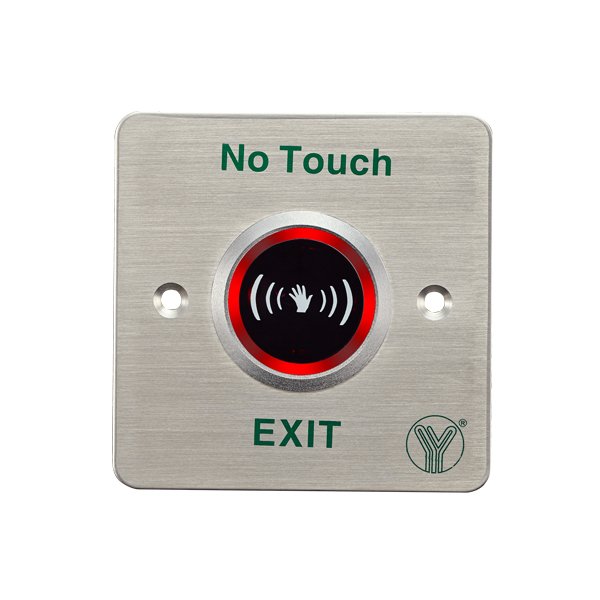

Infrared Sensor Exit Button

ISK-841C is an Infrared Sensor Exit Button with stainless steel in size of 86Lx86Wx25.7H(mm) suitable for all kinds of locks. 4-12cm induction distance is adjustable, 1~25S Time delay is adjustable. Red LED indicator: Power ON(standby);Green LED indicator: Power ON(sensation).

SKU: ISK-841C(LED) Categories: Exit Button, Infrared Sensor

Reviews (0)

Technical Parameter

Dimensions	86Lx86Wx25.7H(mm)
Input	DC12V
Contact Rating	1A@30VDC
Output Contact	NO/NC/COM
Mechanical Life	100,000 tested
Material	Stainless
Suitable for Door	Hollow Door
Operating temp	-20℃～+50℃(14-131F)
Suitable Humidity	0-95% (relative humidity)
Detection range	4-12cm(Adjustable)
Time delay	1~25s(Adjustable)
LED Indicator	Red LED indicator: Power ON(standby)/Green LED indicator: Power ON(sensation)
Patent No.	ZL2014205318942
Weight	0.2kg
Certificate	CE-EMC CE-LVD FCC-VOC

Advantage

Design without Mechanical Bolt
Stainless steel Panel with Elegant Style
Tested to 100,000 Cycles
Three Contact Output,Suitable for
all kinds of locks
The Best Choice of Access Control

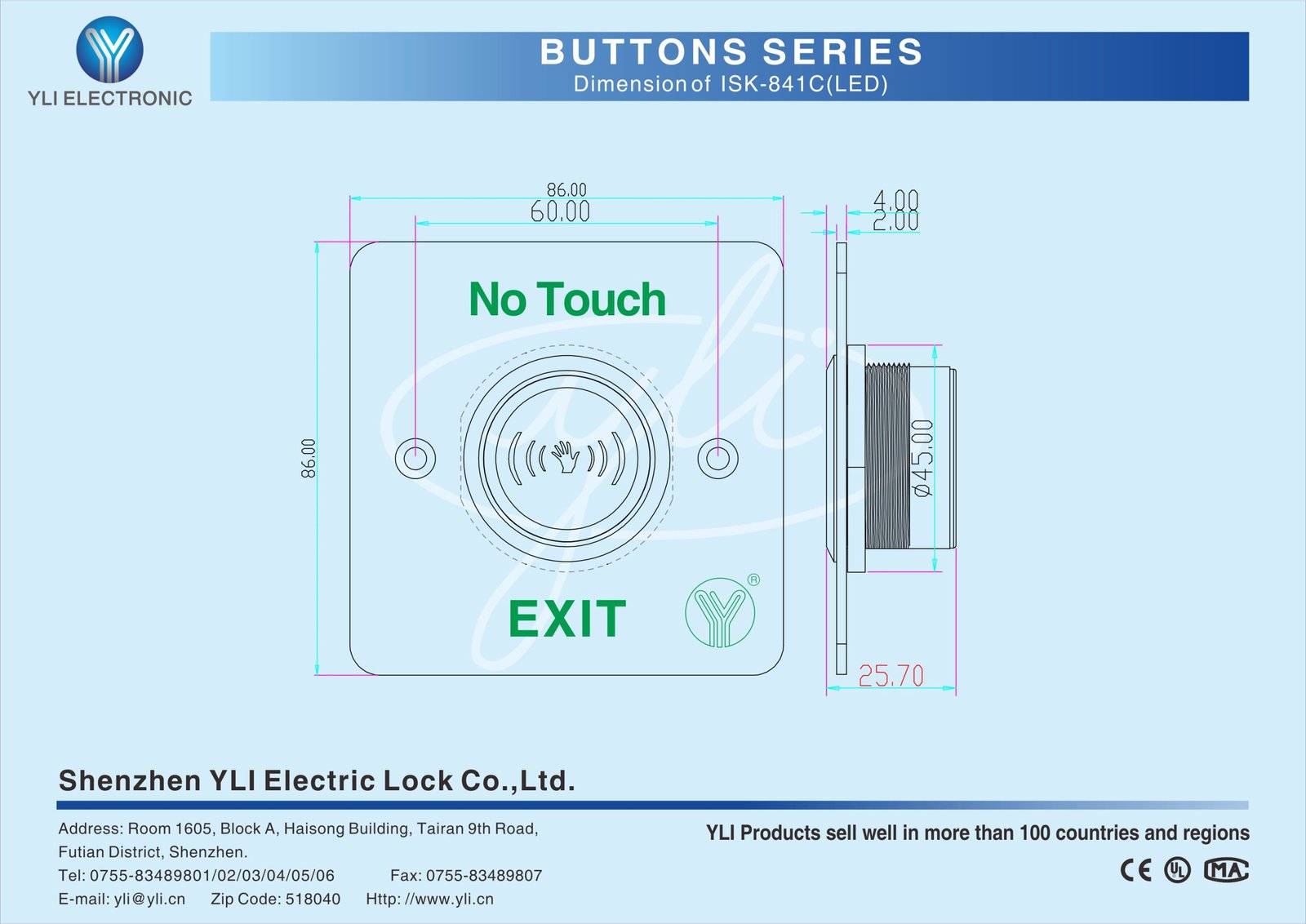

Dimension Diagram

Installation Diagram
