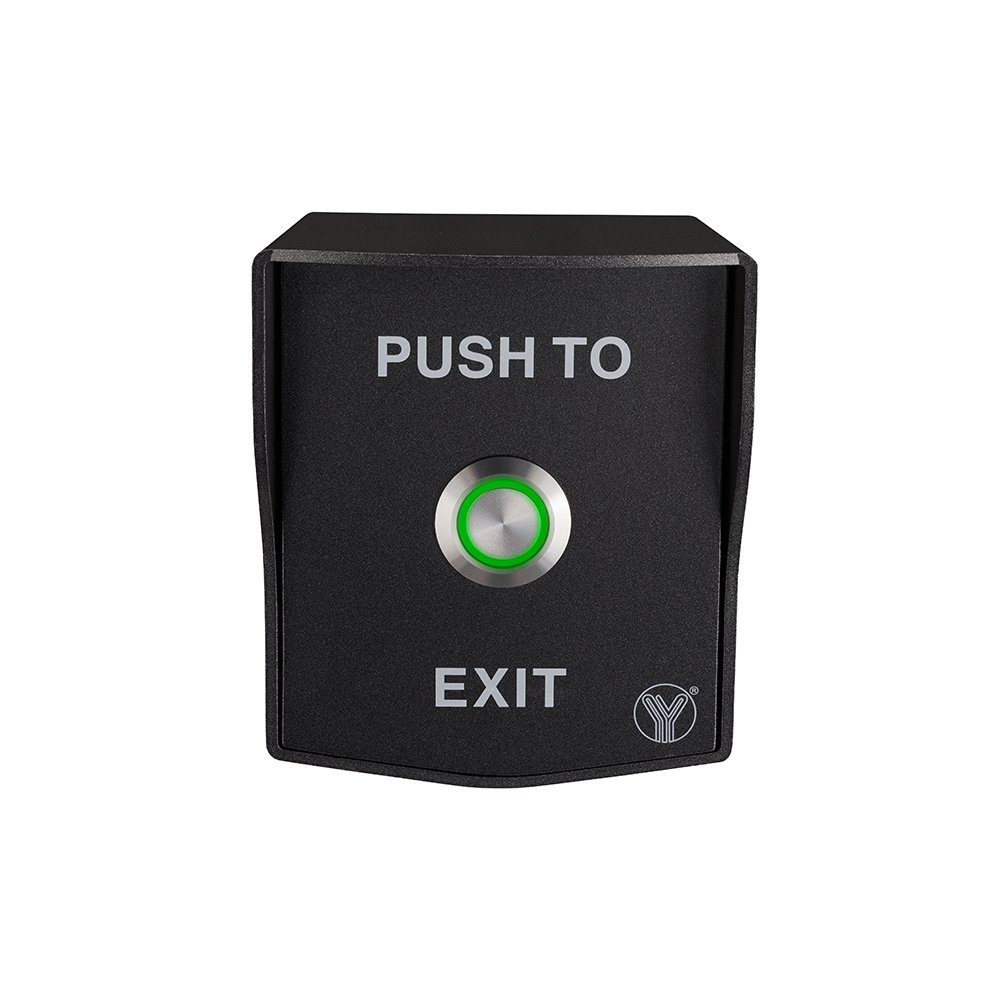

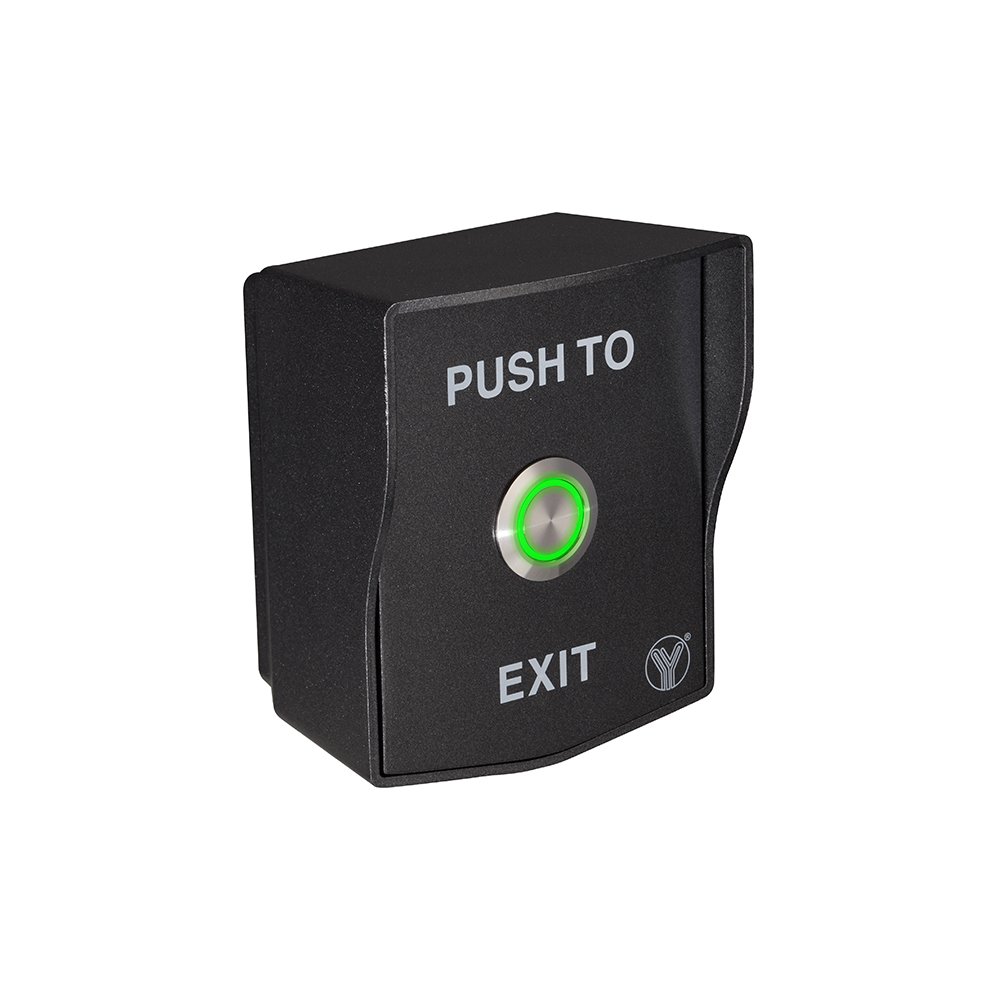

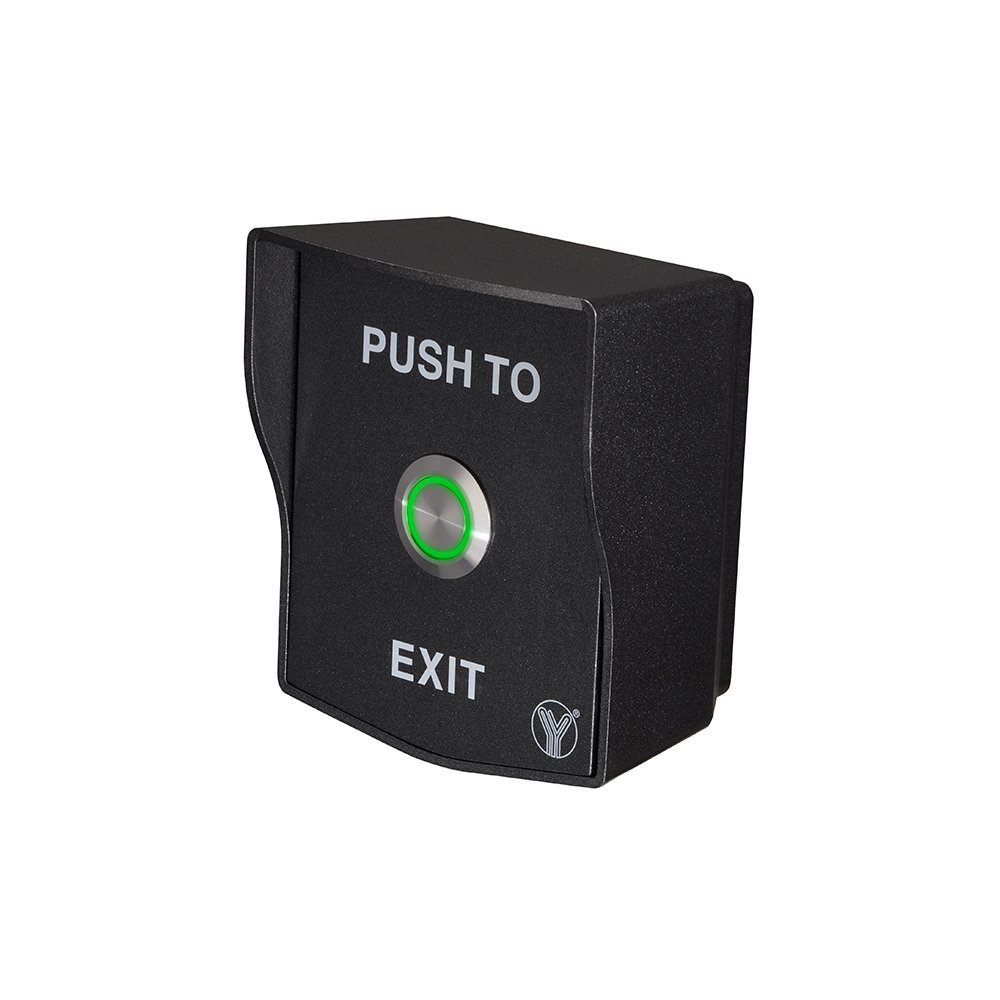

European Standard Waterproof Exit Button

Stainless steel Panel with Elegant Style.100000 Cycles tests.IP68 waterproof design,dustproofMany Kinds of Colour, Applicable to and the Place.Three Contact Output,Suitable for all kinds of Locks.The Best Choice for Access Control.

SKU: YWP-881B(LED) Categories: ,

Technical Parameter

Feature Surface mount
Dimensions 78Lx91.5Wx61H(mm)
Contact Rating 200mA/24VDC (max)
Voltage 5-24VDC
Open Wire White
Contact NO
Mechanical life 100,000 tested
LED Green when energized
Structure Zinc alloy material, metal button
Surface Treament Zinc alloy with black paint treatment
Operating temp -10~ +55(14-131F)
Operating humidity 0-95% (non- condensing)
Waterproof Level IP-67
Weight 0.4kg
Certificate CE-EMC ROHS

Advantage

Stainless steel Panel with Elegant Style.

100000 Cycles tests.

IP68 waterproof design,dustproof

Many Kinds of Colour, Applicable to and the Place.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

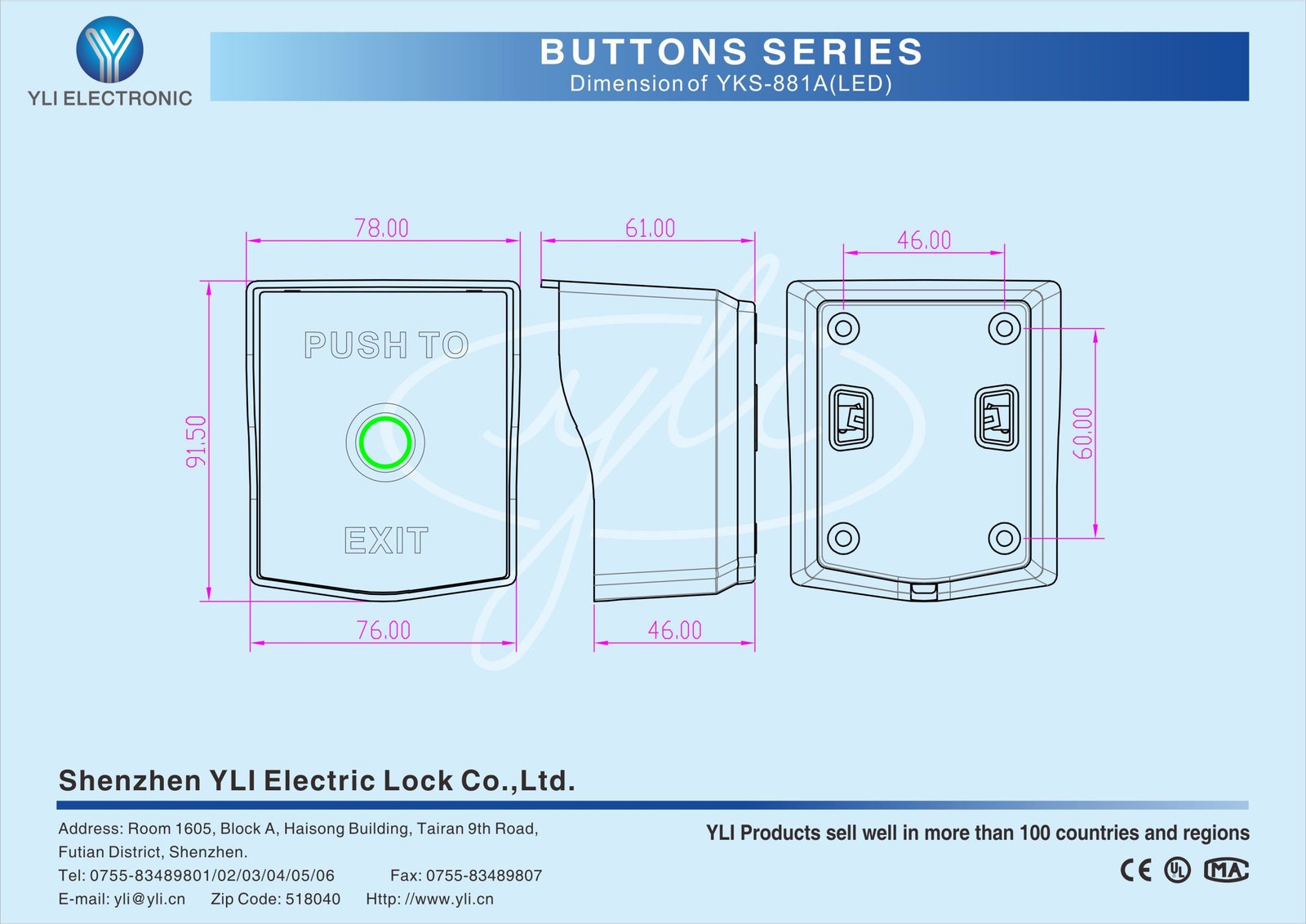

Dimension Diagram

Installation Diagram
