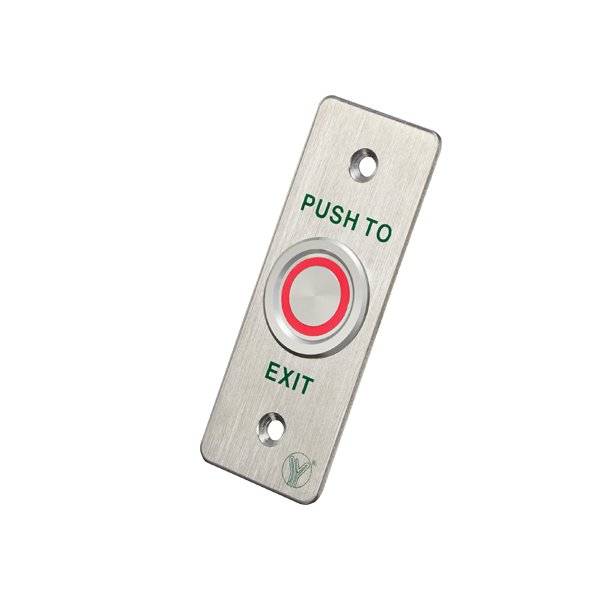

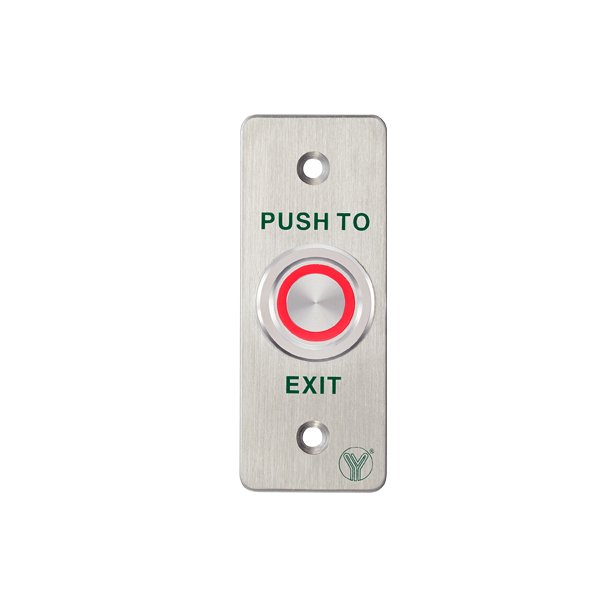

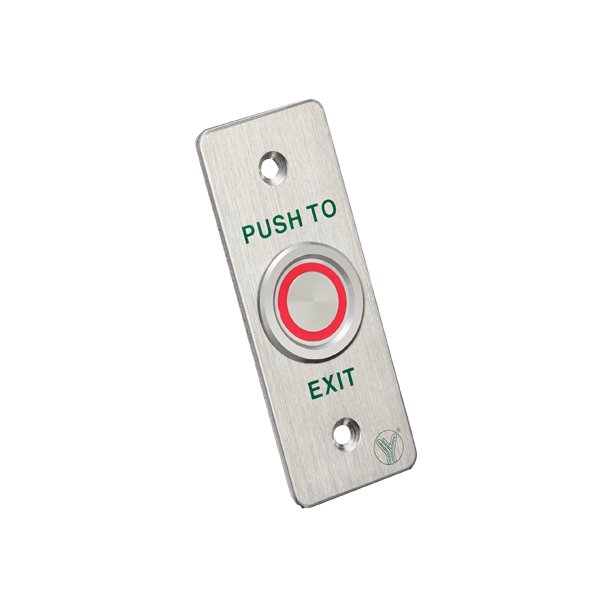

Piezoelectric Exit Button(Stainless steel)

PBS-820A(LED) is a Piezoelectric Exit Button(Stainless steel) with LED in size of 90Lx35Wx20H(mm) suitable for all kinds of locks with feature of waterproof.

SKU: PBS-820A(LED) Categories: Exit Button, Piezoelectric

Reviews (0)

Technical Parameter

Dimensions	90Lx35Wx20H(mm)
Voltage	12V
Current	Standby 20mA
Output Contact	NO/COM
Current Rating	1A@30VDC 0.5A@125VDC
Operating Temperature	-20℃~50℃
Operating Humidity	0%~99%
Waterproof Level	IP-68
Wire color	Red: Positive Black: Negative
LED Status	RED:Standby GREEN:Operation
Weight	0.18kg
Certificate	CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

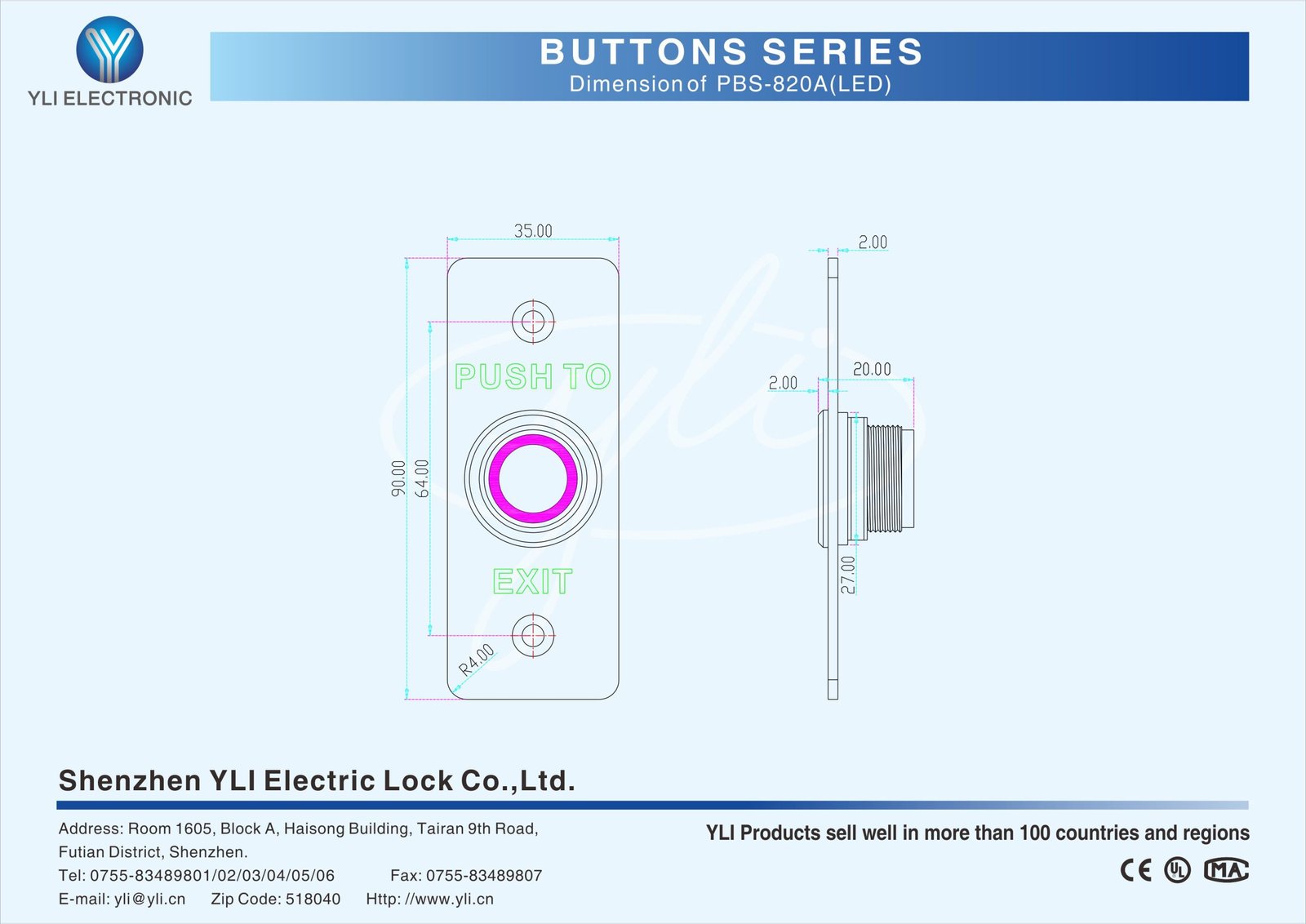

Dimension Diagram

Installation Diagram
