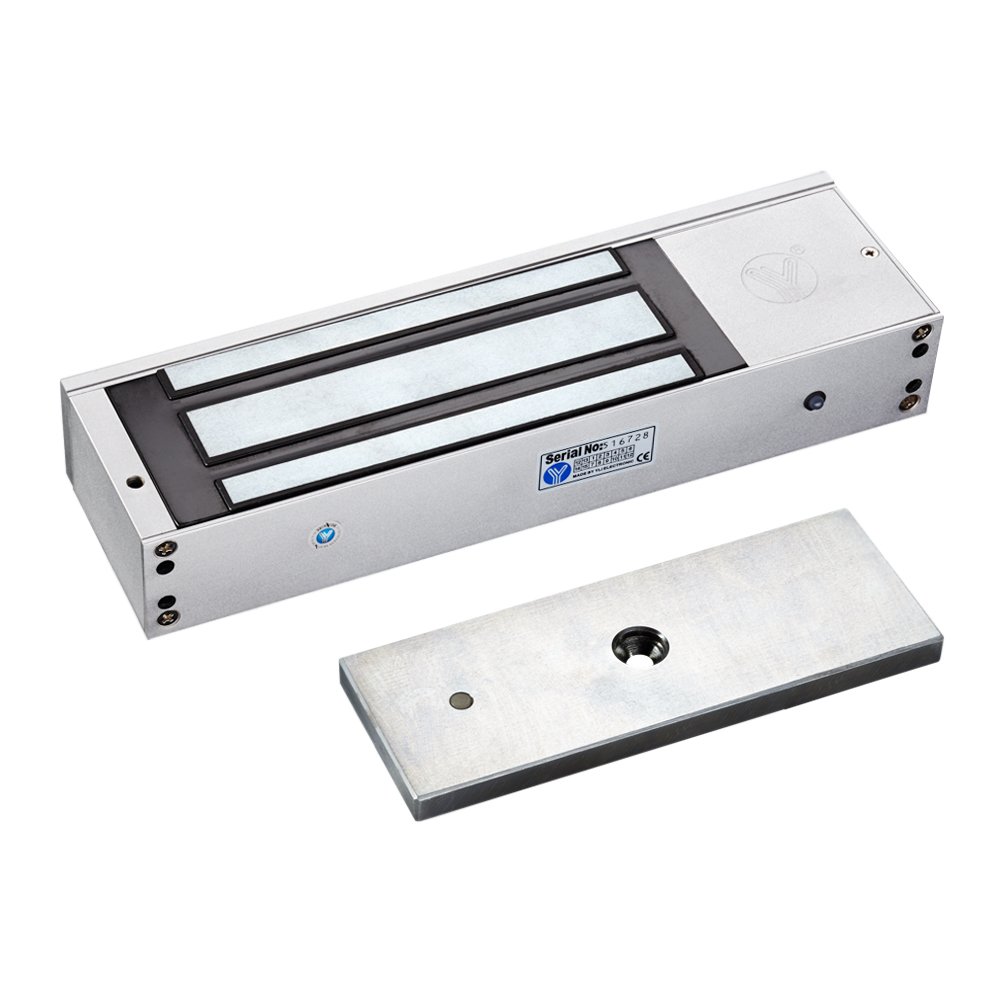

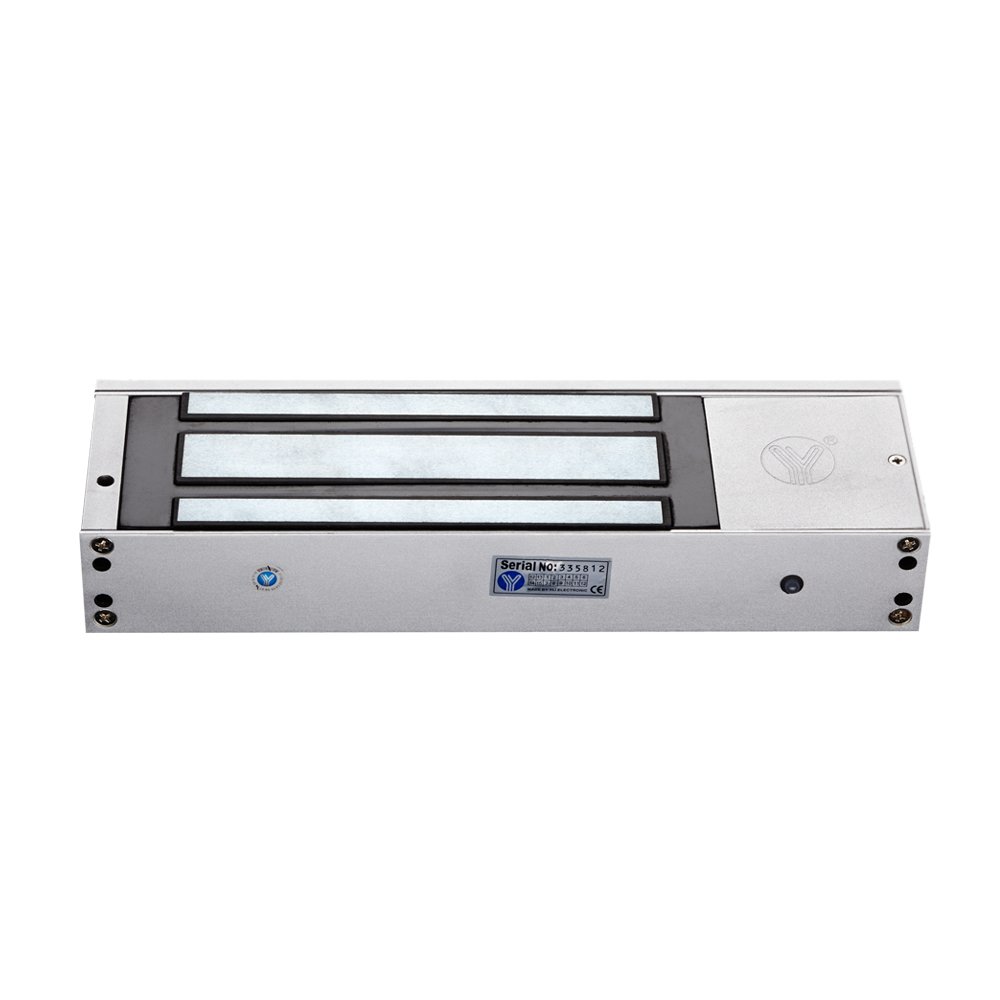

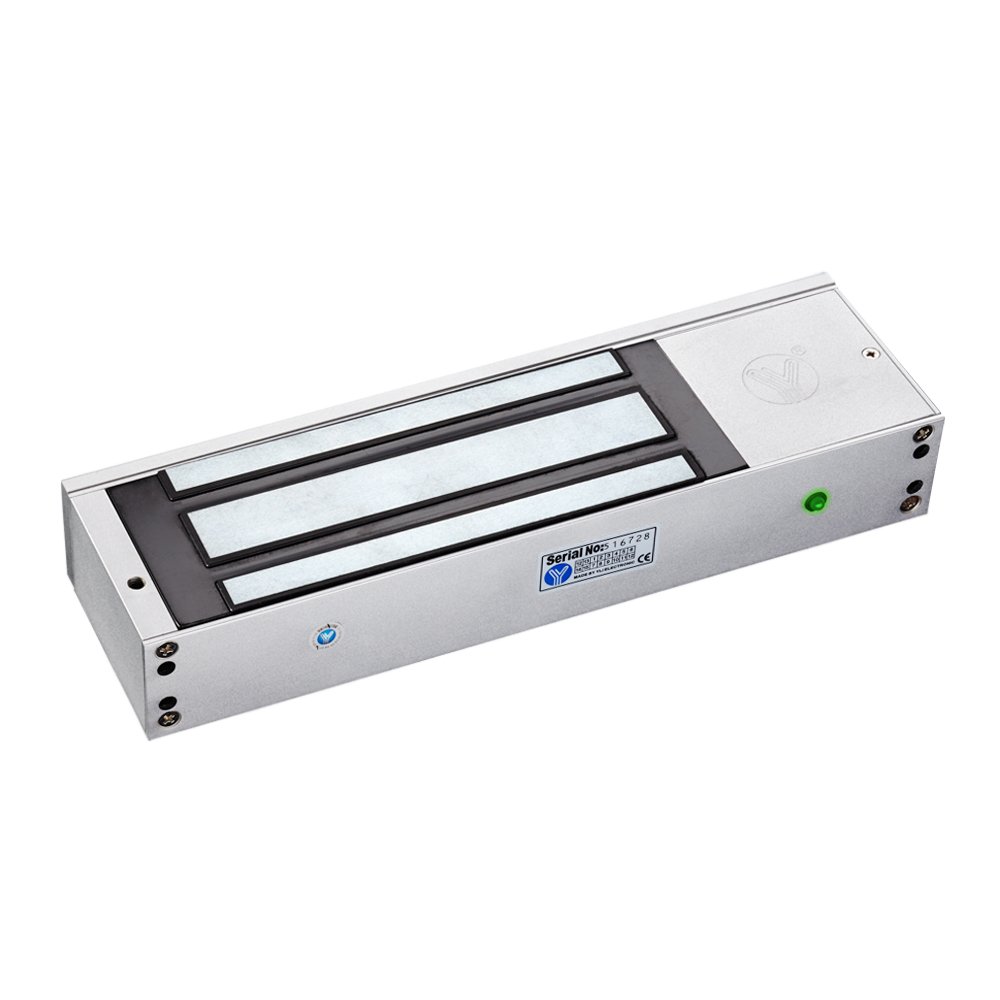

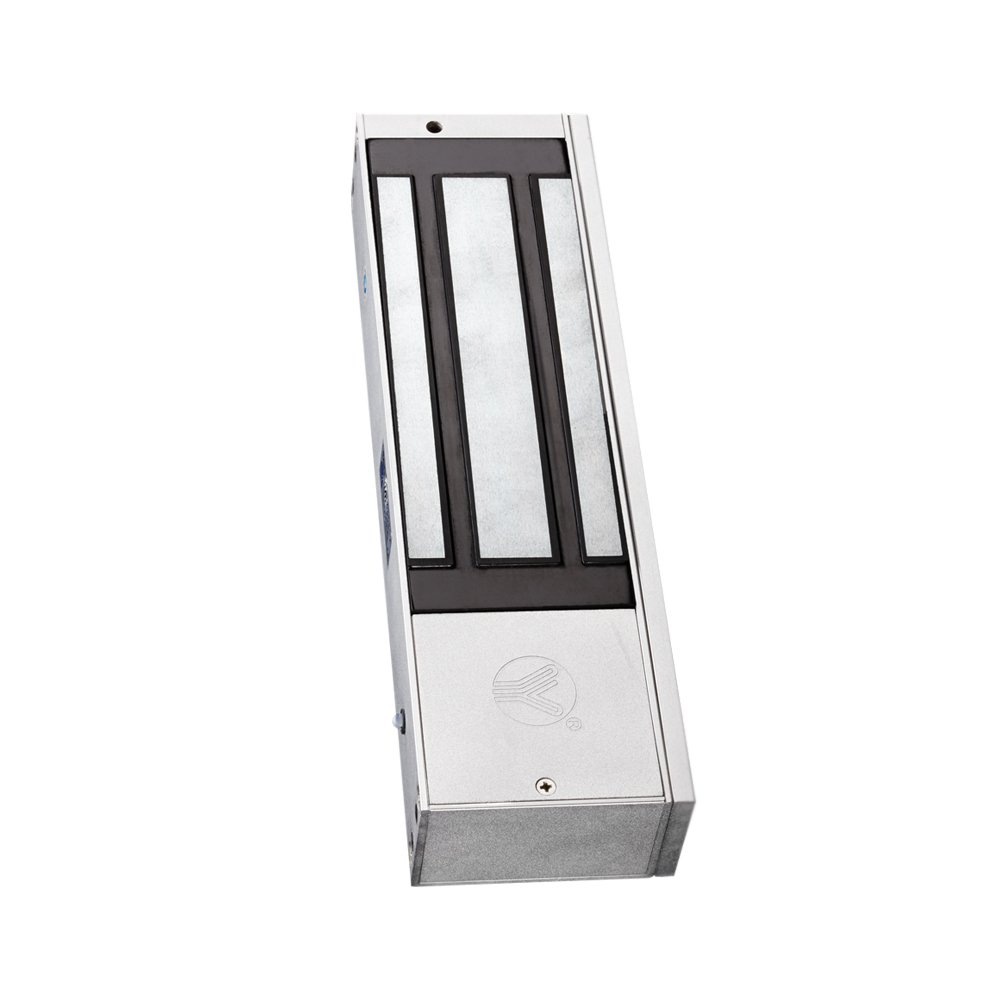

Single Door Magnetic Lock(LED)

YM-750(LED) single door electric lock with LED.Suitable for different types of door.Inbuilt dry contacts lock status signal output ( NO,NC,COM).Special anti-residual magnetism designed and with LED indicator.

SKU: YM-750(LED) Categories: ,

Technical Parameter

Size 280Lx81.6Wx46H(mm)
Armature plate 190Lx70Wx13H(mm)
Holding Force 750kg(1500Lbs)
Voltage DC12V (Adjustable DC24V)
Current Draw 12V/420mA(±10%); 24V/210mA(±10%)
Signal Output NO while locking and NC for unlocking
LED Red indicates the door is unlocked,Green indicates the door is locked
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 5.9kg
Certificate MA UL CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 750kg,1500pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

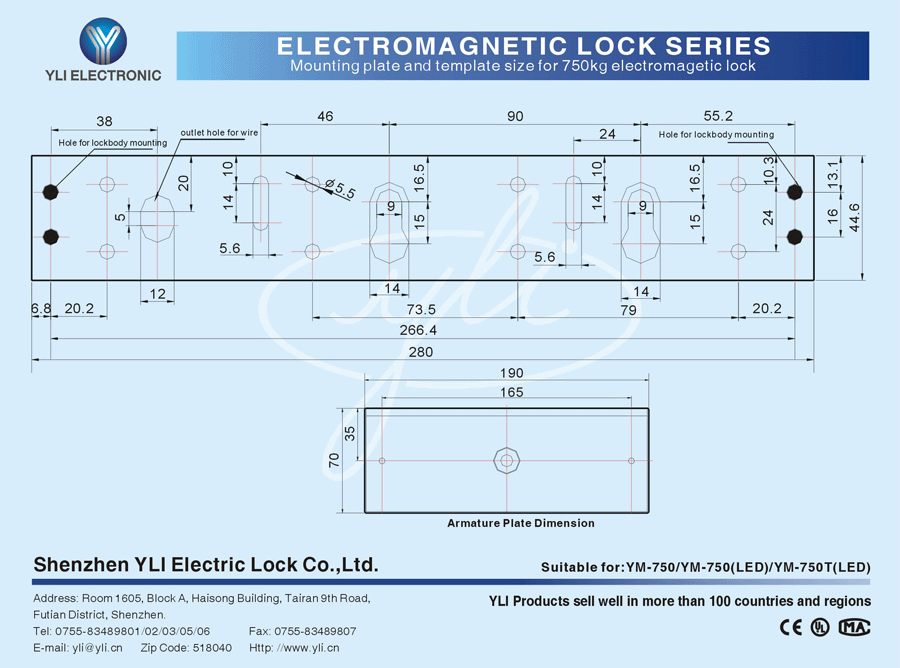

Dimension Diagram

Installation Diagram
