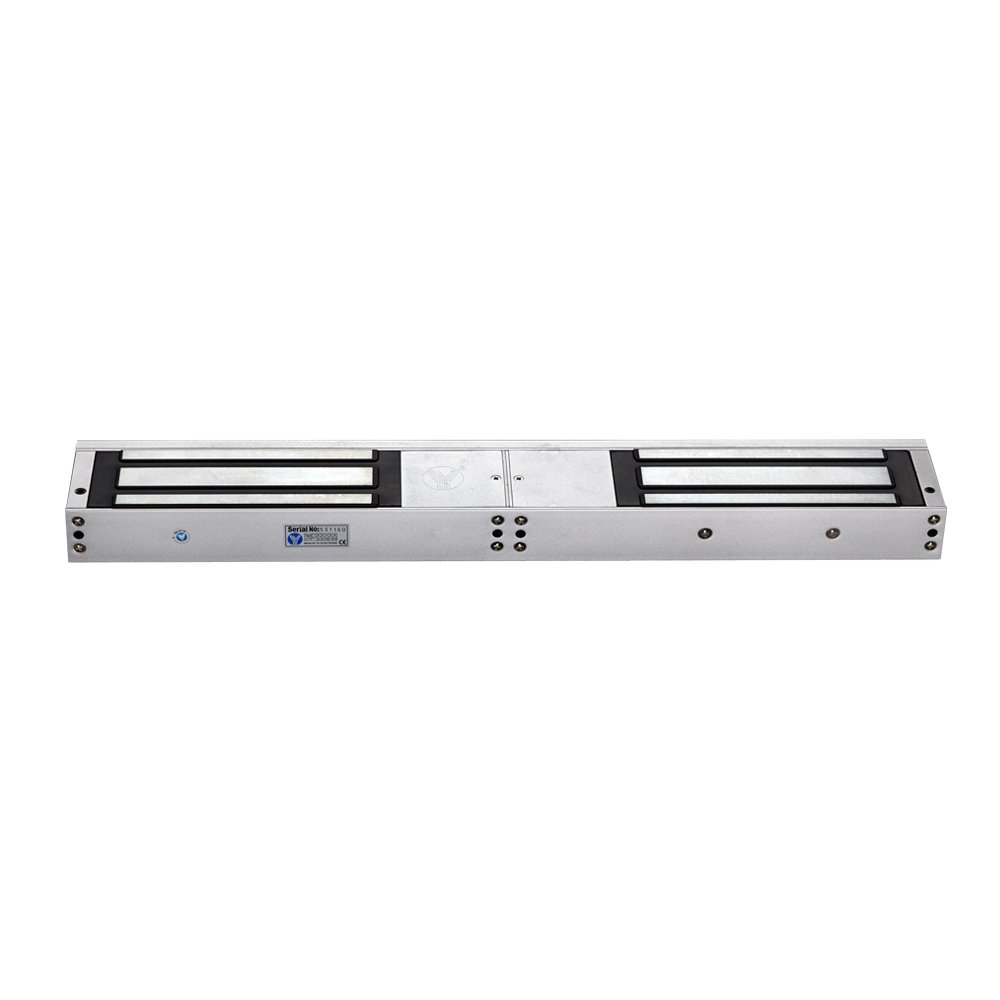

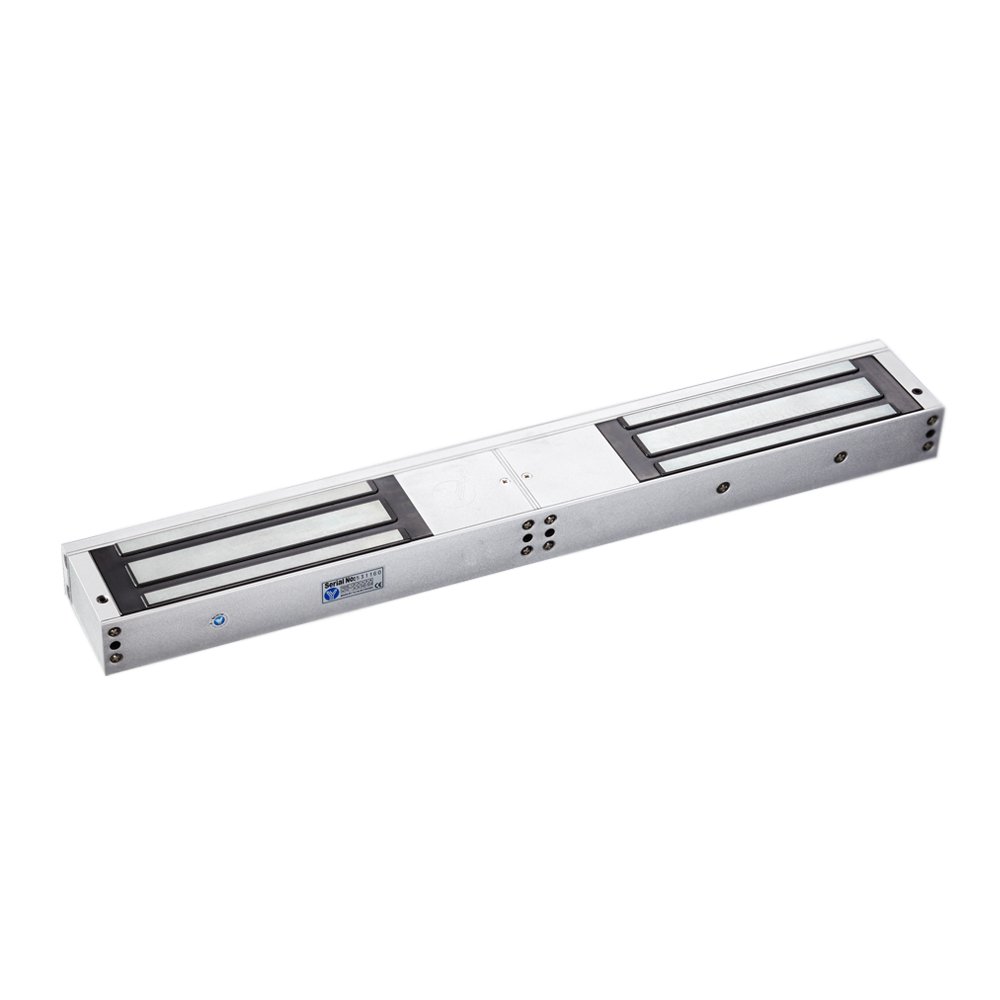

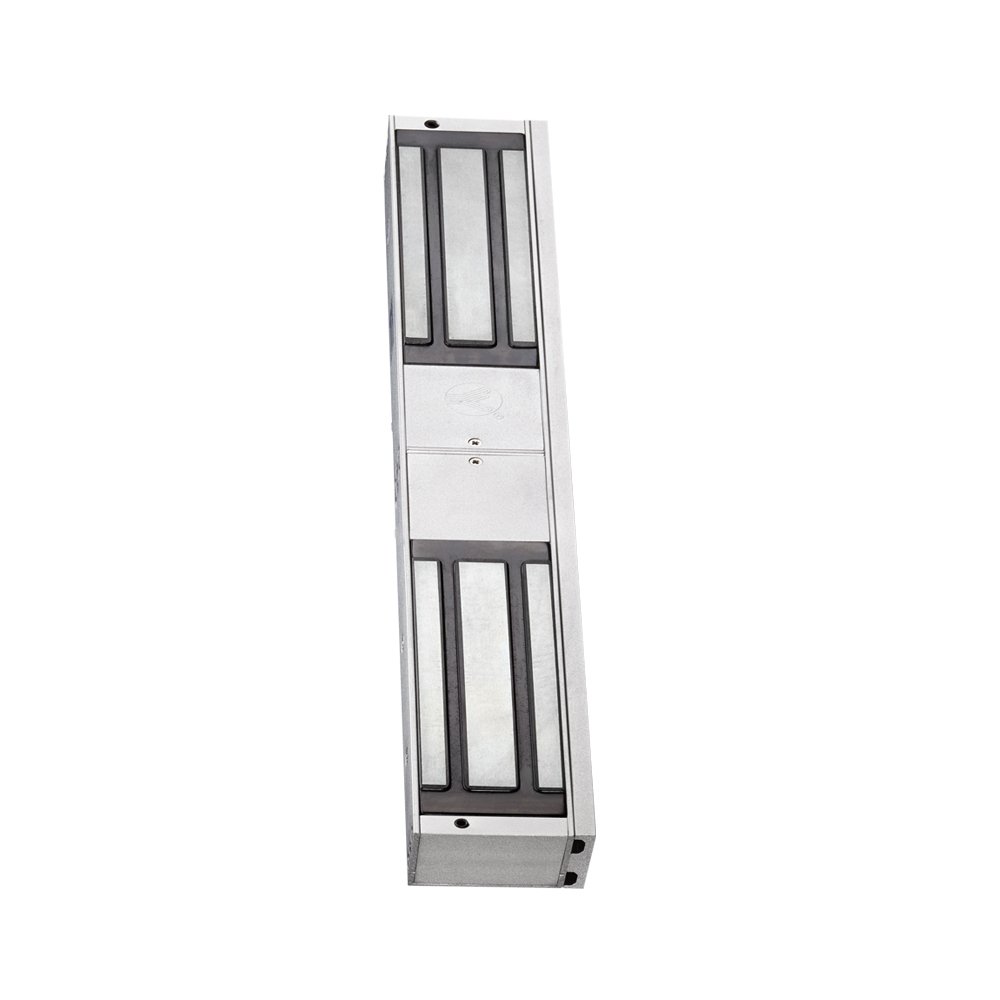

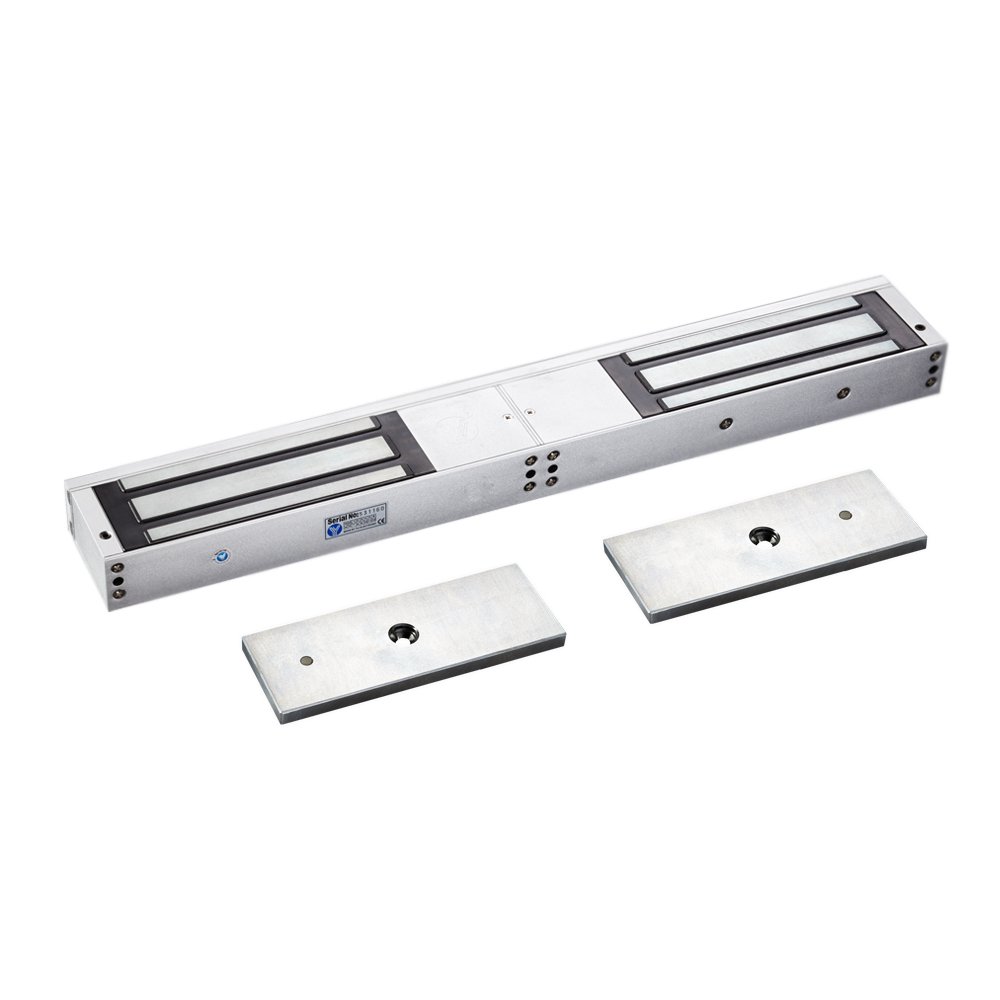

Double Door Magnetic Lock

YM-750D double door electric lock.Apply to glass door, fireproof door, metal door and so on.Due to the Special  designed of anti-residual magnetism, the access control automation more safer and electric lock more durable.

SKU: YM-750D Categories: ,

Technical Parameter

Size 560Lx81.6Wx46H(mm)
Armature plate 190Lx70Wx13H(mm)
Holding Force 750kgx2(1500Lbsx2)
Voltage DC12V (Adjustable DC24V)
Current Draw 12V/420mA(±10%)*2 ; 24V/210mA(±10%)*2
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 11.8kg
Certificate MA UL CE-EMC CE-LVD FCC RoHS

Advantage

Collinear Load Test 750kgx2,1500x2pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

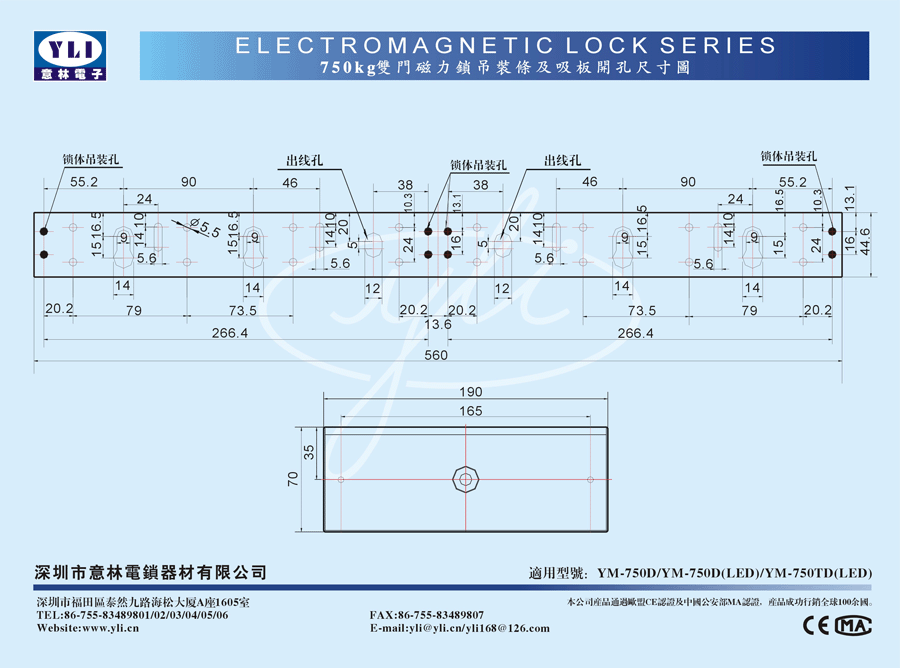

Dimension Diagram

Installation Diagram
