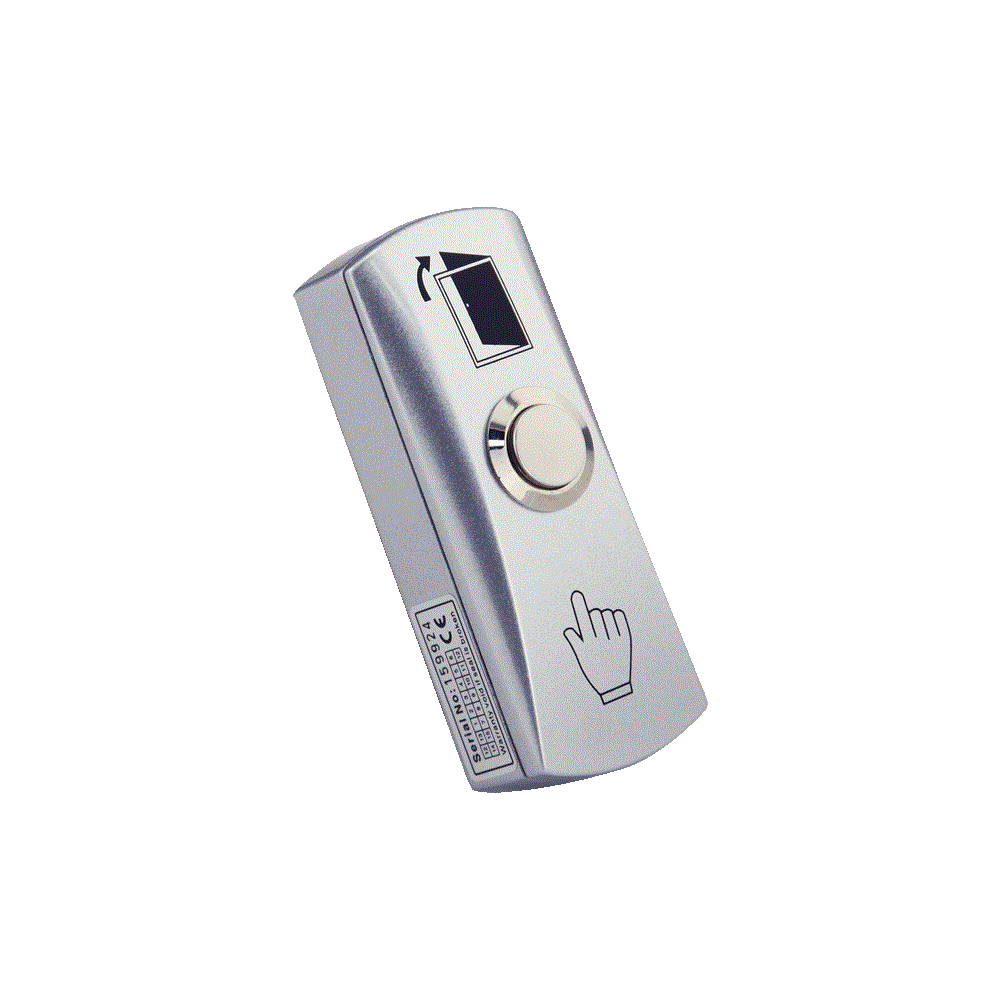

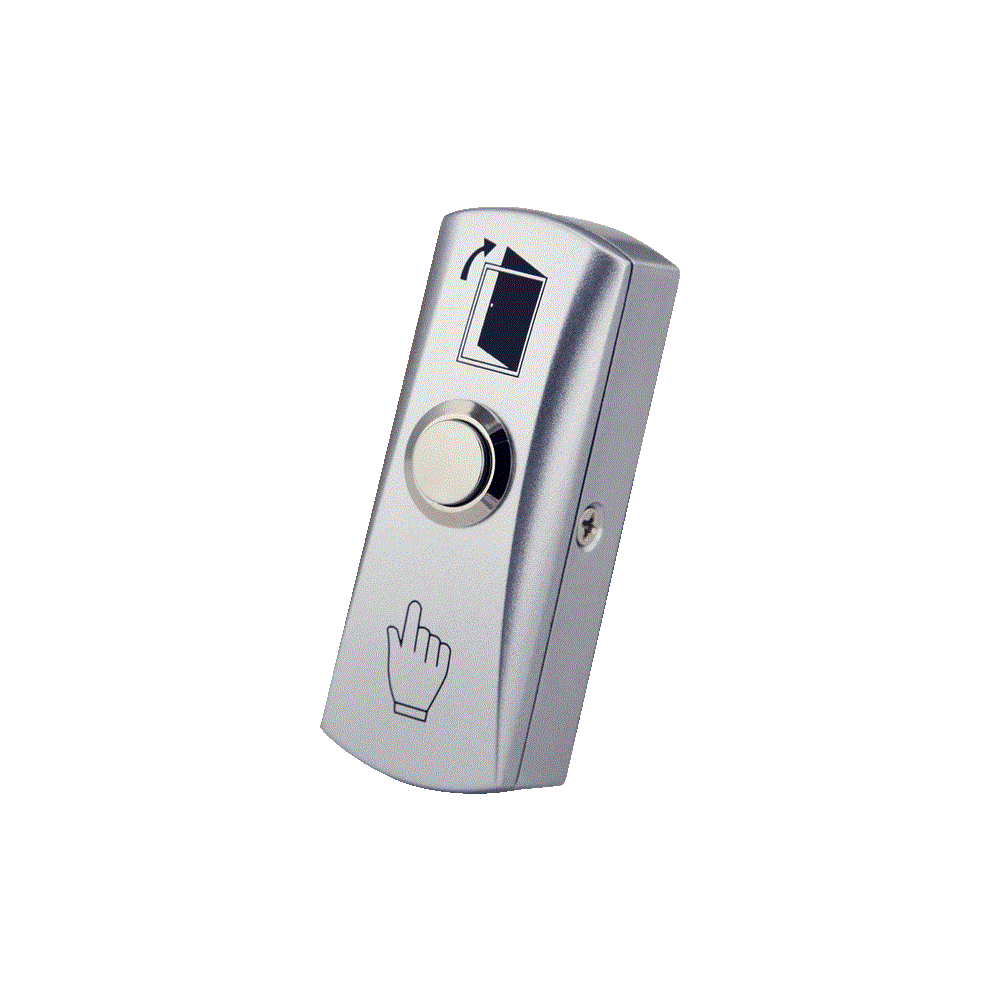

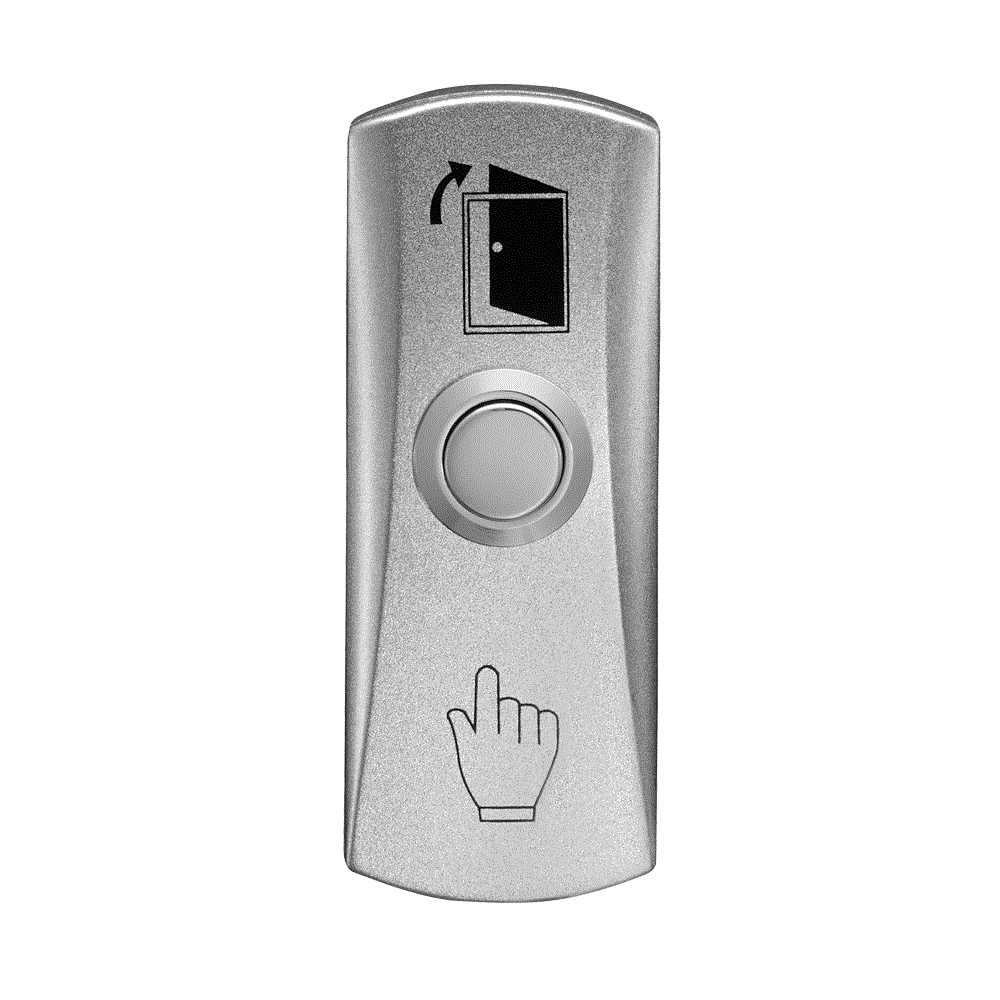

Door Release Button with Back Box

PBK-815 is a door release button with back box in size of 83Lx32Wx25H(mm),which is the most common and the most frequently used in the access control systems.

SKU: PBK-815 Categories: ,

Technical Parameter

Dimensions 82Lx32Wx25H(mm)
Standard Structure Alloy Plate, Steel Button
Current Rating 3A@36VDC Max
Output Contact NO/COM
Mechanical Life 100000 tested
Suitable for Door All Kind of the Narrow Door Frame
Operating temp -20～+50℃
Operating Humidity 0-95% (relative humidity)
Panel Material Alloy Plate, Sandblast Finished
Weight 0.086kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to  Install.
100000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

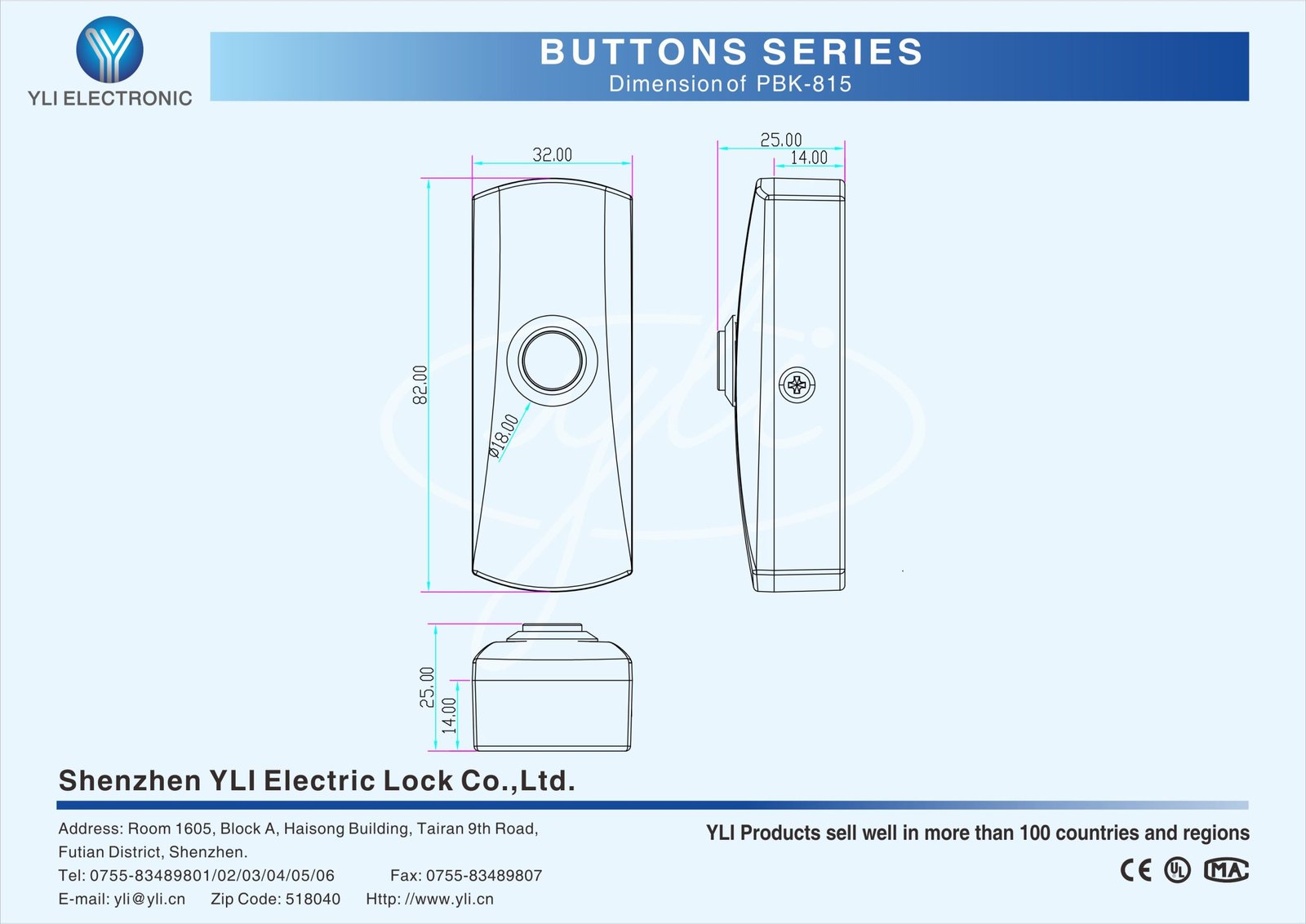

Dimension Diagram

Installation Diagram
