Door Release Button

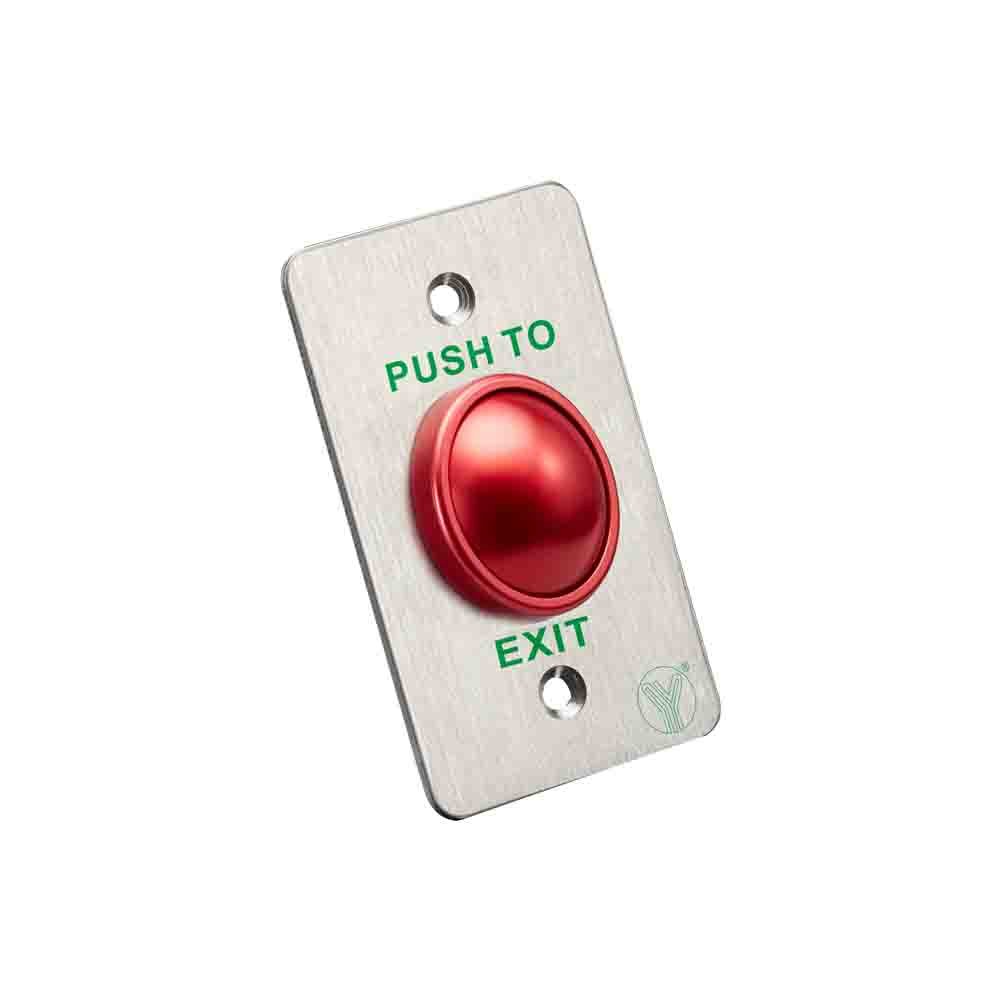

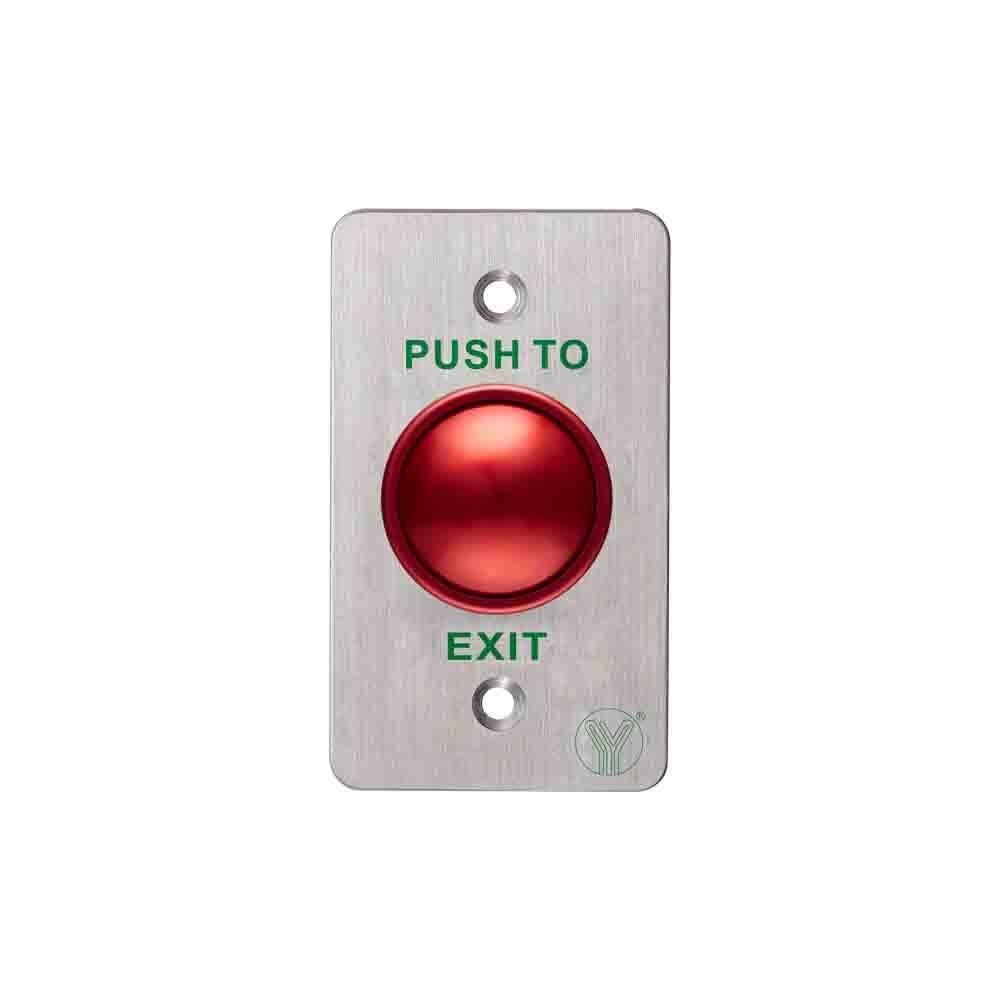

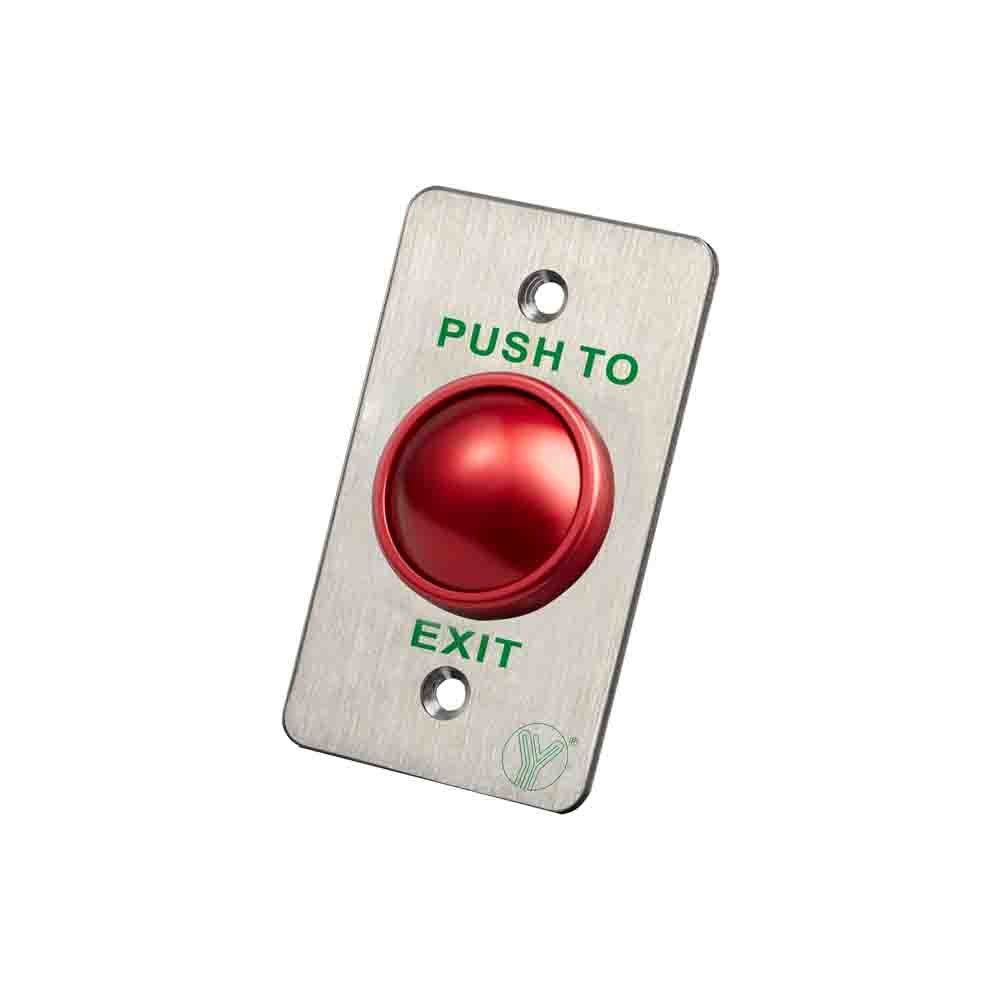

PBK-817A-AL(R) Door Release Button is a big metal button.(Access Control System Exit Button) 304 stainless steel panel with size of L86xW50xH34.2(mm). They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.

SKU: PBK-817A-AL(R) Categories: ,

Technical Parameter

Dimensions 86Lx50Wx34.2H(mm)
Standard structure Stainless Steel Panel,Big Metal Button
Current rating 30VDC 1A
Output contact NO(Green),NC(Yellow),COM(White)
Mechanical life 500000 tested
Suitable for door Hollow doors
Operating temp -20～+60℃
Operating humidity 0-95% (RH)
Panel Material 304 stainless steel panel with wire drawing finish
Weight 0.2kg

Advantage

 Stainless Steel Panel, Big Metal Button

Mechanical life 500000 tested

304 stainless steel panel with wire drawing finish

The Best Choice for Access Control System.

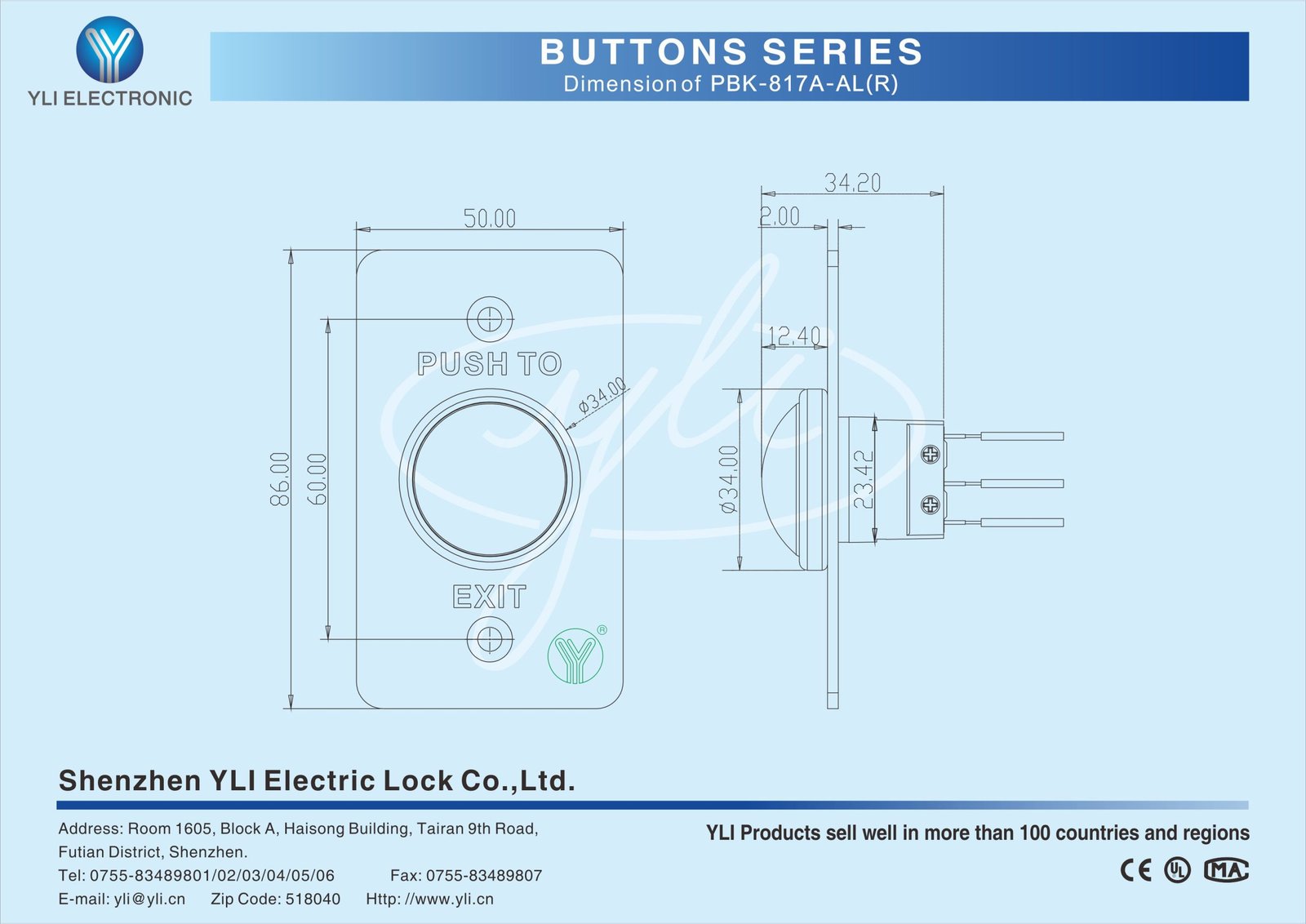

Dimension Diagram

Installation Diagram
