Door Release Button

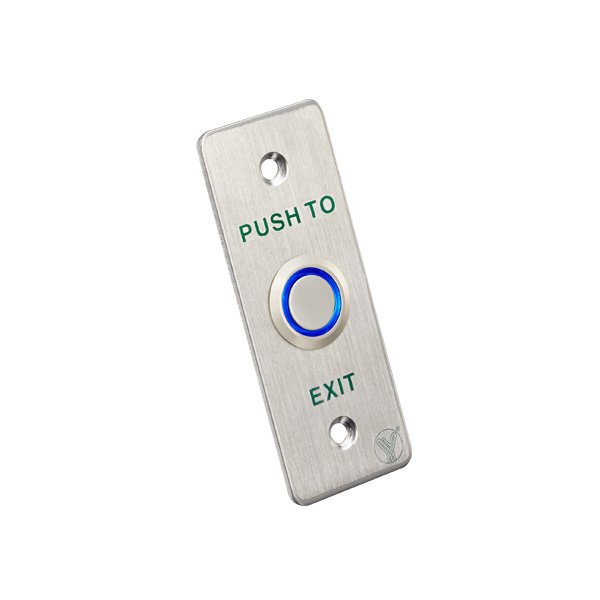

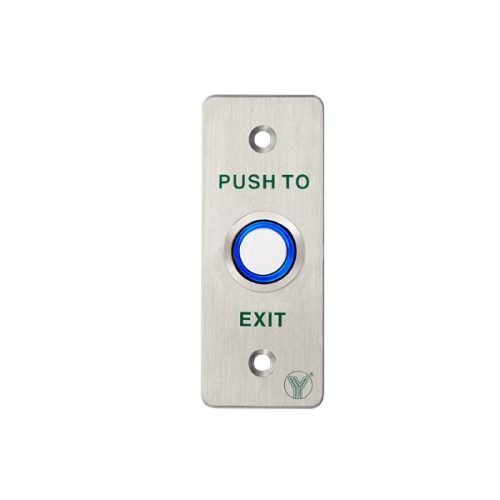

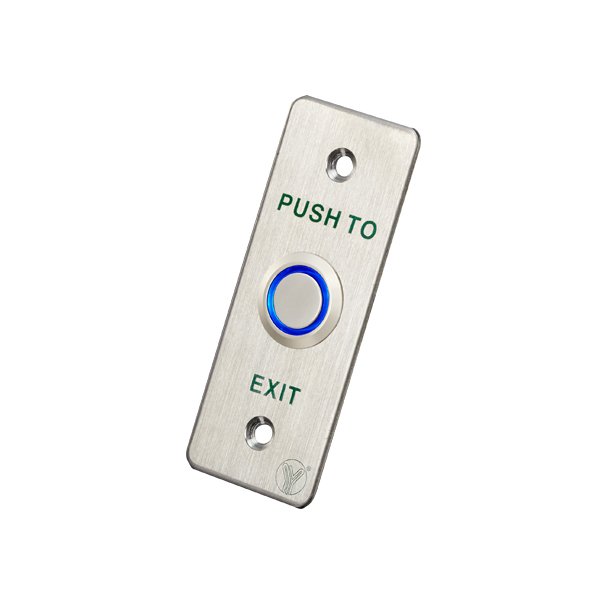

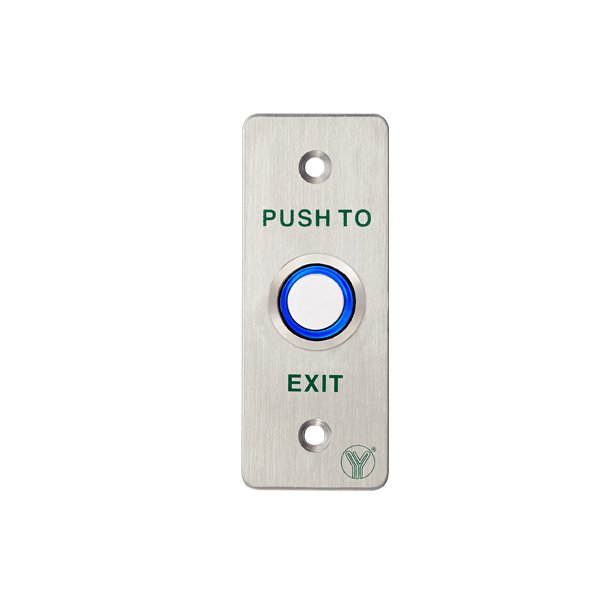

PBK-814A(LED) is a stainless steel door release button with LED in size of 90Lx35Wx31H(mm), which is the most common and the most frequently used in the access control systems.

SKU: PBK-814A(LED) Categories: Exit Button, Push Button

Reviews (0)

Technical Parameter

Dimensions	90Lx35Wx31H(mm)
Standard Structure	Stainless steel Panel, Steel Button
Current Rating	3A@36VDC Max
Output Contact	NO/NC/COM
Mechanical Life	500000 tested
Suitable for Door	Hollow Door
Operating temp	10～+55℃(14-131F)
Operating Humidity	0-95% ( relative humidity)
Panel Material	Stainless steel Panel, Wire Drawing Finished
Weight	0.18kg
Certificate	CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.
500000 Cycles tests.
Many Kinds of Colour, Applicable to and the Place.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

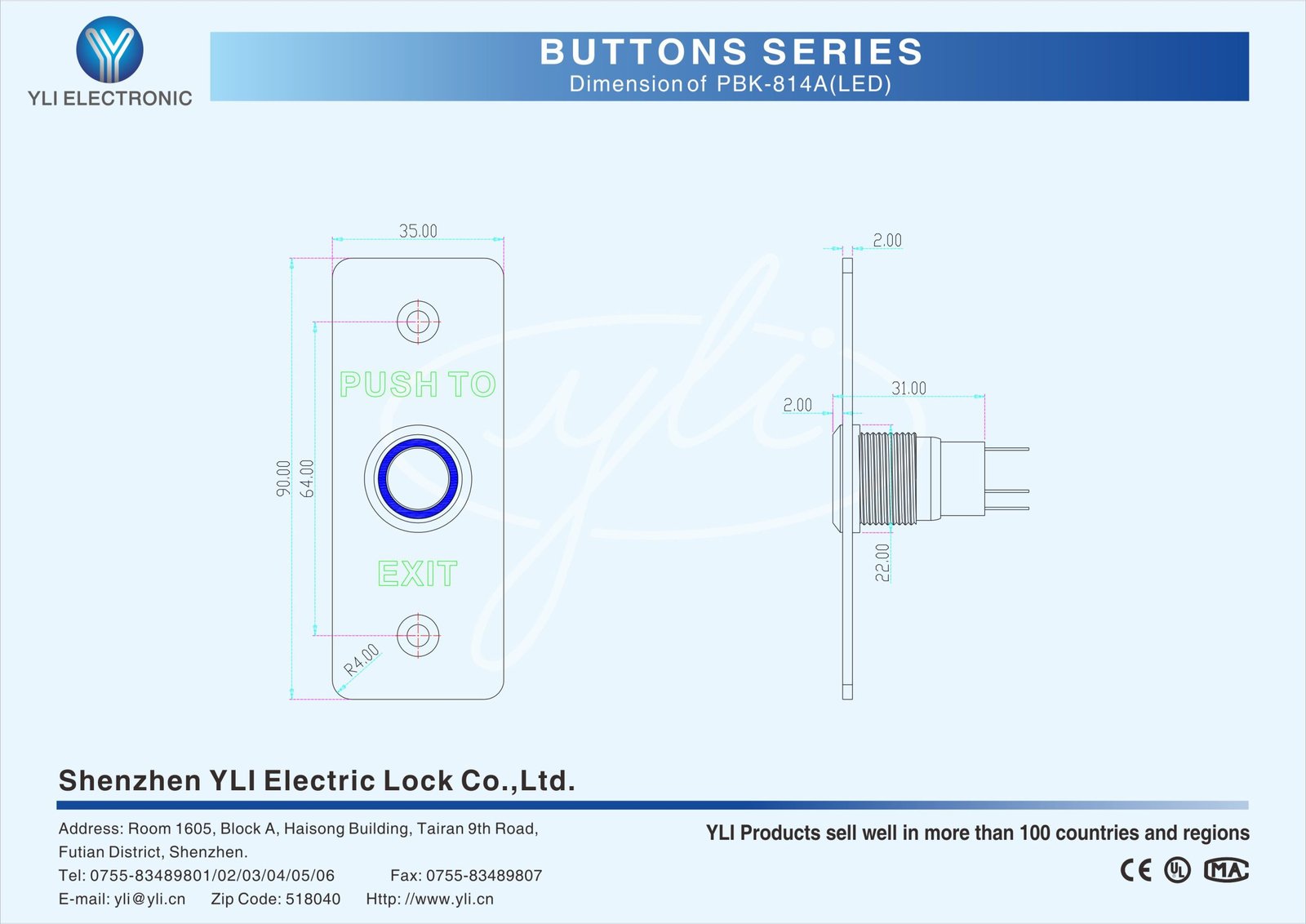

Dimension Diagram

Installation Diagram
