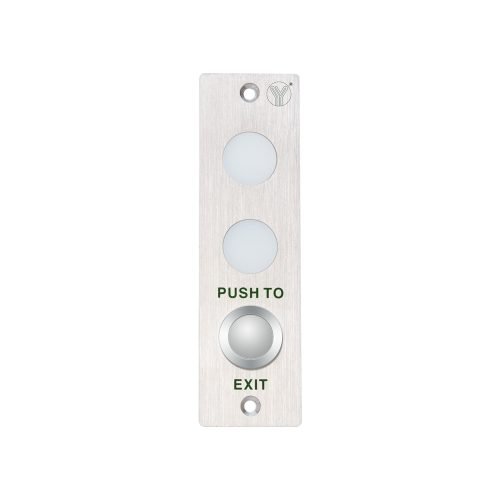

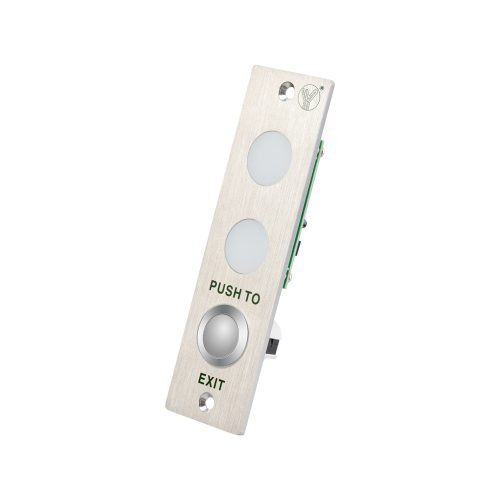

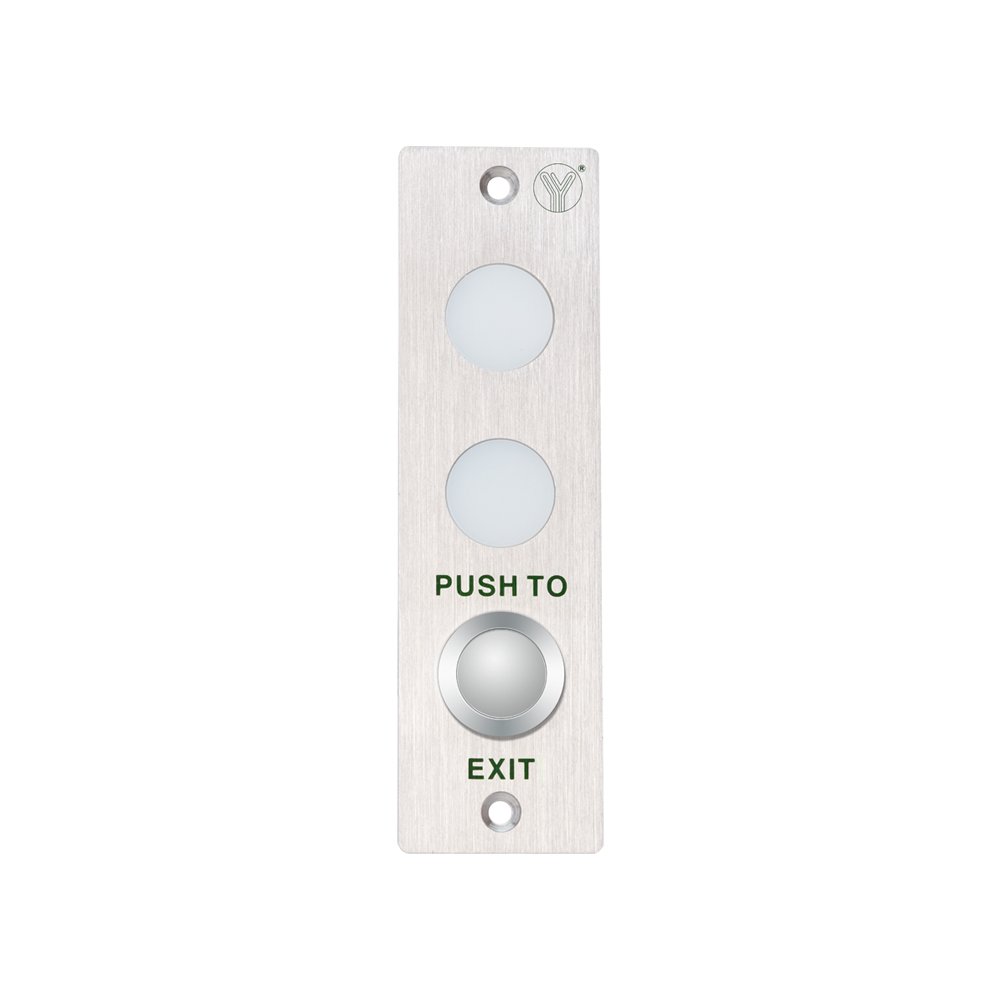

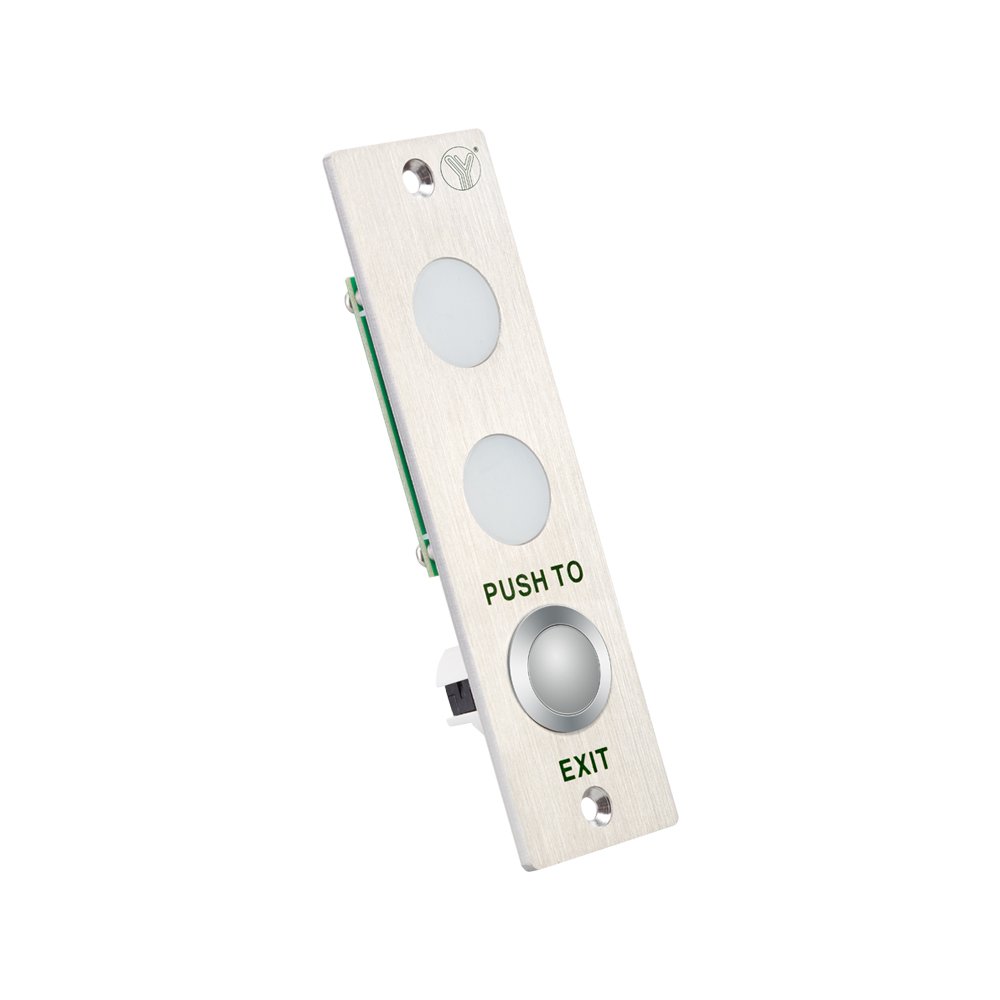

Door Release Button

PBK-813(LED) access control exit button, 304 stainless steel, with 12~24V input voltage, LED light display feedback unlocking or locking state, traffic light conversion, green light unlocking state, red light locking state.

SKU: PBK-813(LED) Categories: ,

Technical Parameter

Dimensions 140Lx40Wx27H(mm)
Input Voltage 12~24VDC
Current ≤50mA
Contact NO（Green），NC（Yellow），COM（White）
Electric Performance 1A@30VDC
Lock Signal NC/COM/NO
LED Status When NC and COM connect,LED shows green / When NO and COM connect,LED shows red
Operating temp -20～+50℃
Operating Humidity 0-95% (relative humidity)
Weight 0.2kg

Advantage

304 stainless steel.

Input Voltage: 12~24VDC

LED Status: When NC and COM connect,LED shows green; When NO and COM connect,LED shows red.

Lock Signal: NC/COM/NO

Dimension Diagram

Installation Diagram
