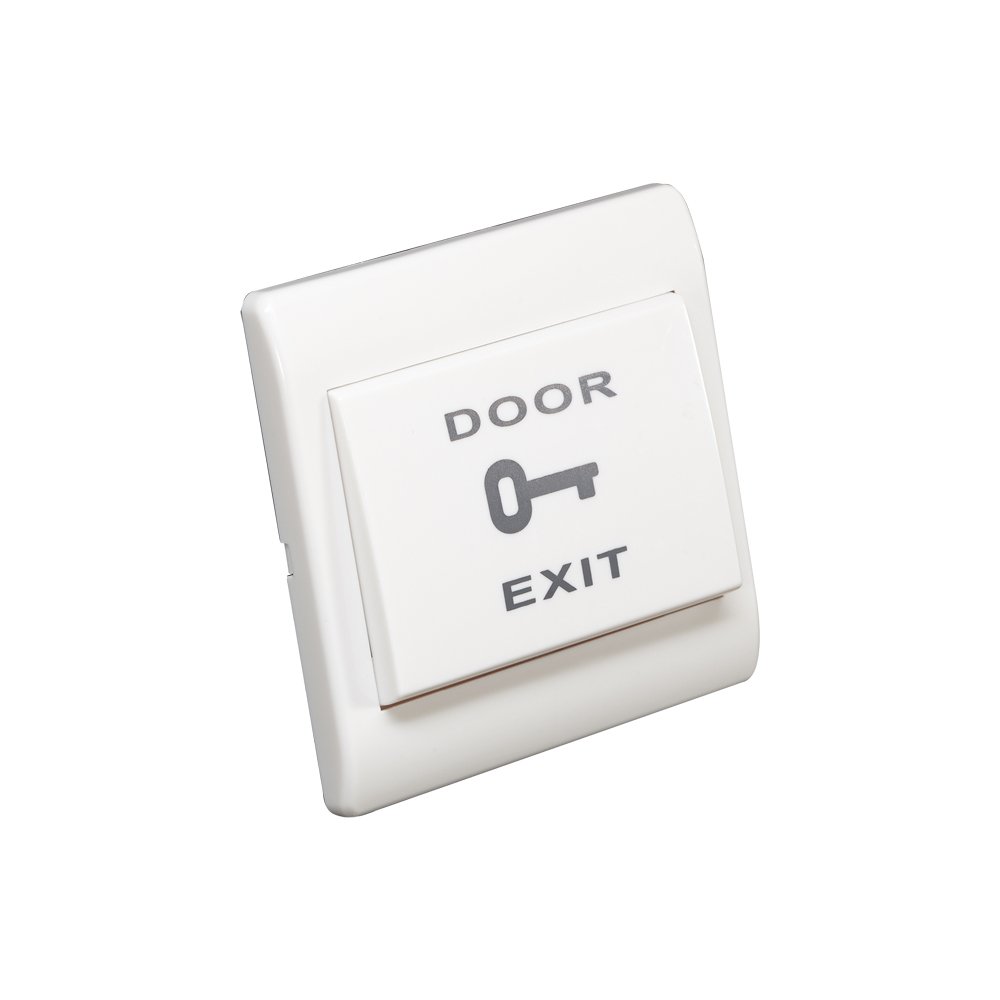

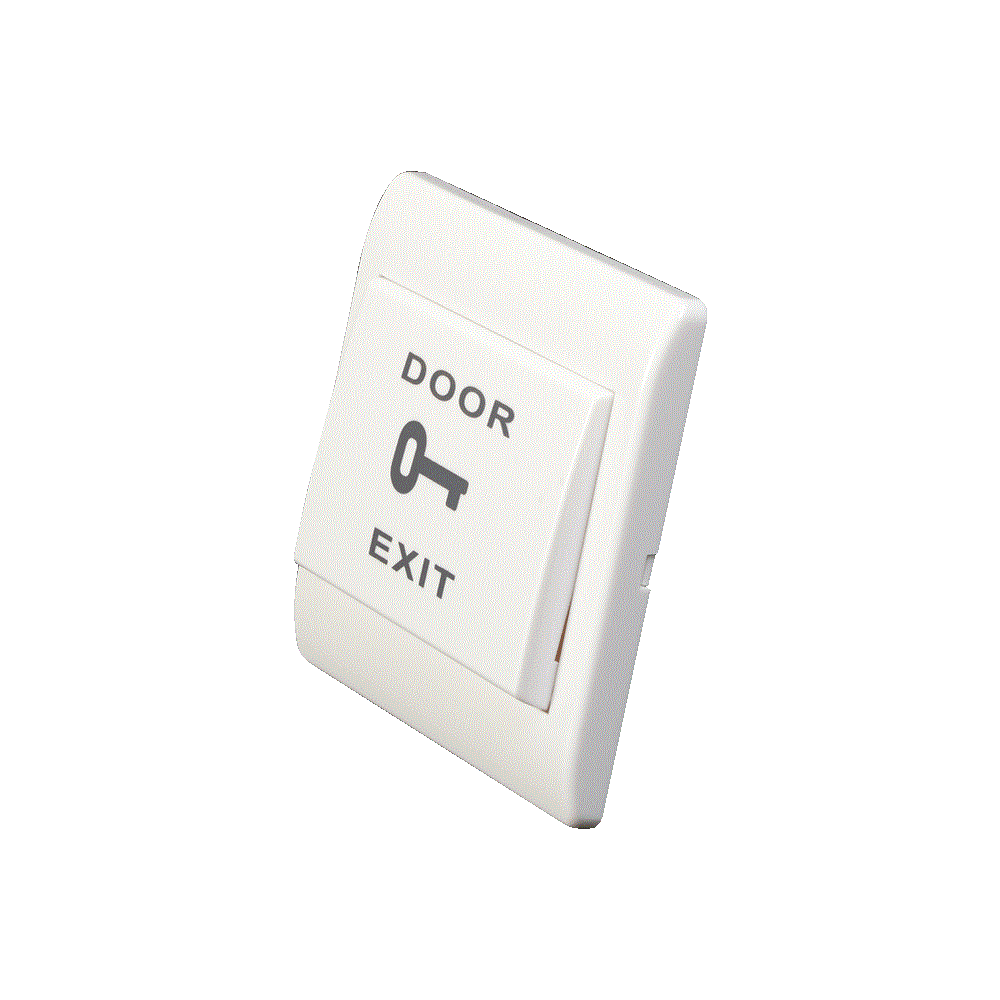

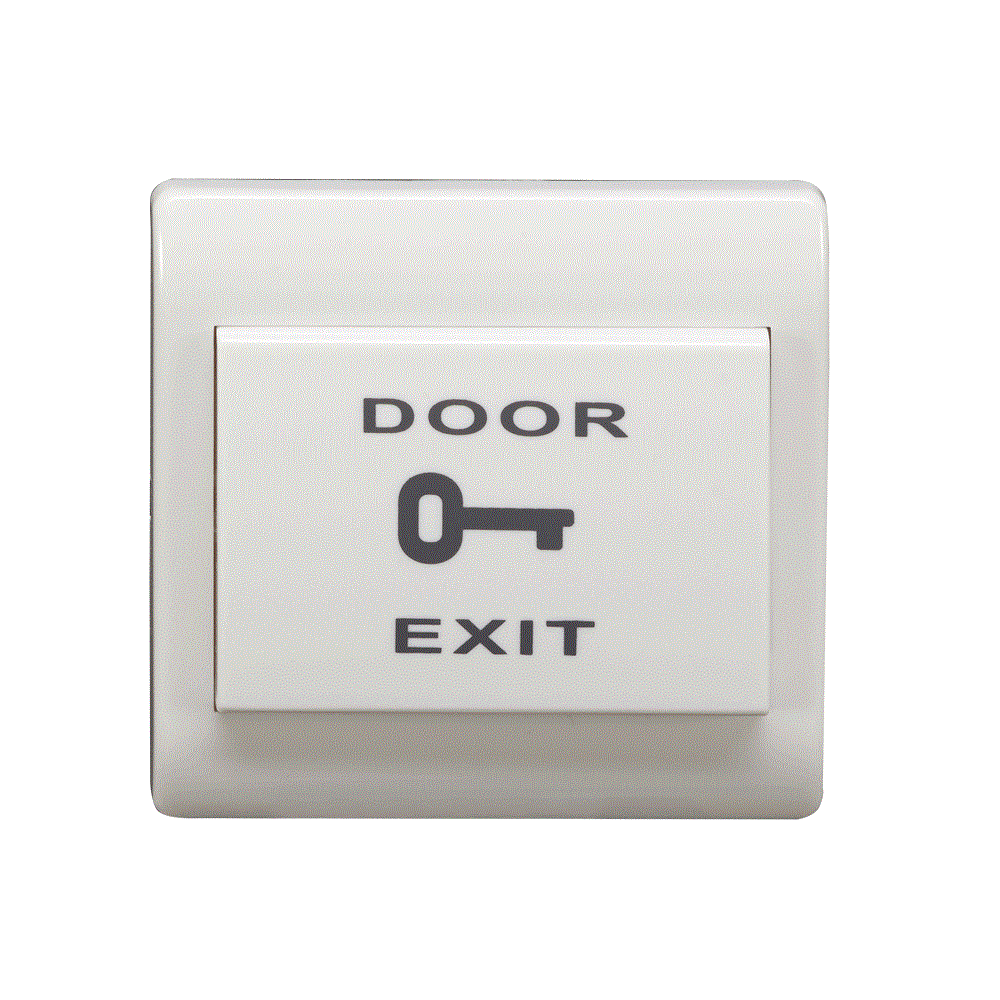

Door Release Button (Plastic)

PBK-812 is a plastic door release button with size of L88xW88xH20(mm), which is the most common and the most frequently used because of easy installation and performance.

SKU: PBK-812 Categories: ,

Technical Parameter

Dimensions L88xW88xH20(mm)
Standard Structure PLASTIC
Current Rating 3A@36VDC MAX
Output Contact NO/COM
Mechanical Life 100000 tests
Suitable for Door Hollow Door
Operating temp 10～+55℃(14-131F)
Operating Humidity 0-95% (relative humidity)
Panel Material Plastic
Weight 0.064kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

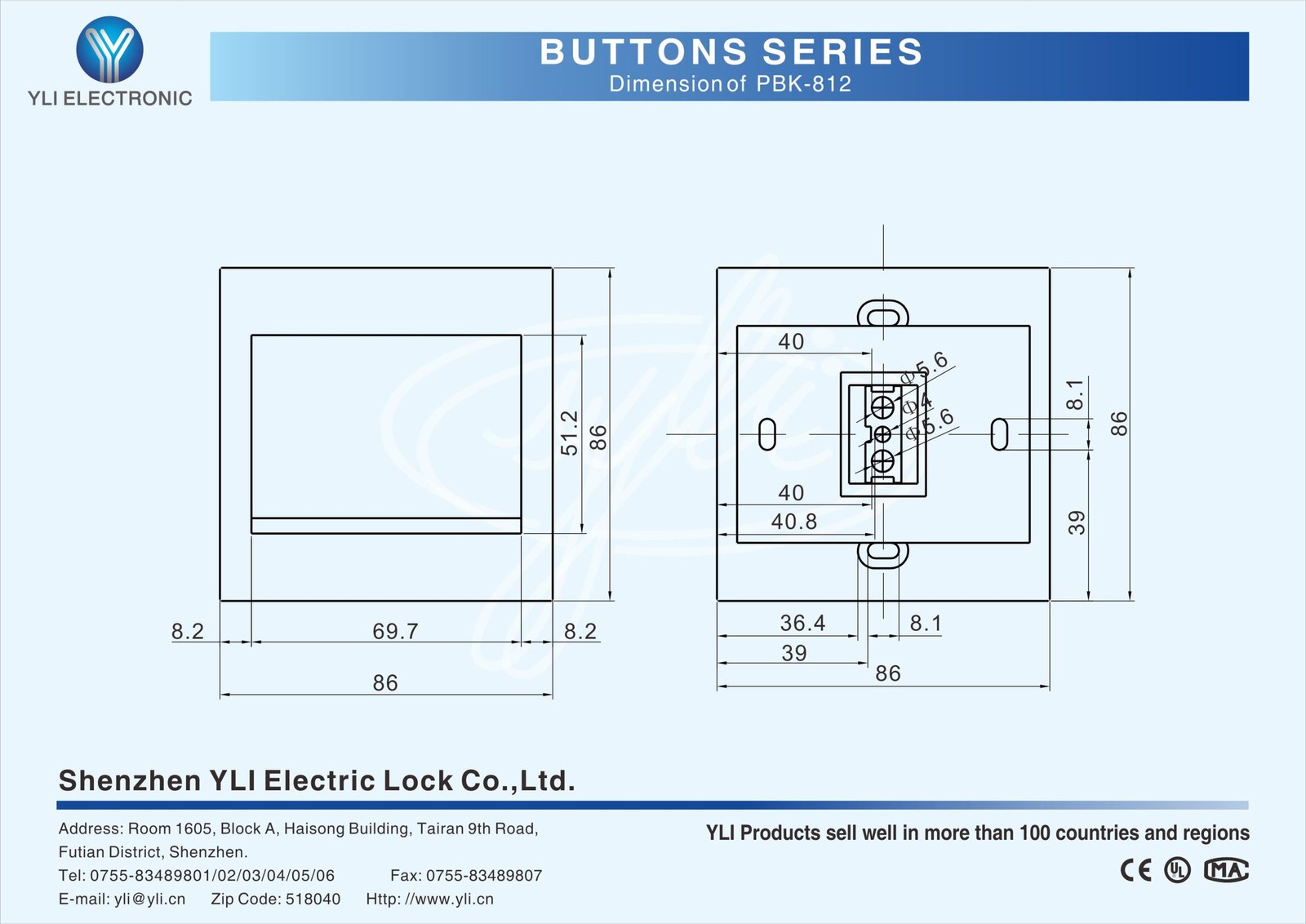

Dimension Diagram

Installation Diagram
