Door Release Button

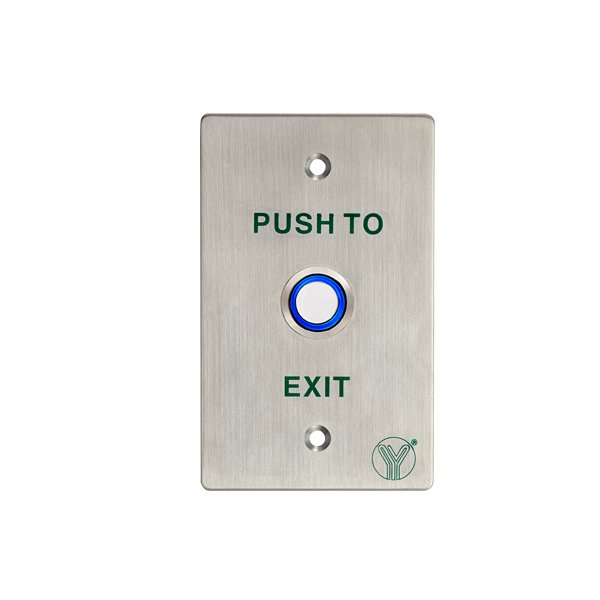

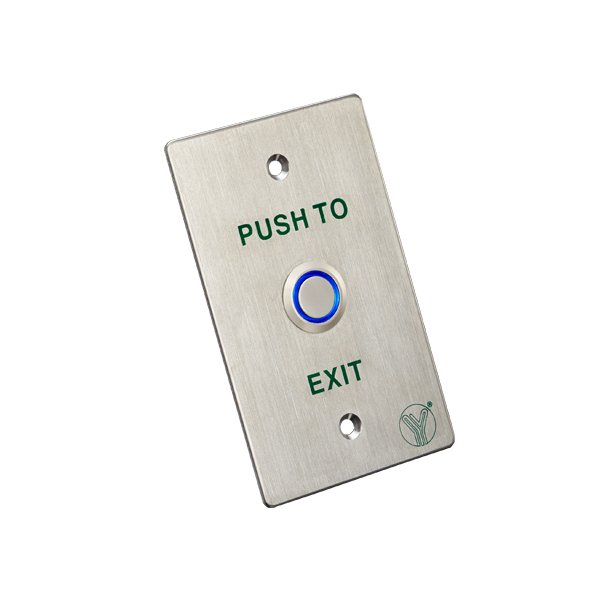

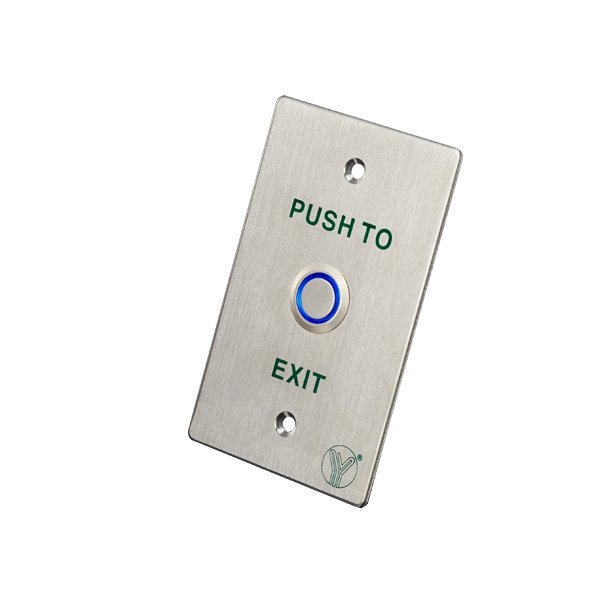

PBK-814D(LED) is a stainless steel door release button with LED in size of 114Lx70Wx31H(mm), American standard,which is the most common and the most frequently used in the access control systems.

SKU: PBK-814D(LED) Categories: ,

Technical Parameter

Dimensions 114Lx70Wx31H(mm)
Standard Structure Stainless steel Panel, Steel Button
Current Rating 3A@36VDC Max
Output Contact NO/NC/COM
Mechanical Life 500000 tested
Suitable for Door Hollow Door
Operating temp 10～+55℃(14-131F)
Operating Humidity 0-95% ( relative humidity)
Panel Material Stainless steel Panel, Wire Drawing Finished
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.

500000 Cycles tests.

Many Kinds of Colour, Applicable to and the Place.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

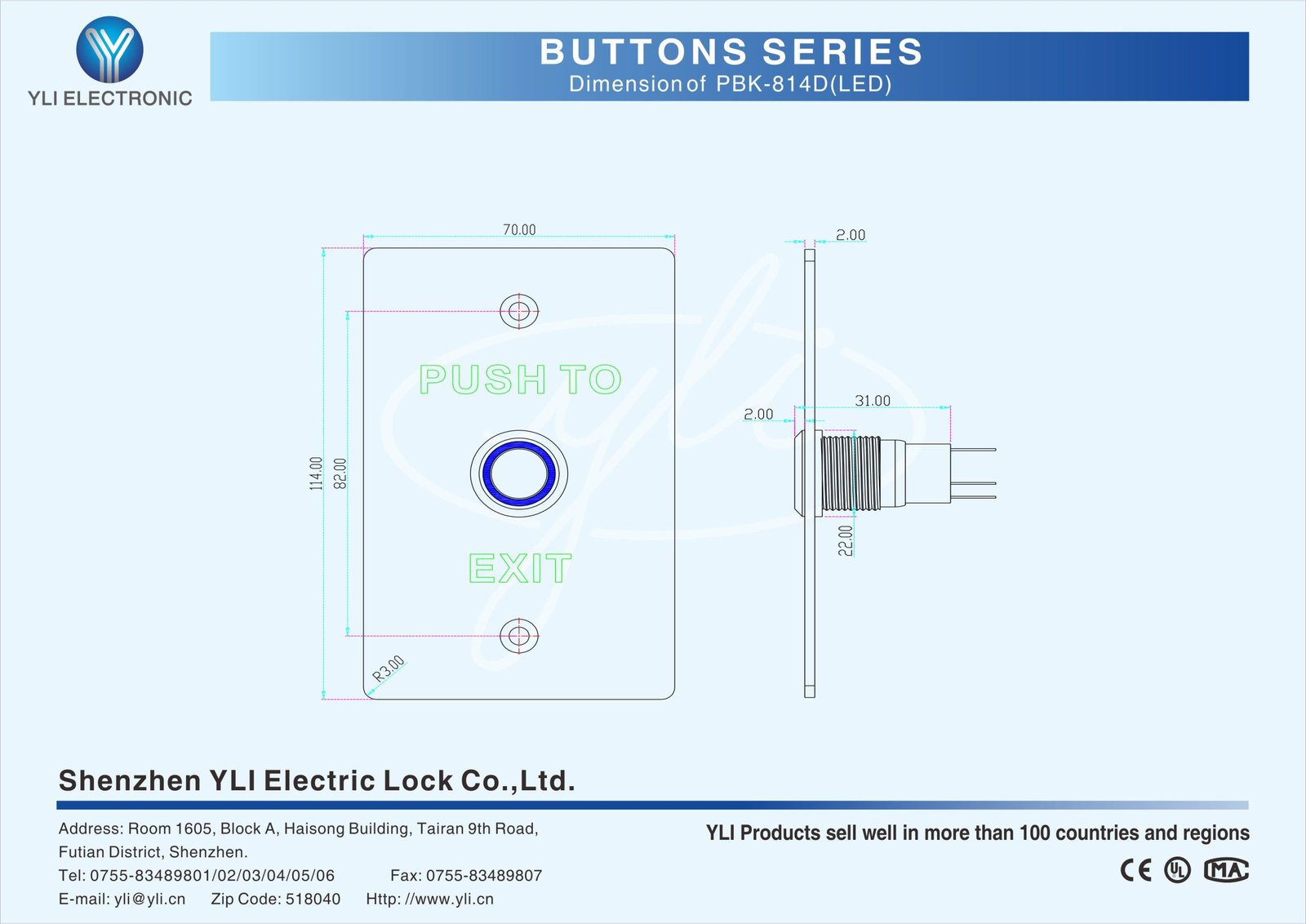

Dimension Diagram

Installation Diagram
