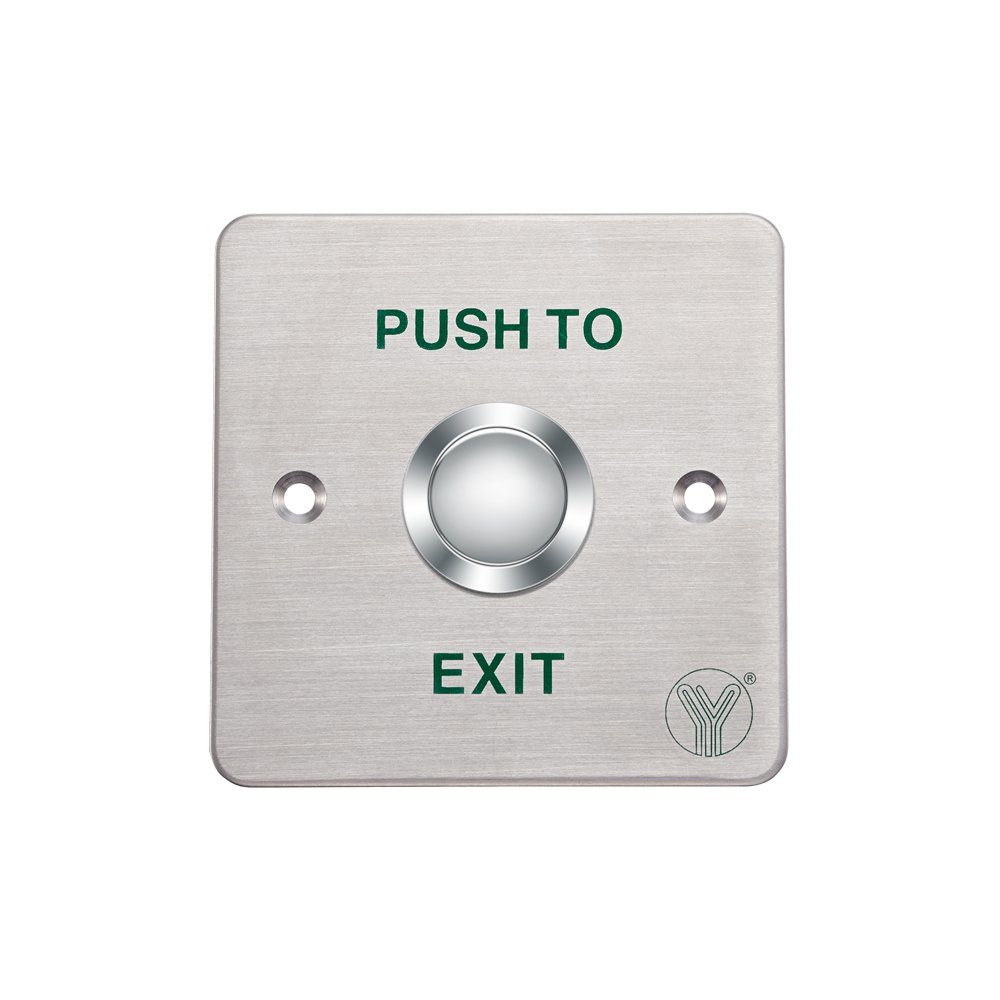

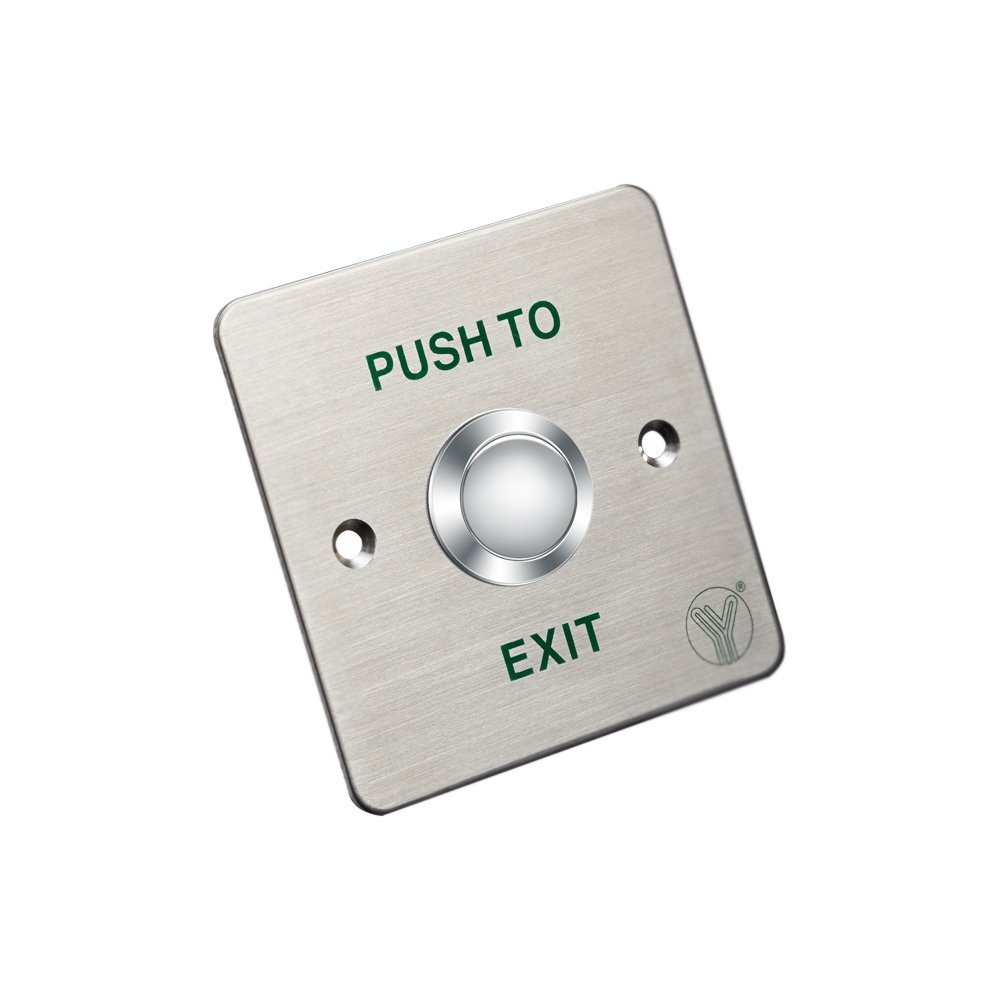

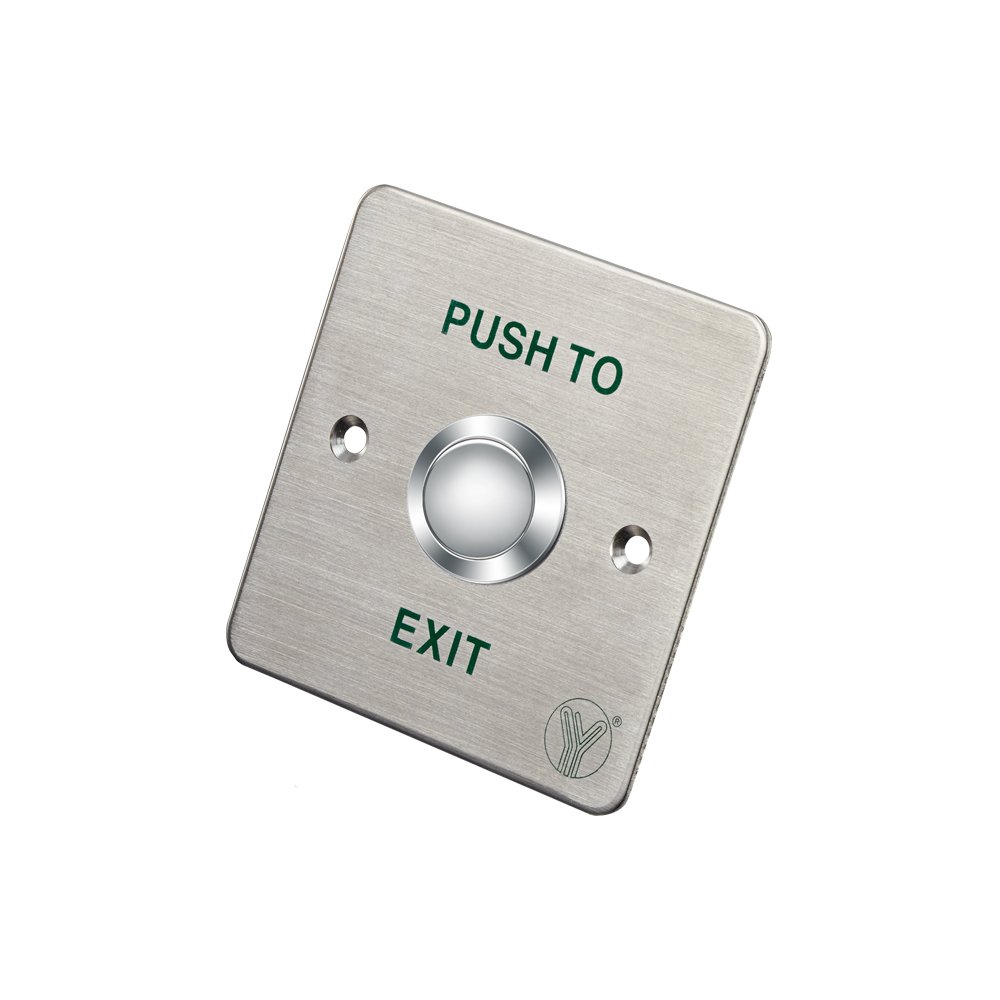

Door Release Button (Stainless steel)

PBK-810C is a stainless steel door release button with size of L86xW86xH29(mm), which is the most common and the most frequently match used with electric lock.

SKU: PBK-810C Categories: ,

Technical Parameter

Dimensions L86xW86xH29(mm)
Standard Structure 304 stainless steel panel and button
Current Rating 3A@36VDC MAX
Output Contact NO/NC/COM
Mechanical Life 100000 tests
Suitable for Door Hollow Door
Operating temp -10～+55℃(14-131F)
Operating Humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

304 Stainless Steel  Panel with Elegant Style.

100000 Cycles tests.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

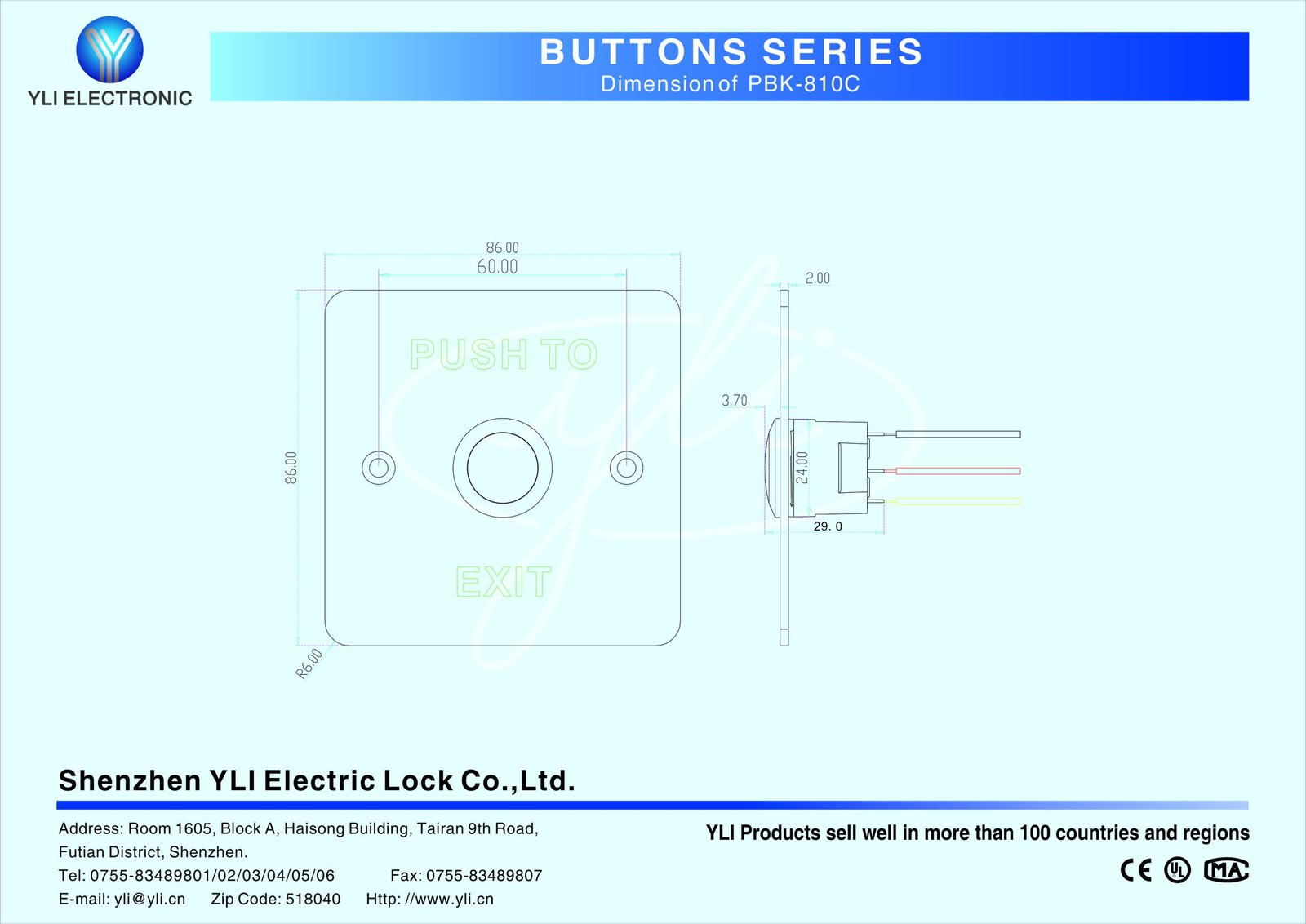

Dimension Diagram

Installation Diagram
