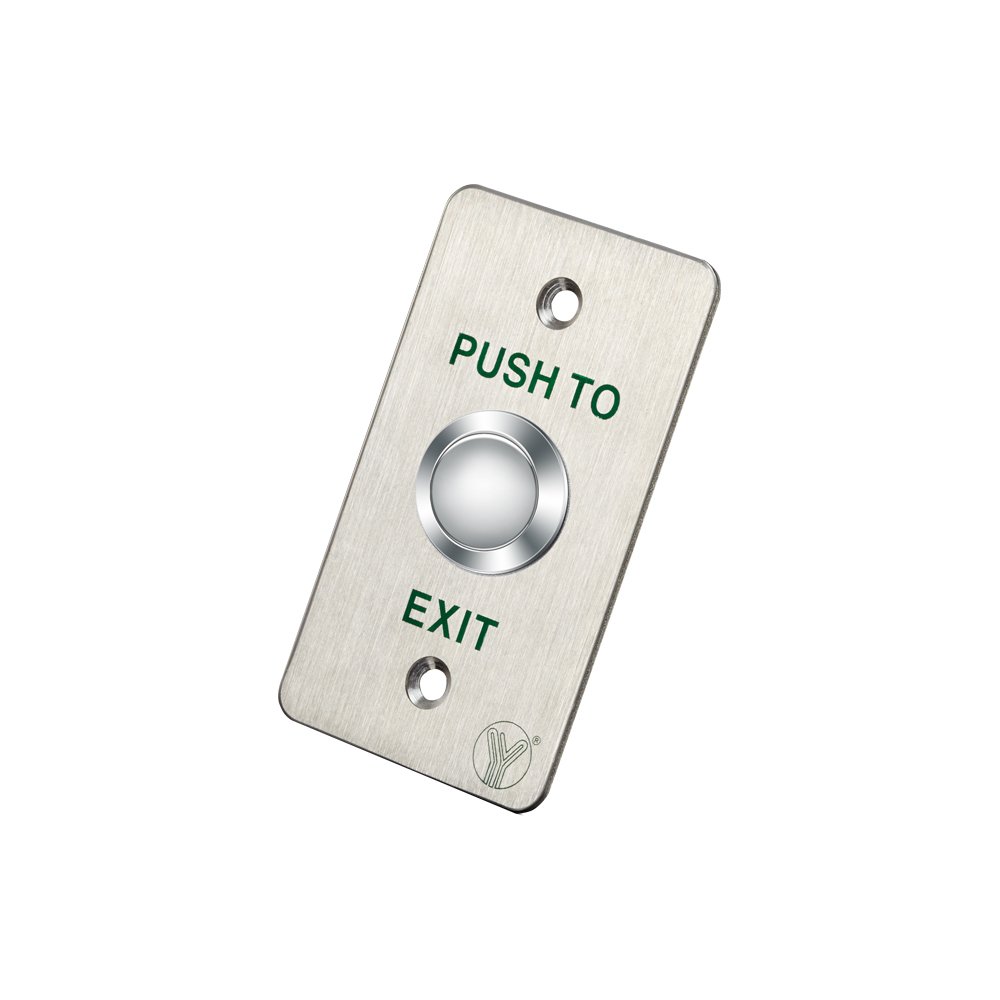

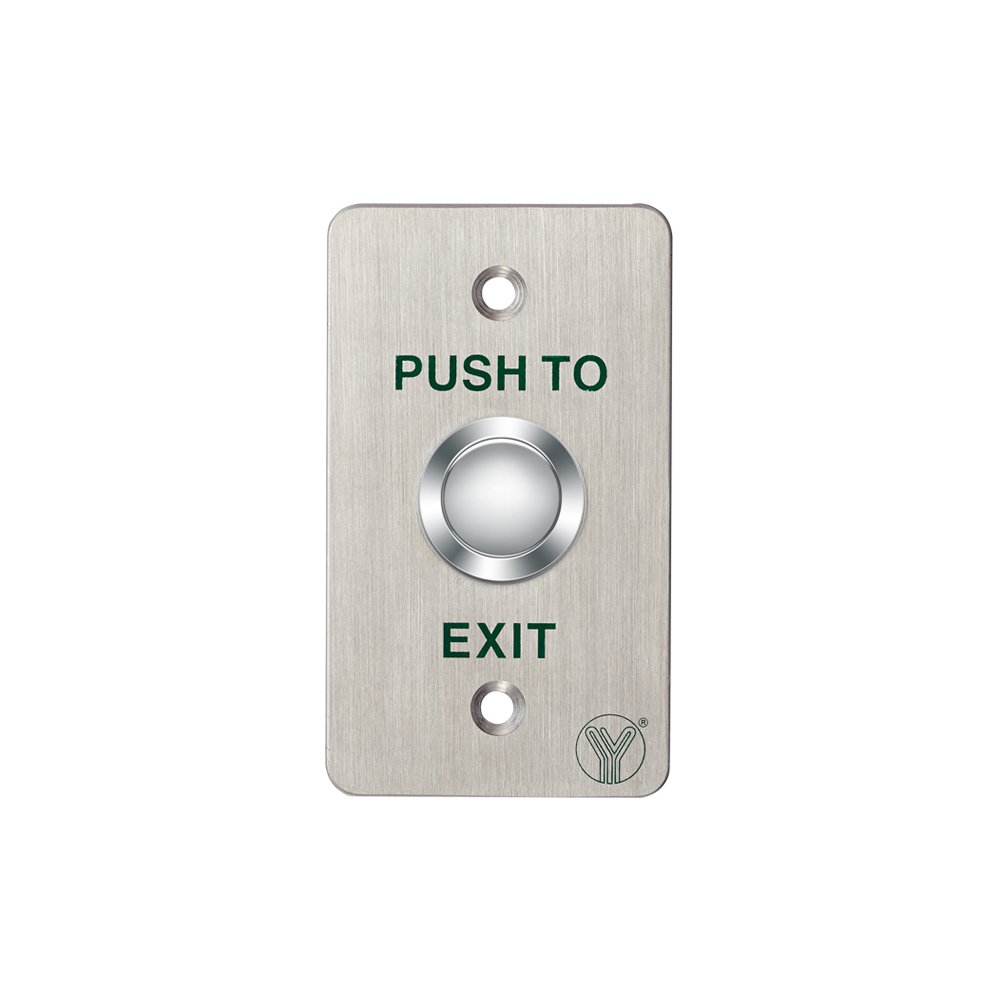

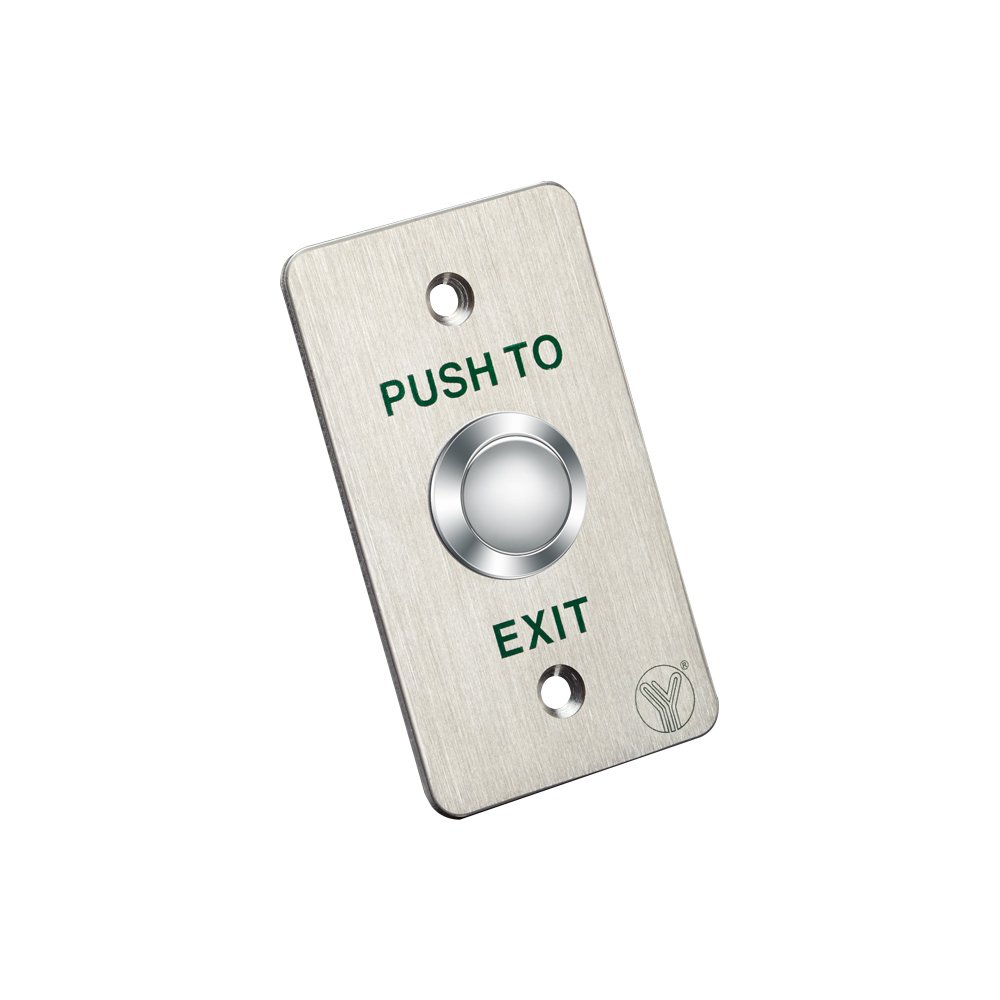

Door Release Button (Stainless steel)

PBK-810B is a stainless steel door release button with size of L86xW50xH29(mm),They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.

SKU: PBK-810B Categories: ,

Technical Parameter

Dimensions L86xW50xH29(mm)
Standard Structure 304 stainless steel panel and button
Current Rating 3A@36VDC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tests
Suitable for Door Hollow Door
Operating temp -10～+55℃(14-131F)
Operating Humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Weight 0.18kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

304 Stainless Steel  Panel with Elegant Style.

500000 Cycles tests.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

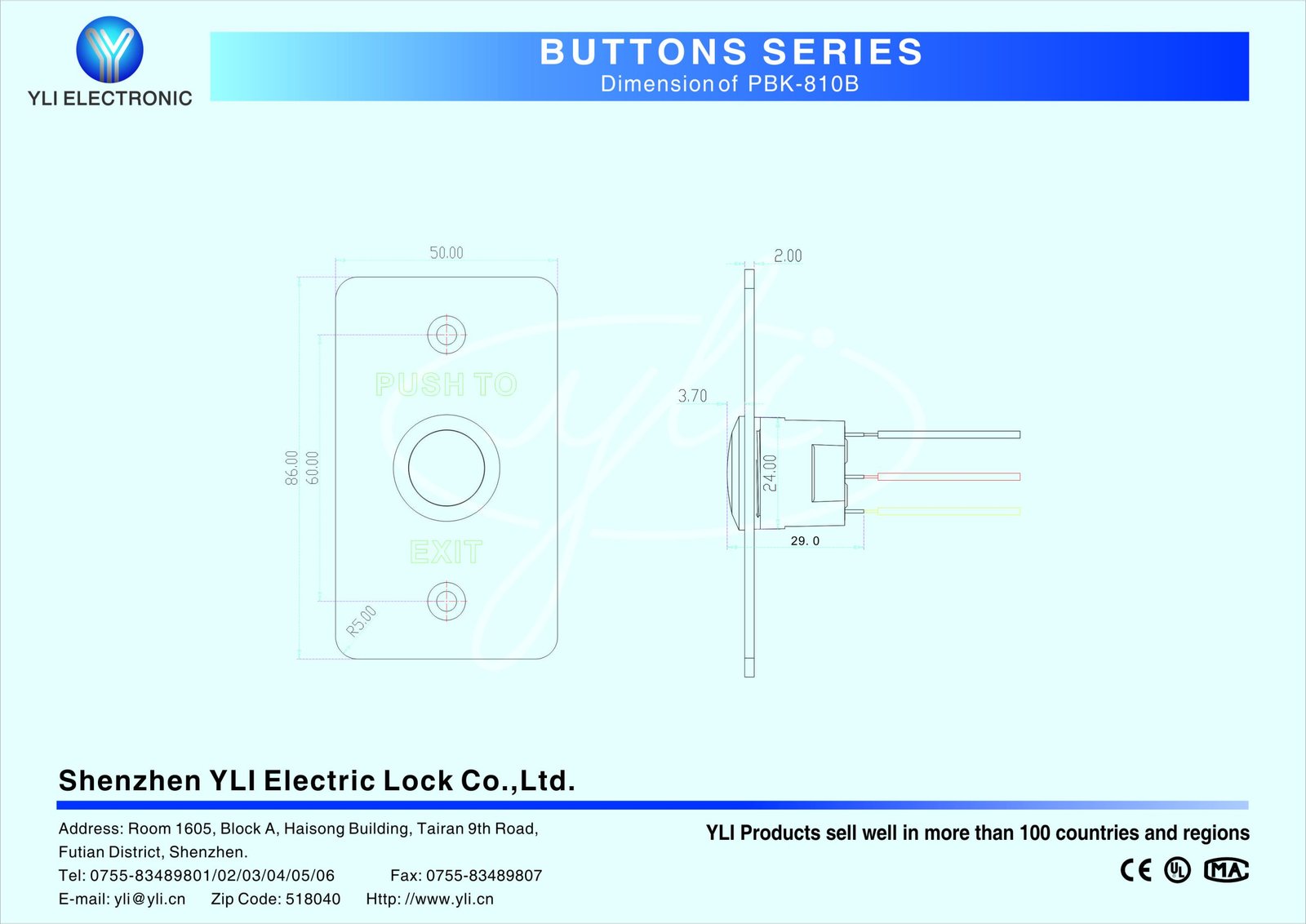

Dimension Diagram

Installation Diagram
