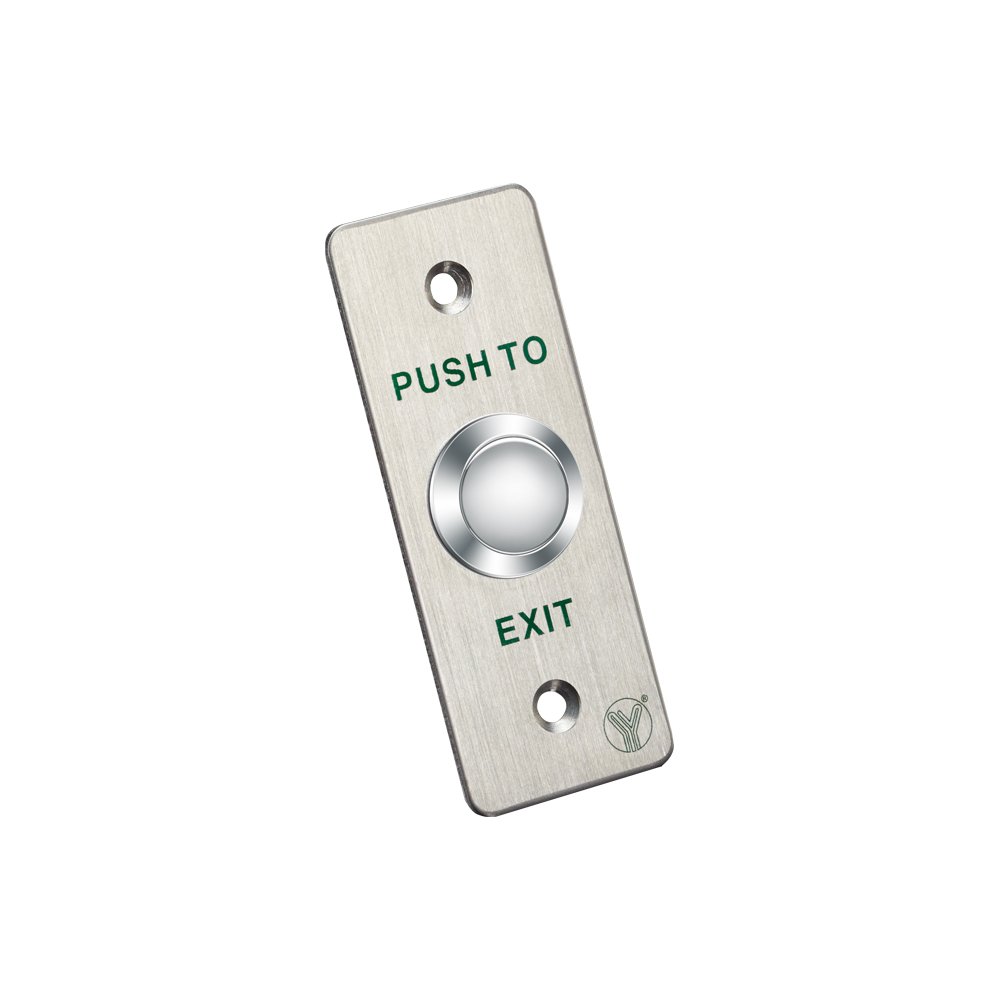

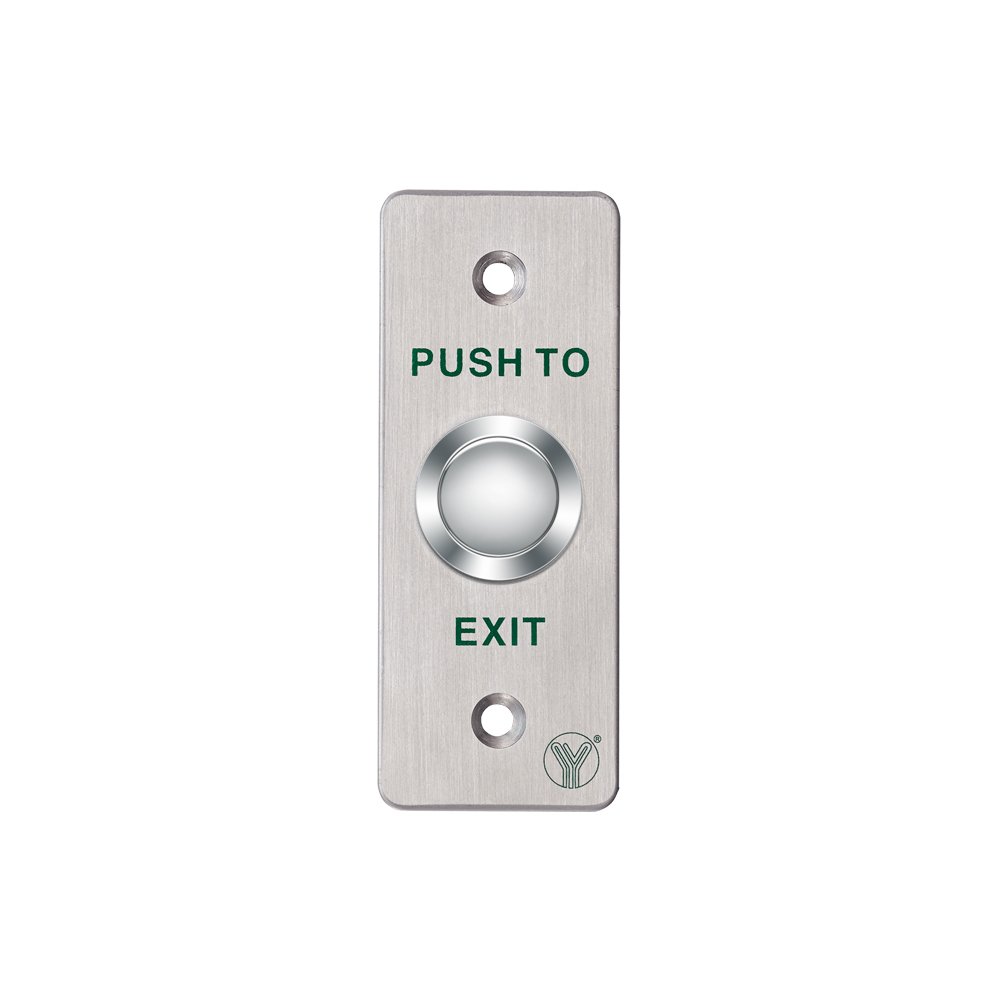

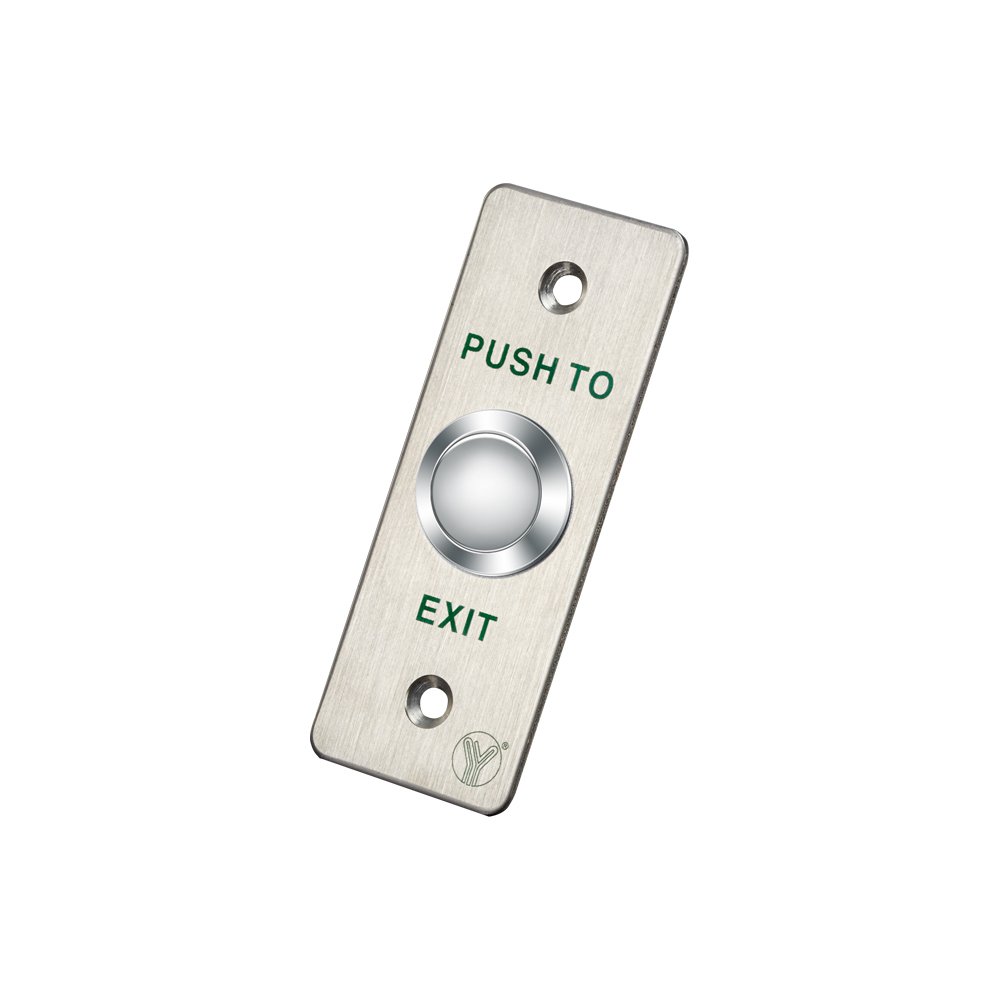

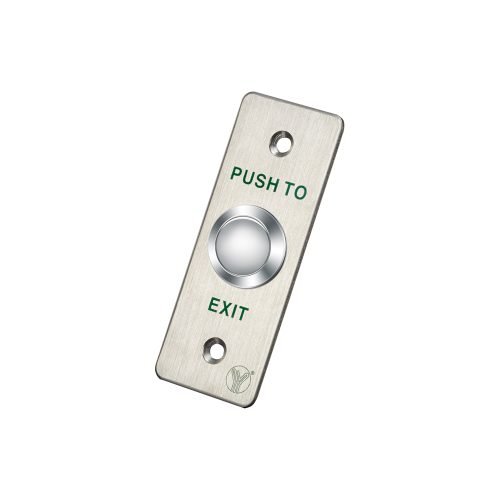

Door Release Button (Stainless steel)

PBK-810A is a stainless steel door release button with size of L90xW35xH29(mm), which is the most common and the most frequently used in the access control systems.

SKU: PBK-810A Categories: ,

Technical Parameter

Dimensions L90xW35xH29(mm)
Standard Structure 304 stainless steel panel and button
Current Rating 3A@36VDC MAX
Output Contact NO/NC/COM
Mechanical Life 500000 tests
Suitable for Door Hollow Door
Operating temp -10～+55℃(14-131F)
Operating Humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Weight 0.18kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

 Stainless Steel Panel with Elegant Style.

500000 Cycles tests.

Three Contact Output,Suitable for all kinds of Locks.

The Best Choice for Access Control.

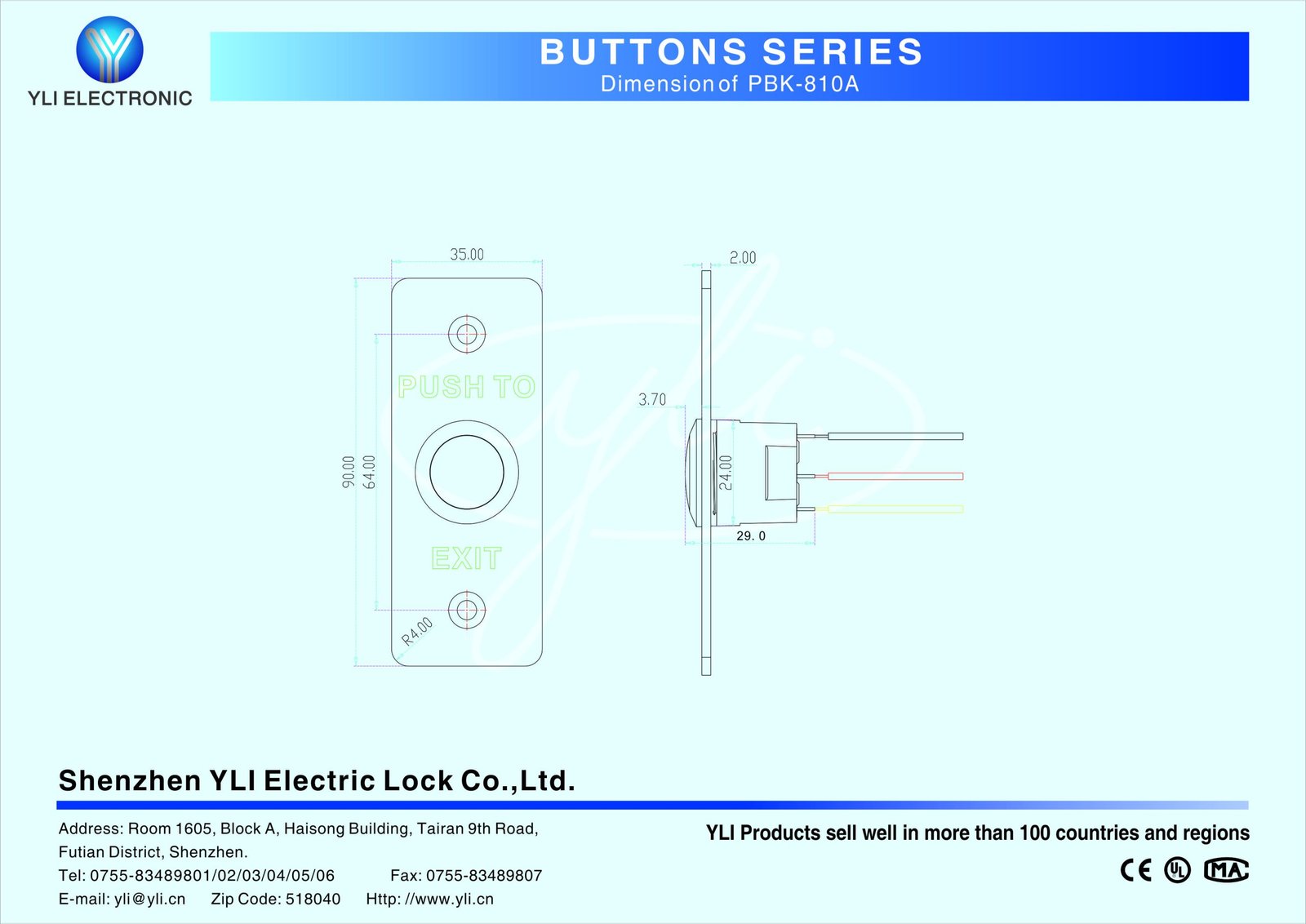

Dimension Diagram

Installation Diagram
