Technical Parameter
| Size | 65Lx32Wx13H(mm) |
| Holding Force | 35kg±10% |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 200mA |
| Waterproof Level | IP67 |
| Operating Temperature | -10~+55℃ |
| Suitable | File Cabinet ,Display Cabinet |
| Weight | 0.25KG |
| Certificate numbe | ECM 23 ATEX-B DN 89 |
| ATEX | II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |
Advantage
Collinear Load Test 40kg,88pounds.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

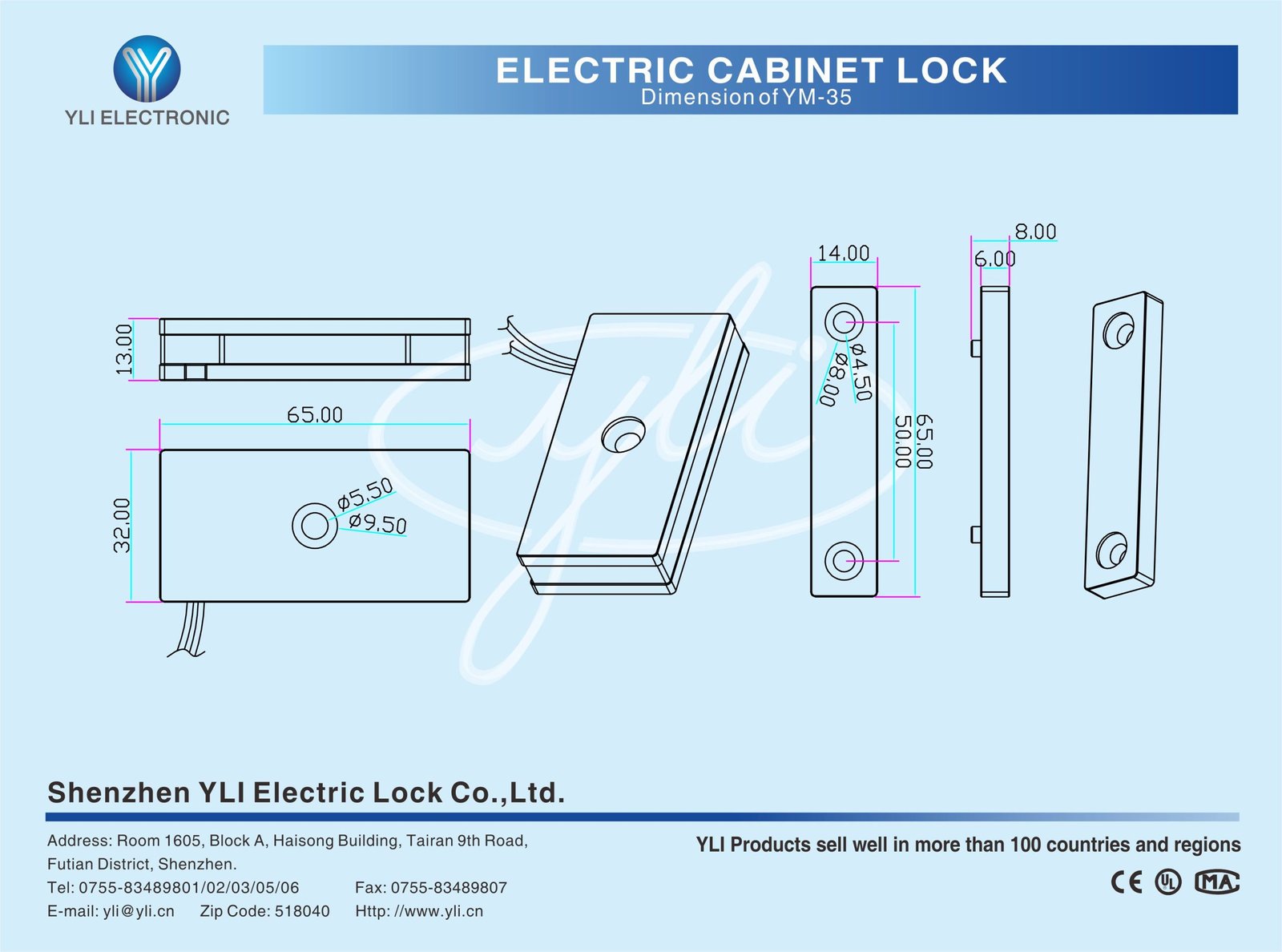

Dimension Diagram

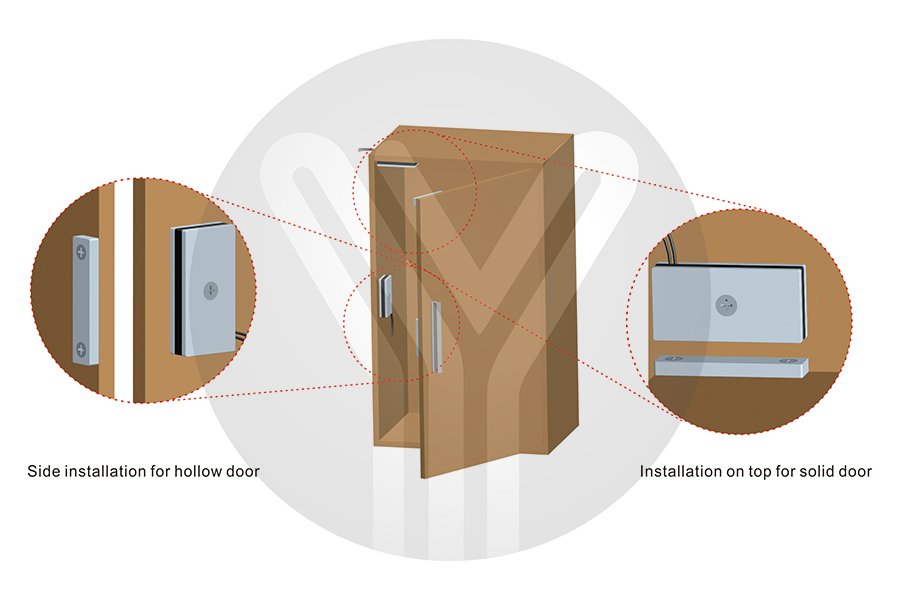

Installation Diagram
