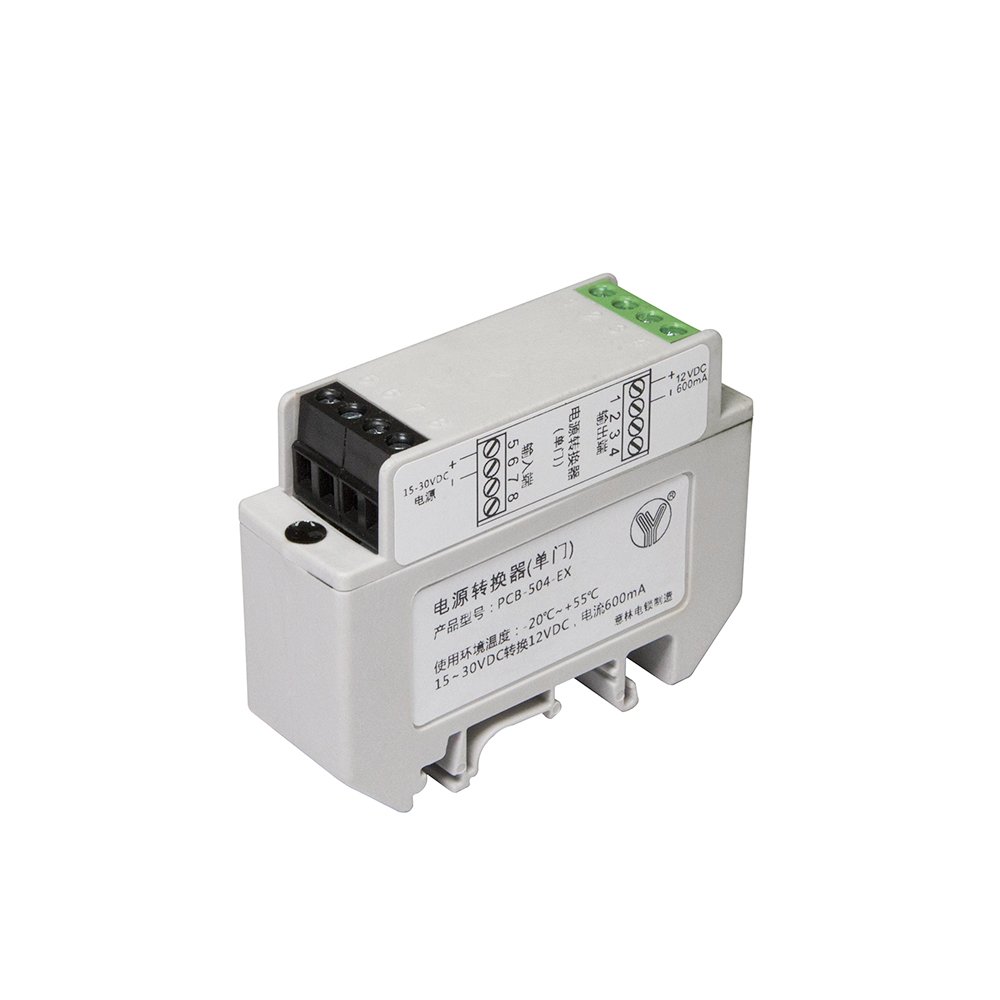

The power converter can convert 15~30VDC power input into 12VDC output for use with the electromagnetic lock safety barrier and explosion-proof electromagnetic lock. The explosion-proof electromagnetic lock power safety barrier is installed in the safe area or explosion-proof box and connected to the explosion-proof electromagnetic lock in the dangerous area.
| Dimensions | 73Lx56Wx23.5H(mm) |
| Uo | 10.8V |
| lo | 182mA |
| Co | 2.14μF |
| Lo | 1.07mH |
| Po | 0.49W |
| IS electrical parameters | Between terminal 1& 4, 2 & 4 ,between 3 & 4 |
| Operating temperature | -20℃~+55℃ |
| Weight | 0.15kg |
| Patent No | 202230622215.2 |
| Certificate numbe | ECM 23 ATEX-B DN 89 |
| ATEX | II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |
