Technical Parameter
| Dimensions | 119Lx75Wx40H(mm) |
| Suction plate size | Φ75x39.8(mm) |
| Voltage | 24VDC(Need order 12VDC) |
| Operating Current | 0.13A |
| Holding Force | 150kg |
| Maximum Power | 3W |
| IP Rating | IP65 |
| Accessory | cable PG9 Water Proof Conduit Pipe |
| Weight | 1.66kg |
Advantage

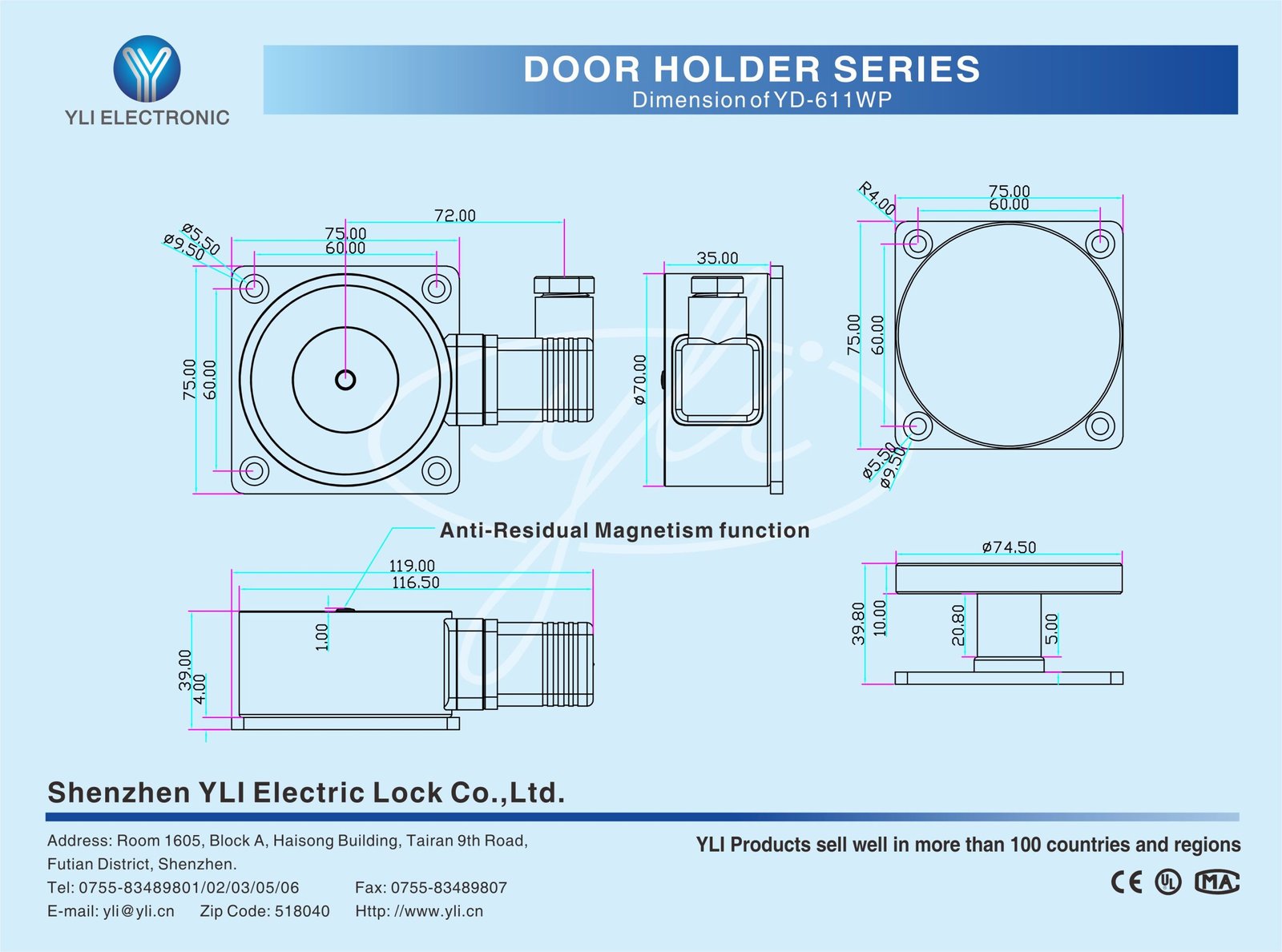

Dimension Diagram

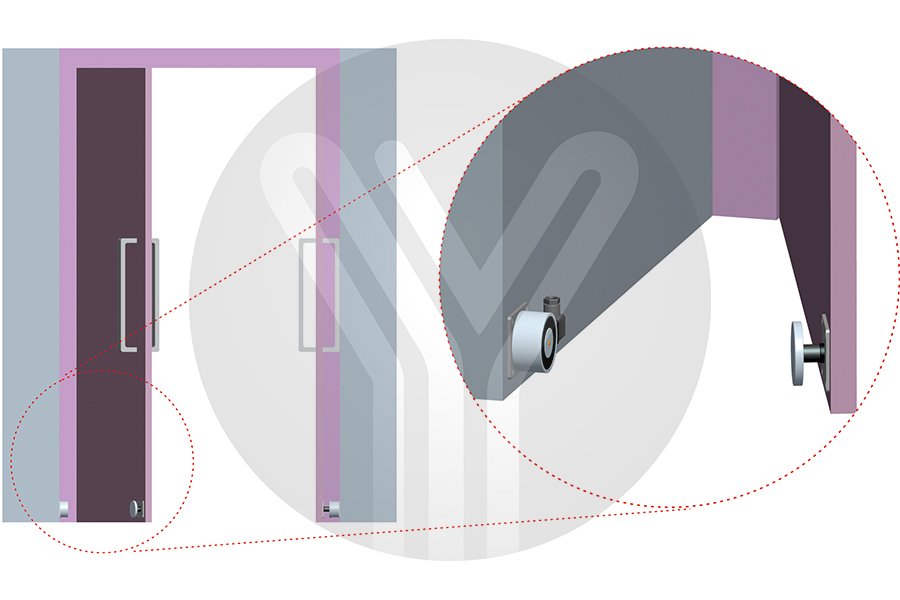

Installation Diagram
