Technical Parameter
Feature | Fail Safe |

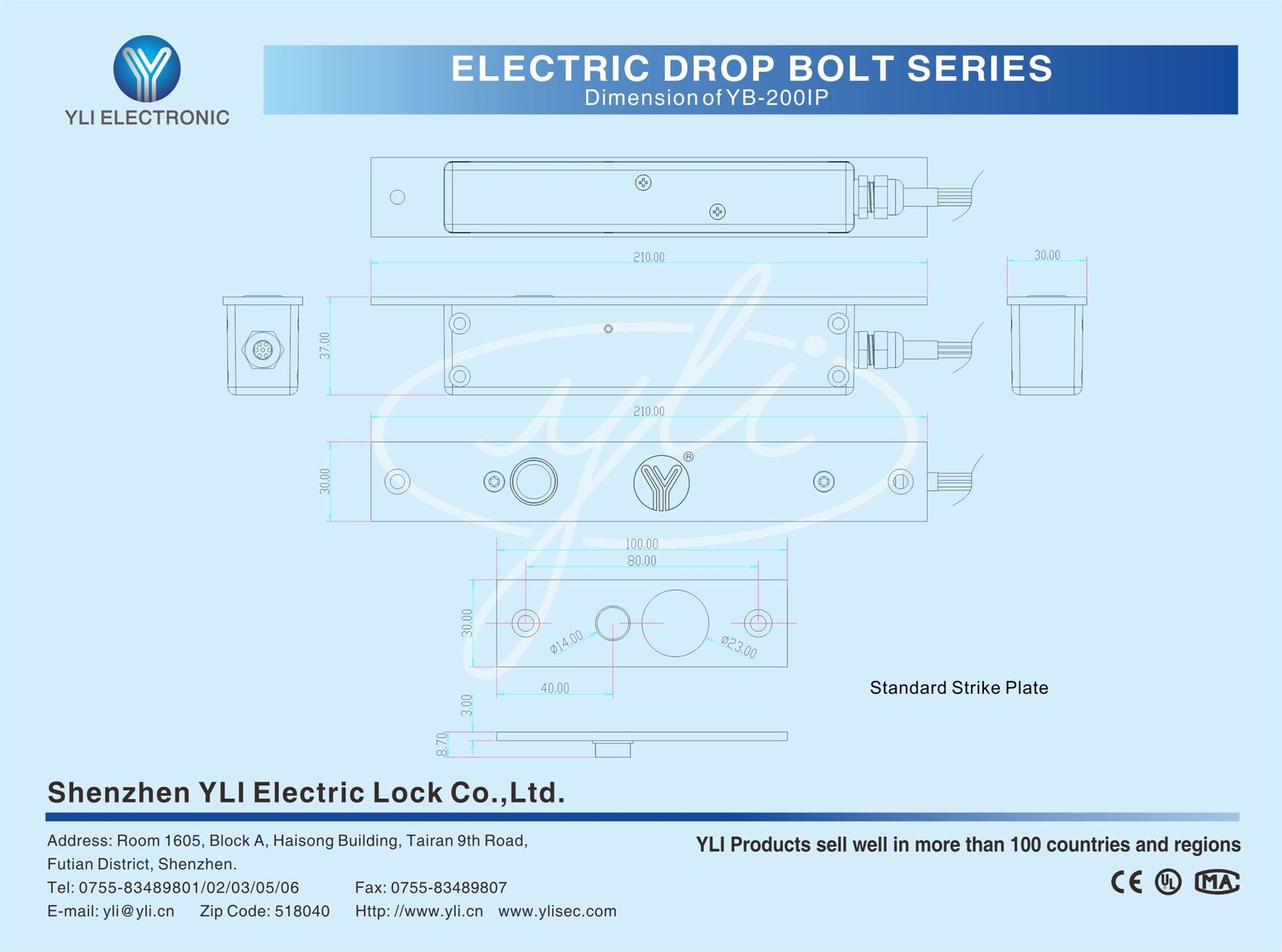

Face Plate | 220Lx30Wx37H(mm) |
Strike | 110Lx30Wx3H(mm) |
Decorative Panel | 220Lx35Wx0.7H(mm) |
Bolt | 16mmDIA,stainless steel 16mm throw |
Voltage | 12VDC(Need order 24VDC) |
Current | 500mA |
Solid Bolt | polishing housing, 800Kg Holding Force |

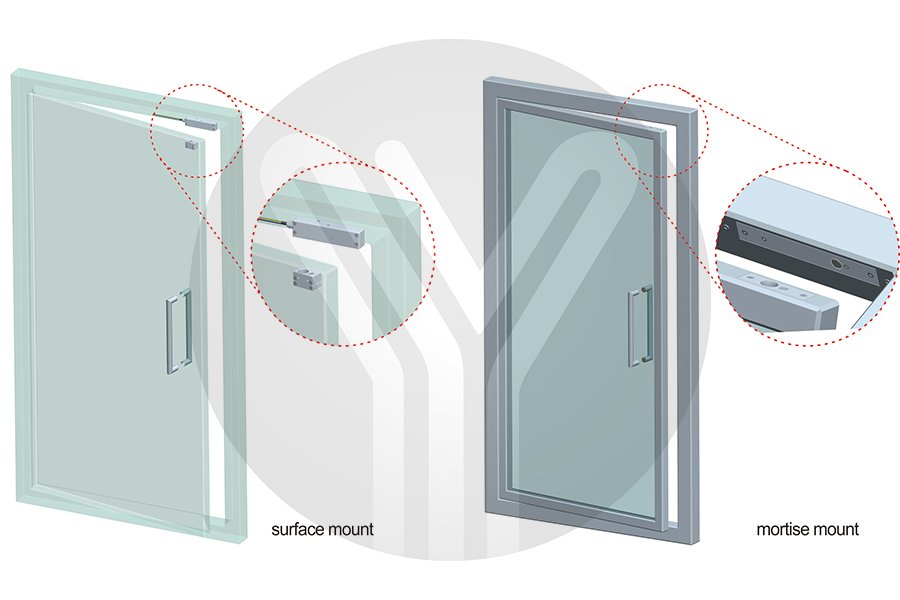

Suitable For | Wooden Door,Glass Door,Metal Door |

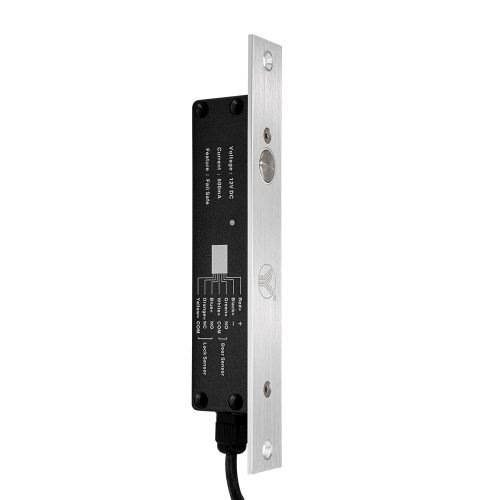

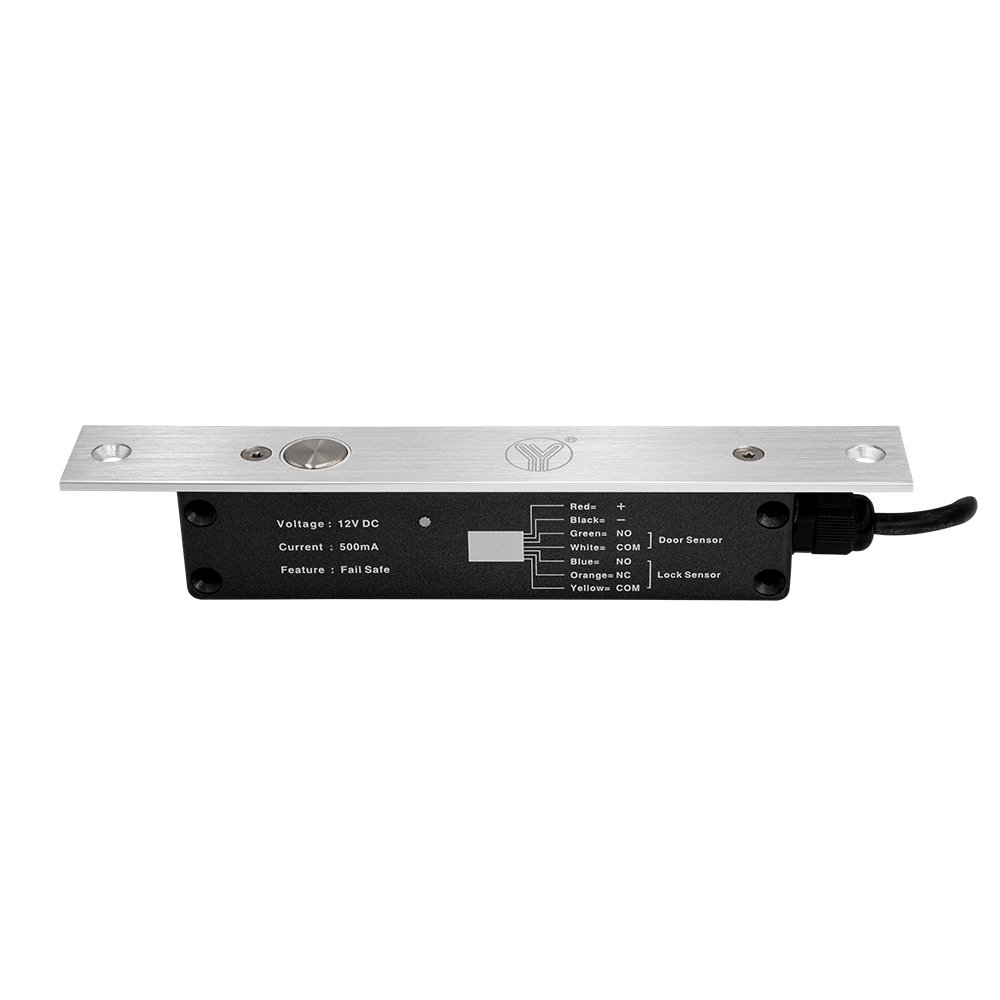

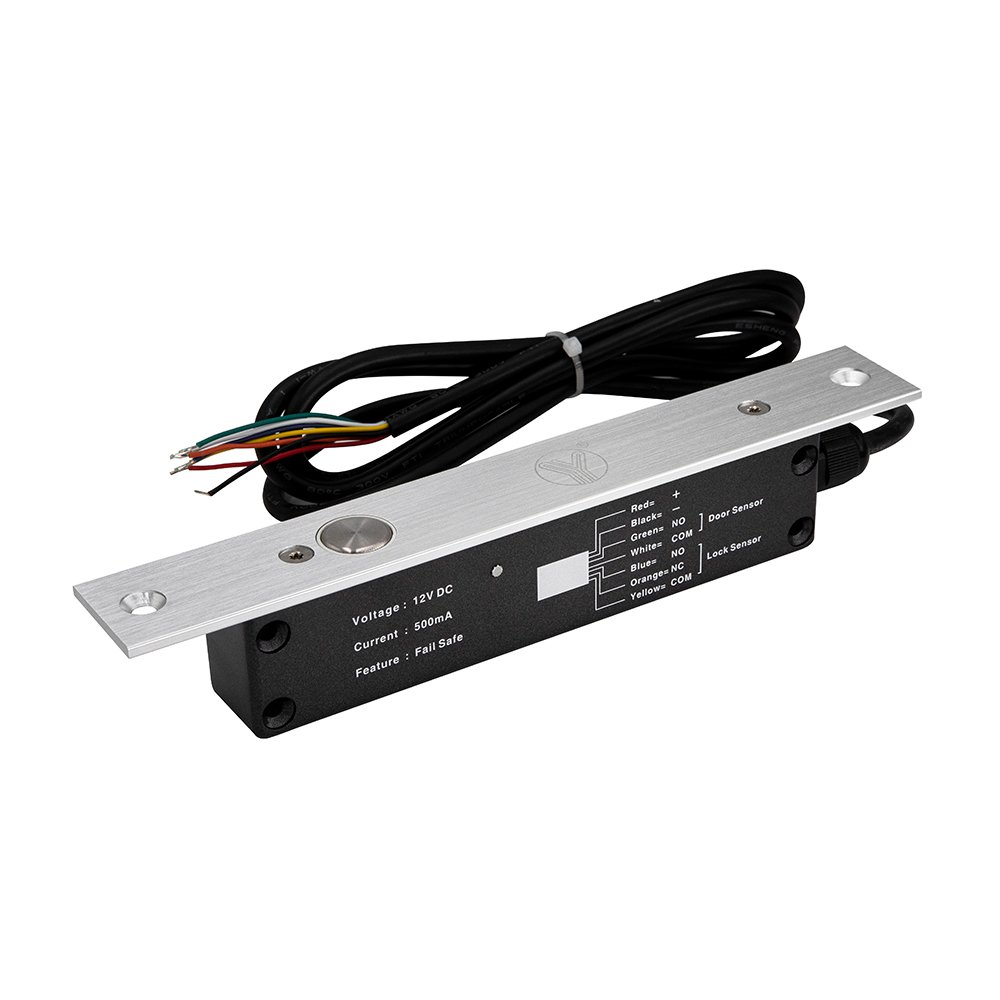

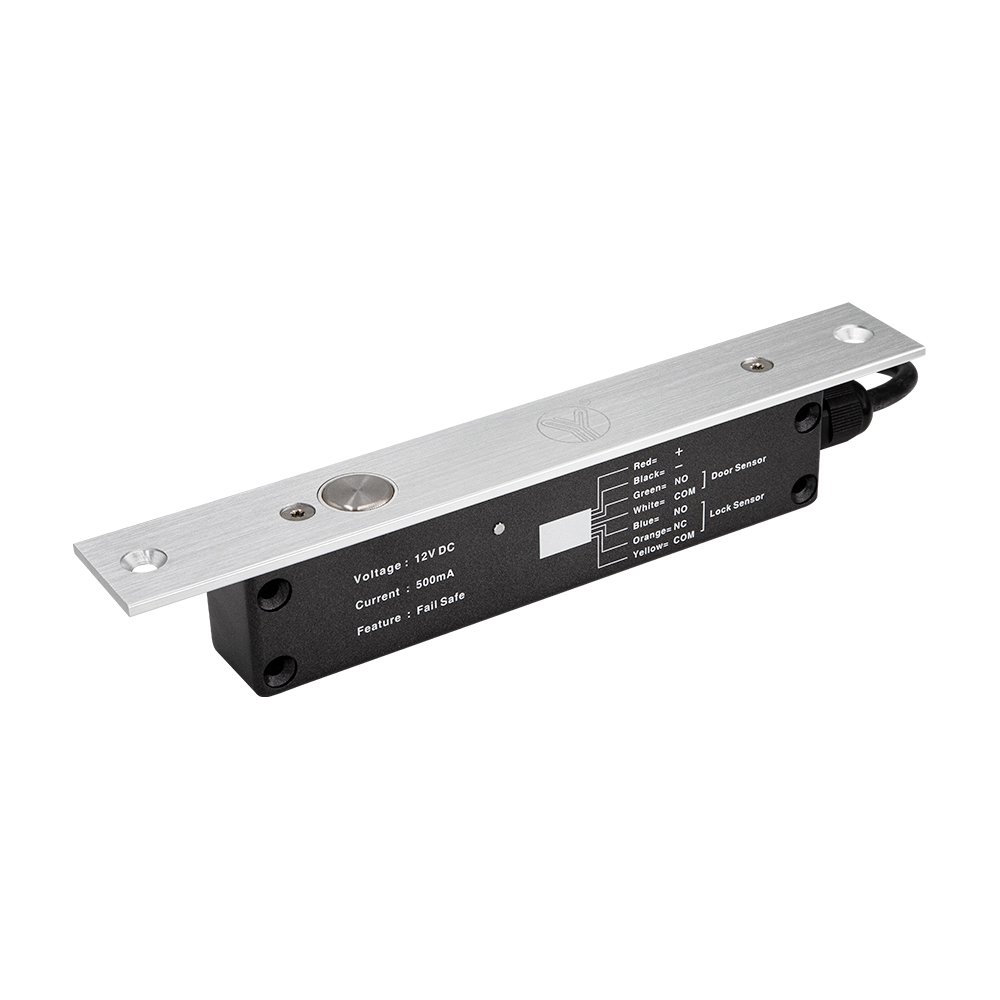

Signal Output | Door signal(NO/COM); Lock signal(NO/NC/COM) |
Waterproof Level | IP 66 |
Induction Distance | 8mm |
Weight | 0.6kg |
