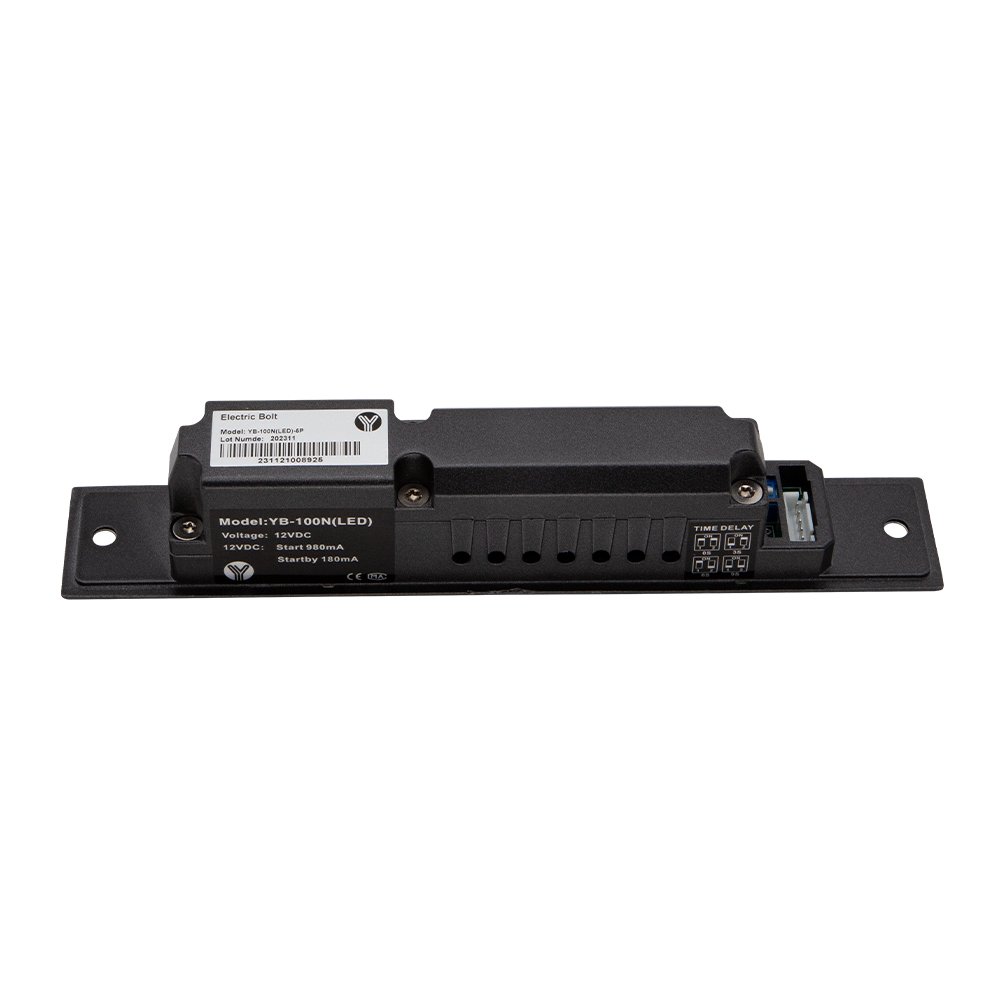

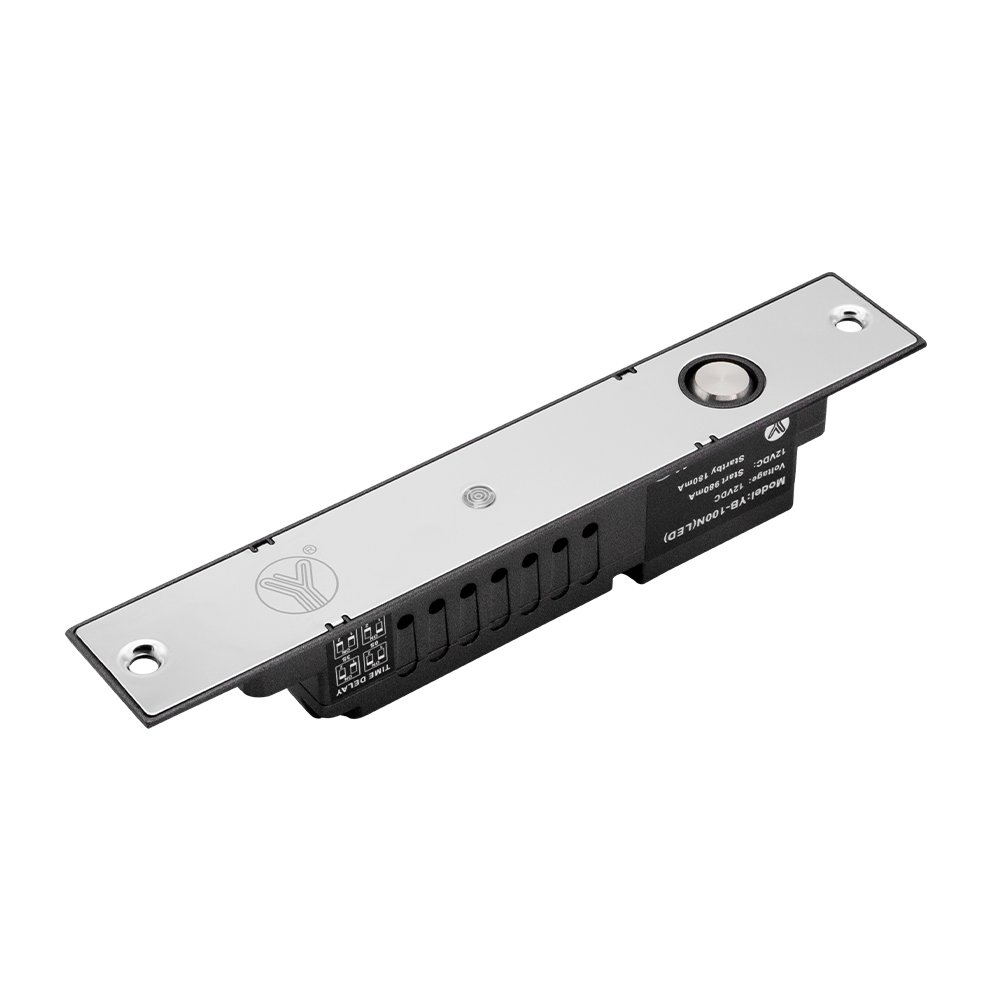

Multi-Functional Electric Bolt with Magnetic Sensor

YB-100N(LED) is a multi-functional fail safe electric bolt with double protection for loading current.suitable for glass door, wooden door, metal door . We supply integrated equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.

SKU: YB-100N(LED)-2P/YB-100N(LED)-5P/YB-100N(LED)-8P Category:

Technical Parameter

Feature Fail Safe
Face Plate 205Lx35Wx36.5H(mm)
Strike 90Lx25Wx2H(mm)
Voltage 12VDC/24VDC(Adjustable)
Current Start12V/ 980mA(+10%),Standby 12V/ 180mA
Start24V/ 650mA(+10%),Standby 24V/ 120mA
Signal Output 5 Line: Door Status Signal:NO、COM
8 Line:Door Status Signal:NO、COM ; Lock Status Signal:NO、NC、COM
LED Green for unlocking while red for locking
Induction Distance ≤8mm
Operating temp -25℃～+55℃(14~131F)
Operating Humidity 0～90%(non-condensing)
Suitable For Wooden Door,Glass Door,Metal Door
Patent Number ZL2021301764386
Weight 0.55kg

Advantage

Invasion resistant circuit,stop magnetic reed inspection automatically as locking and vandal resistant
Intelligent circuit,checking if locking properly
Time delay setting for automatic locking
LED shows status of lock
Horizontal or vertical installation
Diameter of stainless steel solid bolt is 16mm and 17.5mm as length
Decorating-plate-in lock body,easy installation

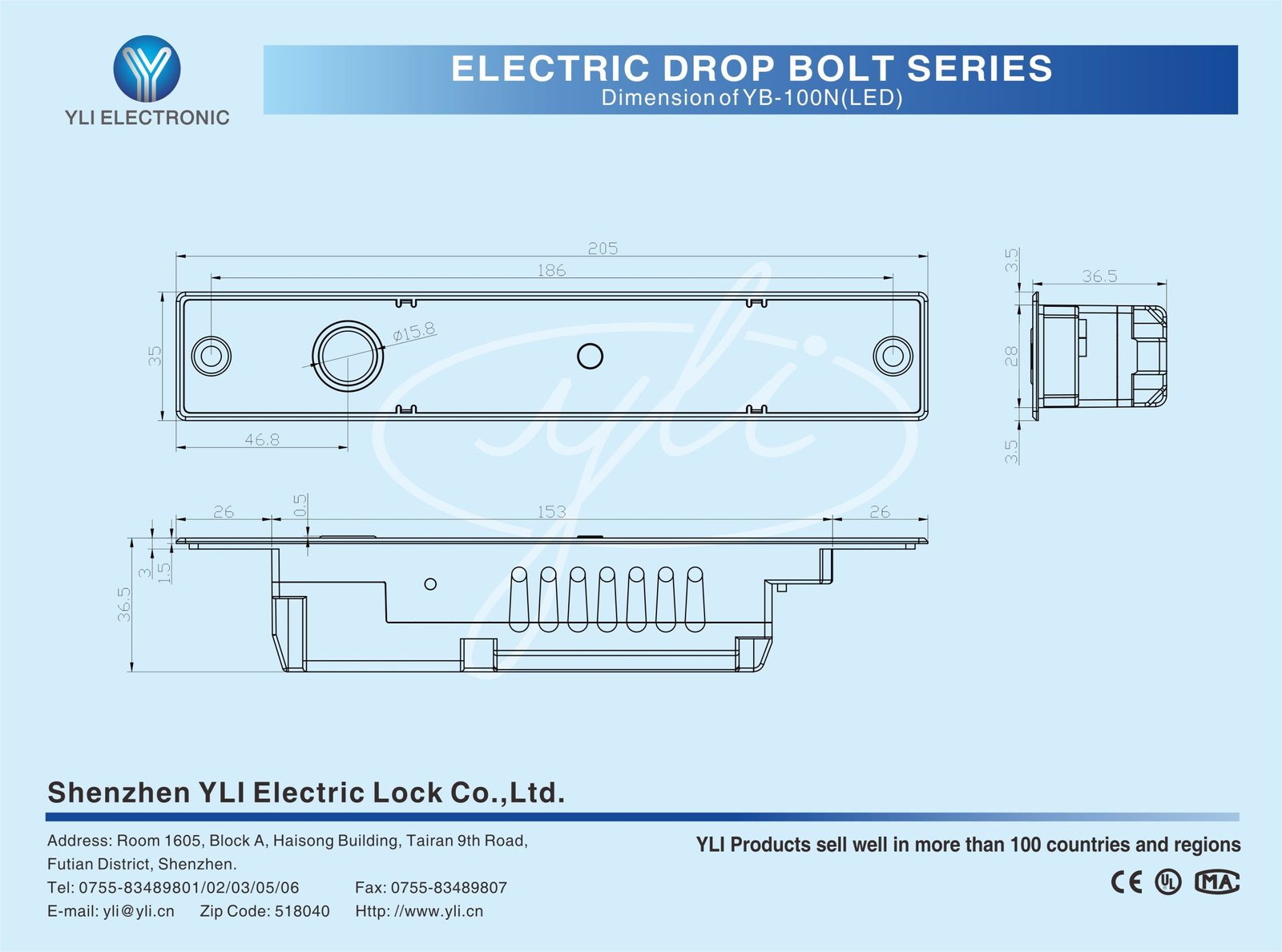

Dimension Diagram

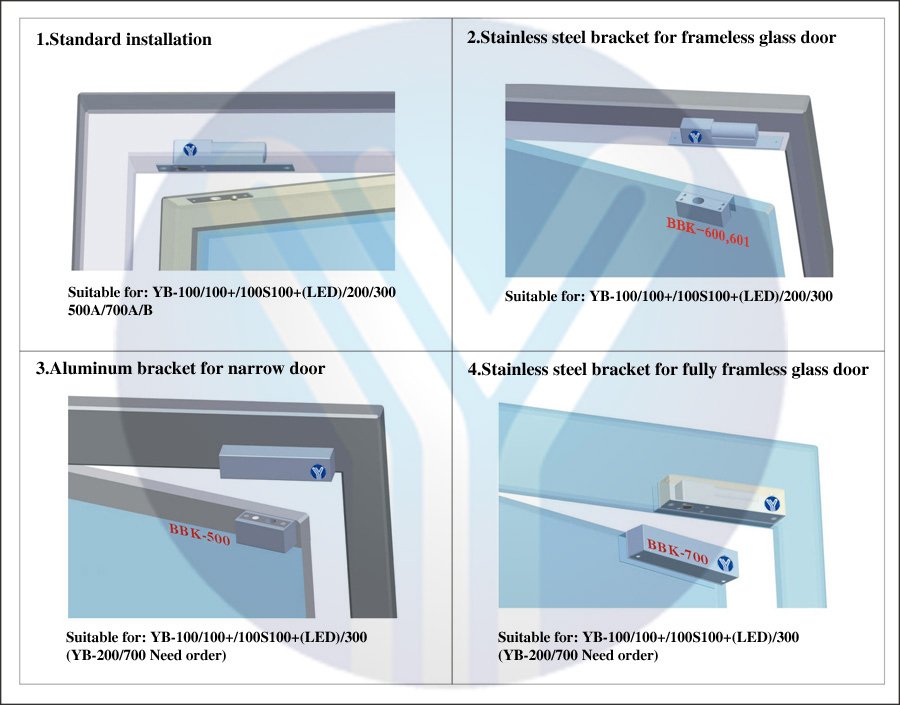

Installation Diagram
