Technical Parameter
Feature | Fail Secure |

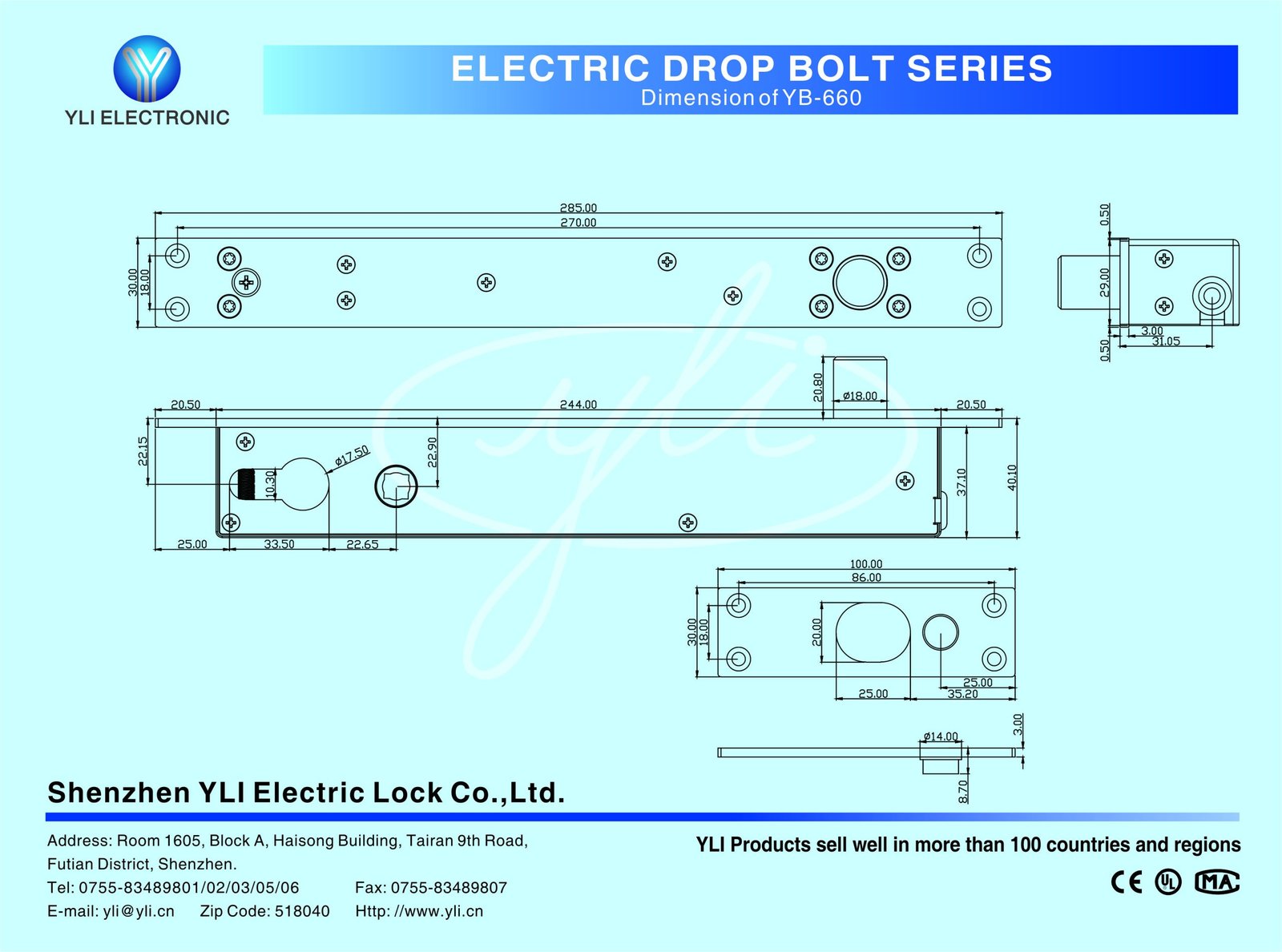

Lock Body | 285Lx30WX40.1H(mm) |
Magnetic Plate | 100Lx30Wx3H(mm) |
Bolt | 20.8(length)*18(diameter)(mm) |
Voltage | DC12V |
Start Current | 2200mA |
Standby Current | 400mA |
Suitable For | Wooden door , metal door , fireproof door , glass door |
Autolock Time Delay | 0,3,6,9sec |
Signal Output | Lock signal(NO/NC/COM);Door signal(NO/COM) |
Material | 304 stainless steel,wire draw finishing |
Induction Distance | Within 8mm |
Weight | 1.25kg |
