YB-800A to prevent the damage of the lock caused by the improper locking position. To align the position of the magnetic plate and the bolt in a short time, which can reduce the relock time of the electric bolt.YB-800A is an Fail Safe electric bolt with all-metal construction.with 304 stainless steel solid bolt and 2000kg holding force. The Door signal is NC.It can operate at the temperature of 60 ℃ or -40℃ below zero based on the all-metal linkage parts. With the diversified design of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
| Feature | Fail Safe |

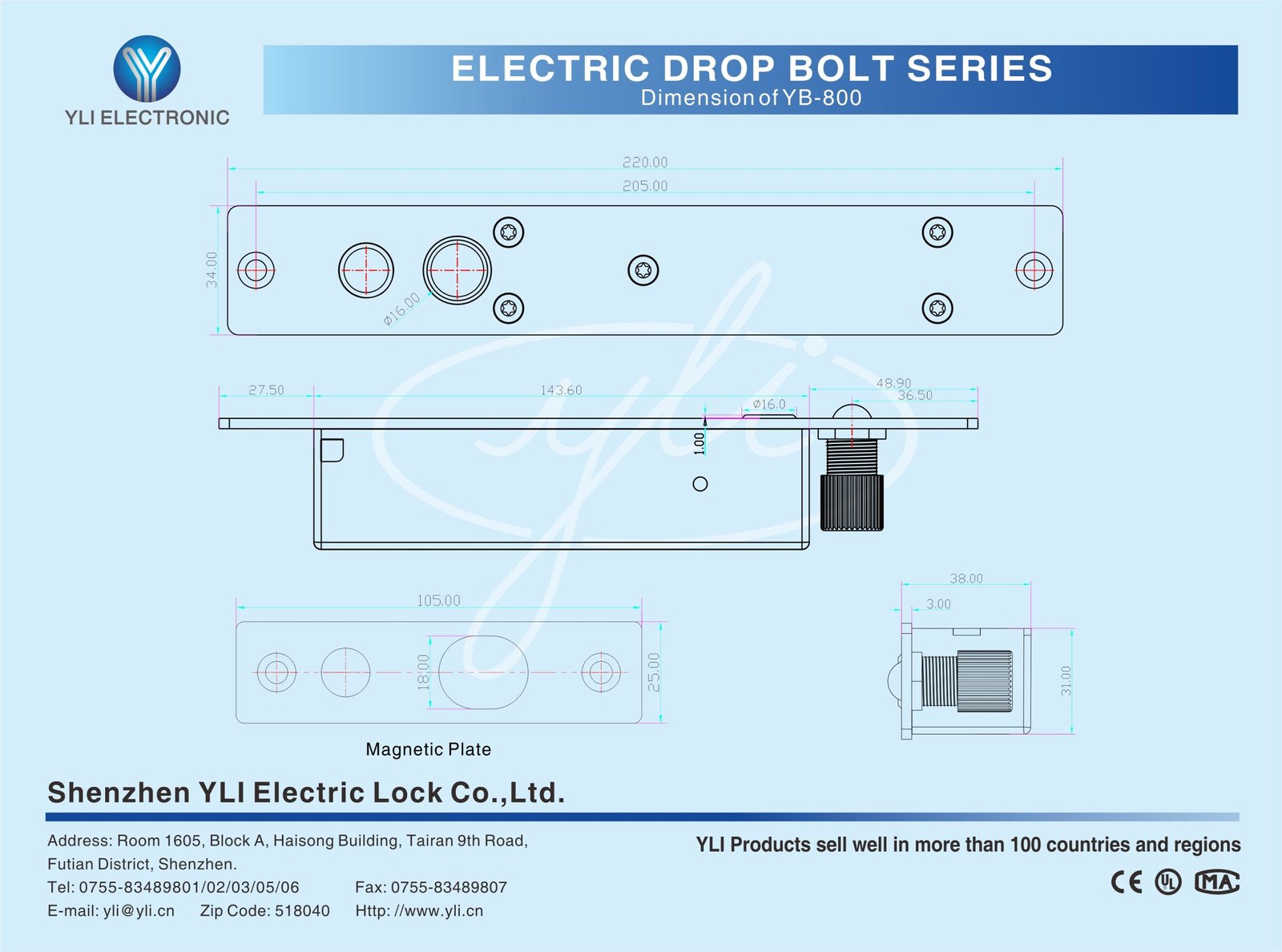

| Lock Body | 220Lx34Wx38H(mm) |
| Magnetic Plate | 105Lx25Wx3H(mm) |
| Bolt | 16(length) * 16(diameter)(mm) |
| Voltage | 12VDC±1 0 % |
| Start Current | 1200mA |
| Standby Current | 200mA |
| Signal Output | Door signal: NO/COM |
| Suitable For | Wooden door, metal door, fireproof door, glass door |
| Detection Distance | Within 8mm |
| Material | 304 stainlesssteel , wire draw finishing |
| Weight | 1.0kg |
| Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
