Technical Parameter
Feature | Fail Safe |

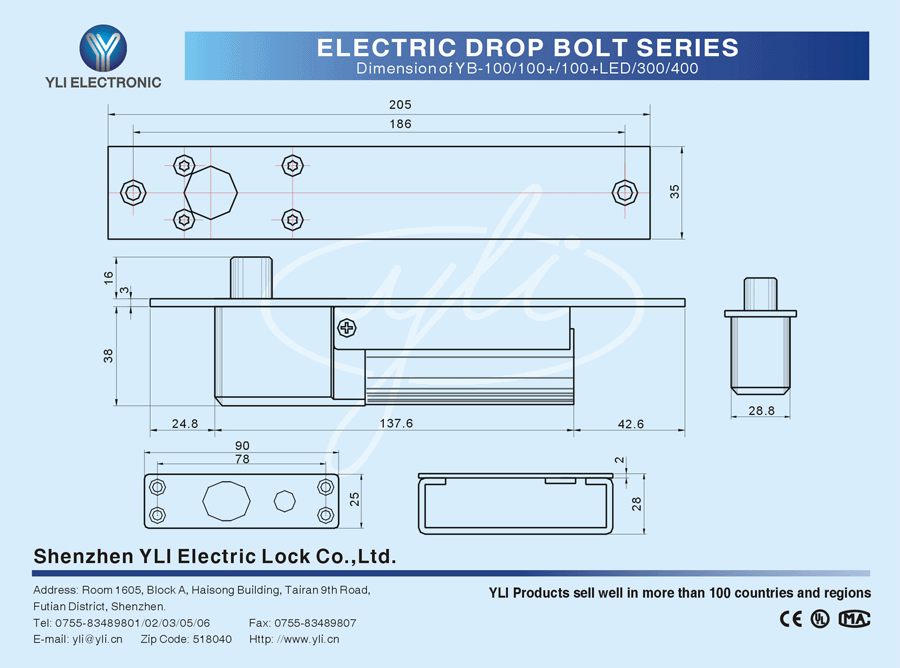

Face Plate | 205Lx35WX41H(mm) |
Strike | 90Lx25Wx2H(mm) |
Voltage | DC12V-DC24V |
Start Current | 12V/900mA,24V/730mA |
Standby Current | 12V/100mA,24V/70mA |
Solid Bolt | polishing housing, 800Kg Holding Force |
Suitable For | Wooden Door,Glass Door,Metal Door |
Autolock Time Delay | 0,3,6,9sec |
Signal Output | Door status Output,NO/COM |
Surface Temp | Low Temperature |
Induction Distance | 8mm |
Operating temp | -10~+55℃(14~131F) |
Operating Humidity | 0~90%(non-condensing) |
Special Designed | Tested to 500000 operations |
Face place material | High Aluminum |
Weight | 0.74kg |
Certificate | MA CE-EMC CE-LVD FCC-VOC REACH WEEE |
